1. પરિચય
This manual provides essential information for the safe and efficient operation of your Tripp Lite PV150 150W Ultra-Compact Car Power Inverter. This device converts 12V DC power from your vehicle's accessory outlet into 120V AC household current, allowing you to power various electronic devices on the go. Please read all instructions carefully before use.
2. સલામતી માહિતી
ઇન્વર્ટર અથવા કનેક્ટેડ ઉપકરણોને ઇજા કે નુકસાન અટકાવવા માટે હંમેશા નીચેની સલામતી સાવચેતીઓનું પાલન કરો:
- ઇન્વર્ટર ખોલશો નહીં casing. અંદર કોઈ વપરાશકર્તા-સેવાયોગ્ય ભાગો નથી.
- Ensure proper ventilation. Do not cover the inverter or place it in an enclosed space during operation.
- ઇન્વર્ટરને પાણી, ભેજ અને જ્વલનશીલ પદાર્થોથી દૂર રાખો.
- Do not connect the inverter to AC power sources.
- Always connect the inverter to a 12V DC vehicle accessory outlet only.
- Do not exceed the inverter's rated output power (150W continuous, 300W peak).
- Disconnect the inverter from the vehicle's power source when not in use.
3. ઉત્પાદન ઓવરview
The Tripp Lite PV150 is an ultra-compact power inverter designed for portability and convenience. It features a rugged all-metal housing for durability and efficient heat dissipation.
મુખ્ય લક્ષણો:
- 150 watts continuous output power; up to 300 watts instantaneous peak power.
- One (1) standard 120V AC outlet.
- Convenient cigarette lighter plug for easy connection.
- Automatic low-battery shutdown to prevent vehicle battery drain.
- Overload and short-circuit protection.

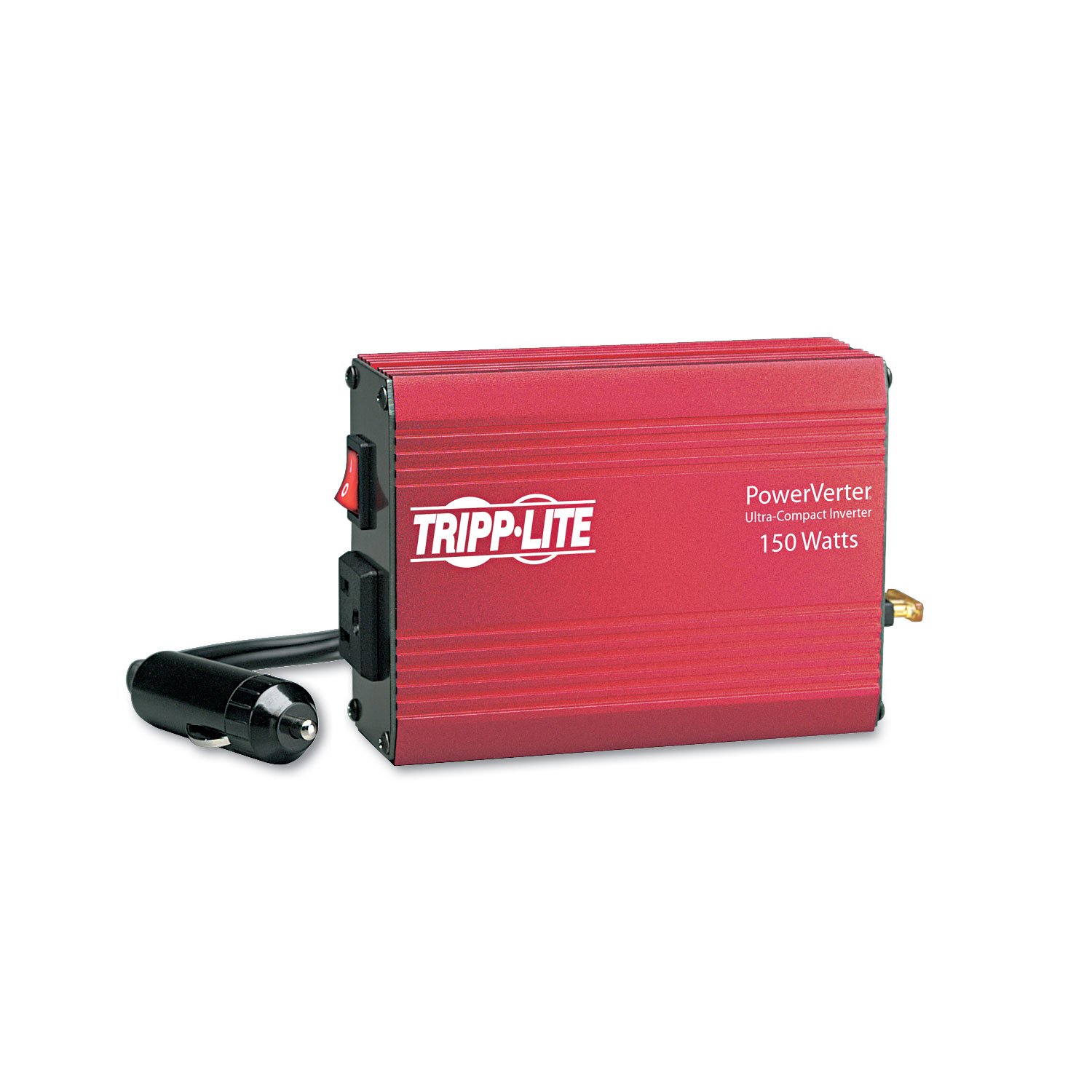

આકૃતિ 1: ટોચ view of the Tripp Lite PV150 inverter, showing the brand logo and wattagઇ રેટિંગ.
આકૃતિ 2: ફ્રન્ટ view of the inverter, highlighting the single 120V AC outlet and the power switch.
આકૃતિ 3: પાછળ view of the inverter, showing the integrated cigarette lighter plug and the fuse compartment.
4. સેટઅપ
Follow these steps to set up your PV150 inverter:
- Ensure your vehicle's engine is running or the ignition is in the accessory position to provide power to the accessory outlet.
- Insert the inverter's cigarette lighter plug firmly into your vehicle's 12V accessory outlet.
- Flip the power switch on the inverter to the 'ON' position. The indicator light should illuminate.
- Plug your 120V AC device into the inverter's AC outlet.
મહત્વપૂર્ણ: Before plugging in any device, ensure its power consumption does not exceed 150 watts continuously or 300 watts peak. Overloading the inverter can cause it to shut down or damage the unit.
5. ઓપરેટિંગ સૂચનાઓ
Once set up, operating the PV150 inverter is straightforward:
- પાવરિંગ ઉપકરણો: Connect your AC-powered device to the inverter's outlet. Turn on the inverter, then turn on your device.
- દેખરેખ: The inverter features an automatic low-battery shutdown to protect your vehicle's battery. If the vehicle battery voltage drops too low, the inverter will automatically turn off. This ensures you retain enough power to start your vehicle.
- ઓવરલોડ પ્રોટેક્શન: If a connected device draws too much power, the inverter will shut down to prevent damage. Disconnect the device, turn the inverter off and then on again to reset.
- ઠંડક: The all-metal housing acts as a heatsink. Ensure adequate airflow around the inverter during operation.
Video 1: Tripp Lite Informational Video. This video provides an overview of the PV150 inverter's features and benefits, including its 150W continuous output and low-battery shutdown.
6. જાળવણી
The Tripp Lite PV150 inverter requires minimal maintenance:
- ઇન્વર્ટરને સ્વચ્છ અને ધૂળ અને કાટમાળથી મુક્ત રાખો. સફાઈ માટે સૂકા કપડાનો ઉપયોગ કરો.
- Periodically check the cigarette lighter plug and the AC outlet for any signs of damage or corrosion.
- Ensure the fuse is intact. The fuse is located near the cigarette lighter plug connection. Refer to the specifications for the correct fuse type if replacement is needed.
7. મુશ્કેલીનિવારણ
If you encounter issues with your PV150 inverter, refer to the following common problems and solutions:
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| ઇન્વર્ટર ચાલુ થતું નથી. | No power from vehicle outlet; loose connection; blown fuse; low vehicle battery. | Check vehicle accessory outlet; ensure firm connection; replace fuse if necessary; start vehicle engine to charge battery. |
| ઓપરેશન દરમિયાન ઇન્વર્ટર બંધ થઈ જાય છે. | Overload; low vehicle battery; overheating. | Reduce connected load; start vehicle engine to charge battery; ensure adequate ventilation around inverter. |
| કનેક્ટેડ ડિવાઇસ કામ કરતું નથી. | Device power consumption too high; device malfunction; modified sine wave incompatibility. | Check device wattage; test device with standard AC outlet; some sensitive electronics may not operate correctly with modified sine wave inverters. |
8. સ્પષ્ટીકરણો
| લક્ષણ | સ્પષ્ટીકરણ |
|---|---|
| બ્રાન્ડ | ટ્રીપ લાઇટ |
| મોડલ નંબર | PV150 |
| આઉટપુટ પાવર (સતત) | 150 વોટ્સ |
| પીક આઉટપુટ પાવર | 300 વોટ્સ |
| ઇનપુટ વોલ્યુમtage | 12 વોલ્ટ (DC) |
| આઉટપુટ વોલ્યુમtage | 120 વોલ્ટ (AC) |
| આઉટલેટ્સની સંખ્યા | 1 |
| ઇલેક્ટ્રિકલ આઉટપુટ વેવફોર્મ | સંશોધિત સાઈન વેવ |
| વસ્તુનું વજન | 1.2 પાઉન્ડ |
| Energy Specifications Met | એફસીસી, યુ.એલ. |
9. વોરંટી માહિતી
This Tripp Lite product is covered by a 30-day warranty from the manufacturer. Please note that the warranty does not cover misuse of the product. For specific warranty claims or details, please refer to the documentation included with your purchase or contact Tripp Lite customer support.
10. ગ્રાહક આધાર
For technical assistance, troubleshooting, or warranty inquiries, please visit the official Tripp Lite website or contact their customer support department. Contact information can typically be found on the product packaging or the manufacturer's webસાઇટ
