પરિચય
The JAZZ DV173 is a versatile multi-function digital device designed for capturing memories. It functions as a digital still camera, a digital video camcorder, a PC webcam, a mass storage device, and a voice recorder. This manual provides instructions for proper setup, operation, and maintenance of your DV173 camera.

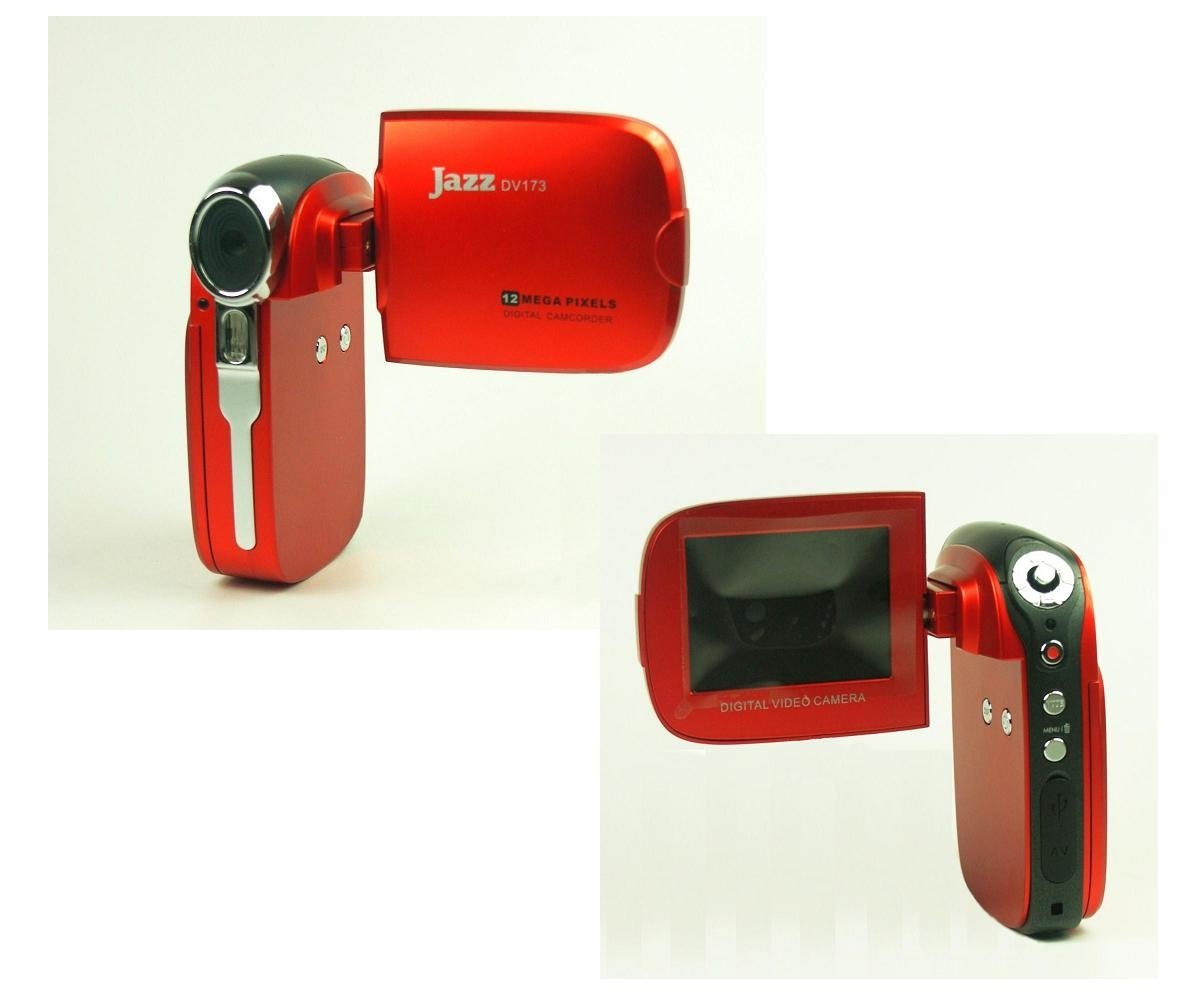

Figure 1: JAZZ DV173 Digital Video Camera. This image shows the compact design of the camera with its 2.4-inch TFT LCD flip-up display open.
સેટઅપ
1. બેટરી ઇન્સ્ટોલેશન
The DV173 camera requires three AAA batteries (not included). Ensure correct polarity when inserting the batteries.
- Locate the battery compartment cover on the camera.
- કવર ખોલીને સ્લાઇડ કરો.
- Insert three AAA batteries, matching the (+) and (-) terminals as indicated inside the compartment.
- બેટરી કમ્પાર્ટમેન્ટ કવર સુરક્ષિત રીતે બંધ કરો.
2. મેમરી કાર્ડ ઇન્સ્ટોલેશન
The camera supports SD/MMC memory cards up to 8GB capacity (card not included). A memory card is essential for storing photos and videos.
- Locate the SD/MMC card slot on the side of the camera.
- Insert the memory card with the metal contacts facing down, until it clicks into place.
- To remove the card, gently push it in until it springs out.
3. પ્રારંભિક પાવર ચાલુ
After installing batteries and a memory card, press and hold the power button to turn on the camera. The 2.4" Color TFT LCD display will illuminate.
ઓપરેટિંગ સૂચનાઓ
1. મૂળભૂત નિયંત્રણો
Familiarize yourself with the camera's buttons and the 2.4" LTPS TFT LCD flip-up display. The display can be rotated 270 degrees for various viewખૂણો
2. Taking Still Photos
To capture still images:
- કેમેરા ચાલુ કરો.
- Select the "Digital Still" mode using the mode button.
- LCD ડિસ્પ્લેનો ઉપયોગ કરીને તમારા શોટને ફ્રેમ કરો.
- Press the shutter button to take a picture. The camera has a 12.0 Mega Pixels resolution.
- Use the 4X digital zoom to adjust your view.
3. રેકોર્ડિંગ વિડિઓઝ
વિડિઓ ક્લિપ્સ રેકોર્ડ કરવા માટે:
- કેમેરા ચાલુ કરો.
- Select the "Video Recording" mode.
- રેકોર્ડિંગ શરૂ કરવા માટે રેકોર્ડ બટન દબાવો.
- Press the record button again to stop recording. Videos are saved in AVI format with 720p resolution.
4. પ્લેબેક
થી view તમારા કેપ્ચર કરેલા ફોટા અને વિડિઓઝ:
- પ્લેબેક મોડ દાખલ કરો.
- Use the navigation buttons to browse through your files.
- માટે પ્લે બટન દબાવો view વીડિયો
5. Connecting to a Computer (PC Webcam & Mass Storage)
The camera can connect to a computer via USB 2.0.
- Mass Storage Device: Connect the camera to your PC using the provided USB cable. The camera will appear as a removable disk, allowing you to transfer files.
- PC Webકેમ: Select "PC Camera" mode on the device when connected to a computer to use it as a webકamમ.
6. Connecting to a Television (AV Out)
તમે કરી શકો છો view your media on a television using the AV Out port and cable.
- Connect the AV cable to the camera's AV Out socket and to the corresponding input on your television.
- તમારા ટેલિવિઝન પર યોગ્ય AV ઇનપુટ ચેનલ પસંદ કરો.
- The camera display will mirror on your TV screen.
7. વોઇસ રેકોર્ડિંગ
The DV173 includes a voice recorder function for capturing audio notes. Files WAV ફોર્મેટમાં સાચવવામાં આવે છે.
- Select "Voice Recording" mode.
- રેકોર્ડિંગ ઓડિયો શરૂ કરવા માટે રેકોર્ડ બટન દબાવો.
- રોકવા માટે ફરીથી રેકોર્ડ બટન દબાવો.
જાળવણી
1. કેમેરા સાફ કરવો
- કેમેરા બોડી સાફ કરવા માટે નરમ, સૂકા કપડાનો ઉપયોગ કરો.
- For the lens and LCD screen, use a specialized lens cleaning cloth and solution if necessary. Avoid harsh chemicals.
2. બેટરી કેર
- જો કેમેરા લાંબા સમય સુધી ઉપયોગમાં ન લેવાનો હોય તો લીકેજ અટકાવવા માટે બેટરીઓ દૂર કરો.
- Replace all three AAA batteries simultaneously for optimal performance.
3. સંગ્રહ
Store the camera in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided camera pouch for protection.
મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| કેમેરા ચાલુ થતો નથી. | Batteries are drained or incorrectly inserted. | યોગ્ય ધ્રુવીયતા સુનિશ્ચિત કરીને, તાજી AAA બેટરીથી બદલો. |
| ફોટા/વિડિયો લઈ શકાતા નથી. | મેમરી કાર્ડ ભરેલું છે, દાખલ કરેલું નથી, અથવા દૂષિત છે. | Insert a compatible SD/MMC card, delete unnecessary files, અથવા કાર્ડ ફોર્મેટ કરો (આ બધો ડેટા ભૂંસી નાખશે). |
| નબળી છબી/વિડિઓ ગુણવત્તા. | Insufficient lighting, dirty lens, or digital zoom used excessively. | Ensure adequate lighting. Clean the lens. Avoid over-reliance on digital zoom. |
| ફ્લેશ કામ કરી રહી નથી. | Flash setting is off or batteries are low. | Check flash settings in the menu. Replace batteries. |
| પીસી દ્વારા કેમેરા ઓળખાયો નથી. | Incorrect USB mode, faulty cable, or driver issue. | Ensure "Mass Storage" or "PC Camera" mode is selected on the camera. Try a different USB port or cable. Install drivers from the included CD if necessary. |
વિશિષ્ટતાઓ
- મોડલ: DV173
- Digital Camera Modes: Video Recording, Digital Still, PC Camera, Voice Recording, Mass Storage
- છબી રીઝોલ્યુશન: Me. P મેગા પિક્સેલ્સ
- વિડિઓ રિઝોલ્યુશન: 720p
- ડિજિટલ ઝૂમ: 4X
- ડિસ્પ્લે સ્ક્રીન: 2.4" Color TFT LCD (LTPS technology, 270-degree hinged flip)
- આંતરિક મેમરી: 32 એમબી
- બાહ્ય મેમરી: SD/MMC Card Slot (up to 8GB capacity)
- File ફોર્મેટ્સ: AVI (Video), JPEG (Still Image), WAV (Audio)
- યુએસબી ઈન્ટરફેસ: યુએસબી 2.0
- AV આઉટ: NTSC / PAL TV Socket
- પાવર સ્ત્રોત: 3 x AAA બેટરી (શામેલ નથી)
- ખાસ લક્ષણો: Low Light capability, Digital Image Stabilization
- સમાવિષ્ટ એસેસરીઝ: USB cable, AV cables (for TV), Wrist strap, Camera pouch, Adobe Reader Image Software (CD), Arcsoft Photo Impression Software, Arcsoft ShowBiz DVD Manual
