Excalibur X693 6x9 inch 3-Way Car Speaker Instruction Manual

1. પરિચય

This manual provides detailed instructions for the installation, operation, and maintenance of your Excalibur X693 6x9 inch 3-Way Car Speakers. These speakers are designed to enhance your in-car audio experience by delivering powerful bass, clear mid-range, and precise treble. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

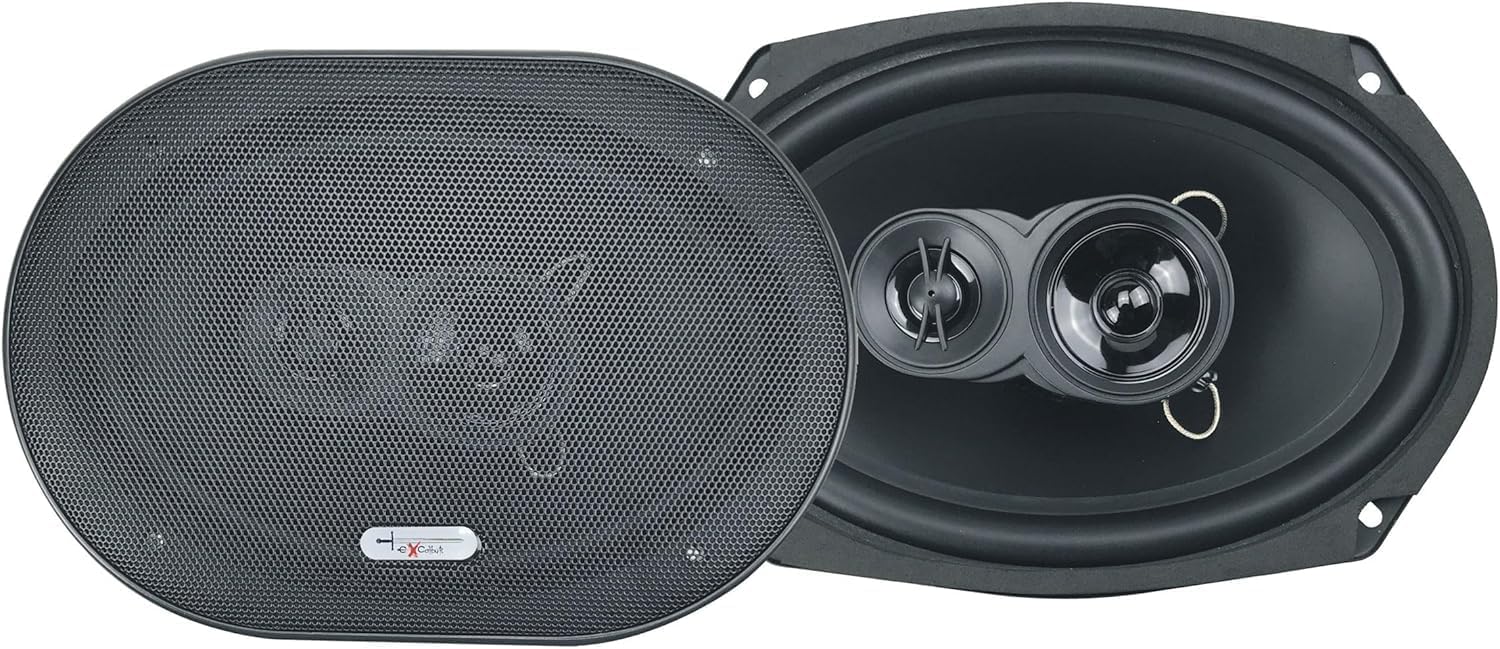

આકૃતિ 1: ફ્રન્ટ view of the Excalibur X693 6x9 inch 3-Way Car Speaker.

2. સલામતી માહિતી

ઇન્સ્ટોલેશન અને ઓપરેશન દરમિયાન હંમેશા નીચેની સલામતી સાવચેતીઓનું પાલન કરો:

• વ્યવસાયિક ઇન્સ્ટોલેશનની ભલામણ કરવામાં આવે છે: Car audio installation can be complex. If you are unsure about any step, seek assistance from a qualified professional installer.
• પાવર ડિસ્કનેક્ટ કરો: Before beginning any installation, disconnect the vehicle's battery to prevent electrical shorts and damage.
• વાયરિંગ: Ensure all wiring is correctly connected and insulated to prevent short circuits. Use appropriate gauge wires for power and speaker connections.
• માઉન્ટ કરવાનું: Securely mount speakers to prevent them from becoming loose during vehicle operation, which could cause injury or damage.
• વેન્ટિલેશન: Ensure adequate ventilation around the speakers and any connected ampઓવરહિટીંગ અટકાવવા માટે લાઇફાયર્સ.
• વોલ્યુમ સ્તરો: ઊંચા અવાજના સ્તરમાં લાંબા સમય સુધી સંપર્કમાં રહેવાથી શ્રવણશક્તિને નુકસાન થઈ શકે છે. અવાજને આરામદાયક સ્તર પર સમાયોજિત કરો.

3. પેકેજ સામગ્રી

ખાતરી કરો કે બધી વસ્તુઓ પેકેજમાં હાજર છે:

• 2x Excalibur X693 6x9 inch 3-Way Car Speakers
• 2x Protective Grilles
• Mounting Accessories (screws, clips, etc.)

Figure 2: Excalibur X693 product packaging.

4. સેટઅપ અને ઇન્સ્ટોલેશન

4.1 પૂર્વ-ઇન્સ્ટોલેશન તપાસો

• Ensure the speaker dimensions (16.4 x 23.4 cm) and mounting depth (75mm) are compatible with your vehicle's speaker locations.
• Confirm that your car audio system (head unit or amplifier) can support a 4 Ohm impedance load.
• Gather necessary tools: screwdriver set, wire strippers, crimping tool, drill (if new holes are needed), and safety glasses.

૪.૪ સ્પીકર્સ લગાવવા

1. Carefully remove the existing speakers or trim panels from the desired installation location (e.g., rear deck, door panels).
2. Position the Excalibur X693 speaker in the opening. If necessary, use the provided mounting template (if included) to mark and drill new screw holes.
3. Secure the speaker using the supplied mounting screws. Ensure it is firmly seated and does not vibrate.
4. Attach the protective grilles over the speakers if desired, using the provided clips or screws.

આકૃતિ 3: ઉદાample of car speaker installation.

4.3 વાયરિંગ કનેક્શન્સ

1. Identify the positive (+) and negative (-) terminals on the Excalibur X693 speaker. These are typically marked on the speaker's terminal block.
2. Connect the positive (+) speaker wire from your car's audio system to the positive (+) terminal on the speaker.
3. Connect the negative (-) speaker wire from your car's audio system to the negative (-) terminal on the speaker.
4. શોર્ટ સર્કિટ અટકાવવા માટે ખાતરી કરો કે બધા જોડાણો સુરક્ષિત અને યોગ્ય રીતે ઇન્સ્યુલેટેડ છે.

આકૃતિ 4: પાછળ view of the speaker with wiring terminals.

5. ઓપરેટિંગ સૂચનાઓ

Once the speakers are correctly installed and wired, reconnect your vehicle's battery. Turn on your car's audio system and test the sound output.

• પ્રારંભિક પ્લેબેક: Start with a low volume and gradually increase it to ensure all speakers are functioning correctly and without distortion.
• સાઉન્ડ એડજસ્ટમેન્ટ: The Excalibur X693 speakers offer a wide frequency response from 50Hz to 20kHz. Use your car stereo's equalizer or tone controls to fine-tune the bass, mid-range, and treble to your preference.
• પાવર હેન્ડલિંગ: These speakers have a nominal RMS power handling of 100W and a peak power handling of 500W. Avoid exceeding these limits to prevent damage. The 90dB sensitivity ensures efficient sound output even with factory head units.

6. જાળવણી

To ensure optimal performance and longevity of your Excalibur X693 speakers, follow these simple maintenance guidelines:

• સફાઈ: Use a soft, dry cloth to gently wipe the speaker grilles and surrounds. Avoid using harsh chemicals or abrasive cleaners, which can damage the speaker materials.
• નિરીક્ષણ: Periodically check the speaker mounting screws and wiring connections to ensure they remain secure. Loose connections can lead to poor sound quality or intermittent operation.
• પર્યાવરણીય પરિબળો: While the speakers are designed for automotive use, avoid exposing them to excessive moisture or extreme temperatures.

7. મુશ્કેલીનિવારણ

If you encounter issues with your Excalibur X693 speakers, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, contact customer support or a qualified car audio technician.

8. સ્પષ્ટીકરણો

Figure 5: Excalibur X693 dimensional drawing.

9. વોરંટી માહિતી

The Excalibur X693 speakers come with a ૧ વર્ષની ઉત્પાદકની વોરંટી. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, abuse, accidents, or unauthorized modifications.

10. ગ્રાહક આધાર

For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your purchase or visit the official Excalibur website. When contacting support, please have your product model (X693) and proof of purchase readily available.
