Bostitch DSA-3522-E 10.8V Cordless Carton Stapler User Manual

1. પરિચય

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Bostitch DSA-3522-E 10.8V Cordless Carton Stapler. Please read these instructions carefully before using the tool to ensure proper function and to prevent injury or damage.

The Bostitch DSA-3522-E is designed for reliably closing shipping boxes and offers flexibility through its cordless, battery-powered operation. It is capable of processing staples with lengths between 18mm and 22mm.

2. સલામતી માહિતી

ચેતવણી: આ પાવર ટૂલ સાથે પૂરી પાડવામાં આવેલ તમામ સુરક્ષા ચેતવણીઓ, સૂચનાઓ, ચિત્રો અને વિશિષ્ટતાઓ વાંચો. નીચે સૂચિબદ્ધ તમામ સૂચનાઓનું પાલન કરવામાં નિષ્ફળતાના પરિણામે ઇલેક્ટ્રિક આંચકો, આગ અને/અથવા ગંભીર ઈજા થઈ શકે છે.

• Always wear appropriate personal protective equipment, including eye protection, when operating the stapler.
• કાર્યક્ષેત્રને સ્વચ્છ અને સારી રીતે પ્રકાશિત રાખો. અવ્યવસ્થિત અથવા અંધારાવાળા વિસ્તારો અકસ્માતોને આમંત્રણ આપે છે.
• વિસ્ફોટક વાતાવરણમાં, જેમ કે જ્વલનશીલ પ્રવાહી, વાયુઓ અથવા ધૂળની હાજરીમાં પાવર ટૂલ્સનું સંચાલન કરશો નહીં.
• પાવર ટૂલ ચલાવતી વખતે બાળકો અને નજીકના લોકોને દૂર રાખો. વિચલિત થવાથી તમે નિયંત્રણ ગુમાવી શકો છો.
• Ensure the stapler is switched off and the battery is removed before making any adjustments, changing accessories, or storing the tool.
• Use only Bostitch recommended staples and accessories for this tool.
• For commercial use, please observe all relevant building regulations and safety standards.

3. પેકેજ સામગ્રી

ખાતરી કરો કે નીચે સૂચિબદ્ધ બધી વસ્તુઓ તમારા પેકેજમાં શામેલ છે:

• 1 x Bostitch DSA-3522-E Li-ion Cordless Carton Stapler
• 2 x Bostitch 1.5 Ah 10.8V Li-ion Batteries (Part No. 9R201498)
• 1 x Bostitch Battery Charger (Part No. 9R209782)
• 1 x Box of 2000 Bostitch 18mm Carton Staples (Part No. 1331800Z)
• 1 x Box of 2000 Bostitch 22mm Carton Staples (Part No. 1332200Z)
• 1 x વહન કેસ

Image 1: Complete Bostitch DSA-3522-E kit, including the stapler, batteries, charger, and staples, all contained within the carrying case.

4. ઉત્પાદનના ઘટકો અને સુવિધાઓ

Familiarize yourself with the main components of your Bostitch DSA-3522-E stapler:

• Stapler Body: Main housing for motor and mechanism.
• ટ્રિગર સાથે હેન્ડલ કરો: Ergonomic grip for operation.
• મેગેઝિન: Holds the staples. Capacity: 108 staples.
• બેટરી પોર્ટ: For inserting the 10.8V Li-ion battery.
• Staple Length Adjustment: Allows manual configuration of staple length (18-22mm).
• Staple Tension Adjustment: Allows manual configuration of stapling force.
• Additional Hand Rest: Provides enhanced comfort during extended use.

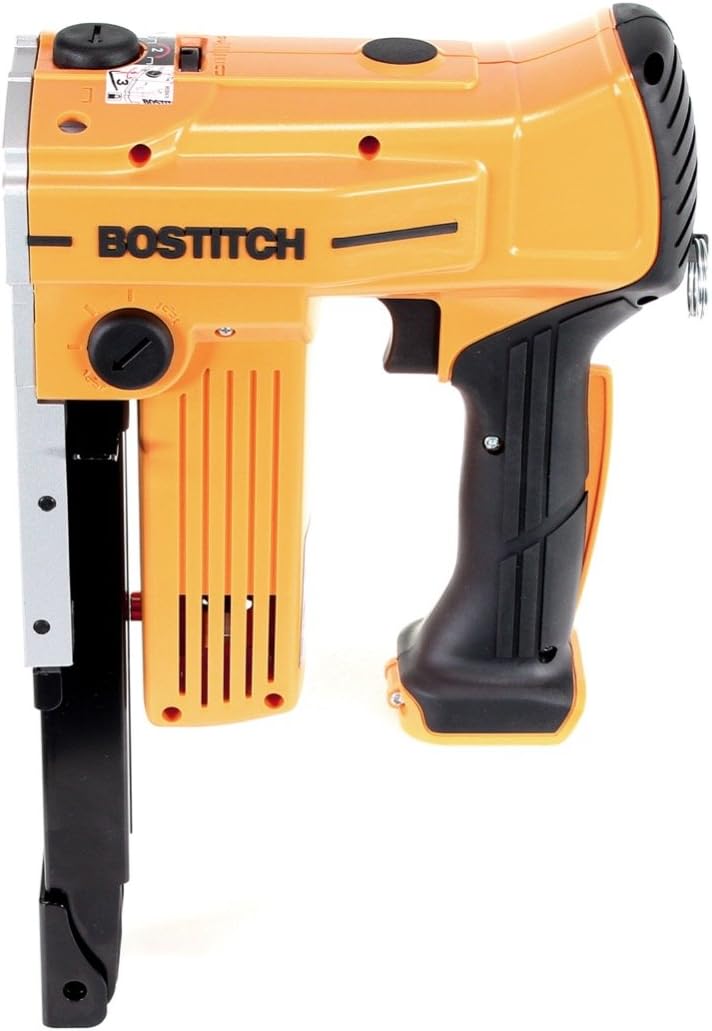

છબી ૪.૧: બાજુ view of the Bostitch DSA-3522-E cordless carton stapler, highlighting its ergonomic design and adjustment dials.

5. સેટઅપ

5.1 બેટરી ચાર્જિંગ

1. Connect the Bostitch battery charger (9R209782) to a suitable power outlet.
2. Insert the 10.8V Li-ion battery into the charger. Ensure it clicks securely into place.
3. Allow approximately 45 minutes for a fully discharged battery to reach full charge. The charger will indicate when charging is complete.
4. એકવાર સંપૂર્ણ ચાર્જ થઈ ગયા પછી ચાર્જરમાંથી બેટરી દૂર કરો.

Image 3: The Bostitch 10.8V Li-ion battery charger with two batteries, ready for charging.

૨.૧ સ્ટેપલ્સ લોડ કરી રહ્યું છે

1. Ensure the battery is removed from the stapler before loading staples.
2. Locate the staple magazine release mechanism, typically at the rear or bottom of the stapler.
3. Open the magazine.
4. Insert a strip of Bostitch 18mm or 22mm carton staples into the magazine with the points facing forward.
5. મેગેઝિન ચોંટી ન જાય ત્યાં સુધી તેને સુરક્ષિત રીતે બંધ કરો.

Image 4: Boxes of Bostitch 18mm and 22mm carton staples, compatible with the DSA-3522-E stapler.

6. ઓપરેટિંગ સૂચનાઓ

1. બેટરી દાખલ કરો: Once staples are loaded, insert a charged 10.8V Li-ion battery into the stapler's battery port until it locks into place.
2. સેટિંગ્સ સમાયોજિત કરો:
   • મુખ્ય લંબાઈ: Use the manual adjustment mechanism to select the desired staple length (18mm or 22mm) based on the carton thickness.
   • Staple Tension: Adjust the staple tension dial to control the driving force, ensuring staples are flush with the carton surface without over-penetration.
3. સ્ટેપલરને સ્થાન આપો: Place the stapler's nose firmly against the carton surface where the staple is to be driven.
4. ચલાવો: Press the trigger to drive a staple. The stapler is designed for efficient, reliable closure of shipping boxes.
5. બેટરી જીવન: A fully charged battery can drive up to 800 staples, depending on material and staple settings. Monitor the battery indicator, if available, and recharge as needed.
6. ઉપયોગ કર્યા પછી: Always remove the battery from the stapler when not in use or before performing any maintenance.

7. જાળવણી

Regular maintenance ensures the longevity and optimal performance of your stapler.

• સફાઈ: Keep the tool clean and free of dust and debris. Use a dry cloth to wipe down the exterior. Do not use solvents or harsh chemicals.
• મેગેઝિન નિરીક્ષણ: Periodically inspect the staple magazine for any obstructions or damage. Clear any jammed staples carefully with the battery removed.
• બેટરી સંભાળ: Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Recharge batteries before they are completely depleted to prolong their lifespan.
• સંગ્રહ: Store the stapler and its accessories in the provided carrying case in a dry, secure location, out of reach of children.

8. મુશ્કેલીનિવારણ

If you encounter issues with your Bostitch DSA-3522-E stapler, refer to the following common problems and solutions:

9. સ્પષ્ટીકરણો

10. વોરંટી અને સપોર્ટ

For warranty information, service, or technical support, please refer to the warranty card included with your product or contact Bostitch customer service directly. Keep your purchase receipt as proof of purchase.

You can typically find contact information on the official Bostitch webસાઇટ પર અથવા તમારા ઉત્પાદન રિટેલર દ્વારા.
