CNCTOPBAOS 3-Axis GRBL Control Board with Offline Controller User Manual

1. પરિચય

This manual provides detailed instructions for the installation, operation, and maintenance of your CNCTOPBAOS 3-Axis GRBL Control Board with Offline Controller. Please read this manual thoroughly before use to ensure proper functionality and safety. This control board is designed for use with various CNC engraving and milling machines, including the 1310, 1610-PRO, 3018, 3018-PRO, and 3018-PRO-MAX models.

2. સેટઅપ

2.1 પેકેજ સામગ્રી

ખાતરી કરો કે બધી વસ્તુઓ તમારા પેકેજમાં હાજર છે:

• 1 x Upgraded GRBL 1.1f Control Board
• 1 x USB કેબલ
• 1 x GRBL Offline Hand Controller
• 1 x SD Card (standard capacity 1G)

૨.૧ ભૌતિક જોડાણો

Connect the control board to your CNC machine components as follows:

1. પાવર ઇનપુટ: Connect a 24V DC power supply to the control board.
2. સ્ટેપર મોટર્સ: Connect your XYZ three-axis Nema17 or Nema23 stepper motors. Ensure the motor's maximum current is 2A or less, with 1.5A recommended.
3. Spindle/Laser Module: The board supports a 24V DC Spindle with PWM speed control (0%-100%) and a 12V 3-pin PWM/TTL laser engraving module (Max. 3.0A). Connect the spindle to the 2-pin port VH3.96mm pitch.
4. મર્યાદા સ્વીચો: Connect XYZ limit switches to their designated ports.
5. ઇમરજન્સી સ્ટોપ બટન: Connect an emergency stop button to the dedicated port for safety.
6. તપાસ: Connect a probe for tool setting.
7. યુએસબી કનેક્શન: Use the provided USB cable to connect the control board to a computer if operating online. The improved USB interface is designed for reliable plug-in use.

2.3 Offline Controller Setup

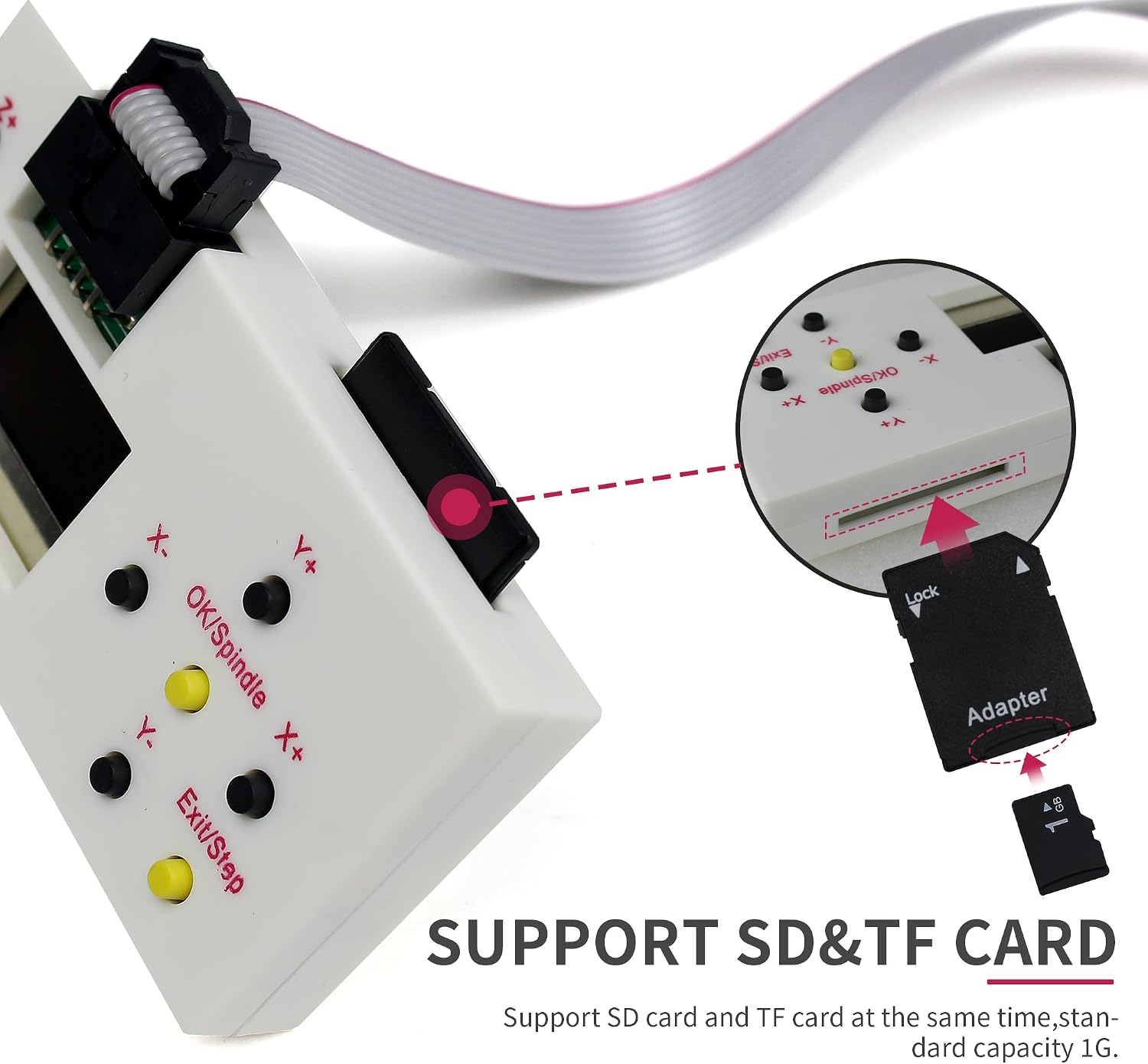

The offline controller allows you to operate the CNC machine without a computer connection. It supports both SD and TF cards for file સંગ્રહ

1. File સ્થાનાંતરણ: Insert an SD card (standard capacity 1G) into the offline controller. Connect the offline controller to your computer via a micro USB cable to transfer G-code files. File names should not contain spaces and must be within 12 characters. Only TXT file format is supported for command files.
2. કનેક્શન: Connect the offline controller module to the GRBL control board.
3. પાવર ચાલુ: Ensure the SD card is inserted before turning on the power supply to the control board.

3. ઓપરેટિંગ સૂચનાઓ

3.1 સૉફ્ટવેર સુસંગતતા

The GRBL control board is compatible with various software applications for online operation, including GRBL Control, Candle, and Universal Gcode Sender. It supports computer systems running Windows XP/7/8/10.

3.2 Offline Controller Operation

The offline controller provides a user-friendly interface for direct machine control:

• મુખ્ય પૃષ્ઠ: Select 'Ctrl' for machine control or 'File' to use G-code files. Use [Y+] and [Y-] to navigate and [OK] to enter.
• નિયંત્રણ પૃષ્ઠ: Manually adjust X, Y, Z axis positions using X±, Y±, Z± buttons. Turn the spindle ON/OFF with 'OK/Spindle'. Change step size or exit with 'Exit/Step' (long press).
• Spindle Speed Adjustment: To increase spindle power, press 'OK' and 'Z+' simultaneously. To decrease, press 'OK' and 'Z-' simultaneously.
• File પૃષ્ઠ: કોતરણી પસંદ કરો files (common formats include .nc, .tex, .tap) using [Y+] and [Y-]. Press [OK] to select and [OK] again to begin engraving. Long press [Exit] to stop machining.

4. જાળવણી

4.1 ગરમીનું વિસર્જન

The control board features an integrated fan and shell protection to ensure efficient heat dissipation and stable operation. Regularly check that the fan is free from obstructions and functioning correctly.

4.2 સફાઈ

Keep the control board and offline controller clean and free from dust and debris. Use a soft, dry cloth for cleaning. Avoid using liquid cleaners or solvents that could damage the electronic components.

5. મુશ્કેલીનિવારણ

• Machine Not Responding / Incorrect Movement:
  Ensure all stepper motor connections are secure and correctly wired. Check motor direction settings in your GRBL software or offline controller. Verify that limit switches are functioning properly and not falsely triggering.
• Offline Controller Not Recognizing Files:
  તેની પુષ્ટિ કરો file names do not contain spaces and are within 12 characters. Ensure files are in the supported TXT format. Re-insert the SD card and restart the offline controller.
• સુસંગતતા મુદ્દાઓ:
  This control board is specifically designed for 3-axis GRBL-controlled CNC machines such as the 1310, 1610-PRO, 3018, 3018-PRO, and 3018-PRO-MAX. Ensure your machine's firmware is GRBL 1.1f and uses a CH340 communication chip with a baud rate of 115200 for optimal compatibility.
• Spindle/Laser Not Functioning:
  Check power connections and ensure the correct voltage (24V DC for spindle, 12V for laser module) is supplied. Verify PWM settings in the offline controller or GRBL software.

6. સ્પષ્ટીકરણો

7. વોરંટી અને સપોર્ટ

For specific warranty information, please refer to the product packaging or contact CNCTOPBAOS customer support directly. A PDF English user manual will be sent to you via message support upon request. For additional assistance, please visit the CNCTOPBAOS Store on Amazon.
