1. મહત્વપૂર્ણ સલામતી સૂચનાઓ
Please read this manual carefully before installation and use. Keep these instructions for future reference.
- ઇલેક્ટ્રિકલ સલામતી: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Always disconnect power at the main circuit breaker before installation or servicing.
- સુરક્ષિત માઉન્ટિંગ: Ensure the mounting structure can support the fan's weight (approximately 8.9 kg). Use appropriate mounting hardware for your ceiling type.
- બ્લેડ ક્લિયરન્સ: Maintain a minimum clearance of 2.3 meters (7.5 feet) from the floor to the bottom of the fan blades and at least 60 cm (2 feet) from walls or other obstructions.
- બલ્બ પ્રકાર: Use only E14 bulbs. Ensure the bulbs do not exceed 10 cm in length to fit within the lampshade. Light bulbs are not included.
- રીમોટ કંટ્રોલ: The fan is operated via the included remote control. Do not attempt to control the fan directly from a wall switch unless specifically wired for such operation.
2. ઉત્પાદન ઓવરview

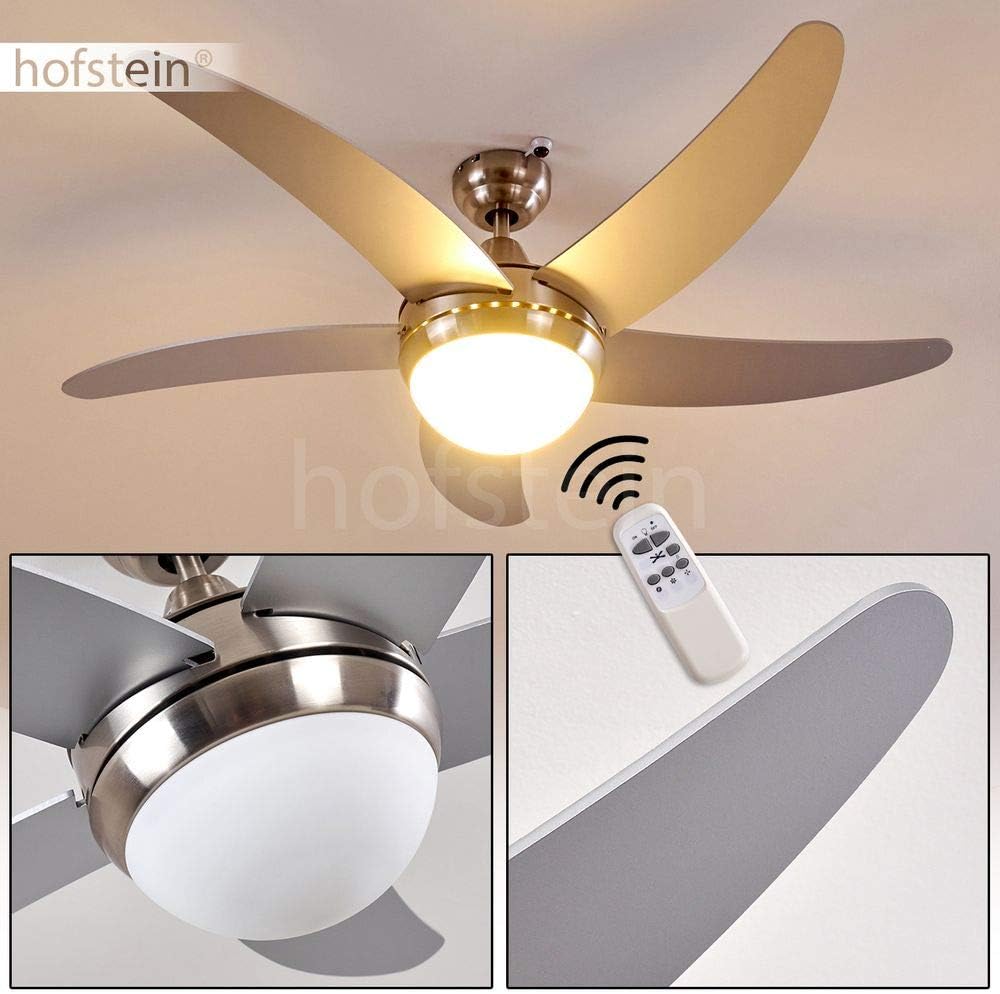

The HOFSTEIN Morino Ceiling Fan with Light (Model H3013342) combines modern design with functional air circulation and integrated lighting. It features five wooden rotor blades and a white glass lampshade, making it suitable for rooms between 30 and 40 square meters.
મુખ્ય લક્ષણો:
- Efficient Air Circulation: Five real wood rotor blades provide powerful airflow.
- Summer and Winter Mode: Reversible motor function for cooling in summer and even heat distribution in winter.
- અનુકૂળ રીમોટ કંટ્રોલ: Three-speed fan control and independent light operation.
- સંકલિત લાઇટિંગ: Two E14 sockets for uniform and bright room illumination.
- શાંત કામગીરી: Designed for low noise, ideal for living rooms and bedrooms.
3. સ્થાપન
Installation of this ceiling fan requires careful attention to detail. Due to its weight (approx. 8.9 kg) and electrical connections, it is recommended that two people perform the installation, and a qualified electrician handles the wiring.
3.1 પ્રી-ઇન્સ્ટોલેશન
- બધા ઘટકોને અનપેક કરો અને ભાગોની સૂચિ સામે ચકાસો.
- Ensure the power supply is disconnected at the circuit breaker.
- Prepare the ceiling for mounting, ensuring it can support the fan's weight.
3.2 Mounting the Bracket and Wiring
Attach the mounting bracket securely to the ceiling. Connect the electrical wiring according to the provided diagram. Pay close attention to the control unit (receiver) and ensure all cables are neatly tucked away to allow the canopy to fit properly. Some users have noted that cable management within the canopy can be challenging.
3.3 Assembling the Fan Blades
Attach the five wooden rotor blades to the motor housing. Ensure all screws are tightened securely. Some users have found the blade mounting openings to be small, requiring careful handling.
3.4 Installing the Light Kit
Connect the light kit to the fan's wiring. Install two E14 light bulbs (not included) into the sockets. Ensure the bulbs are no longer than 10 cm to fit properly. Attach the white glass lampછાંયો
4. ઓપરેટિંગ સૂચનાઓ
The HOFSTEIN Morino Ceiling Fan is controlled using the supplied remote control.
4.1 રીમોટ કંટ્રોલ કાર્યો
The remote control allows you to operate the fan and light independently.
- ચાલુ/બંધ બટન: પંખો ચાલુ કે બંધ કરે છે.
- પંખાની ગતિના બટનો (1, 2, 3): Adjusts the fan speed to low, medium, or high.
- Light ON/OFF Button: Turns the integrated light on or off.
- ટાઈમર કાર્ય (જો ઉપલબ્ધ હોય તો): Consult the remote's specific markings for timer settings.
4.2 Summer and Winter Mode
The fan features a reversible motor for seasonal use. The switch for changing between summer (downward airflow) and winter (upward airflow) mode is located on the motor housing of the fan itself (refer to Figure 3.2). This switch is not controlled by the remote.
- સમર મોડ: Blades rotate counter-clockwise, creating a downward breeze for cooling.
- વિન્ટર મોડ: Blades rotate clockwise, drawing warm air up and distributing it evenly, which can help reduce heating costs.
5. જાળવણી
નિયમિત જાળવણી તમારા સીલિંગ ફેનની શ્રેષ્ઠ કામગીરી અને આયુષ્ય સુનિશ્ચિત કરે છે.
- સફાઈ: પંખા બ્લેડ અને મોટર હાઉસિંગને સમયાંતરે સોફ્ટ, ડી થી ધૂળ કરો.amp કાપડ. ઘર્ષક ક્લીનર્સ અથવા સોલવન્ટ્સનો ઉપયોગ કરશો નહીં. સફાઈ કરતા પહેલા ખાતરી કરો કે પંખો બંધ છે અને પાવર ડિસ્કનેક્ટ થયેલ છે.
- બ્લેડ નિરીક્ષણ: Check the fan blades for any signs of damage or warping. Replace damaged blades immediately.
- સ્ક્રૂને સજ્જડ કરો: Periodically check and tighten all screws on the fan assembly, especially those securing the blades and mounting bracket.
- બલ્બ રિપ્લેસમેન્ટ: When replacing E14 bulbs, ensure the power is off. Allow old bulbs to cool before removal. Use only E14 bulbs with a maximum length of 10 cm.
6. મુશ્કેલીનિવારણ
If you encounter issues with your HOFSTEIN Morino Ceiling Fan, refer to the following common problems and solutions:
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| પંખો ચાલુ થતો નથી | No power supply; Remote control battery low/dead; Incorrect wiring; Summer/Winter switch in neutral position. | Check circuit breaker; Replace remote battery; Verify wiring connections; Ensure Summer/Winter switch is fully engaged. |
| લાઈટ ચાલુ થતી નથી | Bulbs faulty or loose; Incorrect wiring; Remote control issue. | Check/replace bulbs; Verify light wiring; Test remote control functionality. |
| પંખો વધુ પડતો અવાજ કરે છે | બ્લેડ અથવા માઉન્ટિંગ પર ઢીલા સ્ક્રૂ; અસંતુલિત બ્લેડ; મોટરમાં સમસ્યા. | Tighten all screws; Ensure blades are balanced (check for warping); If noise persists, contact support. Note: A slight wind noise is normal at high speeds. |
| રીમોટ કંટ્રોલ કામ કરતું નથી | Battery dead; Remote not paired (if applicable); Obstruction between remote and receiver. | Replace battery; Refer to pairing instructions (if any); Ensure clear line of sight to fan's receiver. |
7. સ્પષ્ટીકરણો
Detailed technical specifications for the HOFSTEIN Morino Ceiling Fan (Model H3013342).
| સ્પષ્ટીકરણ | વિગત |
|---|---|
| બ્રાન્ડ | હોફસ્ટીન |
| મોડલ નંબર | H3013342 |
| રંગ | Nickel Matt, Silver |
| સામગ્રી | MDF, Metal, Glass |
| શૈલી | આધુનિક, વિનtage |
| રૂમનો પ્રકાર | Living Room (suitable for 30-40 sqm) |
| પાવર સ્ત્રોત | કોર્ડેડ ઇલેક્ટ્રિક |
| નિયંત્રણ પ્રકાર | રીમોટ કંટ્રોલ |
| Lamp પ્રકાર | LED (bulbs not included) |
| પ્રકાશ સ્ત્રોતોની સંખ્યા | 2 |
| ભાગtage | 230 વોલ્ટ |
| બલ્બ બેઝ | E14 |
| વાટtage (મહત્તમ) | 40 Watts (per socket, if not LED) |
| આઇટમના પરિમાણો (L x W x H) | 120L x 120W x 39H cm |
| વસ્તુનું વજન | 8.9 કિલોગ્રામ |
| માઉન્ટિંગ પ્રકાર | સીલિંગ માઉન્ટ |
| સમાવાયેલ ઘટકો | રીમોટ કંટ્રોલ |
8. વોરંટી અને સપોર્ટ
HOFSTEIN products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation included with your purchase or contact HOFSTEIN customer service directly. You can typically find contact details on the manufacturer's webસાઇટ અથવા તમારા ખરીદી બિંદુ દ્વારા.
When contacting support, please have your model number (H3013342) and purchase date available.
