RONXS Electric Arc Lighter (Model JL872-10) User Manual

1. પરિચય

Thank you for choosing the RONXS Electric Arc Lighter. This USB rechargeable lighter utilizes flameless plasma technology for efficient and safe ignition. Designed for versatility, it is suitable for lighting candles, grills, BBQs, and other indoor and outdoor activities. This manual provides essential information for the safe and effective use of your new lighter.

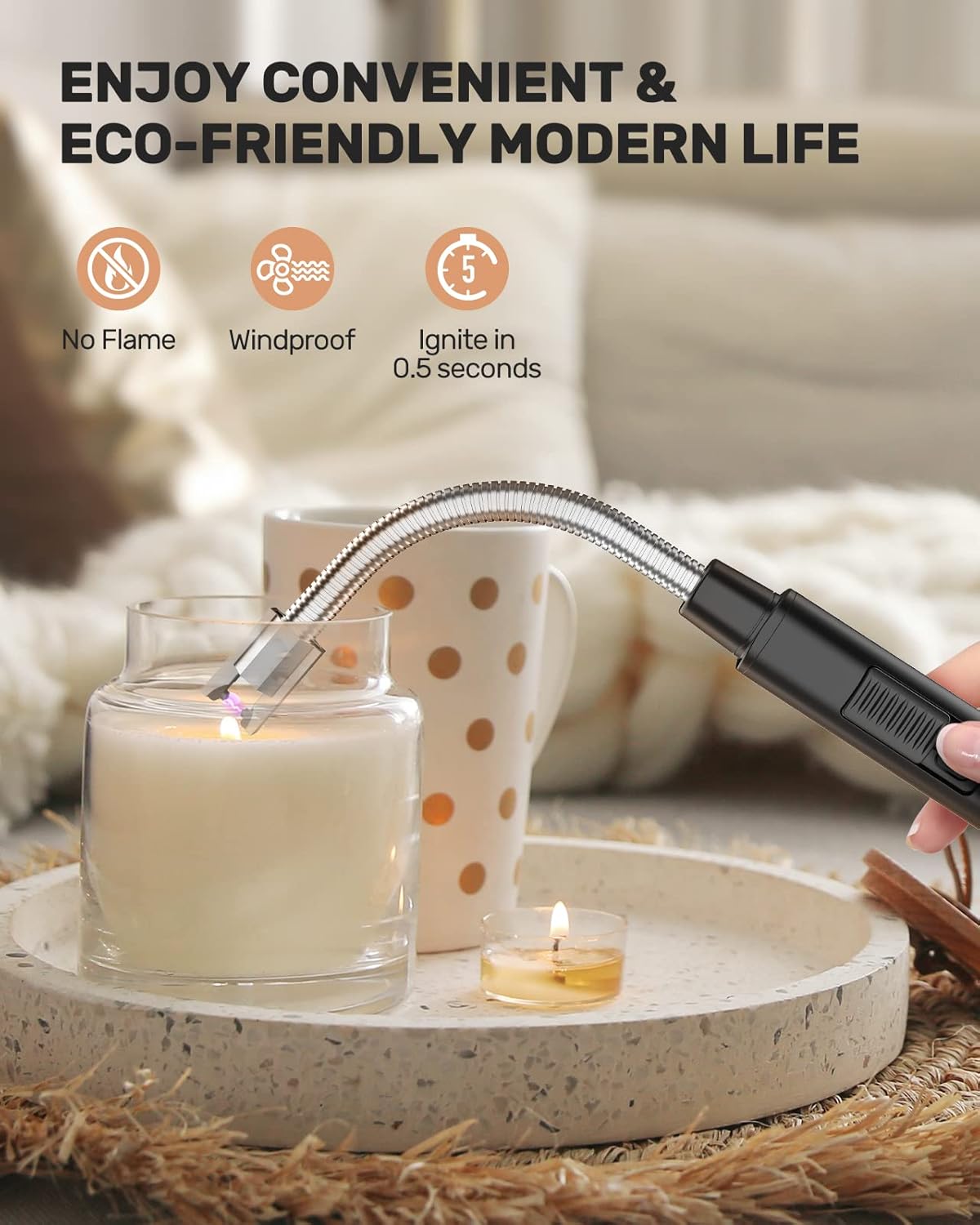

Image 1.1: The RONXS Electric Lighter in action, demonstrating its flexible neck and arc ignition for lighting a candle.

2. સલામતી માહિતી

આ ઉત્પાદનનો ઉપયોગ કરતા પહેલા કૃપા કરીને બધી સલામતી ચેતવણીઓ અને સૂચનાઓ વાંચો. આ સૂચનાઓનું પાલન કરવામાં નિષ્ફળતા ઇલેક્ટ્રિક શોક, આગ અથવા ગંભીર ઈજાનું કારણ બની શકે છે.

• Keep the lighter away from heat sources and allow it to cool down after use to prevent burns.
• Always supervise children when using the lighter. This product is not a toy.
• Do not place the product into water or other liquids, or expose it to moisture, as this will cause a short circuit.
• During ignition, a 'zee, zee' noise may be heard. This is normal high-voltage power generation and indicates proper function.
• Avoid touching the arc directly.
• લાઇટરને ડિસએસેમ્બલ કરવાનો અથવા તેને બદલવાનો પ્રયાસ કરશો નહીં.
• Do not expose the lighter to temperatures above 50°C (122°F).

Image 2.1: Internal safety features of the RONXS Electric Lighter, including short-circuit, smart chip, and overheating protection.

3. ઉત્પાદન ઓવરview

Familiarize yourself with the components of your RONXS Electric Arc Lighter:

Image 3.1: Quick User Guide illustrating the main parts and controls of the RONXS Electric Lighter.

• Arc Pulse Ignition: Generates the flameless electric arc.
• 3-inch Flexible Neck: Allows for easy access to hard-to-reach wicks or surfaces.
• ON/OFF Button (Safety Lock): Slides forward to enable operation, slides back to lock.
• સ્વિચ બટન: Press to activate the arc when the safety lock is disengaged.
• એલઇડી બેટરી સૂચક: વર્તમાન બેટરી ચાર્જ સ્તર દર્શાવે છે.
• યુએસબી ચાર્જિંગ પોર્ટ: આંતરિક બેટરી રિચાર્જ કરવા માટે.
• હેંગિંગ હૂક: અનુકૂળ સંગ્રહ માટે.

4. સેટઅપ અને ચાર્જિંગ

Your RONXS Electric Lighter comes with a rechargeable battery. Before first use, or when the battery indicator shows low charge, please recharge the device.

4.1 ચાર્જિંગ સૂચનાઓ

1. Locate the USB charging port on the lighter.
2. Connect the provided USB cable to the lighter's charging port.
3. Connect the other end of the USB cable to a compatible power source (e.g., computer, power bank, or a normal 5V DC adapter with output current less than 3000MA). Avoid fast chargers, as they may damage the product.
4. The LED battery indicator lights will illuminate during charging. When fully charged (approximately 1 hour), all indicator lights will turn off automatically.
5. Disconnect the power immediately after the lighter is fully charged to prevent overcharging, which can shorten battery life.

A full charge can provide up to 400 ignitions. Immediate charges after use, before the battery is fully discharged, will help extend battery life.

Image 4.1: The RONXS Electric Lighter being recharged via a USB connection, with LED lights indicating charge status.

5. ઓપરેટિંગ સૂચનાઓ

Follow these steps to safely operate your RONXS Electric Arc Lighter:

1. Unlock the Safety: Slide the ON/OFF button (safety lock) forward to disengage the lock. The LED battery indicators will light up.
2. Activate the Arc: Press and hold the Switch Button. The electric arc will appear between the ignition points.
3. સળગાવવું: Position the flexible neck so the arc touches the wick of a candle, grill charcoal, or other ignitable material.
4. પ્રકાશન: Release the Switch Button to turn off the arc. The lighter will automatically turn off after 7 seconds of continuous use for safety.
5. એંગેજ સેફ્ટી લૉક: Slide the ON/OFF button back to its original position to engage the safety lock. The LED lights will turn off, and the lighter cannot be accidentally activated.

The flameless plasma technology makes the lighter wind and splash-proof, allowing for reliable ignition even in challenging weather conditions.

Image 5.1: The flexible neck of the RONXS Electric Lighter allows for easy access to various items, such as candles.

૪.૬ ઓપરેશનલ વિડીયો

6. જાળવણી

Proper maintenance ensures the longevity and optimal performance of your lighter.

6.1 સફાઈ

• Regularly clean the arc ignition points to remove any soot or debris. Use a soft, dry cloth or a small brush.
• Ensure the lighter is turned off and the safety lock is engaged before cleaning.

Image 6.1: Cleaning the arc tips of the lighter to ensure optimal performance.

6.2 બેટરી કેર

• બેટરીનું સ્વાસ્થ્ય જાળવવા માટે, વારંવાર ઉપયોગમાં ન હોય તો પણ, નિયમિતપણે બેટરી ચાર્જ કરો.
• રિચાર્જ કરતા પહેલા બેટરી સંપૂર્ણપણે ખાલી કરવાનું ટાળો.
• લાઇટરને સીધા સૂર્યપ્રકાશ અને અતિશય તાપમાનથી દૂર ઠંડી, સૂકી જગ્યાએ સંગ્રહિત કરો.

7. મુશ્કેલીનિવારણ

If you encounter issues with your RONXS Electric Lighter, refer to the following common problems and solutions:

8. સ્પષ્ટીકરણો

• મોડલ નંબર: JL872-10
• ઉત્પાદન પરિમાણો: 10.24 x 2 x 1.2 ઇંચ
• વસ્તુનું વજન: ૧.૬૨ ​​ઔંસ (૦.૧ પાઉન્ડ)
• સામગ્રીનો પ્રકાર: પ્લાસ્ટિક
• પાવર સ્ત્રોત: Battery Powered (1 AAA battery required, included)
• બેટરી ક્ષમતા: 180mAh (up to 400 ignitions per full charge)
• ચાર્જિંગ સમય: લગભગ 1 કલાક
• વિશેષતાઓ: USB Rechargeable, LED Battery Display, Wind & Splash Proof, Multi-Protect Safety Systems, Flexible Neck

9. વોરંટી અને સપોર્ટ

RONXS products are designed for quality and durability. Some customer reviews indicate a 2-year warranty for this product. For specific warranty details, product support, or inquiries, please refer to the contact information provided with your purchase or visit the official RONXS webસાઇટ
