QUIRUMED Aluminium Folding Massage Table Pro Instruction Manual

1. પરિચય અને સલામતી માહિતી

This manual provides essential instructions for the safe and effective use, setup, maintenance, and troubleshooting of your QUIRUMED Aluminium Folding Massage Table Pro. Please read all instructions carefully before assembly and use. Retain this manual for future reference.

મહત્વપૂર્ણ સલામતી ચેતવણીઓ:

• Ensure the table is fully unfolded and all locking mechanisms are engaged before use.
• Do not exceed the maximum recommended load of 150 kg (330 lbs).
• Always place the table on a stable, level surface.
• Keep hands and fingers clear of moving parts during folding and unfolding to prevent injury.
• Regularly inspect the table for any signs of wear, damage, or loose components. Do not use if damaged.
• Only use the table for its intended purpose as a massage or therapy table.

2. પેકેજ સામગ્રી

બધા ઘટકો કાળજીપૂર્વક ખોલો અને ચકાસો કે તમને નીચેની વસ્તુઓ મળી છે:

• QUIRUMED Aluminium Folding Massage Table Pro (Main Unit)
• Articulated Headrest
• Upholstered Plug for Face Hole
• 2 x Side Armrests
• Armrest Tray
• Carrying Backpack

3. સેટઅપ સૂચનાઓ

3.1 Unfolding the Massage Table

1. Place the folded table on its side on a flat, clear surface.
2. Unlatch the clasps on the side of the table.
3. Gently open the two sections of the table, allowing the legs to unfold automatically. Ensure the metal tensioners extend fully for stability.
4. Once fully open, ensure all four legs are firmly on the ground and the table is stable.

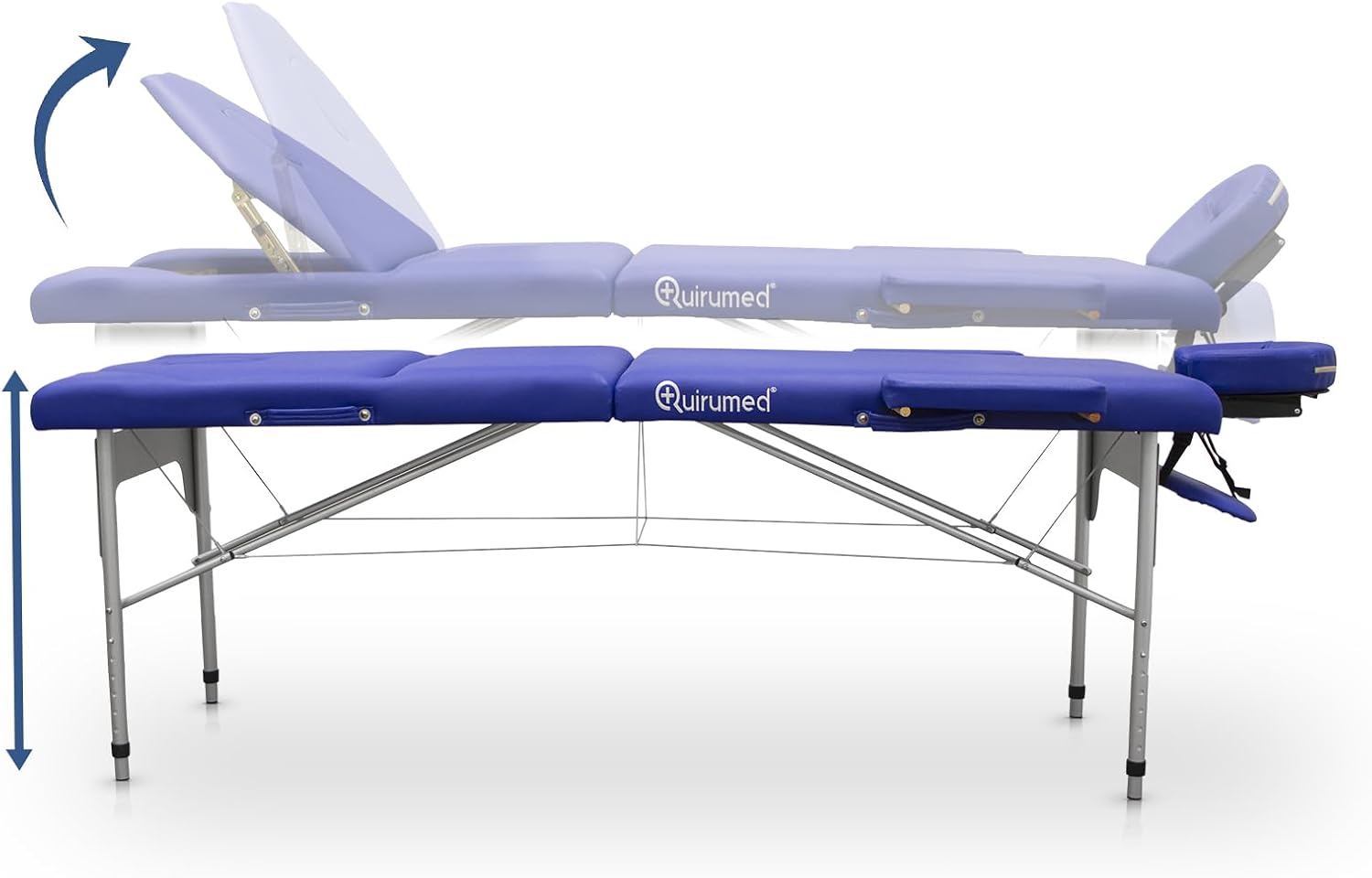

3.2 Adjusting Table Height

The table height can be adjusted from 68 cm to 84 cm to suit the professional's ergonomic needs.

1. Locate the adjustment knobs or pins on each leg.
2. Loosen the knobs or pull the pins to release the leg extension.
3. Adjust each leg to the desired height, ensuring all legs are set to the same level for stability.
4. Securely tighten the knobs or re-insert the pins until they are fully engaged.

3.3 એસેસરીઝ જોડવી

• Articulated Headrest: Insert the headrest rods into the designated holes at one end of the table. Adjust the angle as needed using the locking mechanism.
• Side Armrests: Slide the armrests into the slots located on the sides of the table.
• Armrest Tray: Attach the armrest tray to the appropriate fittings, typically below the headrest area, to provide additional support for the client's arms.
• Upholstered Plug: If the headrest is not in use, insert the upholstered plug into the face hole for a flat surface.

4. ઓપરેટિંગ સૂચનાઓ

4.1 Adjusting the Folding Backrest

The table features a folding backrest that can be adjusted to 10 different positions, up to 70 degrees, to accommodate various treatments.

1. To raise the backrest, lift it to the desired angle. It will click into place at each position.
2. To lower the backrest, lift it fully to release the locking mechanism, then gently lower it back down.

4.2 Using the Face Hole

The integrated face hole allows clients to lie comfortably in a prone position. Ensure the upholstered plug is removed before use. The articulated headrest can be used in conjunction with the face hole for additional client comfort and positioning.

5. જાળવણી અને સંભાળ

5.1 Cleaning the Upholstery

The eco-leather upholstery is resistant to water and massage oils, making it easy to clean.

• જાહેરાત સાથે સપાટી સાફ કરોamp cloth and mild soap solution after each use.
• Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the upholstery.
• Dry the surface thoroughly with a clean, soft cloth.

5.2 સામાન્ય જાળવણી

• Regularly check all bolts, screws, and locking mechanisms to ensure they are tight and secure.
• Inspect the cables and hinges for any signs of wear or damage.
• Store the table in its carrying backpack in a dry, cool place when not in use.

6. મુશ્કેલીનિવારણ

• Table feels unstable:
  • Ensure all legs are fully extended and locked into place.
  • Verify that all height adjustment pins/knobs are securely fastened.
  • Check that the metal tensioners are fully extended and taut.
  • Ensure the table is on a flat, level surface.
• ફોલ્ડિંગ/ખુલ્લું કરવામાં મુશ્કેલી:
  • Ensure no accessories are obstructing the folding mechanism.
  • Check that the clasps are fully released.
  • Apply gentle, even pressure. Do not force the mechanism.
• Backrest not staying in position:
  • Ensure the backrest is lifted fully to engage the locking mechanism at the desired angle.
  • Inspect the backrest adjustment mechanism for any obstructions or damage.

7. સ્પષ્ટીકરણો

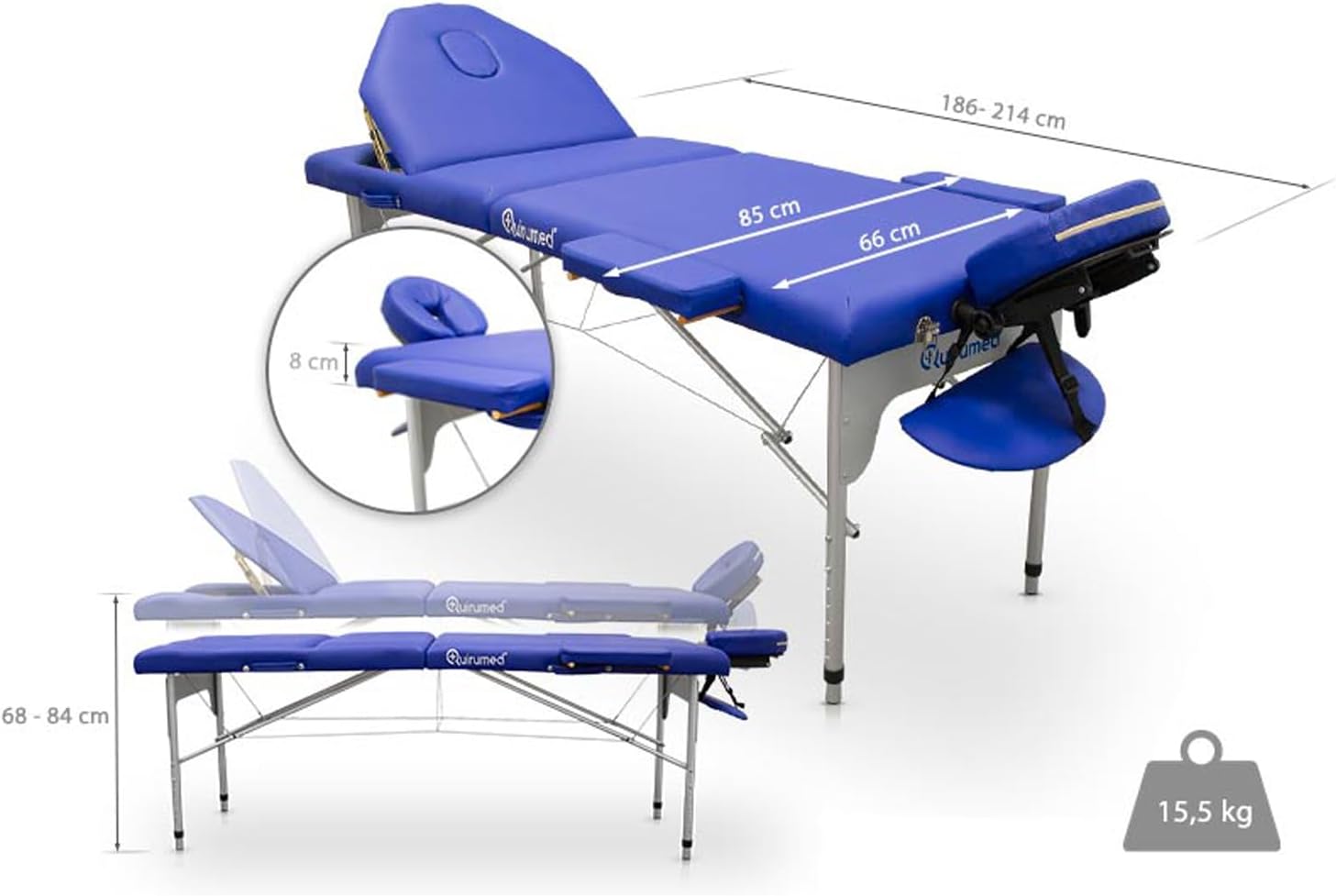

Note: The image indicates a weight of 15.5 kg, while product specifications list 20.3 pounds (approximately 9.2 kg). Please refer to the written specifications for the most accurate weight information.

8. વોરંટી અને સપોર્ટ

For warranty information or technical support, please refer to the documentation included with your purchase or contact QUIRUMED customer service directly. Contact details can typically be found on the product packaging or the official QUIRUMED webસાઇટ
