XENOCAM A6504LME-5 4-Channel 5M-N/1080N Hybrid DVR Instruction Manual

1. પરિચય

This manual provides detailed instructions for the installation, operation, and maintenance of your XENOCAM A6504LME-5 4-Channel 5M-N/1080N Hybrid Digital Video Recorder (DVR). This DVR is a versatile 5-in-1 system compatible with AHD, TVI, CVI, analog, and IP cameras, offering advanced H.265 video compression for efficient surveillance. Please read this manual thoroughly before using the device to ensure proper setup and functionality.

2. ઉત્પાદન સુવિધાઓ

• 5-in-1 Hybrid Compatibility: Supports CVBS 5MP/4MP/1080P AHD, 1MP/2MP TVI, 1MP/2MP CVI, IP, and 960H cameras.
• હાઇ ડેફિનેશન વિડિઓ: Supports 5M-N/1080N resolution (1280x1920) for clear video capture.
• Advanced H.265 Compression: Provides smoother video recordings and optimizes hard drive storage space.
• Multiple Video Outputs: Equipped with HDMI and VGA ports, supporting up to 1080p output.
• P2P રિમોટ એક્સેસ: View live or playback video remotely via the XMeye app on Android and iOS devices by scanning a QR code.
• ગતિ શોધ અને ચેતવણીઓ: Configurable motion detection zones with instant email and app notifications.
• Flexible Recording Modes: Manual, alarm, motion detection, and scheduled recording options.
• Multiple Backup Options: Network, USB portable HDD, and USB DVD-RW.

3. પેકેજ સામગ્રી

ખાતરી કરો કે નીચે સૂચિબદ્ધ બધી વસ્તુઓ તમારા પેકેજમાં શામેલ છે:

• 1 x XENOCAM 4-Channel 5MP-N Digital Video Recorder (HDD not included)
• 1 x પાવર એડેપ્ટર
• 1 x યુએસબી માઉસ
• 1 x વપરાશકર્તા માર્ગદર્શિકા
• Mounting Screws for HDD (typically included)

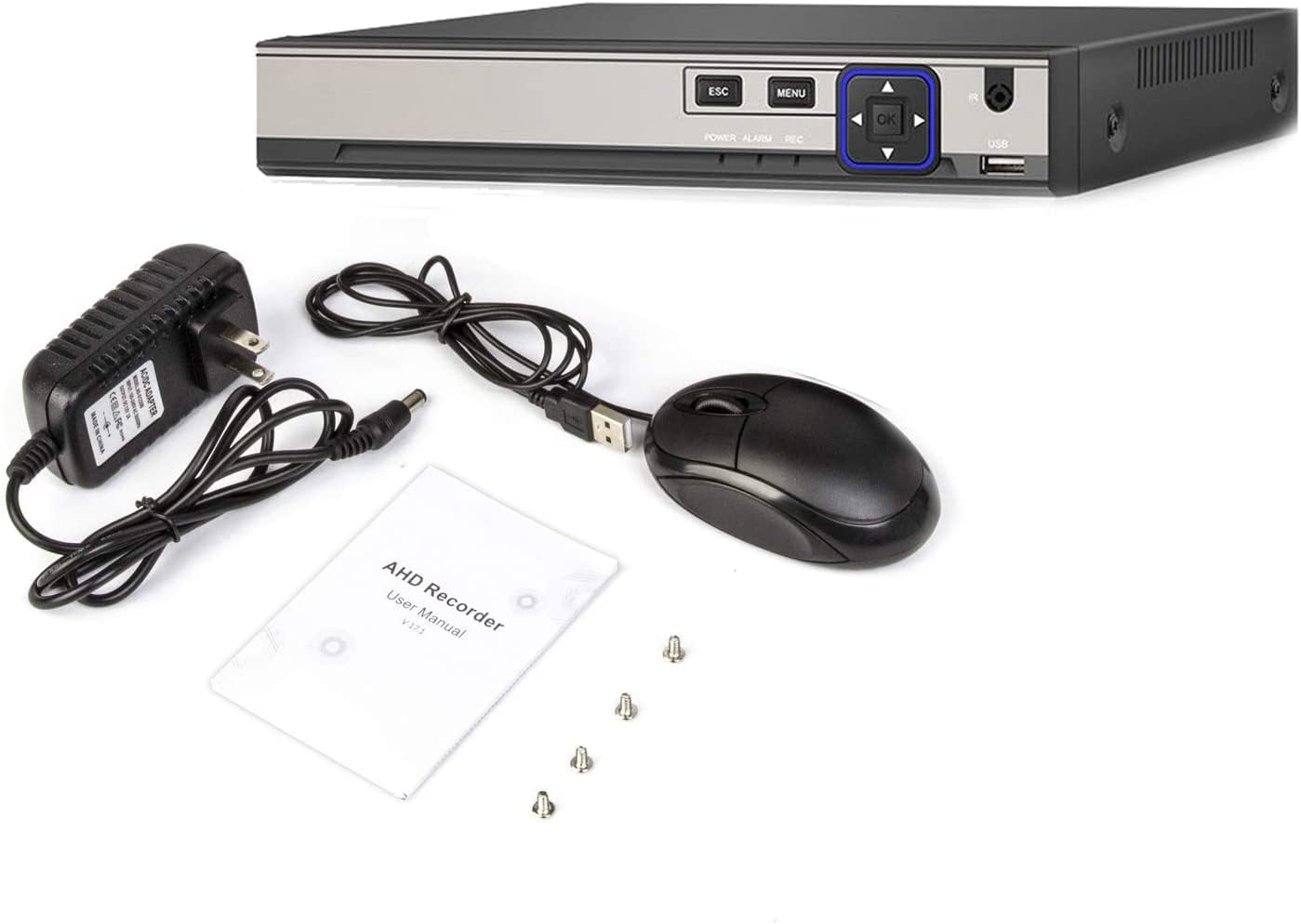

Image: The XENOCAM A6504LME-5 DVR unit shown with its power adapter, USB mouse, user manual, and mounting screws.

4. સેટઅપ

4.1 હાર્ડવેર ઇન્સ્ટોલેશન

1. Install Hard Drive (HDD): DVR ખોલો casing. Connect a SATA hard drive (up to 6TB, not included) to the internal SATA power and data cables. Secure the HDD using the provided screws.
2. કેમેરા કનેક્ટ કરો: Connect your AHD, TVI, CVI, or analog cameras to the BNC video input ports on the rear panel. For IP cameras, ensure they are on the same network as the DVR.
3. કનેક્ટ ડિસ્પ્લે: Connect a monitor to the DVR's HDMI or VGA output port.
4. માઉસ કનેક્ટ કરો: Plug the USB mouse into one of the USB ports on the DVR.
5. નેટવર્ક કનેક્ટ કરો: For remote access and network features, connect an Ethernet cable from the DVR's RJ-45 port to your router or network switch.
6. પાવર કનેક્ટ કરો: Plug the power adapter into the DVR's power input and then into an electrical outlet.

છબી: આગળ અને પાછળ views of the XENOCAM A6504LME-5 DVR, showing control buttons, USB ports, BNC video inputs, HDMI/VGA outputs, and network port.

૩.૨ પ્રારંભિક પાવર-ઓન અને ગોઠવણી

1. Power on the DVR. The system will boot up and display on the connected monitor.
2. Upon first boot, you will be prompted to set a password for the default 'Admin' user. This is crucial for system security.
3. Follow the on-screen wizard to configure basic settings such as date, time, network settings, and video output resolution.
4. Format the installed hard drive through the system settings menu to ensure it is ready for recording.

5. ઓપરેટિંગ સૂચનાઓ

5.1 મેનુ નેવિગેશન

Use the connected USB mouse to navigate the DVR's graphical user interface (GUI). Right-click to access the main menu, and use the left-click to select options and confirm settings. The front panel buttons (ESC, MENU, OK, directional arrows) can also be used for navigation.

૩.૨ રેકોર્ડિંગ મોડ્સ

The DVR supports various recording modes:

• મેન્યુઅલ રેકોર્ડિંગ: Start and stop recording manually.
• સુનિશ્ચિત રેકોર્ડિંગ: Set specific times for continuous recording.
• ગતિ શોધ રેકોર્ડિંગ: કેમેરામાં ગતિ જોવા મળે ત્યારે જ રેકોર્ડ થાય છે view.
• એલાર્મ રેકોર્ડિંગ: જ્યારે બાહ્ય એલાર્મ ઇનપુટ ટ્રિગર થાય છે ત્યારે રેકોર્ડ કરે છે.

Configure these settings in the 'Record' section of the main menu.

5.3 પ્લેબેક

ઍક્સેસ રેકોર્ડ footage through the 'Playback' option in the main menu. You can search by date, time, and event type (e.g., motion detection). Use the on-screen controls to play, pause, fast forward, and rewind.

5.4 બેકઅપ પ્રક્રિયાઓ

મહત્વપૂર્ણ foo નો બેકઅપ લેવા માટેtage:

• યુએસબી બેકઅપ: Connect a USB flash drive or external hard drive to a USB port. Select the desired footage in the 'Backup' menu and transfer it to the USB device.
• નેટવર્ક બેકઅપ: ફુtage can be downloaded to a PC via the network using the CMS/VMS software.
• USB DVD-RW: Connect a compatible USB DVD-RW drive for burning footage to discs.

6. Remote Access (P2P)

૩.૧ મોબાઇલ એપ્લિકેશન ઇન્સ્ટોલેશન

To access your DVR remotely, download the 'XMeye' app on your smartphone or tablet (Android/iOS).

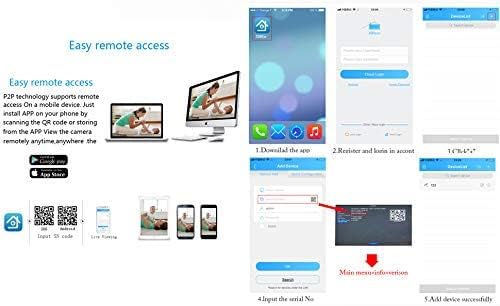

Image: Visual guide for downloading the XMeye app and the steps involved in registering an account and adding a device using a QR code.

૩.૩ ઉપકરણ જોડી બનાવવી

1. ખાતરી કરો કે તમારું DVR ઇન્ટરનેટ સાથે જોડાયેલ છે.
2. Open the XMeye app and register a new account or log in.
3. Select 'Add Device' and choose the option to scan a QR code.
4. Locate the unique QR code on your DVR (usually found in the network settings or device info menu) and scan it with the app.
5. Follow the prompts to add the device. Once successfully added, you can view live feeds and playback recordings from your mobile device.

7. ગતિ શોધ અને ચેતવણીઓ

7.1 મોશન ડિટેક્શનને ગોઠવી રહ્યું છે

To set up motion detection:

1. Navigate to the 'Alarm' or 'Motion Detection' settings in the main menu.
2. Select the camera channel you wish to configure.
3. Define the motion detection area by drawing a grid on the camera's view. You can customize sensitivity levels.
4. Enable motion detection recording for the selected channel.

Image: Illustration showing how motion detection triggers recording, with a timestamp indicating the start of recording upon detecting movement.

૫.૩ ચેતવણીઓ સેટ કરવી

Once motion detection is configured, you can set up alerts:

• ઇમેઇલ ચેતવણીઓ: Enter your email address and SMTP server details in the network settings to receive email notifications with snapshots when motion is detected.
• App Push Notifications: Ensure push notifications are enabled for the XMeye app on your mobile device to receive instant alerts.

8. જાળવણી

• નિયમિત સફાઈ: Keep the DVR free from dust. Use a soft, dry cloth to clean the exterior. Do not use liquid cleaners.
• ફર્મવેર અપડેટ્સ: સમયાંતરે ઉત્પાદકની તપાસ કરો website for firmware updates to ensure optimal performance and security. Follow update instructions carefully.
• હાર્ડ ડ્રાઈવ આરોગ્ય: Monitor the health of your hard drive through the DVR's system information. Replace the HDD if signs of failure appear.
• પાસવર્ડ સુરક્ષા: Regularly change your DVR's password and use strong, unique combinations to prevent unauthorized access.

9. મુશ્કેલીનિવારણ

10. સ્પષ્ટીકરણો

Image: Diagram illustrating the efficiency of H.265 compression compared to normal compression, showing clearer image quality with less bandwidth usage.

11. વોરંટી માહિતી

Warranty terms and conditions for the XENOCAM A6504LME-5 DVR are subject to the policies of the retailer and manufacturer at the time of purchase. Please refer to your purchase documentation or contact your seller for specific warranty details. Keep your proof of purchase for any warranty claims.

12. આધાર

For technical assistance, troubleshooting beyond this manual, or inquiries regarding your XENOCAM A6504LME-5 DVR, please contact the seller or manufacturer directly. Refer to the contact information provided with your product packaging or on the official XENOCAM webસાઇટ
