Boxlight LED Fog Lights with DRL for 2006-2014 Ford F150 Pickup Truck

પરિચય

Thank you for choosing Boxlight LED Fog Lights. This manual provides essential information for the proper installation, operation, and maintenance of your new fog lights. These lights are designed to enhance visibility and safety for your 2006-2014 Ford F150 pickup truck by combining Daytime Running Lights (DRL), fog lights, and turn signal functions.

Image: Boxlight LED Fog Lights with DRL, turn signals, and fog light functions shown on a Ford F150.

સલામતી માહિતી

• ઇલેક્ટ્રિક આંચકો અથવા નુકસાન ટાળવા માટે કોઈપણ ઇલેક્ટ્રિકલ કાર્ય કરતા પહેલા વાહનની બેટરી હંમેશા ડિસ્કનેક્ટ કરો.
• શોર્ટ સર્કિટ અટકાવવા માટે ખાતરી કરો કે બધા જોડાણો સુરક્ષિત અને યોગ્ય રીતે ઇન્સ્યુલેટેડ છે.
• ઇન્સ્ટોલેશન દરમિયાન યોગ્ય સલામતી સાધનો પહેરો, જેમાં મોજા અને આંખની સુરક્ષાનો સમાવેશ થાય છે.
• If you are unsure about any part of the installation process, consult a qualified automotive technician.
• Do not modify the product in any way, as this may void the warranty and compromise safety.

પેકેજ સામગ્રી

ઇન્સ્ટોલેશન શરૂ કરતા પહેલા ખાતરી કરો કે બધા ઘટકો હાજર છે:

• 1 Pair of LED Fog Lights (Left and Right)
• 1 DRL Wiring Harness

સેટઅપ અને ઇન્સ્ટોલેશન

These LED fog lights are designed for a direct plug-and-play installation, requiring no additional modifications for compatible 2006-2014 Ford F150 models. Please follow these general steps:

1. તૈયારી: Park your vehicle on a level surface and engage the parking brake. Turn off the engine and disconnect the negative terminal of the vehicle's battery.
2. Access Fog Light Area: Depending on your specific F150 model and trim, you may need to remove or partially remove the front bumper cover or fender liner to access the factory fog light assembly. Refer to your vehicle's service manual for precise instructions on accessing the fog light housing.
3. Remove Old Fog Lights: Disconnect the electrical connector from the existing fog light bulb. Unscrew or unclip the mounting hardware that secures the factory fog light assembly. Carefully remove the old fog light unit.
4. Install New LED Fog Lights: Position the new Boxlight LED fog light into the opening. Ensure it aligns correctly with the mounting points. Secure the new fog light using the factory mounting hardware or any provided hardware.
5. વાયરિંગ કનેક્ટ કરો: Connect the DRL wiring harness to the new LED fog light. The harness is designed for plug-and-play connection. Ensure all connections are firm and secure.
6. પરીક્ષણ કાર્યક્ષમતા: Reconnect the vehicle's battery. Turn on your vehicle's ignition and test the fog lights, Daytime Running Lights (DRL), and turn signals to ensure they are functioning correctly.
7. ફરીથી એસેમ્બલ કરો: Reinstall any removed bumper covers or fender liners.

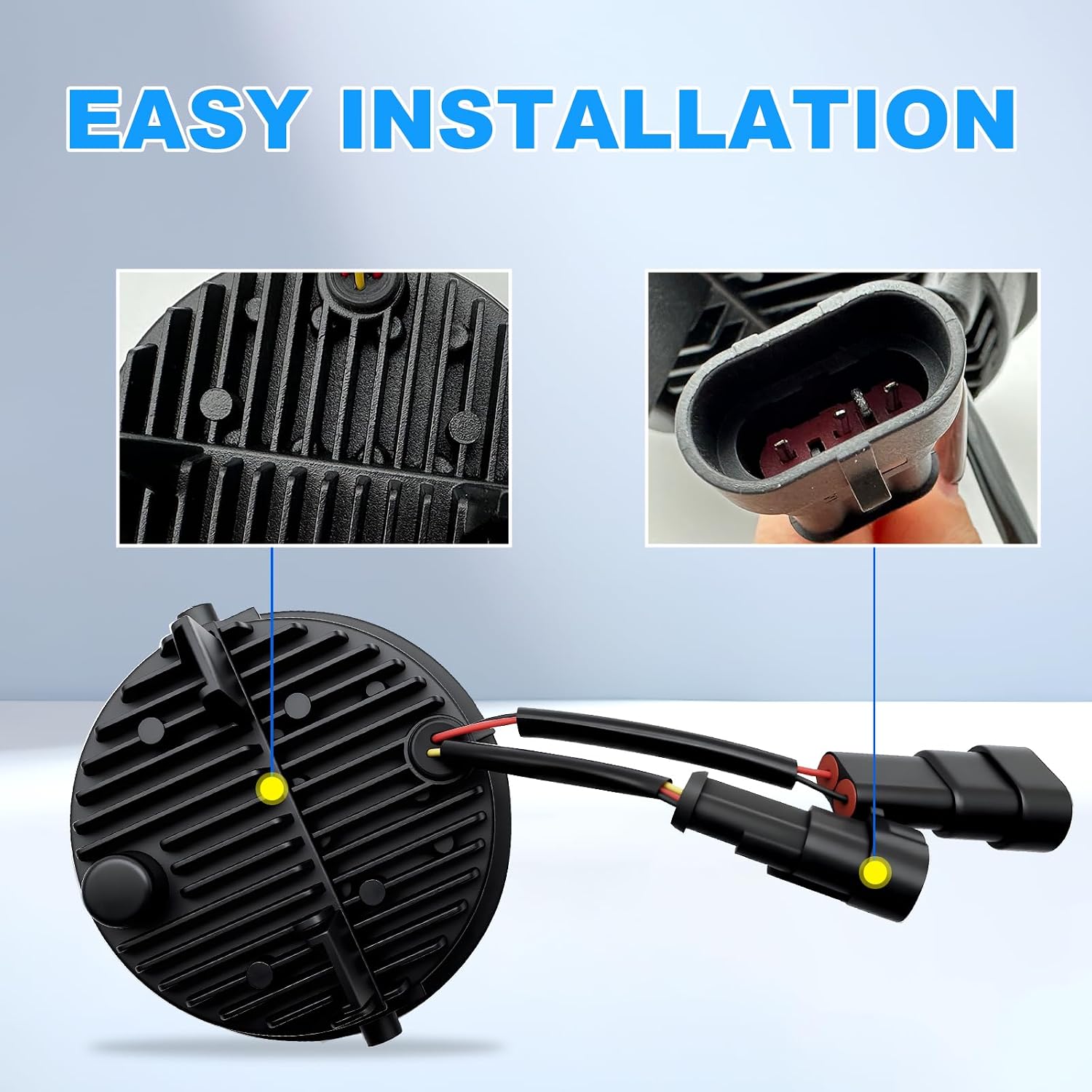

છબી: પાછળનો ભાગ view of the LED fog light, highlighting the cooling system and electrical connector for easy installation.

Image: Illustration of the high-efficiency cooling system and the plug-and-play installation feature.

ઓપરેટિંગ સૂચનાઓ

Your Boxlight LED Fog Lights integrate three distinct lighting functions:

• ડેટાઇમ રનિંગ લાઇટ્સ (DRL): These lights activate automatically when the vehicle is running, providing enhanced visibility during daylight hours.
• ધુમ્મસ લાઇટ્સ: The powerful LED fog lights are designed to cut through adverse weather conditions such as fog, heavy rain, or snow. Activate them using your vehicle's standard fog light switch. They provide a wide, low-reaching beam to illuminate the road without causing glare to oncoming traffic.
• ટર્ન સિગ્નલો: The integrated turn signals provide a clear and highly noticeable flashing indicator when you activate your vehicle's turn signal lever, ensuring safe lane changes and turns.

છબી: વિગતવાર view of the LED fog light demonstrating DRL and turn signal illumination patterns.

Image: A vehicle equipped with the LED fog lights, illustrating improved road visibility.

Image: Visual representation of the fog lights' effectiveness in diverse weather conditions including rain, snow, fog, night, and dust.

જાળવણી

To ensure optimal performance and longevity of your Boxlight LED Fog Lights, follow these maintenance guidelines:

• નિયમિત સફાઈ: Keep the lens clean from dirt, dust, and road grime. Use a soft cloth and mild soap solution to clean the lens. Avoid abrasive cleaners or harsh chemicals that could damage the polycarbonate lens.
• વાયરિંગ તપાસો: Periodically check the wiring harness and connections for any signs of wear, fraying, or corrosion. Ensure all connections remain secure.
• માઉન્ટ કરવાનું તપાસો: Verify that the fog lights are securely mounted and not loose. Tighten any mounting hardware if necessary.
• નુકસાન નિરીક્ષણ: Inspect the lights for any physical damage, such as cracks in the lens or housing, which could compromise their waterproof integrity.

Image: The LED fog light demonstrating its IP67 waterproof capability.

મુશ્કેલીનિવારણ

If you encounter issues with your LED fog lights, refer to the following troubleshooting steps:

If these steps do not resolve the issue, please contact Boxlight customer support.

વિશિષ્ટતાઓ

છબી: વિગતવાર view of the fog light construction, emphasizing DOT & SAE approval, LED light bulb, clear polycarbonate lens, and overall high-quality materials.

વોરંટી

Boxlight provides a 1-વર્ષ ઉત્પાદક વોરંટી for these LED Fog Lights from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, abuse, modification, or normal wear and tear. Please retain your proof of purchase for warranty claims.

આધાર

For technical assistance, warranty claims, or any questions regarding your Boxlight LED Fog Lights, please contact our customer support team through the retailer where the product was purchased or visit the official Boxlight webસંપર્ક માહિતી માટે સાઇટ.

અમે તમારા સંતોષની ખાતરી કરવા માટે ઉચ્ચ-ગુણવત્તાવાળા ઉત્પાદનો અને સહાય પૂરી પાડવા માટે પ્રતિબદ્ધ છીએ.
