STC-3028 24V Temperature & Humidity Controller User Manual

ઉત્પાદન ઓવરview

The STC-3028 is a versatile 24V temperature and humidity controller designed for precise environmental management. It features a dual digital display for simultaneous monitoring of temperature and humidity, making it ideal for applications such as incubators, terrariums, and other controlled environments. This device supports both heating/cooling and humidifying/dehumidifying functions.

Image: The STC-3028 controller unit with its integrated temperature and humidity sensor. The controller features a dual digital display showing temperature in red and humidity in blue.

ટેકનિકલ વિશિષ્ટતાઓ

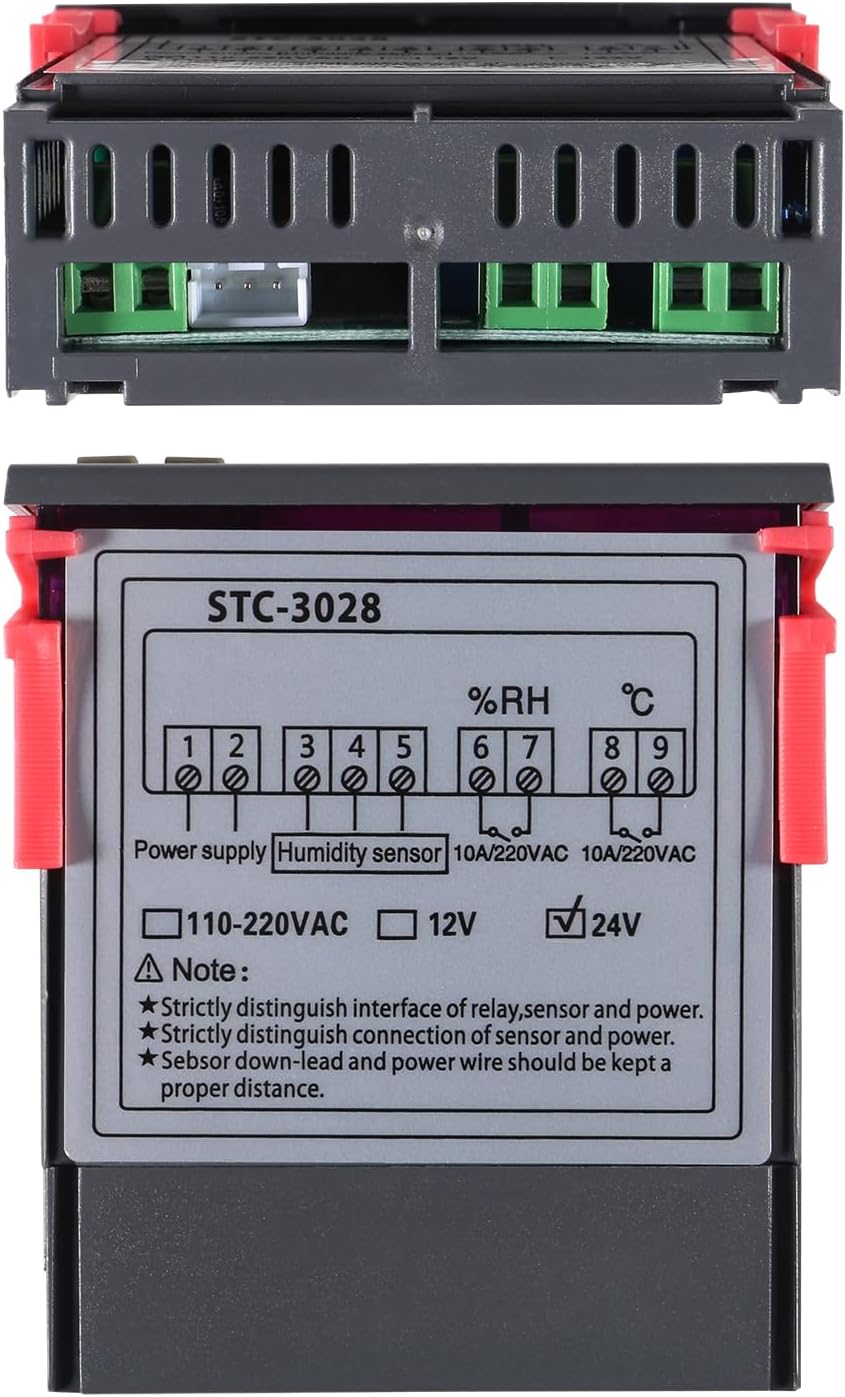

Image: Diagram showing the dimensions of the STC-3028 controller: 75mm (2.95 inches) length, 85mm (3.34 inches) width, and 27mm (1.06 inches) height.

પેકેજ સામગ્રી

પેકેજમાં નીચેની વસ્તુઓ શામેલ છે:

• 1 x STC-3028 Temperature and Humidity Controller
• 1 x Integrated Sensor (for temperature and humidity measurement)

સેટઅપ અને ઇન્સ્ટોલેશન

વાયરિંગ ડાયાગ્રામ

Proper wiring is crucial for the safe and correct operation of the STC-3028 controller. Refer to the diagram below for connection details.

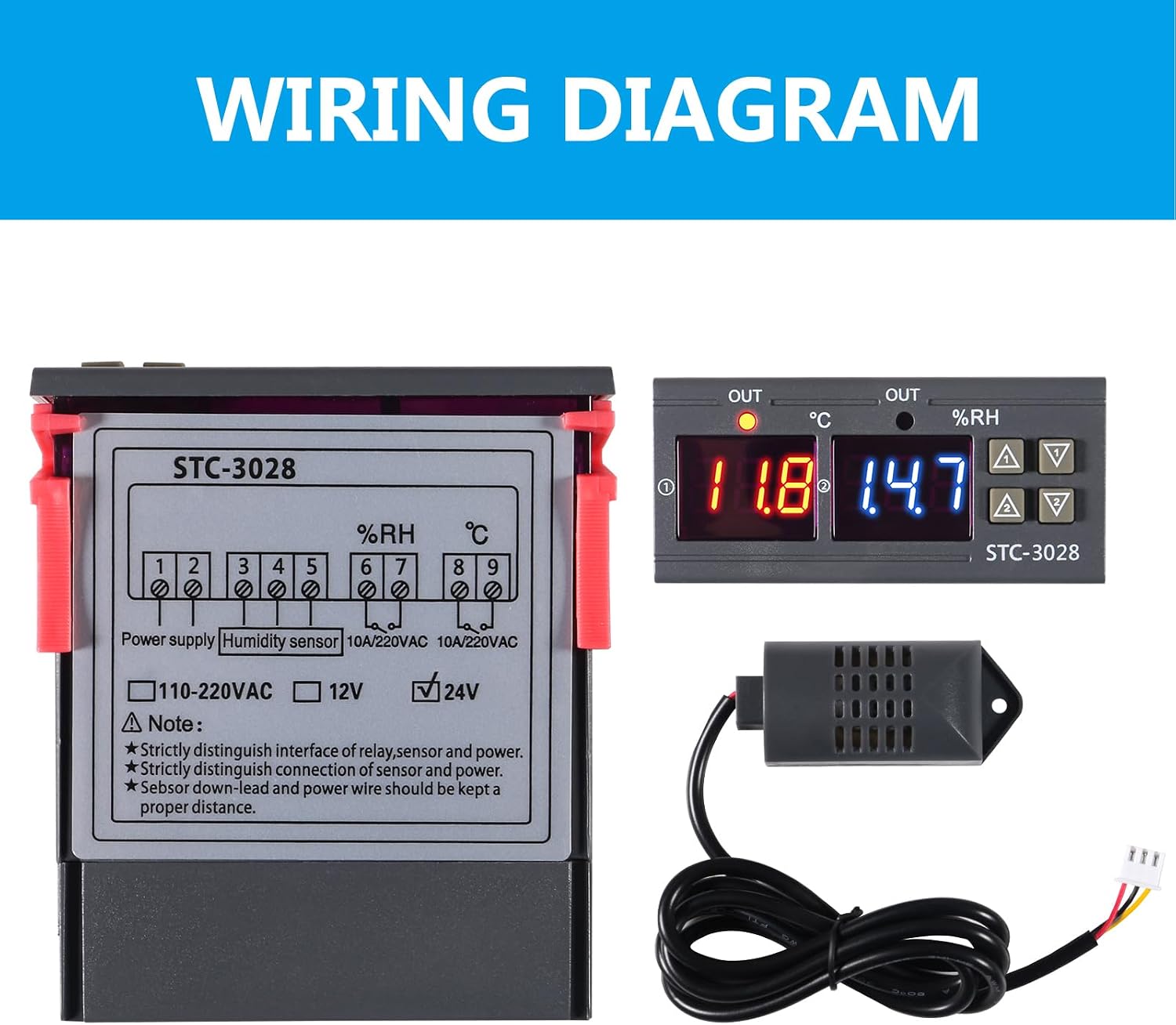

Image: A visual representation of the STC-3028 wiring diagram. It shows terminals for power supply (1-2), humidity sensor (3-5), and output relays for temperature (6-7) and humidity (8-9). The diagram also indicates voltage options (110-220VAC, 12V, 24V) and important notes regarding distinguishing interfaces and maintaining proper wire distance.

મહત્વપૂર્ણ નોંધો:

• Strictly distinguish the interface of the relay, sensor, and power supply.
• Strictly distinguish the connection of the sensor and power supply.
• The sensor down-lead and power wire should be kept a proper distance apart to avoid interference.
• યોગ્ય વોલ્યુમની ખાતરી કરોtage (24V) is supplied as indicated on the unit.

માઉન્ટ કરવાનું

The STC-3028 is designed for panel mounting. Ensure adequate space for ventilation, especially around the heat dissipation grids on the sides of the unit.

Image: The STC-3028 controller with a visual representation of air flowing through its side vents, indicating effective heat dissipation. The image highlights the cooling grid design for efficient cooling.

ઓપરેટિંગ સૂચનાઓ

Setting Startup Temperature/Humidity

1. દબાવો "up" button once to display the current starting temperature or humidity setting.
2. લાંબા સમય સુધી દબાવો "up" button for approximately 3 seconds until the display flashes.
3. નો ઉપયોગ કરો "up" અને "down" keys to adjust the desired starting temperature or humidity value.
4. The setting will automatically save after a few seconds of inactivity or by pressing another button.

Setting Stop Temperature/Humidity

1. દબાવો "down" button once to display the current stop temperature or humidity setting.
2. લાંબા સમય સુધી દબાવો "down" button for approximately 3 seconds until the display flashes.
3. નો ઉપયોગ કરો "up" અને "down" keys to adjust the desired stop temperature or humidity value.
4. The setting will automatically save after a few seconds of inactivity or by pressing another button.

Temperature/Humidity Correction (Calibration)

To correct or calibrate the temperature and humidity readings:

• દબાવો "up" અને "down" એક સાથે બટનો.
• Follow the on-screen prompts to adjust the offset for temperature or humidity. Refer to the product's advanced settings for detailed calibration procedures if available.

જાળવણી

• સફાઈ: Regularly wipe the unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• સેન્સર કેર: Keep the integrated sensor clean and free from dust or debris to ensure accurate readings. Avoid exposing the sensor to extreme physical shock or moisture beyond its operating range.
• વેન્ટિલેશન: Ensure the ventilation grids on the sides of the unit are not obstructed to allow for proper heat dissipation.
• પાવર ડિસ્કનેક્શન: Always disconnect power before performing any maintenance or wiring adjustments.

મુશ્કેલીનિવારણ

વોરંટી અને આધાર

For warranty information and technical support, please contact Shutao customer service. Keep your purchase receipt as proof of purchase.

Contact information may be available on the product packaging or the manufacturer's official webસાઇટ
