1. પરિચય
The Shutao STC-3028 is a microcomputer intelligent digital display thermostat designed for precise control of both temperature and humidity. This unit features a dual digital display, allowing simultaneous monitoring of measured temperature/humidity and set temperature/humidity values. It is capable of connecting to refrigeration/heating and humidifier/dehumidifier equipment, making it suitable for various applications such as incubators, seafood machines, and cooling water systems. The controller supports temperature and humidity calibration and comes with an integrated sensor for convenient use.
મુખ્ય લાક્ષણિકતાઓમાં શામેલ છે:
- Dual display for measured and set temperature/humidity.
- Independent control for heating/cooling and humidifying/dehumidifying functions.
- Integrated sensor for accurate readings.
- Supports temperature and humidity calibration.
- સરળ વાંચનક્ષમતા માટે ડિજિટલ ડિસ્પ્લે સાફ કરો.
2. સેટઅપ અને વાયરિંગ
Proper wiring is essential for the safe and correct operation of the STC-3028 controller. Refer to the wiring diagram below for connection details. This model operates on a 12V AC input.
આકૃતિ 2.1: Wiring Diagram for STC-3028 Controller. This diagram illustrates the connections for power supply, humidity sensor, and relay outputs for temperature and humidity control.
આકૃતિ 2.2: વિગતવાર view of the wiring label on the STC-3028, showing pin assignments for power, sensor, and relay outputs.
વાયરિંગ સૂચનાઓ:
- Power Supply (Pins 1 & 2): Connect your 12V AC power source to these terminals. Ensure correct polarity if applicable, though the diagram indicates AC. For DC 12V, typically pin 1 is positive and pin 2 is negative.
- Humidity Sensor (Pins 3, 4, 5): Connect the integrated humidity sensor to these pins. The sensor cable typically has a specific connector that matches the port.
- Temperature Control Output (Pins 6 & 7): These are the relay contacts for temperature control (10A/240VAC). Connect your heating or cooling device to these terminals.
- Humidity Control Output (Pins 8 & 9): These are the relay contacts for humidity control (10A/240VAC). Connect your humidifier or dehumidifier device to these terminals.
મહત્વપૂર્ણ નોંધો:
- Strictly distinguish the interface of the relay, sensor, and power connections to prevent damage.
- Maintain a proper distance between the sensor down-lead and power wires to avoid interference.
- પાવર લાગુ કરતાં પહેલાં ખાતરી કરો કે બધા જોડાણો સુરક્ષિત છે.
3. ઓપરેટિંગ સૂચનાઓ
The STC-3028 controller allows you to set desired temperature and humidity ranges for automatic control.
Setting Startup Temperature/Humidity:
- દબાવો "ઉપર" button (for temperature) or the "ઉપર" button (for humidity) once to display the current startup temperature or humidity setting.
- Long press the respective "ઉપર" button for approximately 3 seconds until the displayed value flashes.
- નો ઉપયોગ કરો "ઉપર" અને "Down" તથ્યો buttons to adjust the desired startup temperature or humidity.
- The setting will automatically save after a few seconds of inactivity.
Setting Stop Temperature/Humidity:
- દબાવો "Down" તથ્યો button (for temperature) or the "Down" તથ્યો button (for humidity) once to display the current stop temperature or humidity setting.
- Long press the respective "Down" તથ્યો button for approximately 3 seconds until the displayed value flashes.
- નો ઉપયોગ કરો "ઉપર" અને "Down" તથ્યો buttons to adjust the desired stop temperature or humidity.
- The setting will automatically save after a few seconds of inactivity.
તાપમાન અને ભેજનું માપાંકન:
To calibrate the temperature or humidity readings:
- For temperature calibration: Press the "ઉપર" (temperature) and "Down" તથ્યો (temperature) buttons simultaneously. Adjust the offset using the Up/Down buttons.
- For humidity calibration: Press the "ઉપર" (humidity) and "Down" તથ્યો (humidity) buttons simultaneously. Adjust the offset using the Up/Down buttons.
It is recommended to use a professional and trusted external sensor for accurate calibration.
4. જાળવણી
To ensure the longevity and accurate performance of your STC-3028 controller, follow these maintenance guidelines:
- સફાઈ: નિયમિતપણે ડિસ્પ્લે સાફ કરો અને સીasinનરમ, સૂકા કપડાથી ઘર્ષક ક્લીનર્સ અથવા સોલવન્ટનો ઉપયોગ કરવાનું ટાળો.
- સેન્સર કેર: Keep the integrated sensor clean and free from dust, debris, or moisture buildup, as this can affect reading accuracy. Do not immerse the sensor in liquids.
- પર્યાવરણીય પરિસ્થિતિઓ: Operate the controller within its specified temperature and humidity ranges. Avoid exposing it to extreme conditions, direct sunlight, or corrosive environments.
- જોડાણો: સમયાંતરે બધા વાયરિંગ કનેક્શન્સ તપાસો જેથી ખાતરી થાય કે તે સુરક્ષિત અને કાટથી મુક્ત રહે.

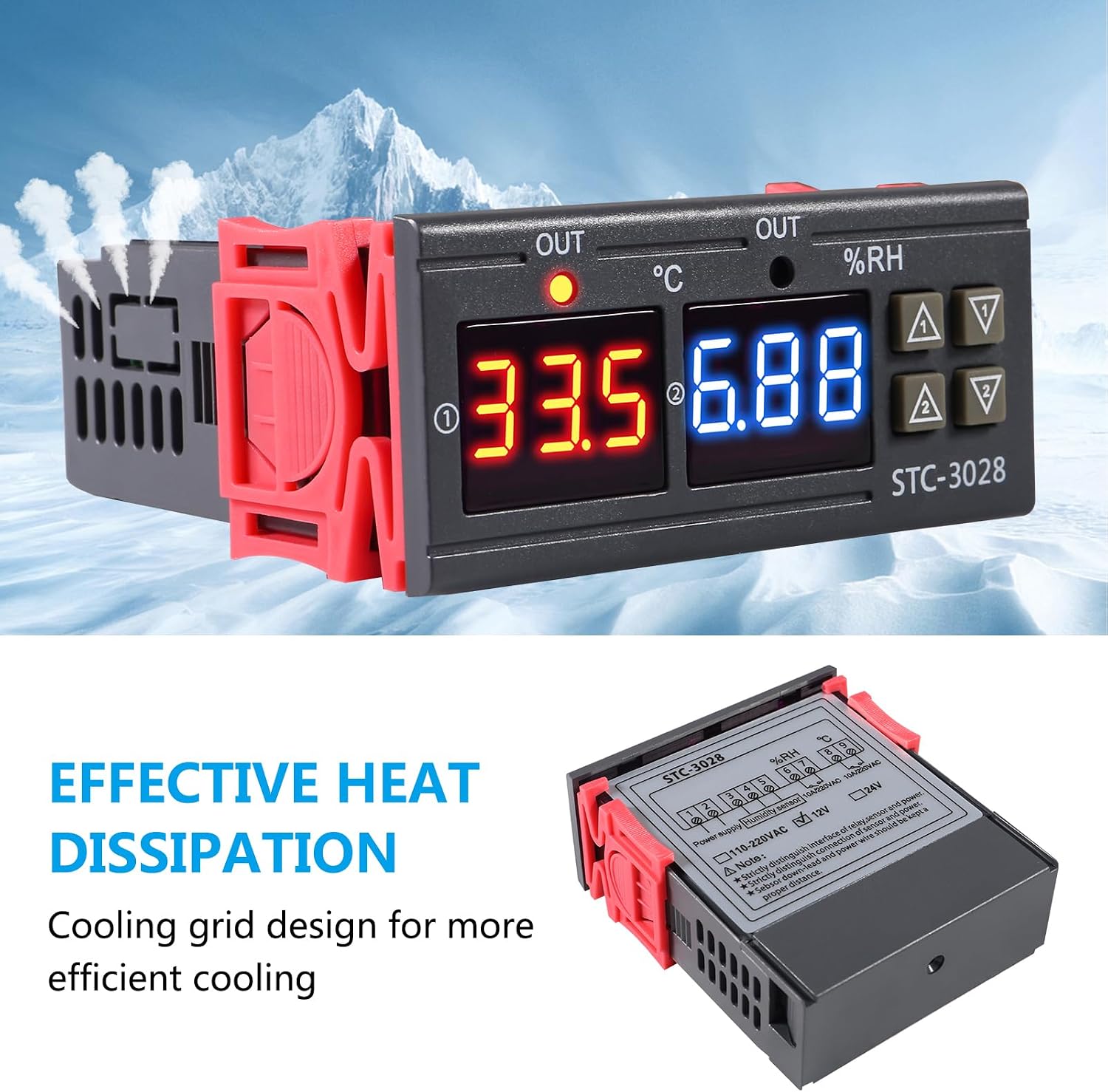

આકૃતિ 4.1: The STC-3028 controller features a cooling grid design for effective heat dissipation, contributing to its operational stability.
5. મુશ્કેલીનિવારણ
If you encounter issues with your STC-3028 controller, refer to the following common problems and solutions:
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| Display shows "LLL" or "HHH" | Sensor error, disconnected sensor, or reading outside range. | Check sensor connection. Ensure the sensor is within the operating temperature/humidity range. Replace sensor if faulty. |
| Relay fails to switch (stuck ON/OFF) | Faulty relay, incorrect wiring, or power overload. | Verify wiring connections. Ensure connected load does not exceed 10A/240VAC. If problem persists, the relay may be faulty and require replacement or professional repair. |
| તાપમાન/ભેજના અચોક્કસ રીડિંગ્સ | Sensor dirty, sensor damaged, or calibration needed. | Clean the sensor. Perform calibration as described in Section 3. If readings remain inaccurate, the sensor may be damaged. |
| કંટ્રોલર ચાલુ થતો નથી | પાવર સપ્લાય નથી, ખોટો વોલ્યુમ છેtage, or faulty unit. | Check power connections and ensure 12V AC is supplied. Verify power source is functional. |
6. સ્પષ્ટીકરણો
Detailed technical specifications for the Shutao STC-3028 12V Temperature and Humidity Controller:
આકૃતિ 6.1: Dimensions of the STC-3028 controller, showing approximate measurements in millimeters and inches.
- મોડલ: STC-3028
- ઇનપુટ વોલ્યુમtage: 12V AC
- માપન તાપમાન શ્રેણી: -50°C થી +110°C
- ભેજનું માપન: 00%RH to +100%RH
- તાપમાનની ચોકસાઈ: ±1°C
- ભેજની ચોકસાઈ: . 0.1% આરએચ
- Relay Output Contact Capacity: 10A/240VAC (for both temperature and humidity control)
- ડિસ્પ્લે પ્રકાર: ડિજિટલ
- સામગ્રી: પ્લાસ્ટિક
- વસ્તુનું વજન: આશરે 0.48 ઔંસ (0.03 પાઉન્ડ)
- અંદાજિત પરિમાણો (L x W x H): ૨૮૦ મીમી (૧૧ ઇંચ) x ૧૨૨ મીમી (૪.૮ ઇંચ) x ૬૭ મીમી (૨.૬ ઇંચ)
- આઇટમ મોડલ નંબર: 13442ST-1
- યુપીસી: 687117717115
7. વોરંટી અને સપોર્ટ
Information regarding product warranty and customer support is not provided within this manual. Please refer to the product packaging, purchase documentation, or contact the retailer or manufacturer directly for details on warranty coverage and technical assistance.
