MT-VIKI 4K HDMI Splitter 1 in 2 Out

1. ઉત્પાદન ઓવરview

The MT-VIKI 4K HDMI Splitter 1 in 2 Out (Model 4K30) is designed to duplicate one HDMI input signal to two identical HDMI output signals. This device allows you to display the same high-definition video and audio content on two separate screens simultaneously. It is ideal for applications requiring mirrored displays, such as presentations, home entertainment, or digital signage.

Figure 1: MT-VIKI 4K HDMI Splitter 1 in 2 Out

મુખ્ય લક્ષણો:

• 1 Input to 2 Outputs: Duplicates one HDMI source to two displays.
• 4K રિઝોલ્યુશન: Supports resolutions up to 4Kx2K@30Hz, 1080p@60Hz, and 720p@60Hz.
• HDMI 1.4 & HDCP 1.4 Compatible: Ensures broad compatibility with various HDMI devices.
• Long Distance Transmission: Supports distances up to 110ft (50ft from splitter to monitor, 60ft to source).
• પ્લગ એન્ડ પ્લે: No software or drivers required for installation.
• પાતળી અને હલકી ડિઝાઇન: Compact form factor for easy placement.

2. પેકેજ સામગ્રી

કૃપા કરીને નીચેની વસ્તુઓ માટે પેકેજ તપાસો:

• HDMI Splitter 1x2 (Model 4K30) x 1
• ટાઇપ-સી ચાર્જિંગ કેબલ x 1
• વપરાશકર્તા માર્ગદર્શિકા x 1

નોંધ: A DC 5V 1A power adapter is નથી included and must be supplied by the user.

આકૃતિ 2: પેકેજ સામગ્રી

3. સેટઅપ સૂચનાઓ

Follow these steps to set up your MT-VIKI 4K HDMI Splitter:

1. Connect the HDMI Source: Connect your HDMI source device (e.g., computer, PS4, Fire Stick, Blu-Ray player) to the IN port of the HDMI splitter using an HDMI cable.
2. Connect the Displays: Connect your two HDMI display devices (e.g., TVs, monitors, projectors) to the આઉટ 1 અને આઉટ 2 ports of the HDMI splitter using HDMI cables.
3. પાવર કનેક્ટ કરો: Connect the provided Type-C charging cable to the ડીસી 5 વી port on the splitter and then to a 5V 1A USB power adapter (not included) or a USB port on your source device. The power indicator light on the splitter will illuminate.
4. ઉપકરણો પર પાવર: Power on your HDMI source device and both display devices. The splitter will automatically detect the signals and duplicate the display.

Figure 3: Typical Setup for Dual Monitors

સુસંગતતા:

The splitter is compatible with most devices featuring a standard HDMI interface. This includes:

• ઇનપુટ ઉપકરણો: Computers, Xbox One, PS3, PS4 Pro, Fire Stick, Blu-Ray DVD players, Roku, etc.
• આઉટપુટ ઉપકરણો: Full HD TVs, monitors, projectors, etc.

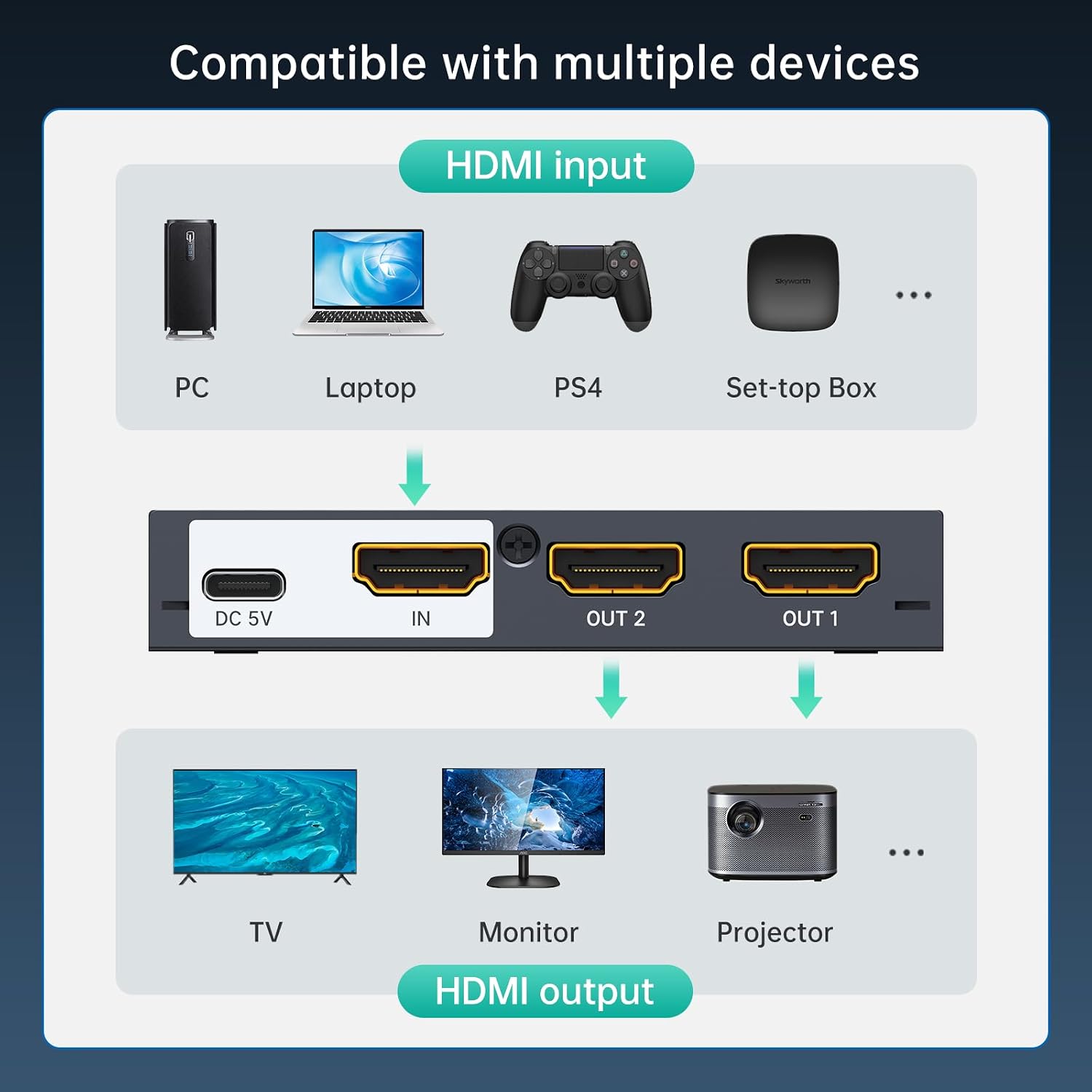

આકૃતિ 4: સુસંગત ઉપકરણો

સ્થાપન વિડિઓ:

4. ઓપરેટિંગ મોડ્સ

Mirror/Duplicate Mode:

The MT-VIKI 4K HDMI Splitter operates primarily in mirror/duplicate mode. This means that the same video and audio content from your single HDMI source will be displayed on both connected output screens (OUT 1 and OUT 2).

મહત્વપૂર્ણ નોંધ: This HDMI splitter supports mirror/duplicate mode (A-AA/A-BB). The two outputs will show the exact same image. It કરી શકતા નથી support extended mode to display two different screens from a single source. However, if you use a laptop as the input source, you can utilize its built-in screen as an extended display, while the two external monitors connected to the splitter will mirror each other. To achieve this, press વિન + પી (on Windows) and select the 'Extend' option to use your laptop screen for working, while the two splitter outputs show identical content.

કાસ્કેડ સપોર્ટ:

For applications requiring more than two mirrored displays, multiple MT-VIKI HDMI splitters can be cascaded. This involves connecting the output of one splitter to the input of another, allowing you to expand the number of displays showing the same content from a single source.

Figure 5: Cascade Connection Example

5. ટેકનિકલ વિશિષ્ટતાઓ

આકૃતિ 6: ઉત્પાદન પરિમાણો

Figure 7: Ports Overview

6. મુશ્કેલીનિવારણ

• No Signal on Displays:
  • Ensure all HDMI cables are securely connected to the correct input and output ports.
  • Verify that the splitter is receiving power and its power indicator light is on.
  • Check the resolution settings of your source device. Ensure it is compatible with the splitter's supported resolutions (up to 4K@30Hz).
  • Try connecting the HDMI source directly to one of the displays to confirm the source and display are working correctly.
  • Use high-quality HDMI cables, especially for 4K resolutions and longer distances.
• ટમટમતું અથવા તૂટક તૂટક સિગ્નલ:
  • This can often be caused by long or low-quality HDMI cables. Try shorter, certified HDMI cables.
  • Ensure the power supply is stable and provides sufficient power (DC 5V 1A).
  • અન્ય ઇલેક્ટ્રોનિક ઉપકરણોમાંથી ઇલેક્ટ્રોમેગ્નેટિક હસ્તક્ષેપ તપાસો.
• Resolution Issues (e.g., not getting 4K):
  • Confirm that both your source device and display devices support 4K@30Hz.
  • Ensure your HDMI cables are rated for 4K transmission.
  • The maximum recommended cable length for 4K@30Hz is 15 meters (50ft) total (input + output). Exceeding this may result in lower resolutions or signal loss.
• Cannot Extend Display (different content on each screen):
  • This splitter is designed for mirroring/duplicating the same content to multiple screens. It does not support extending a single source to multiple unique displays.
  • If using a laptop, you can extend your desktop to the laptop's built-in screen, while the two external monitors connected to the splitter will mirror each other.

7. સામાન્ય માહિતી

જાળવણી:

• ઉપકરણને ઠંડી, સૂકી જગ્યાએ, સીધા સૂર્યપ્રકાશ અને ગરમીના સ્ત્રોતોથી દૂર રાખો.
• ઉપકરણને પાણી અથવા વધુ પડતા ભેજના સંપર્કમાં આવવાનું ટાળો.
• ઉપકરણને નરમ, સૂકા કપડાથી સાફ કરો. પ્રવાહી અથવા એરોસોલ ક્લીનર્સનો ઉપયોગ કરશો નહીં.
• ઉપકરણ જાતે ખોલવાનો કે રિપેર કરવાનો પ્રયાસ કરશો નહીં. લાયક સેવા કર્મચારીઓનો સંપર્ક કરો.

Product Series Overview:

MT-VIKI offers a range of HDMI splitters with various port configurations. For a broader understanding of the product line, you may refer to the following video:

8. સંપર્ક આધાર

For any questions, technical support, or warranty inquiries, please contact MT-VIKI customer service through your purchase platform or visit the official MT-VIKI webસાઇટ

ઉત્પાદક: MT-VIKI

પ્રથમ ઉપલબ્ધ તારીખ: 3 એપ્રિલ, 2024
