U-MAX 7x3 Outdoor Bike Storage Shed Instruction Manual

1. પરિચય

Thank you for choosing the U-MAX 7x3 Outdoor Bike Storage Shed. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage shed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Image 1.1: The U-MAX 7x3 Outdoor Bike Storage Shed, designed for secure outdoor storage.

2. સલામતી માહિતી

એસેમ્બલી અને ઉપયોગ દરમિયાન હંમેશા સલામતીને પ્રાથમિકતા આપો. આ સલામતી માર્ગદર્શિકાનું પાલન કરવામાં નિષ્ફળતા ઉત્પાદનને ઈજા અથવા નુકસાન પહોંચાડી શકે છે.

• બધી સૂચનાઓ વાંચો: Ensure you understand each step before proceeding.
• રક્ષણાત્મક ગિયર પહેરો: એસેમ્બલી દરમિયાન મોજા અને આંખના રક્ષણની ભલામણ કરવામાં આવે છે.
• બે વ્યક્તિની એસેમ્બલી: Assembly is easier and safer with at least two adults.
• Choose a level site: Install the shed on a firm, level surface to ensure stability.
• Secure the shed: Anchor the shed to the ground to prevent wind damage.
• બાળકો અને પાલતુ પ્રાણીઓને દૂર રાખો: During assembly, keep children and pets at a safe distance from the work area.
• Avoid climbing: Do not climb on the shed roof or walls.

3. પેકેજ સામગ્રી

Before beginning assembly, verify that all parts are present and undamaged. Refer to the parts list provided in your separate packaging insert. If any parts are missing or damaged, contact U-MAX customer service immediately.

• Metal panels (walls, roof, doors)
• ફ્રેમ ઘટકો
• Hardware kit (screws, bolts, nuts, washers)
• Handles and latch mechanism
• સૂચના માર્ગદર્શિકા (આ દસ્તાવેજ)

4. સેટઅપ અને એસેમ્બલી

Careful assembly is crucial for the stability and longevity of your shed. Follow the step-by-step instructions provided in the separate detailed assembly guide included with your product. The following points offer general guidance and important considerations.

4.1 સાઇટની તૈયારી

Select a flat, level area for installation. The shed requires a footprint of approximately 22.5 square feet. Ensure adequate clearance around the shed for assembly and future access. Recommended flooring options include:

• પ્લાયવુડ
• કોંંક્રિટ નો સ્લેબ
• Plastic polymer or small pea gravel base

Image 4.1: Recommended flooring selections for shed installation.

૨.૨ જરૂરી સાધનો (શામેલ નથી)

• ફિલિપ્સ હેડ સ્ક્રુડ્રાઈવર
• એડજસ્ટેબલ રેન્ચ અથવા સોકેટ સેટ
• માપન ટેપ
• સ્તર
• Drill (optional, for pilot holes if needed)
• કામના મોજા

4.3 એસેમ્બલી પગલાં

Refer to the detailed graphical assembly manual for specific instructions. Key steps generally include:

1. Assemble the base frame.
2. યોગ્ય ગોઠવણીની ખાતરી કરીને, દિવાલ પેનલો જોડો.
3. Install the roof support beams and roof panels. The sloping roof design helps prevent rainwater accumulation.
4. Mount the doors and install the latch mechanism. The latch design enhances security.
5. Secure the shed to the ground using appropriate anchoring methods for your chosen base.

Image 4.2: Product dimensions for planning and assembly.

5. ઉપયોગ અને કામગીરી

The U-MAX 7x3 Outdoor Bike Storage Shed is designed to provide secure and weatherproof storage for various outdoor items.

• સંગ્રહ ક્ષમતા: With a footprint of 22.5 Sq.Ft, this shed can accommodate up to 5 bicycles, 4 regular lawnmowers, or 3 snowmobiles.
• ડોર ઓપરેશન: The shed features wide double doors for easy access. Ensure doors are fully open when moving large items in or out.
• સુરક્ષા: Utilize the integrated latch mechanism to secure the doors. For enhanced security, a padlock (not included) can be added.
• આંતરિક સંગઠન: Consider adding shelves or hooks (not included) to maximize internal storage space and keep items organized.

છબી ૪.૧: ઉદાહરણample of shed interior with stored items and optional shelving.

6. જાળવણી

Regular maintenance will ensure the longevity and optimal performance of your U-MAX storage shed.

• સફાઈ: Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals.
• રસ્ટ નિવારણ: The shed features a galvanized coating and an automotive-grade anti-rust process to resist rust and oxidation. Inspect the shed annually for any signs of wear or damage to the coating and address promptly.
• Leakage Prevention: The sloping roof design is intended to prevent rainwater leakage. Regularly clear debris from the roof and around the base to ensure proper drainage.
• હાર્ડવેર તપાસ: Periodically check all screws and bolts to ensure they are tight. Tighten as necessary.

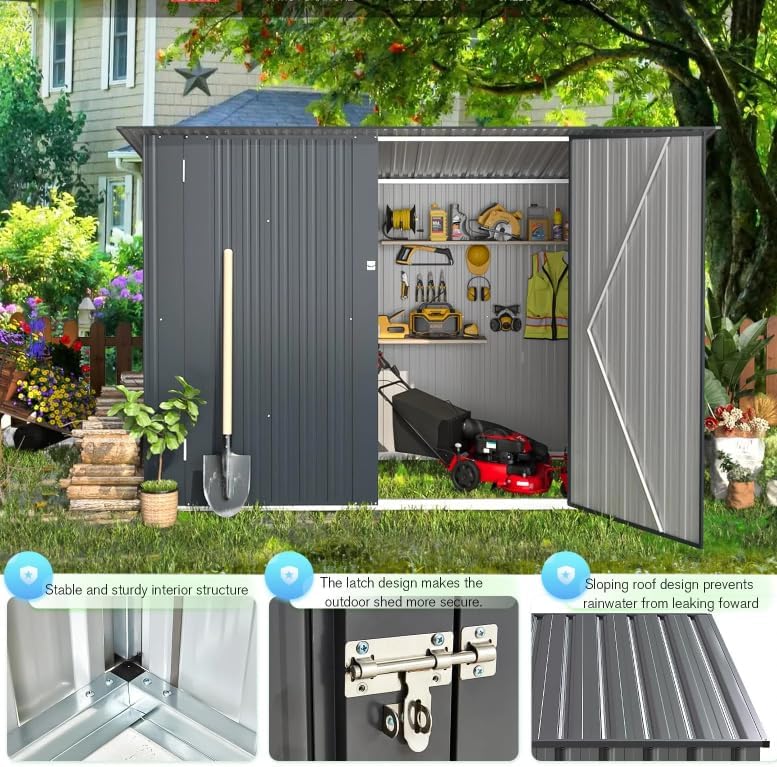

Image 6.1: Features contributing to shed stability, security, and weather protection.

Image 6.2: The anti-rust process helps prevent mold and rust by avoiding oxygen contact with the material.

7. મુશ્કેલીનિવારણ

If you encounter issues with your U-MAX storage shed, refer to the following common problems and solutions:

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

U-MAX stands behind the quality of its products. Your U-MAX 7x3 Outdoor Bike Storage Shed comes with a 1 વર્ષની વોરંટી ખરીદીની તારીખથી.

For any questions, concerns, or technical assistance, please contact our customer service team. We offer lifelong customer-friendly service available 24/7 and are ready to assist you at any time.

સંપર્ક માહિતી: Refer to the contact details provided on your purchase receipt or the U-MAX official webસાઇટ
