FLARING FC650DL Plasma Cutter Instruction Manual

1. મહત્વપૂર્ણ સલામતી માહિતી

Operating a plasma cutter involves significant risks. Always adhere to safety precautions to prevent injury or damage. This section outlines critical safety guidelines.

1.1 ઇલેક્ટ્રિકલ સલામતી

• ખાતરી કરો કે મશીન યોગ્ય રીતે ગ્રાઉન્ડ છે.
• Never operate the plasma cutter in wet conditions or with wet hands.
• Inspect power cables and connections for damage before each use.
• Use appropriate circuit breakers: 40A for 240V systems, 55A for 120V systems.

1.2 Fire and Explosion Hazards

• Keep flammable materials away from the cutting area.
• Ensure adequate ventilation to prevent accumulation of flammable gases.
• અગ્નિશામક ઉપકરણ સરળતાથી ઉપલબ્ધ રાખો.

1.3 Fumes and Gases

• Plasma cutting produces fumes and gases that can be hazardous to health.
• Work in a well-ventilated area or use a fume extractor.
• Avoid breathing fumes directly.

1.4 વ્યક્તિગત રક્ષણાત્મક સાધનો (PPE)

• Always wear a welding helmet with appropriate shade filter to protect eyes and face.
• Wear flame-resistant clothing, heavy-duty gloves, and safety shoes.
• Use ear protection to guard against noise.

2. ઉત્પાદન ઓવરview

The FLARING FC650DL is a 65 AMP non-touch pilot arc plasma cutter designed for efficient and precise metal cutting. It features dual voltage capability (120V/240V) and a high-frequency IGBT inverter for stable performance.

2.1 મુખ્ય લક્ષણો

• Non-Touch Pilot Arc: Initiates arc without direct contact, improving cutting performance on rusty or painted surfaces and extending consumable life.
• ડ્યુઅલ વોલ્યુમtagઇ (120V/240V): Automatically adapts to available power, offering versatility for home, workshop, or industrial use.
• High-Frequency IGBT Inverter: Ensures stable and powerful cutting performance.
• કાપવાની ક્ષમતા: Up to 1/2 inch (12mm) clean cut at 120V/35A and 5/8 inch (16mm) severance cut at 240V/65A.

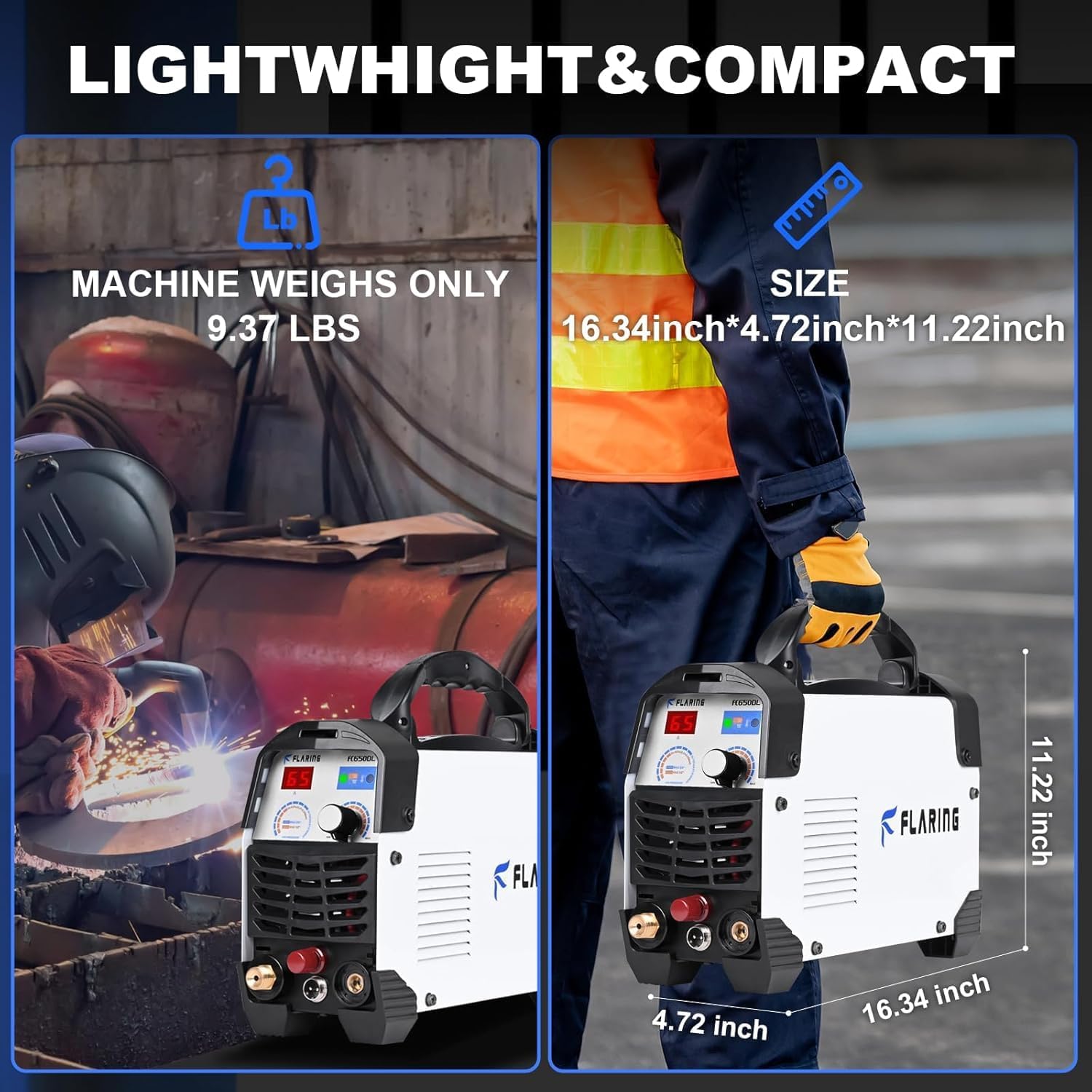

• અલ્ટ્રા-પોર્ટેબલ: Lightweight design with a handle for easy transport.

2.2 પેકેજ સામગ્રી

ખાતરી કરો કે બધી વસ્તુઓ પેકેજમાં હાજર છે:

• FLARING FC650DL Plasma Cutter Machine
• Upgraded Plasma Cutting Torch (AG60)
• ગ્રાઉન્ડ Clamp કેબલ સાથે
• એર ફિલ્ટર રેગ્યુલેટર
• Consumable Set (extra 4 pieces)
• ગેસ નળી
• Conversion Line (120V to 240V)
• સૂચના માર્ગદર્શિકા

Image: FLARING FC650DL Plasma Cutter with all included accessories, including the AG60 torch, ground clamp, air filter regulator, consumables, and power conversion cable.

2.3 પેનલ પરિચય

Familiarize yourself with the control panel and connections:

છબી: આગળ અને પાછળ view of the FLARING FC650DL Plasma Cutter, highlighting the LED digital display, current adjustable knob, torch connector, torch switch, earth clamp connector, power switch, power cable, pressure control knob, cooling fan, and pressure gauge.

1. એલઇડી ડિજિટલ ડિસ્પ્લે
2. Current Adjustable Knob
3. ટોર્ચ કનેક્ટર
4. ટોર્ચ સ્વિચ
5. પૃથ્વી Clamp કનેક્ટર
6. પાવર સ્વિચ
7. પાવર કેબલ
8. પ્રેશર કંટ્રોલ નોબ
9. કૂલિંગ ફેન
10. પ્રેશર ગેજ

3. સેટઅપ

સલામત અને અસરકારક કામગીરી માટે યોગ્ય સેટઅપ ખૂબ જ મહત્વપૂર્ણ છે. આ પગલાં કાળજીપૂર્વક અનુસરો.

3.1 Air Compressor Connection

An air compressor is required for plasma cutting. Ensure it meets the recommended specifications: 90 PSI, 60 L/min or above.

• Attach the air filter regulator to the machine's air input port.
• Connect the gas hose from your air compressor to the air filter regulator.
• હવા લીક થવાથી બચવા માટે બધા જોડાણો કડક છે તેની ખાતરી કરો.

3.2 વિદ્યુત જોડાણ

The FC650DL supports dual voltage operation. Use the appropriate power source and circuit protection.

• પાવર કેબલને યોગ્ય વિદ્યુત આઉટલેટ સાથે કનેક્ટ કરો.
• For 120V operation, use a 55A circuit breaker.
• For 240V operation, use a 40A circuit breaker.
• Use the included conversion cord if switching between 120V and 240V systems.

3.3 Torch and Ground Clamp જોડાણ

Connect the cutting torch and ground clamp securely to the machine.

• Connect the AG60 plasma cutting torch to the designated torch connector on the front panel.
• જમીન cl સાથે જોડોamp cable to the earth clamp કનેક્ટર
• જમીન cl જોડોamp firmly to the workpiece, ensuring good electrical contact.

4. ઓપરેટિંગ સૂચનાઓ

Once the machine is set up, follow these steps to begin cutting.

4.1 Power On and Parameter Setting

• Turn on the power switch located on the rear panel.
• Use the current adjustable knob on the front panel to set the desired cutting amperage. Refer to the cutting chart for recommended settings based on material thickness.
• Adjust the pressure control knob on the air filter regulator to achieve the recommended air pressure (e.g., 50 PSI for 120V, 60 PSI for 240V).

૪.૩ કાપવાની તકનીકો

The non-touch pilot arc feature simplifies starting the cut.

• Position the torch nozzle approximately 1/8 inch (3mm) above the workpiece.
• Press the torch switch to initiate the pilot arc.
• Slowly move the torch across the material at a consistent speed. Adjust speed as needed for clean cuts.
• Maintain a steady torch angle, typically perpendicular to the workpiece.

Image: The FLARING FC650DL Plasma Cutter in action, showing the ideal clean cut of 1/2 inch (12.7mm) and max severance cut of 5/8 inch (16mm) on metal plates.

૩.૩ સામગ્રી સુસંગતતા

The FC650DL is suitable for cutting various conductive metals:

• ધાતુ
• Steels
• એલ્યુમિનિયમ પ્લેટ
• લોખંડ
• સ્ટેનલેસ સ્ટીલ
• એલોય સ્ટીલ
• હળવા સ્ટીલ
• કોપર

છબી: દા.તamples of various metal pieces cut using the FLARING FC650DL Plasma Cutter, demonstrating its versatility across different materials.

5. જાળવણી

Regular maintenance ensures optimal performance and extends the lifespan of your plasma cutter.

5.1 Consumable Replacement

Plasma torch consumables (nozzles, electrodes, shield cups) wear out over time and need regular inspection and replacement.

• Inspect consumables before each use for signs of wear, pitting, or damage.
• Replace worn consumables promptly to maintain cut quality and prevent damage to the torch.
• Always use genuine FLARING replacement parts.

5.2 સફાઈ

• Regularly clean the air filter regulator to ensure clean, dry air supply to the torch.
• Wipe down the machine exterior with a dry cloth to remove dust and debris.
• Keep the cooling fan vents clear of obstructions.

5.3 સંગ્રહ

• Store the plasma cutter in a clean, dry environment when not in use.
• Protect the torch and cables from damage during storage.

6. મુશ્કેલીનિવારણ

આ વિભાગ તમને આવી શકે તેવી સામાન્ય સમસ્યાઓના ઉકેલો પૂરા પાડે છે.

7. સ્પષ્ટીકરણો

Detailed technical specifications for the FLARING FC650DL Plasma Cutter.

8. વોરંટી અને સપોર્ટ

FLARING products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your package or visit the official FLARING webસાઇટ

8.1 ગ્રાહક સપોર્ટ

If you encounter any issues or have questions regarding your FLARING FC650DL Plasma Cutter, please contact our customer support team. Have your model number and purchase date ready for faster service.

• Supportનલાઇન સપોર્ટ: Visit the FLARING store on Amazon or the official brand webવારંવાર પૂછાતા પ્રશ્નો અને સંપર્ક માહિતી માટેની સાઇટ.
• ઈમેલ: Refer to your warranty documentation for direct email support.
