1. મહત્વપૂર્ણ સલામતી માહિતી
Please read this entire manual before assembly and operation to ensure safe use and prevent injury. Keep these instructions for future reference.
- પુખ્ત દેખરેખ જરૂરી છે: This product must only be used under direct adult supervision.
- ઉંમર શ્રેણી: 3 થી 8 વર્ષની વયના બાળકો માટે યોગ્ય.
- વજન મર્યાદા: 30 કિગ્રા (66 lbs) ની મહત્તમ લોડ ક્ષમતા કરતાં વધી જશો નહીં.
- સલામત સંચાલન વાતાવરણ: Use on flat, dry surfaces away from roads, steep inclines, swimming pools, or other water bodies. Avoid using in crowded areas.
- રક્ષણાત્મક ગિયર: Always ensure the child wears appropriate safety gear, such as a helmet, when operating the tractor.
- બેટરી સલામતી: Only use the provided charger and battery. Do not modify the electrical system. Keep batteries away from children.
- વિધાનસભા: Adult assembly is required. Ensure all parts are correctly installed and secured before use.
- બ્રેકિંગ: The tractor features an automatic brake that engages when the foot pedal is released.
- રીમોટ કંટ્રોલ: The 2.4G remote control allows parental override for added safety, especially for younger children.
2. ઉત્પાદન ઓવરview
The AIYAPLAY Electric Tractor with Removable Trailer is designed to provide an engaging and realistic driving experience for children. It features a 2-in-1 design, allowing the trailer to be attached for hauling or detached for standalone tractor play. Equipped with a 12V battery, 6 wheels for stability, LED lights, music, and a horn, this tractor offers both fun and safety.
Image: A young child smiling while driving the green AIYAPLAY electric tractor with its attached trailer on a paved path in a garden.

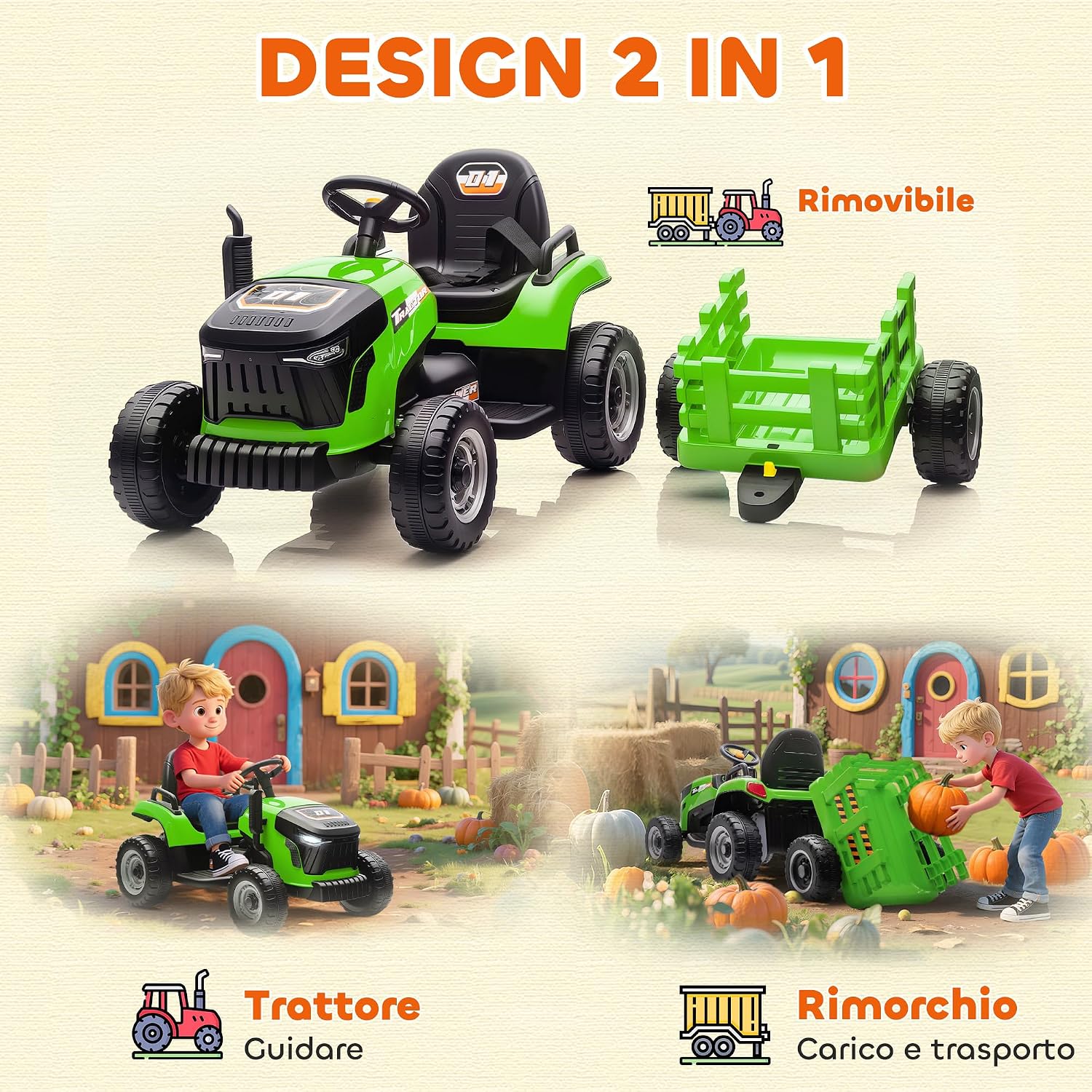

Image: An illustration demonstrating the AIYAPLAY electric tractor and its separate, removable trailer, emphasizing its versatility for driving or hauling.
3. પેકેજ સામગ્રી
Before assembly, please check that all components listed below are present and undamaged.
- Electric Tractor Body
- Removable Trailer
- Wheels (6 total)
- 2.4G રીમોટ કંટ્રોલ
- 12V રિચાર્જેબલ બેટરી
- બેટરી ચાર્જર
- Assembly Hardware (screws, nuts, etc.)
- વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)
4. સેટઅપ અને એસેમ્બલી
Adult assembly is required. Follow these steps carefully to assemble your AIYAPLAY Electric Tractor.
- અનપૅક ઘટકો: પેકેજિંગમાંથી બધા ભાગોને કાળજીપૂર્વક દૂર કરો અને તેમને સ્વચ્છ, સપાટ સપાટી પર મૂકો. "પેકેજ સામગ્રી" વિભાગ મુજબ બધા ઘટકો હાજર છે કે નહીં તેની ખાતરી કરો.
- વ્હીલ્સ ઇન્સ્ટોલ કરો: Attach the six wheels to the tractor body and trailer according to the diagrams in the assembly guide (not provided in this text, but implied). Ensure they are securely fastened.
- બેટરી કનેક્ટ કરો: Locate the battery compartment, typically under the seat. Connect the battery terminals as indicated. Ensure a secure connection.
- Attach Steering Wheel and Seat: Install the steering wheel and seat, securing them with the provided hardware.
- Assemble Trailer: Put together the trailer components and attach it to the rear hitch of the tractor if desired. The trailer is designed to be easily detachable.
- પ્રારંભિક ચાર્જ: Before first use, fully charge the battery for 8-12 hours. Do not overcharge.
5. ઓપરેટિંગ સૂચનાઓ
5.1. Driving the Tractor
- પાવર ચાલુ: Press the power button to turn on the tractor. You may hear engine sounds.
- સ્ટાર્ટ અપ: The tractor features a "slow start" function for smooth acceleration, preventing sudden jolts.
- પ્રવેગક: Press the foot pedal to move forward. Release the pedal to engage the automatic brake.
- સ્ટીયરિંગ: Use the steering wheel to control direction.
- ઝડપ: The tractor has multiple speed settings (3-5 km/h), adjustable via the control panel or remote control.
- વિપરીત: Select the reverse gear (if applicable) and press the foot pedal to move backward.
Image: A graph demonstrating the "Slow Start" function, indicating a smooth, gradual increase in speed for safer operation compared to an abrupt start.
5.2. Using the 2.4G Remote Control
The remote control allows parents to operate the tractor, providing an extra layer of safety and control, especially for younger riders. The remote has a range of approximately 15 meters and offers 3 speed levels.
- જોડી બનાવવું: Follow the instructions in the remote control manual (if separate) to pair it with the tractor.
- નિયંત્રણો: Use the joystick or directional buttons to move the tractor forward, backward, left, and right.
- ઝડપ ગોઠવણ: Select desired speed level (low, medium, high) using the speed button on the remote.
- તત્કાલીન બંધ: The remote control typically includes an emergency stop button to immediately halt the tractor.
Image: An adult's hands holding the 2.4G remote control, with a child in the background driving the tractor, illustrating the parental control mode.
5.3. Multimedia Functions
The tractor is equipped with realistic features for an immersive experience.
- એલઇડી લાઇટ્સ: Turn on the functional LED headlights using the designated button.
- હોર્ન: Press the horn button on the steering wheel for realistic sound effects.
- Music/MP3: The integrated MP3 system plays three pre-installed songs. Additional music may be played via USB input (if available, check product for specific port).
- એન્જિન અવાજો: Realistic engine start-up sounds enhance the play experience.
Image: A graphic highlighting the multimedia features of the tractor, showing icons for music, engine start sound, and horn, with musical notes floating around the tractor.
6. બેટરી ચાર્જિંગ
Proper battery charging is essential for performance and longevity.
- પ્રથમ ચાર્જ: Charge the battery for 8-12 hours before the first use.
- અનુગામી ચાર્જ: Charge for 8-12 hours after each use, or when the battery indicator shows low power. Do not charge for more than 18 hours.
- ચાર્જર કનેક્શન: Plug the charger into the charging port on the tractor, then into a standard wall outlet.
- સૂચક લાઇટ્સ: Refer to the charger's indicator lights for charging status (e.g., red for charging, green for fully charged).
- સલામતી: Always charge in a dry, well-ventilated area. Do not allow children to handle the charger or battery. Disconnect the charger once charging is complete.
- બેટરી જીવન: A fully charged battery provides approximately 60 minutes of continuous use, depending on terrain and usage.
7. જાળવણી
Regular maintenance ensures the longevity and safe operation of your electric tractor.
- સફાઈ: Wipe the tractor with a soft, damp કાપડ. ઘર્ષક ક્લીનર્સ અથવા સોલવન્ટનો ઉપયોગ કરશો નહીં. ઇલેક્ટ્રિકલ ઘટકો પર સીધું પાણી છાંટવાનું ટાળો.
- સંગ્રહ: Store the tractor in a dry, cool place away from direct sunlight and moisture. If storing for extended periods, charge the battery fully every 3 months to maintain its health.
- બેટરી સંભાળ: Do not allow the battery to completely discharge. Always recharge after use.
- નિરીક્ષણો: Periodically check all screws, nuts, and connections to ensure they are tight. Inspect wheels for wear and tear.
- Tire Traction: The high-traction wheels are designed for various terrains. Keep them clean for optimal performance.
Image: A visual representation of the tractor's high-traction wheels, demonstrating its capability to operate on diverse surfaces including asphalt, concrete, dirt roads, brick paths, and grass.
8. મુશ્કેલીનિવારણ
જો તમને કોઈ સમસ્યા આવે, તો નીચેની સામાન્ય સમસ્યાઓ અને ઉકેલોનો સંદર્ભ લો.
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| Tractor does not move. | Battery is low or not connected. Power switch is off. Loose wire connection. | Charge the battery. Ensure battery connectors are secure. Turn on the power switch. Check all wire connections. |
| Tractor moves slowly. | Low battery. Overloaded. Operating on rough terrain. | Recharge the battery. Reduce load. Operate on smoother surfaces. |
| રીમોટ કંટ્રોલ કામ કરતું નથી. | Remote batteries are dead. Remote not paired. Out of range. | Replace remote batteries. Re-pair the remote control with the tractor. Ensure you are within 15m range. |
| Lights or music not working. | Loose connection. Function button not pressed. | Check wiring to lights/speakers. Ensure corresponding buttons are pressed. |
જો આ ઉકેલો અજમાવ્યા પછી પણ સમસ્યા ચાલુ રહે, તો કૃપા કરીને ગ્રાહક સપોર્ટનો સંપર્ક કરો.
9. સ્પષ્ટીકરણો
| લક્ષણ | વિગત |
|---|---|
| મોડલ નંબર | 370-389V90GN |
| ભલામણ કરેલ ઉંમર | ૩૬ મહિના - ૧૦ વર્ષ |
| મહત્તમ લોડ ક્ષમતા | 30 કિગ્રા (66 lbs) |
| એકંદર પરિમાણો (L x W x H) | ૧૦૫ સેમી x ૫૦ સેમી x ૭૫ સેમી (૪૧.૩૪" x ૧૯.૬૯" x ૨૯.૫૩") |
| વસ્તુનું વજન | 13.4 કિગ્રા (29.5 lbs) |
| બેટરી | 12V (શામેલ) |
| સ્પીડ રેન્જ | ૧-૪ કિમી/કલાક (૦.૬૨-૨.૫ માઇલ પ્રતિ કલાક) |
| રન ટાઈમ | Up to 60 minutes (on a full charge) |
| સામગ્રી | પોલીપ્રોપીલીન, ધાતુ |
| રીમોટ કંટ્રોલ | 2.4G, 3 speeds, approx. 15m range |
| લક્ષણો | LED lights, Music, Horn, Engine sounds, Slow start, Detachable trailer |
| એસેમ્બલી જરૂરી | હા |
Image: A detailed diagram illustrating the overall dimensions (length, width, height) of the tractor and trailer, along with the recommended age range (3-8 years) and maximum weight capacity (30 kg).
છબી: ફ્રન્ટ-ફેસિંગ view of the electric tractor, with text overlays indicating it is a 12V tractor, has a speed of 3-5 km/h, and uses a rechargeable battery.
10. વોરંટી અને ગ્રાહક સપોર્ટ
For warranty information or if you require assistance with your AIYAPLAY Electric Tractor, please contact the retailer or manufacturer directly. Keep your proof of purchase for any warranty claims.
Please refer to the contact information provided at the point of purchase or on the product packaging for customer service details.
