YELLOW JACKET 2 Ton Extra Long Reach Floor Jack Instruction Manual

1. ઉત્પાદન ઓવરview

The YELLOW JACKET 2 Ton Extra Long Reach Floor Jack is designed for efficient and safe vehicle lifting in home workshops and professional garages. Its low-profile design allows access under vehicles with minimal ground clearance, while the extended reach chassis and dual-piston quick lift pump ensure rapid and precise lifting.

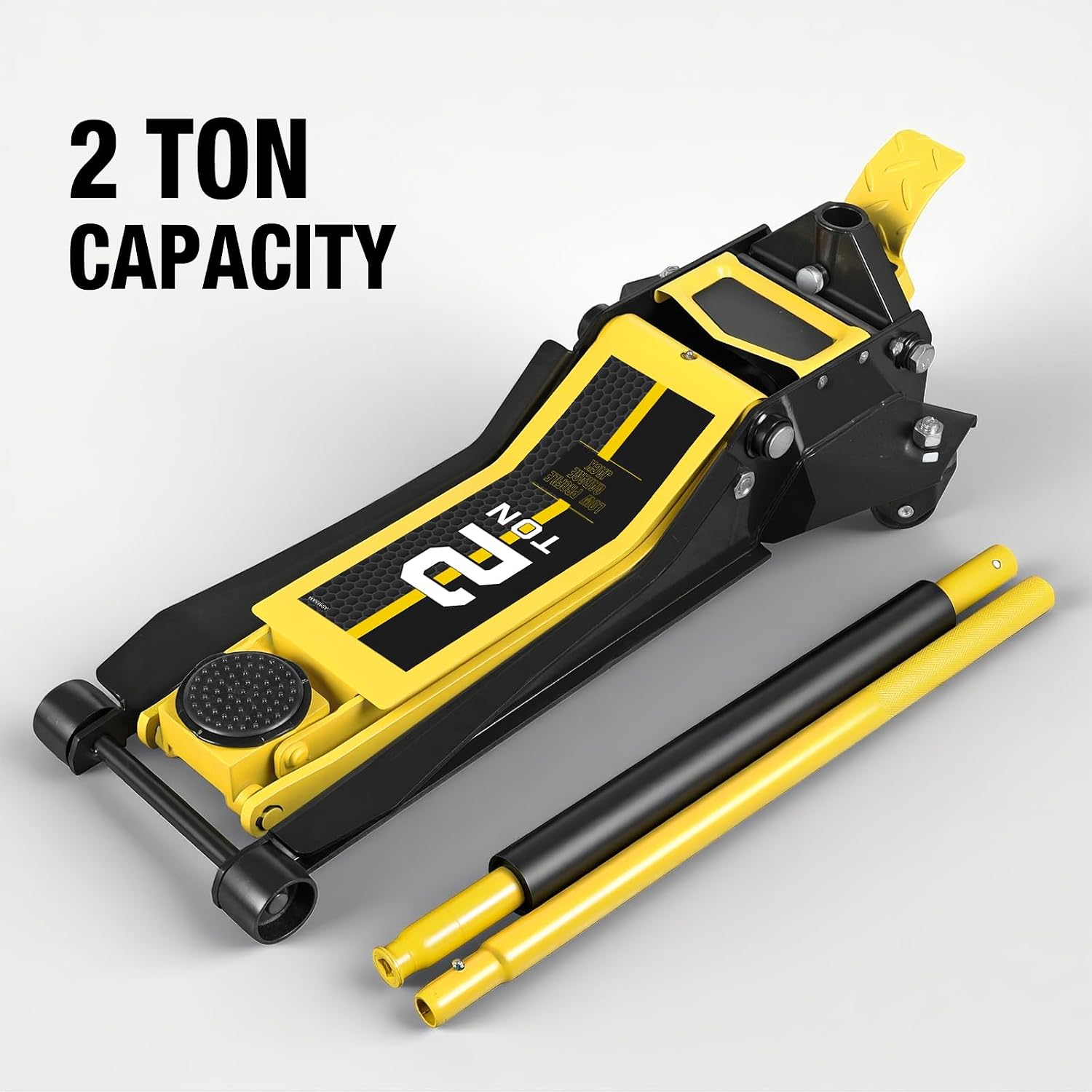

આકૃતિ 1: ઓવરview of the YELLOW JACKET 2 Ton Floor Jack.

મુખ્ય લક્ષણો:

• 2 Ton Lifting Capacity: Minimum lift height of 2-3/4 inches for low-clearance vehicles.
• Versatile Extended Lift Range: Maximum lift height of 24 inches, suitable for various passenger vehicles.
• Enhanced Reach & Rapid Lifting: Extra-long steel chassis and dual pump pistons for quick and efficient lifting.
• Durable Heavy-Duty Build: Constructed with premium heavy-duty steel for reliability and long-lasting performance. Features a universal joint release mechanism for controlled load descent.
• Vehicle Surface Protection: Includes a high-quality rubber saddle and a foam-covered handle to prevent damage to the vehicle.
• Convenient Foot Pedal Operation: Integrated foot pedal for hands-free operation and efficient raising.

Figure 2: The jack's wide lift range, from 2-3/4 inches to 24 inches.

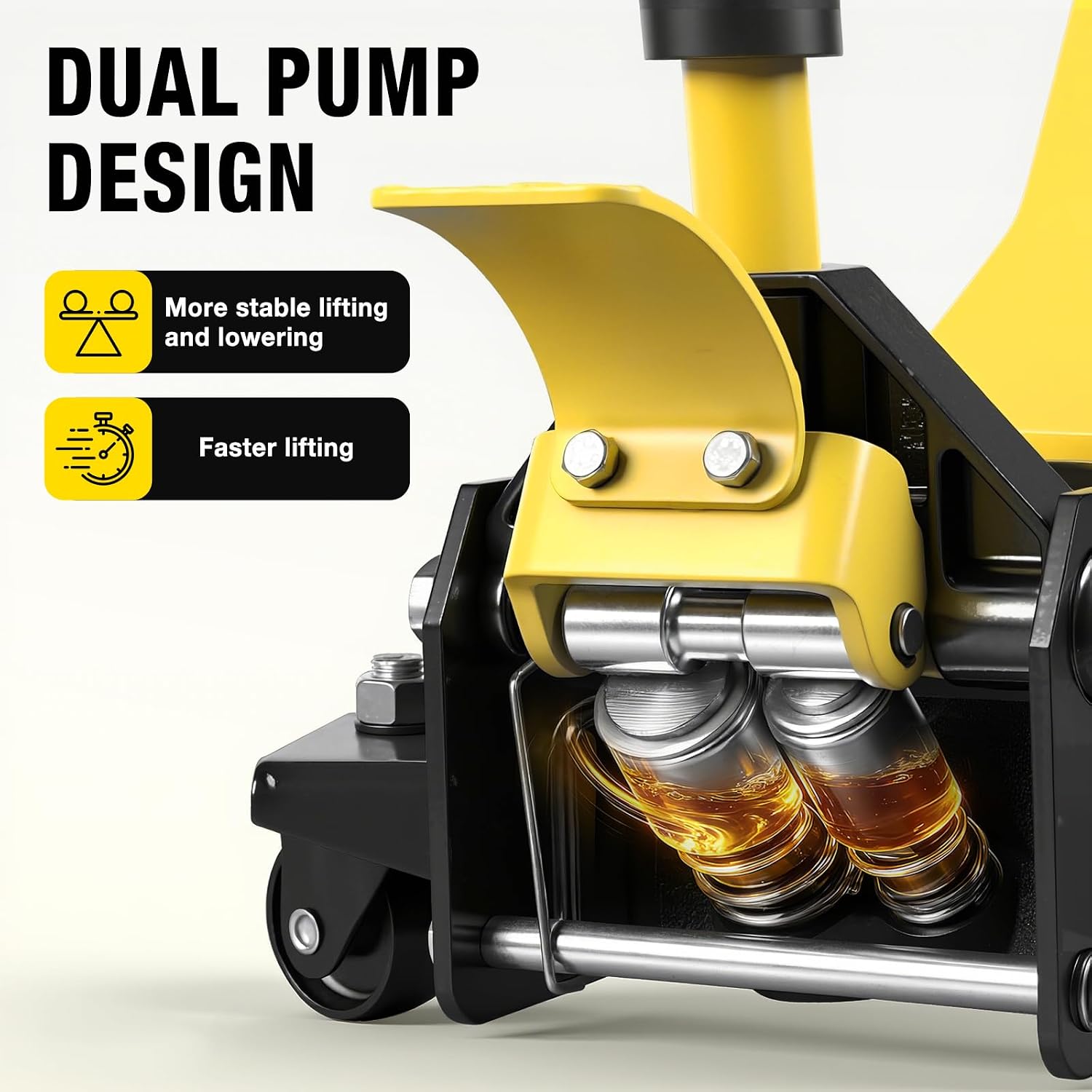

Figure 3: Detail of the dual pump design for stable and faster lifting.

2. મહત્વપૂર્ણ સલામતી માહિતી

Read and understand all instructions and warnings before using this product. Failure to follow these instructions may result in property damage, personal injury, or death.

• Always use on a hard, level surface. Avoid uneven or soft ground.
• Do not exceed the rated capacity of 2 tons (4000 lbs). Overloading can cause jack failure.
• Use jack stands. After lifting the vehicle, always support it with appropriately rated jack stands before working underneath. Never rely solely on the floor jack for support.
• Center the load. Ensure the saddle is centered on the vehicle's lifting point.
• આંખ રક્ષણ પહેરો. Always wear ANSI-approved safety goggles during operation.
• ચોખ્ખું રાખો. Keep hands, feet, and other body parts clear of moving parts and the vehicle during lifting and lowering.
• લીક્સ માટે તપાસો. Inspect the jack for hydraulic fluid leaks before each use.
• યોગ્ય સંગ્રહ. Store the jack in a clean, dry place when not in use.
• ફેરફાર કરશો નહીં. Never modify the jack or its components.

3. પેકેજ સામગ્રી

Verify that all items are present and undamaged before proceeding with assembly or operation.

• Floor Jack Assembly
• Handle Assembly (multi-piece)
• Rubber Pad for Saddle

૪. સેટઅપ અને પ્રારંભિક તૈયારી

4.1 હેન્ડલ એસેમ્બલી

1. Locate the handle pieces. The handle typically consists of two or more sections that connect.
2. Assemble the handle sections by aligning the pins and holes, then securing them firmly.
3. Insert the assembled handle into the handle receiver on the jack. Ensure it is fully seated and secured, often with a set screw or pin.

Figure 4: The handle assembly and overall dimensions of the jack.

4.2 Purging Air from the Hydraulic System (Bleeding)

Air can become trapped in the hydraulic system during shipping or storage, affecting performance. Purge the system before first use:

1. Turn the handle counter-clockwise to open the release valve completely.
2. Pump the handle rapidly 10-15 times without a load.
3. રીલીઝ વાલ્વ બંધ કરવા માટે હેન્ડલને ઘડિયાળની દિશામાં ફેરવો.
4. જેકને તેની સંપૂર્ણ ઊંચાઈ સુધી ઉંચો કરીને અને પછી તેને નીચે કરીને તેનું પરીક્ષણ કરો. જો જરૂરી હોય તો જેક સરળતાથી કામ ન કરે ત્યાં સુધી પુનરાવર્તન કરો.

5. ઓપરેટિંગ સૂચનાઓ

૫.૧ વાહન ઉપાડવું

1. વાહન તૈયાર કરો: વાહનને કઠણ, સમતલ સપાટી પર પાર્ક કરો. પાર્કિંગ બ્રેક લગાવો અને જમીન પર રહી ગયેલા વ્હીલ્સને બ્લોક કરો.
2. જેકને સ્થાન આપો: Locate the manufacturer-recommended lifting points on your vehicle. Slide the floor jack under the vehicle, ensuring the rubber saddle is centered on the lifting point. The low-profile design and extra-long reach facilitate this.
3. વાહન ઊંચું કરો: Turn the handle clockwise to close the release valve. Pump the handle (or use the foot pedal) to raise the vehicle to the desired height. Pump steadily until the vehicle is lifted.
4. જેક સ્ટેન્ડ્સ ઇન્સ્ટોલ કરો: Immediately place appropriately rated jack stands under the vehicle's frame or designated support points. Lower the vehicle slowly onto the jack stands by gently turning the handle counter-clockwise. Ensure the vehicle is stable on the jack stands before proceeding with any work.

આકૃતિ 5: ઓછી કિંમતવાળાfile jack positioned under a vehicle's lifting point.

૫.૨ વાહન નીચે ઉતારવું

1. સહેજ ઉપર કરો: If the vehicle is on jack stands, pump the jack handle a few times to lift the vehicle slightly off the jack stands.
2. જેક સ્ટેન્ડ્સ દૂર કરો: વાહનની નીચેથી જેક સ્ટેન્ડ કાળજીપૂર્વક દૂર કરો.
3. નીચલું વાહન: Slowly turn the handle counter-clockwise to open the release valve. The vehicle will begin to lower. Control the descent speed by adjusting how much you open the valve.
4. જેક દૂર કરો: Once the vehicle is fully lowered and resting on its wheels, remove the floor jack.

6. જાળવણી

Regular maintenance ensures the longevity and safe operation of your floor jack.

• લુબ્રિકેશન: Periodically lubricate all moving parts with light machine oil.
• હાઇડ્રોલિક પ્રવાહી: Check the hydraulic fluid level every three months. To check, lower the jack completely, remove the oil filler plug, and ensure the fluid is level with the bottom of the filler hole. Use only high-quality hydraulic jack oil.
• સફાઈ: Keep the jack clean from dirt, grease, and corrosive materials.
• નિરીક્ષણ: Before each use, inspect the jack for any signs of damage, wear, or leaks. Do not use if damaged.
• સંગ્રહ: Store the jack in a fully lowered position in a clean, dry area.

7. મુશ્કેલીનિવારણ

8. ઉત્પાદન સ્પષ્ટીકરણો

Figure 6: Key components of the floor jack, including the rubber saddle and low-profile વ્હીલ્સ

9. વોરંટી અને ગ્રાહક સપોર્ટ

૮.૧ ઉત્પાદકની વોરંટી

This YELLOW JACKET floor jack is covered by a ૧ વર્ષની ઉત્પાદકની વોરંટી from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accident, alteration, or improper maintenance.

9.2 ગ્રાહક સપોર્ટ

For technical assistance, warranty claims, or to order replacement parts, please contact YELLOW JACKET customer support:

• Webસાઇટ: Visit the YELLOW JACKET Store on Amazon
• ઈમેલ: support@yellowjackettools.com (Example, actual email not provided)
• ફોન: ૧-૮૦૦-XXX-XXXX (Example, actual phone not provided)

Please have your model number (AS815009) and date of purchase ready when contacting support.
