Generic ST-5537 Digital Air Compressor and Jump Starter User Manual

1. પરિચય

The Generic ST-5537 portable air compressor is a safe, practical, and multi-functional solution designed for vehicle owners. This device combines a digital air pump with a powerful jump starter, offering convenience and reliability for various situations.

Its digital air pump feature allows easy inflation of car tires, motorcycle tires, bicycles, balls, and other inflatable products. Equipped with a built-in 12000mAh battery, the ST-5537 also functions as a car jump starter, providing a safe way to start your vehicle in emergencies. Advanced smart chip protection ensures safety against overcurrent, short circuits, and reverse polarity. The automatic stop feature guarantees precise and safe tire pressure adjustment.

The compact and portable design makes it easy to store in a glove compartment, trunk, or bag. For night use and emergencies, an integrated LED light offers illumination, SOS, and flash modes, enhancing safety. This multi-purpose device is ideal for cars, motorcycles, bicycles, and general daily use.

2. સલામતી માહિતી

• ઉપકરણનો ઉપયોગ કરતા પહેલા બધી સૂચનાઓ વાંચો.
• બાળકોની પહોંચથી દૂર રાખો.
• Do not operate the device in wet conditions or near flammable liquids or gases.
• Ensure proper ventilation during use, especially when inflating or jump-starting.
• Avoid direct exposure to sunlight and high temperatures.
• ઉપકરણને ડિસએસેમ્બલ અથવા સુધારશો નહીં. બધી સર્વિસિંગ લાયક કર્મચારીઓને સોંપો.
• Use only the provided accessories and charging cable.
• When jump-starting, ensure correct polarity connections to avoid damage to the device or vehicle.
• Do not over-inflate tires; always refer to the recommended pressure for your vehicle or item.

3. પેકેજ સામગ્રી

ખાતરી કરો કે બધી વસ્તુઓ પેકેજમાં હાજર છે:

• ST-5537 Digital Air Compressor and Jump Starter Unit
• Battery Jump Starter Cables
• એર હોસ
• Various Valve Nozzles (e.g., for balls, bicycles)
• ટાઇપ-સી ચાર્જિંગ કેબલ
• વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)

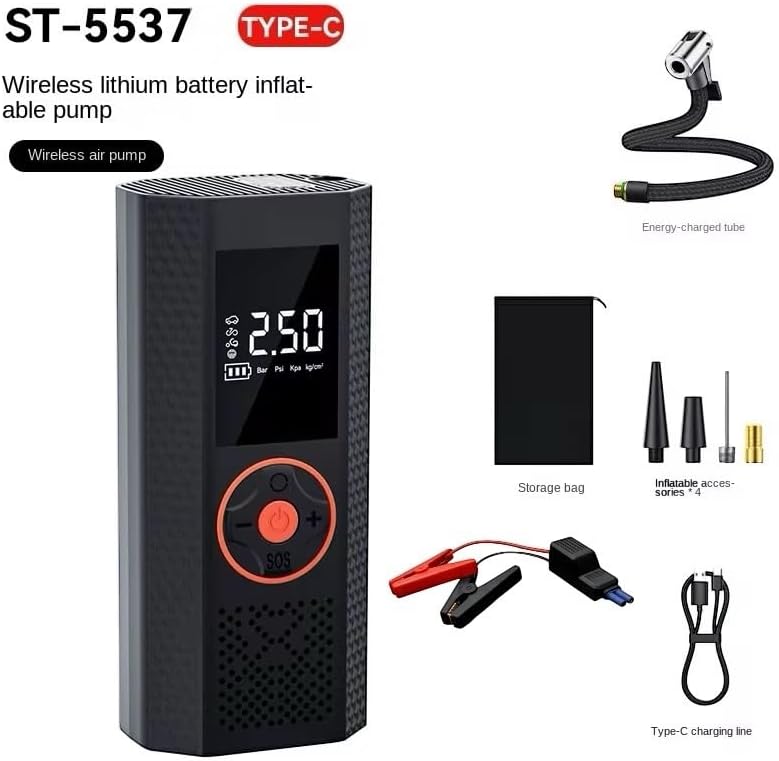

Image: ST-5537 unit with its accessories, including jump starter cables, air hose, various nozzles, and a Type-C charging cable.

4. ઉત્પાદન ઓવરview

Familiarize yourself with the main components of your ST-5537 device.

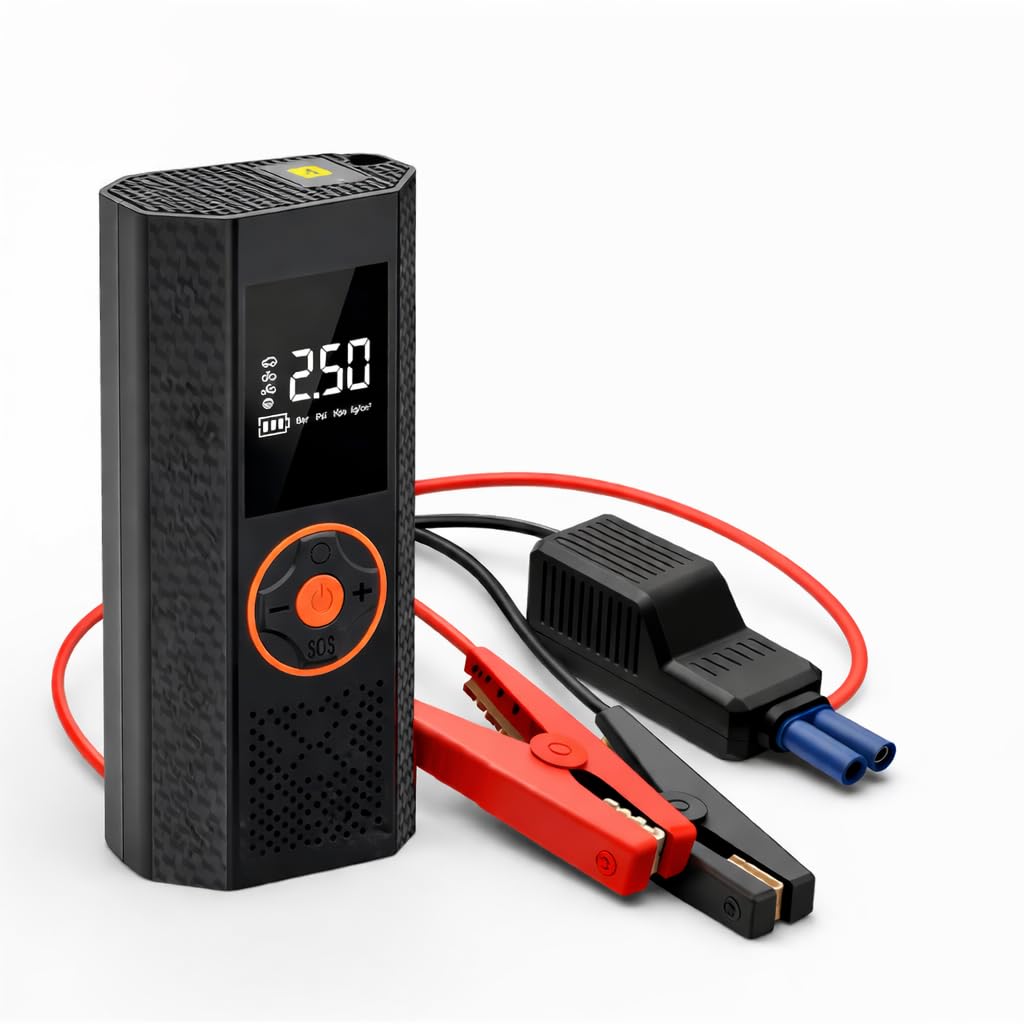

છબી: આગળ view of the ST-5537 unit, showing the digital display and control buttons.

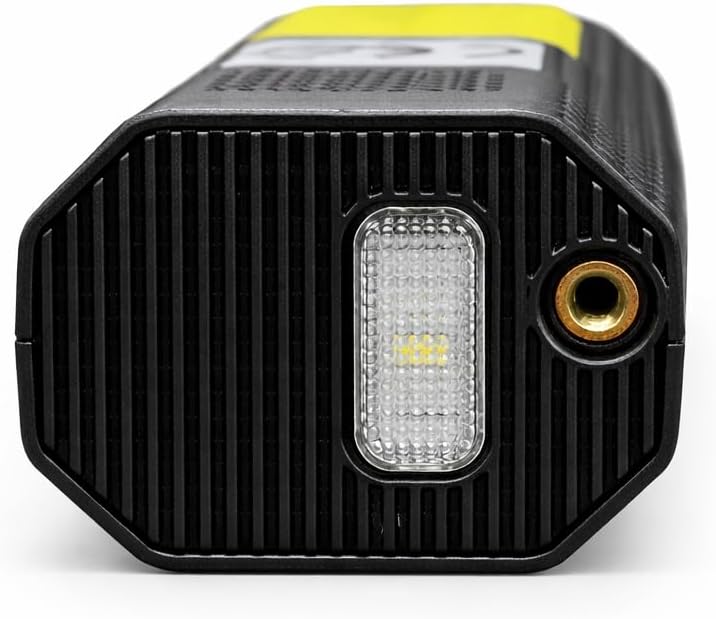

છબી: ટોચ view of the ST-5537, highlighting the USB output port for power bank function and the covered jump starter connection port.

છબી: નીચે view of the ST-5537, showing the integrated LED light and the threaded port for connecting the air hose.

મુખ્ય લક્ષણો:

• ડિજિટલ ડિસ્પ્લે: Shows current pressure, target pressure, and battery level.
• નિયંત્રણ બટનો: Power, mode selection, and pressure adjustment (+/-).
• એર હોસ કનેક્શન: Threaded port for secure attachment of the air hose.
• Jump Starter Port: Covered port for connecting jump starter cables.
• યુએસબી આઉટપુટ: Functions as a power bank for charging external devices.
• ટાઇપ-સી ઇનપુટ: For charging the ST-5537 unit.
• એલઇડી લાઇટ: Provides illumination, SOS, and flash modes.

5. સેટઅપ

5.1 ઉપકરણને ચાર્જ કરવું

Before first use, fully charge the ST-5537 unit. Use the provided Type-C charging cable and connect it to a suitable USB power adapter (not included).

• Connect the Type-C cable to the charging port on the device.
• કેબલના બીજા છેડાને USB પાવર સ્ત્રોત સાથે કનેક્ટ કરો.
• The digital display will indicate the charging status and battery level.
• જ્યાં સુધી બેટરી સૂચક પૂર્ણ ન દેખાય ત્યાં સુધી ચાર્જ કરો.

Note: The device charges slowly at a maximum of 10W. Plan charging time accordingly.

5.2 Attaching the Air Hose and Nozzles

• Screw the air hose securely onto the threaded air outlet port at the bottom of the device.
• Select the appropriate valve nozzle for the item you wish to inflate (e.g., Schrader valve for car tires, needle for balls).
• Attach the selected nozzle to the end of the air hose.

6. ઓપરેટિંગ સૂચનાઓ

6.1 Tire Inflation (Air Compressor Function)

Image: The ST-5537 in use, inflating a car tire. The digital display shows pressure, and the LED light is active. This image also illustrates the automatic stop feature.

1. કનેક્ટ કરો: Attach the air hose with the correct nozzle to the tire valve. Ensure a tight connection to prevent air leakage.
2. પાવર ચાલુ: Press the power button to turn on the device. The digital display will show the current tire pressure.
3. મોડ પસંદ કરો: Press the mode button to cycle through different inflation modes (e.g., car, motorcycle, bicycle, ball). Each mode may have a default pressure unit (PSI, BAR, KPA, KG/CM²).
4. લક્ષ્ય દબાણ સેટ કરો: Use the '+' and '-' buttons to set your desired target pressure. Refer to your vehicle's manual or tire sidewall for recommended pressure.
5. ફુગાવો શરૂ કરો: Press the power button again to start the compressor. The device will automatically stop once the target pressure is reached.
6. ડિસ્કનેક્ટ કરો: Carefully disconnect the nozzle from the tire valve. A small amount of air may escape, which is normal.

Note: For car tires, the default BAR unit in car mode might be unfamiliar. You can switch to bicycle mode to set pressure in PSI if preferred, then inflate your car tire.

6.2 Jump Starter Function

Image: The ST-5537 unit connected to a car battery using the jump starter cables, ready to provide a battery boost. The image also shows the device's power bank and tire inflation capabilities.

The ST-5537 can safely jump-start 12V gasoline and diesel vehicles, motorcycles, ATVs, and scooters.

1. Ensure Charge: Make sure the ST-5537 has sufficient battery charge (at least 50% recommended).
2. કેબલ્સ કનેક્ટ કરો: Open the jump starter port cover on the device. Connect the blue end of the jump starter cables firmly into the device's jump starter port.
3. બેટરી સાથે કનેક્ટ કરો:
   • જોડો લાલ (+) clamp વાહનની બેટરીના પોઝિટિવ ટર્મિનલ પર.
   • જોડો કાળો (-) clamp to the negative terminal of the vehicle's battery.
4. વાહન શરૂ કરો: Once connected, start your vehicle. If it doesn't start immediately, wait 30 seconds and try again. Do not crank for more than 3 seconds at a time.
5. ડિસ્કનેક્ટ કરો: After the vehicle starts, immediately disconnect the BLACK (-) clamp first, then the RED (+) clamp, and finally remove the jump starter cables from the ST-5537 unit.

Important: Smart chip protection prevents damage from incorrect connections (reverse polarity). However, always double-check connections.

6.3 LED Light, SOS, and Flash Mode

The integrated LED light provides illumination for various situations.

• ચાલુ/બંધ કરો: Press and hold the LED light button (often integrated with the power button or a dedicated button) to turn the light on or off.
• સાયકલ મોડ્સ: Short press the LED light button to cycle through modes:
  • સતત રોશની
  • SOS Signal (Morse code for distress)
  • Flash Mode (strobe light)

૫.૪ પાવર બેંક કાર્ય

The 12000mAh battery can also be used to charge other electronic devices.

• Connect your device's USB charging cable to the USB output port on the ST-5537.
• The ST-5537 will automatically begin charging your device.

Note: Charging speed for external devices may be limited.

7. જાળવણી

• સફાઈ: ઉપકરણને નરમ, સૂકા કપડાથી સાફ કરો. કઠોર રસાયણો અથવા ઘર્ષક ક્લીનર્સનો ઉપયોગ કરશો નહીં.
• સંગ્રહ: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the battery is charged to at least 50% before long-term storage to prolong battery life.
• બેટરી સંભાળ: Recharge the device every 3-6 months if not in regular use to maintain battery health.
• નળી અને નોઝલ: Keep the air hose and nozzles clean and free from debris. Inspect for wear and tear before each use.

8. મુશ્કેલીનિવારણ

9. સ્પષ્ટીકરણો

10. વોરંટી અને સપોર્ટ

વોરંટી માહિતી અને ગ્રાહક સપોર્ટ માટે, કૃપા કરીને ખરીદી સમયે આપેલા દસ્તાવેજોનો સંદર્ભ લો અથવા તમારા રિટેલરનો સંપર્ક કરો. કોઈપણ વોરંટી દાવા માટે ખરીદીનો પુરાવો રાખો.

If you encounter any issues not covered in the troubleshooting section, please contact the manufacturer or authorized service center for assistance.
