ACTBEST 20'' Classic Dual Fat Tire Electric Bike User Manual

1. સલામતી માહિતી

Read this manual thoroughly before operating your ACTBEST electric bike. Failure to follow instructions and safety guidelines may result in serious injury or property damage. Always wear a helmet and appropriate safety gear when riding.

ઉત્પાદન પ્રમાણપત્રો:

• લિ-આયન બેટરી પ Packક: Tested to ANSI/CAN/UL/ULC 2271:2018 by TUV Rheinland.
• Complete E-bike Electrical System: Tested and certified to ANSI/CAN/UL 2849:2022A by TUV Rheinland.

મુખ્ય સુરક્ષા સુવિધાઓ:

• ડ્યુઅલ ડિસ્ક બ્રેક્સ: Provides reliable stopping power in various weather conditions.
• LED Headlights and Taillights: Enhances visibility for both the rider and others, especially during night rides.

છબી: The ACTBEST electric bike features high-visibility LED lights and dual disc brakes for enhanced safety during operation, particularly at night.

2. ઉત્પાદન ઓવરview

The ACTBEST 20'' Classic Dual Fat Tire Electric Bike is designed for versatile riding across various terrains. It features a powerful motor, long-range battery, and a full suspension system for a comfortable experience.

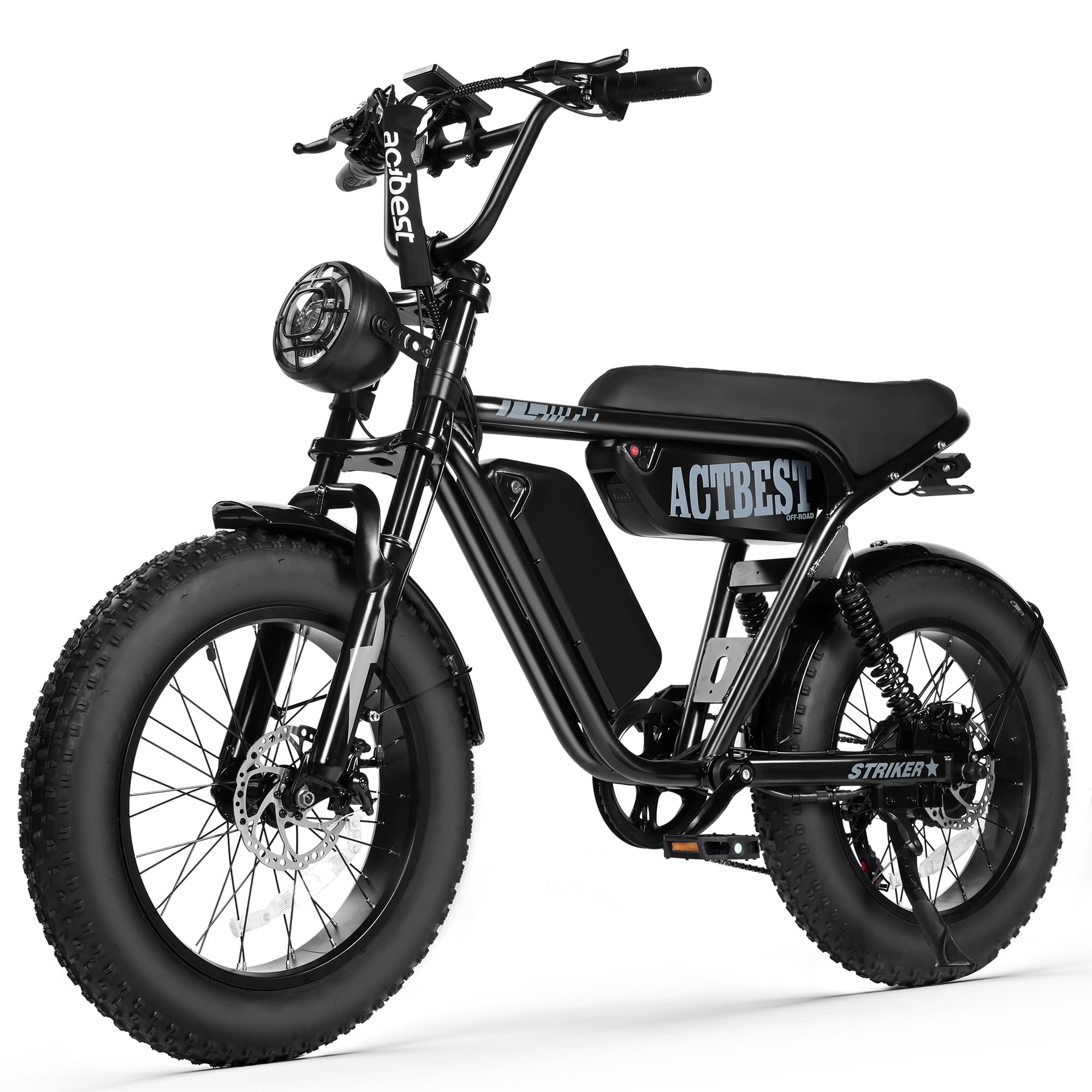

છબી: The ACTBEST 20'' Classic Dual Fat Tire Electric Bike, showcasinતેની મજબૂત ડિઝાઇન.

મુખ્ય લક્ષણો:

• મોટર: Robust PEAK 1500W motor, capable of speeds up to 20+ mph.
• બેટરી: Removable 48V 10.4Ah battery, offering up to 55 miles with pedal-assist (40 miles pure electric).
• સસ્પેન્શન: Advanced full suspension system with 4 shock absorbers (front & rear) and a large shock-absorbing seat for smooth rides.
• ટાયર: Massive 16"x4" fat tires for all-terrain dominance.
• ફ્રેમ: Carbon Steel frame, suitable for adults and teens.

છબી: Two ACTBEST electric bikes, one 20-inch for adults and one 16-inch for teens, being ridden on a dirt trail.

છબી: The electric bike's battery provides a range of up to 75 miles, powered by a 48V 748.8WH battery.

છબી: Detail of the 1500W peak motor integrated into the rear wheel, designed for powerful performance and climbing 30-degree slopes.

છબી: The full suspension system, including dual spring front fork and seat shock absorbers, ensures a smooth ride over rough terrain.

છબી: The ErgoCool Adaptive Comfort Seat features a waterproof surface and soft, cooling fabric to absorb shocks and prevent sweat.

છબી: Features for comfort, control, and cargo, including a heavy-duty rear rack (120 lbs capacity), digital dashboard, passenger footrest, and ergonomic handlebar grips.

3. સેટઅપ અને એસેમ્બલી

Your ACTBEST electric bike comes partially assembled. Follow the instructions below and refer to the video for detailed assembly steps.

એસેમ્બલી પગલાં:

1. Unpack the bike and all components from the box.
2. Install the front wheel, ensuring the disc brake is correctly aligned.
3. Attach the handlebars and adjust them to a comfortable riding position.
4. Install the pedals, noting that they are left (L) and right (R) specific.
5. Insert the seat post and adjust the seat height.
6. Connect any remaining electrical cables securely.
7. Perform a pre-ride safety check, including brakes, tire pressure, and all fasteners.

સ્થાપન વિડિઓ:

4. ઓપરેટિંગ સૂચનાઓ

પાવરિંગ ચાલુ/બંધ:

• To power on, press and hold the power button on the display unit.
• પાવર ઓફ કરવા માટે, ડિસ્પ્લે બંધ ન થાય ત્યાં સુધી પાવર બટન ફરીથી દબાવો અને પકડી રાખો.

રાઇડિંગ મોડ્સ:

• Pedal-Assist System (PAS): Provides motor assistance as you pedal. Adjust assist levels using the '+' and '-' buttons on the display.
• Throttle-on-demand: Use the thumb throttle for electric power without pedaling.

ગિયર શિફ્ટિંગ:

The bike is equipped with a 7-speed gear system. Use the trigger shifter on the handlebars to change gears, allowing for efficient pedaling across different terrains.

બ્રેકિંગ:

Engage the front and rear disc brakes by squeezing the brake levers on the handlebars. Apply both brakes simultaneously for balanced and effective stopping.

બેટરી ચાર્જિંગ:

• Connect the charger to the charging port on the battery (either on or off the bike).
• ચાર્જરને સ્ટાન્ડર્ડ વોલ આઉટલેટમાં પ્લગ કરો.
• A full charge typically takes 4-6 hours. The charger indicator light will change when charging is complete.

5. જાળવણી

નિયમિત જાળવણી તમારી ઇલેક્ટ્રિક બાઇકના લાંબા આયુષ્ય અને સલામત સંચાલનની ખાતરી આપે છે.

સામાન્ય જાળવણી ટીપ્સ:

• ટાયર: Check tire pressure before each ride. Maintain recommended PSI for optimal performance and safety.
• બ્રેક્સ: Regularly inspect brake pads for wear and ensure brake levers provide firm and responsive stopping power. Adjust as needed.
• સાંકળ: Keep the chain clean and lubricated to prevent rust and ensure smooth gear changes.
• બેટરી: Store the battery in a cool, dry place. Avoid fully discharging the battery for extended periods. Charge regularly, even when not in use, to maintain battery health.
• ફાસ્ટનર્સ: Periodically check all bolts, nuts, and quick releases to ensure they are securely tightened.
• સફાઈ: ડી વડે બાઇક સાફ કરોamp કાપડ. ઇલેક્ટ્રિકલ ઘટકો પર સીધા ઉચ્ચ-દબાણવાળા વોશરનો ઉપયોગ કરવાનું ટાળો.

6. મુશ્કેલીનિવારણ

આ વિભાગ તમારી ઇલેક્ટ્રિક બાઇક સાથે તમને આવી શકે તેવી સામાન્ય સમસ્યાઓને સંબોધિત કરે છે.

સામાન્ય સમસ્યાઓ અને ઉકેલો:

• બાઇક ચાલુ ન થવું:
  • Ensure the battery is fully charged and properly seated.
  • બધા વિદ્યુત જોડાણો ઢીલા છે કે નહીં તે તપાસો.
• મોટર મદદ કરતી નથી:
  • Verify that the pedal-assist level is not set to zero.
  • Check if the throttle is engaged (if applicable).
  • Ensure brake levers are not partially engaged, which can cut motor power.
• Short battery range:
  • ખાતરી કરો કે દરેક રાઈડ પહેલા બેટરી સંપૂર્ણ ચાર્જ થઈ ગઈ છે.
  • Riding in higher assist levels or using the throttle frequently will reduce range.
  • Tire pressure can affect efficiency; ensure tires are properly inflated.
• બ્રેક્સ નબળા લાગે છે:
  • બ્રેક પેડ્સ ઘસારો માટે તપાસો અને જો જરૂરી હોય તો બદલો.
  • Check brake cable tension and adjust if loose.
  • Ensure disc rotors are clean and free of oil or grease.

જો તમને અહીં સૂચિબદ્ધ ન હોય તેવી સમસ્યાઓનો સામનો કરવો પડે અથવા તમે સમસ્યાનું નિરાકરણ ન કરી શકો, તો કૃપા કરીને ગ્રાહક સપોર્ટનો સંપર્ક કરો.

7. સ્પષ્ટીકરણો

Detailed technical specifications for the ACTBEST 20'' Classic Dual Fat Tire Electric Bike.

છબી: Rider height recommendations (5.2-6.2 ft), bicycle weight (59.5 lbs), and maximum load capacity (350 lbs).

છબી: Detailed dimensions of the electric bike for reference.

8. વોરંટી અને સપોર્ટ

વોરંટી માહિતી:

The ACTBEST 20'' Classic Dual Fat Tire Electric Bike comes with a 1 વર્ષની મર્યાદિત વોરંટી. સંપૂર્ણ નિયમો અને શરતો માટે કૃપા કરીને તમારા ઉત્પાદન સાથે સમાવિષ્ટ વોરંટી કાર્ડનો સંદર્ભ લો.

ગ્રાહક આધાર:

For any product issues, technical assistance, or warranty claims, please contact our after-sales team. You can reach us through Amazon's messaging system or via our dedicated after-sales email. Our team aims to respond and resolve your issue within 24 hours.

Ensuring product quality and providing the best shopping experience are our priorities.
