ACMER K1 12W Laser Engraving Machine User Manual

1. પરિચય

This manual provides essential information for the safe and effective operation of your ACMER K1 12W Laser Engraving Machine. Please read this manual thoroughly before using the device to ensure proper setup, operation, and maintenance. Retain this manual for future reference.

The ACMER K1 laser engraving machine features a Class 1 safety enclosure and an efficient smoke extraction system, making it suitable for safe use in homes, workshops, and commercial settings. Its lightweight and compact design allows for easy portability. The 150x150 mm working area is ideal for creative projects and on-site personalized item creation. With a repetition accuracy of 0.01 mm and a speed of 10000 mm/min, it can engrave various materials such as wood, bamboo, leather, and ceramic, and cut thin plywood and acrylic. Compatible with common operating systems and file formats, it ensures stable and versatile use.

Figure 1: ACMER K1 Laser Engraving Machine in a retail setting.

2. સલામતી માહિતી

Your safety is paramount. The ACMER K1 is designed with a Class 1 safety enclosure to contain the laser and minimize potential hazards. Always adhere to the following safety guidelines:

• આંખનું રક્ષણ: Although the device has a Class 1 enclosure, never look directly into the laser beam.
• વેન્ટિલેશન: The integrated exhaust fan helps remove smoke and odors. For optimal air quality, especially when engraving materials that produce strong fumes, ensure the work area is well-ventilated or use an external air purifier (sold separately).
• સામગ્રી સુસંગતતા: Only engrave or cut materials listed as compatible. Engraving certain plastics or unknown materials can produce toxic fumes.
• ફાયર સેફ્ટી: Keep a fire extinguisher nearby. Do not leave the machine unattended during operation, especially when cutting materials that may ignite.
• સ્થિર પ્લેસમેન્ટ: Ensure the machine is placed on a stable, level surface. The machine features a tilt detection system that will shut down operation if the tilt angle exceeds 13 degrees to prevent accidents.
• ઢાંકણની સલામતી: The machine is equipped with a lid induction design that stops operation when the lid is open and resumes when closed. Do not bypass this safety feature.
• બાળકો અને પાળતુ પ્રાણી: ઓપરેશન દરમિયાન બાળકો અને પાલતુ પ્રાણીઓને મશીનથી દૂર રાખો.

Figure 2: Safety features including lid induction and tilt detection.

Figure 3: Integrated exhaust fan for smoke and odor removal.

3. ઉત્પાદન ઓવરview

3.1 મુખ્ય લક્ષણો

• 12W Diode Laser: Powerful laser module for efficient engraving and cutting.
• ઉચ્ચ ચોકસાઇ: 0.01 mm repetition accuracy and an ultra-fine 0.08 x 0.08 mm laser spot for detailed work.
• હાઇ સ્પીડ: Maximum engraving speed of 10000 mm/min.
• કોમ્પેક્ટ અને પોર્ટેબલ: Weighs only 2.4 kg with dimensions of 286 x 273 x 190 mm.
• Class 1 Enclosure: Fully enclosed design for enhanced safety, odor isolation, and noise reduction.
• Integrated Exhaust System: Effectively removes smoke and odors during operation.
• વ્યાપક સામગ્રી સુસંગતતા: Engraves wood, bamboo, paper, glass, plastic, leather, PCBs, alumina, non-reflective coated metals, lacquered metals, ceramic. Cuts thin plywood and acrylic.
• સ Softwareફ્ટવેર સુસંગતતા: Supports Windows, macOS, and Linux. Compatible with ACMER software, LaserGRBL, and LightBurn.
• File ફોર્મેટ સપોર્ટ: NC, DXF, BMP, JPG, PNG.

Figure 4: Key features and capabilities of the ACMER K1.

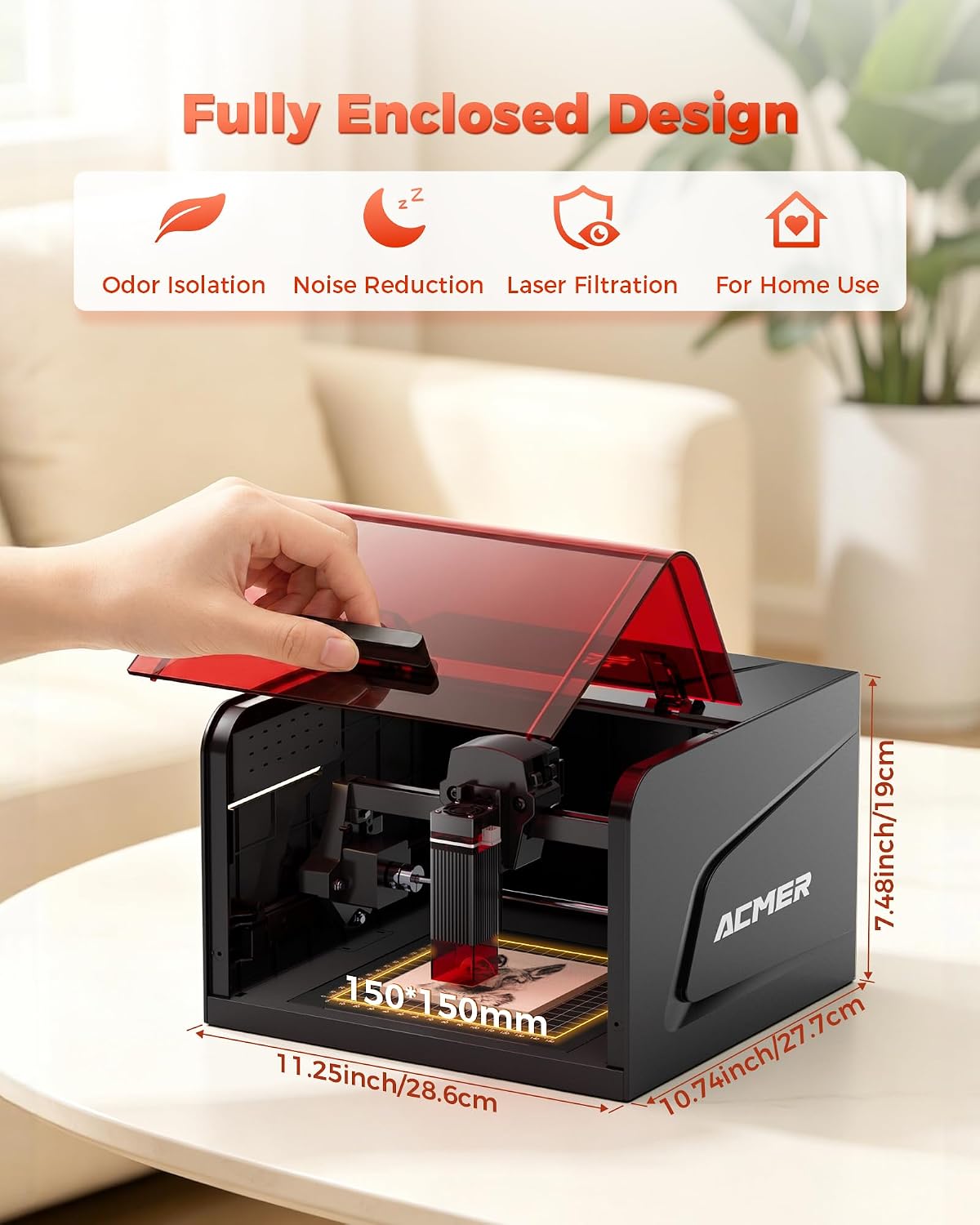

Figure 5: Fully enclosed design and compact dimensions.

આકૃતિ 6: ઉદાample of high-precision laser engraving.

4. સેટઅપ

The ACMER K1 comes largely pre-assembled. Follow these steps for initial setup:

1. અનપેકીંગ: પેકેજિંગમાંથી મશીન અને બધી એસેસરીઝ કાળજીપૂર્વક દૂર કરો.
2. પ્લેસમેન્ટ: Place the machine on a stable, level, and heat-resistant surface in a well-ventilated area. Ensure there is sufficient space around the machine for air circulation and access.
3. પાવર કનેક્શન: Connect the power adapter to the machine's power input and then plug it into a suitable electrical outlet (DC 12V, 4A).
4. સૉફ્ટવેર ઇન્સ્ટોલેશન: Install the necessary software (ACMER software, LaserGRBL, or LightBurn) on your computer. Drivers may be required for initial connection. Refer to the software's documentation for detailed installation instructions.
5. ટેસ્ટ રન: Perform a small test engraving on a scrap piece of material to familiarize yourself with the machine's operation and software settings.

5. ઓપરેટિંગ સૂચનાઓ

૪.૧ કોતરણી/કટીંગ માટેની તૈયારી

1. સામગ્રીની પસંદગી: Choose a compatible material for your project. Ensure it is clean and free of obstructions.
2. સામગ્રી પ્લેસમેન્ટ: Place the material securely on the working platform within the 150x150 mm area. Use the grid plate for precise alignment if needed.
3. ફોકસ એડજસ્ટમેન્ટ: The laser module typically has a fixed focus distance (2 mm). Ensure your material is at the correct height relative to the laser head.
4. સૉફ્ટવેર સેટિંગ્સ: Open your chosen software (ACMER, LaserGRBL, or LightBurn). Import your design (NC, DXF, BMP, JPG, PNG). Adjust laser power, speed, and passes according to the material and desired effect. Start with lower power and higher speed for initial tests.

5.2 ઓપરેશન શરૂ કરી રહ્યા છીએ

1. ઢાંકણ બંધ કરો: Ensure the safety lid is fully closed. The machine will not operate if the lid is open.
2. Start Job: Initiate the engraving/cutting process from your software.
3. દેખરેખ: Continuously monitor the machine during operation. Observe for any unusual smells, smoke, or signs of fire.
4. તત્કાલીન બંધ: In case of any emergency, immediately press the emergency stop button on the machine or disconnect power.

Figure 7: Software and operating system compatibility.

6. જાળવણી

Regular maintenance ensures optimal performance and extends the lifespan of your ACMER K1. Always disconnect power before performing any maintenance.

• લેન્સની સફાઈ: Periodically clean the laser lens with a soft, lint-free cloth and lens cleaning solution. A dirty lens can reduce laser power and engraving quality.
• Cleaning the Working Area: Remove debris and dust from the working platform and inside the enclosure after each use.
• નિર્ગમ પંખો: Check the exhaust fan for any blockages and clean it if necessary to maintain efficient smoke extraction.
• લુબ્રિકેશન: Inspect the guide rails and moving parts. Apply a small amount of lubricant if movement becomes stiff.
• સામાન્ય નિરીક્ષણ: ઘસારો કે નુકસાન માટે નિયમિતપણે બધા કેબલ અને કનેક્શન તપાસો.

7. મુશ્કેલીનિવારણ

આ વિભાગ તમને આવી શકે તેવી સામાન્ય સમસ્યાઓનું નિરાકરણ લાવે છે.

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

The ACMER K1 Laser Engraving Machine comes with a 12-મહિનાની વોરંટી ખરીદીની તારીખથી. આ વોરંટી સામાન્ય ઉપયોગ હેઠળ ઉત્પાદન ખામીઓ અને ખામીઓને આવરી લે છે.

For technical assistance, troubleshooting, or warranty claims, please contact ACMER customer support. We offer 24/7 ગ્રાહક સપોર્ટ to assist you with any inquiries.

Please have your model number (K1) and purchase information ready when contacting support.
