1. પરિચય

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Panasonic PV-V4640 4-Head Hi-Fi VCR. Please read this manual thoroughly before using the unit to ensure optimal performance and longevity. Keep this manual for future reference.

2. સલામતી માહિતી

To reduce the risk of electric shock, fire, or damage to the unit, please observe the following safety precautions:

• આ ઉપકરણને વરસાદ અથવા ભેજ માટે ખુલ્લા કરશો નહીં.
• Do not remove the cover. Refer servicing to qualified personnel only.
• યોગ્ય વેન્ટિલેશનની ખાતરી કરો; વેન્ટિલેશનના છિદ્રોને અવરોધશો નહીં.
• પ્રવાહીથી ભરેલી વસ્તુઓ, જેમ કે વાઝ, ઉપકરણ પર ન મૂકો.
• Unplug the unit from the wall outlet if it will be unused for long periods.
• ગ્રાહક ચેતવણી: This television receiver has only an analog broadcast tuner and will require a converter box after February 17, 2009 to receive over-the-air broadcasts with an antenna because of the U.S.'s transition to digital broadcasting. Analog-only TVs should continue to work as before with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products.

3. પેકેજ સામગ્રી

ખાતરી કરો કે બધી વસ્તુઓ પેકેજમાં શામેલ છે:

• Panasonic PV-V4640 VCR Unit
• Universal Illuminated Remote Control
• Audio/Video Cables (RCA type)
• સૂચના માર્ગદર્શિકા (આ દસ્તાવેજ)
• Batteries for Remote Control (typically AA or AAA)

4. ઉત્પાદન ઓવરview

4.1 ફ્રન્ટ પેનલ

The front panel of the Panasonic PV-V4640 VCR features essential controls and indicators for basic operation.

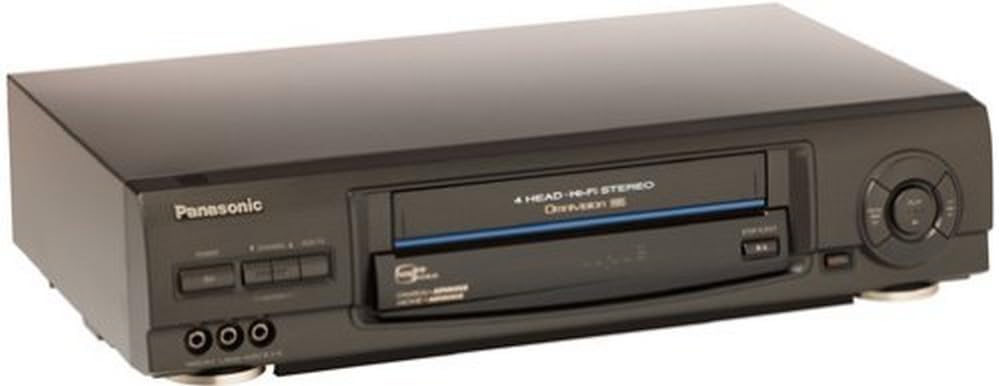

છબી 4.1: આગળ view of the Panasonic PV-V4640 VCR. This image displays the main unit with its tape loading slot, control buttons (Power, Play, Stop, Rewind, Fast Forward, Eject), and front audio-video input jacks. The "4 HEAD HI-FI STEREO" and "VCR Plus+ GOLD" logos are visible.

Key features on the front panel include the tape loading slot, basic transport controls (Play, Stop, Rewind, Fast Forward), and front audio-video input jacks. These front jacks allow for convenient connection of camcorders or video game systems without needing to access the rear panel.

4.2 રીઅર પેનલ કનેક્શન્સ

The rear panel provides all necessary input and output connections for integrating the VCR into your home entertainment system.

છબી 4.2: પાછળ view of the Panasonic PV-V4640 VCR. This image highlights the various audio and video input/output ports, including RCA jacks for audio (L/R) and video (IN/OUT), and coaxial connectors for antenna/cable input and TV output.

Connections include coaxial inputs for antenna/cable, coaxial output to the TV, and RCA audio/video input and output jacks for connecting to other devices like a TV, receiver, or camcorder.

4.3 રીમોટ કંટ્રોલ

The included universal illuminated remote control provides full functionality for operating your VCR from a distance.

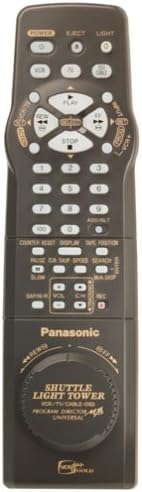

છબી 4.3: Universal illuminated remote control for the Panasonic PV-V4640 VCR. The remote features various buttons for power, channel selection, volume, playback controls, menu navigation, and a distinctive jog/shuttle dial at the bottom.

The remote features a jog/shuttle dial, illuminated buttons for low-light conditions, and controls for all VCR functions, including programming and advanced features.

5. સેટઅપ

૧.૨ ટેલિવિઝન સાથે કનેક્ટ કરવું

There are two primary methods for connecting your VCR to a television:

1. Using Coaxial Cable (RF Connection):
   • Connect your antenna or cable TV line to the "IN FROM ANT." coaxial input on the VCR's rear panel.
   • Connect a coaxial cable from the "OUT TO TV" coaxial output on the VCR to the antenna/cable input on your television.
   • Tune your TV to channel 3 or 4 (whichever is not in use by a local broadcast) to view the VCR's output.
2. Using Audio/Video (RCA) Cables:
   • Connect the yellow video cable from the "VIDEO OUT" jack on the VCR to the "VIDEO IN" jack on your television.
   • Connect the red audio cable from the "AUDIO R OUT" jack on the VCR to the "AUDIO R IN" jack on your television.
   • Connect the white audio cable from the "AUDIO L OUT" jack on the VCR to the "AUDIO L IN" jack on your television.
   • Select the corresponding video input (e.g., Video 1, AV1) on your television to view the VCR's output.

5.2 પાવર કનેક્શન

Plug the VCR's power cord into a standard AC wall outlet. The VCR features an auto clock set function with a 24-hour backup, which will automatically set the time upon initial power-up or after a power outage.

6. મૂળભૂત કામગીરી

6.1 Playing a Videotape

1. Insert a VHS videotape into the tape slot with the label facing up. The VCR will automatically load the tape.
2. દબાવો રમો VCR અથવા રિમોટ કંટ્રોલ પરનું બટન.
3. Adjust the volume on your TV or audio system as needed.
4. પ્લેબેક બંધ કરવા માટે, દબાવો રોકો બટન
5. ટેપ બહાર કાઢવા માટે, દબાવો EJECT બટન

6.2 Recording a Program

1. Ensure a blank or recordable videotape is inserted.
2. Tune the VCR to the desired channel using the remote control or front panel buttons.
3. દબાવો આરઈસી button on the VCR or remote control to begin recording.
4. રેકોર્ડિંગ રોકવા માટે, દબાવો રોકો બટન

નોંધ: The PV-V4640 supports SP (Standard Play) and SLP (Super Long Play) recording speeds. SP offers higher quality but shorter recording time, while SLP provides longer recording time at a reduced quality.

7. અદ્યતન સુવિધાઓ

7.1 VCR Plus+ Gold Programming

VCR Plus+ Gold simplifies recording by allowing you to program your VCR using a short, two-digit code found in TV program listings. This eliminates the need for manual time and channel entry.

1. Locate the VCR Plus+ Gold code for the desired program in your local TV guide.
2. દબાવો વીસીઆર પ્લસ + રીમોટ કંટ્રોલ પરનું બટન.
3. Enter the two-digit code using the numeric keypad.
4. Confirm the recording settings (date, time, channel) displayed on the screen.
5. દબાવો દાખલ કરો or સેટ પ્રોગ્રામની પુષ્ટિ કરવા માટે.

7.2 Commercial Advance

The Commercial Advance feature allows you to skip over commercial breaks during playback of recorded programs. When activated, the system can fast-forward through approximately three minutes of commercials in about 25 seconds.

• During playback of a recorded tape, press the COMMERCIAL ADVANCE રીમોટ કંટ્રોલ પરનું બટન.
• The VCR will automatically fast-forward through detected commercial segments.

7.3 સમય સેન્ટamp

When activated, the Time Stamp function automatically tags the beginning of each new recording. During playback, it can display the date, time, end time, and channel of the program that was recorded.

• Refer to the on-screen menu for activating and deactivating the Time Stamp લક્ષણ
• પ્લેબેક દરમિયાન, દબાવો પ્રદર્શન માટે બટન view સમય stamp માહિતી

7.4 Channel Caption

The Channel Caption feature allows you to assign an identification of up to four characters to each of the 34 available channels. This helps in easily identifying your favorite stations without guessing.

• Access the VCR's menu system (usually via a મેનુ રિમોટ પર બટન).
• Navigate to the Channel Setup or Channel Caption option.
• Select a channel and enter the desired four-character caption using the remote's numeric keypad.

7.5 Program Index Search

This feature allows you to quickly locate and play specific programs recorded on a videotape. The VCR can display an on-screen listing of up to eight programs, from which you can select the desired one.

• Insert a recorded tape.
• દબાવો ઇન્ડેક્સ શોધ રિમોટ પર બટન.
• Use the navigation buttons to select a program from the on-screen list.
• દબાવો રમો to start playback from the selected program.

7.6 Rapid Rewind/Fast-Forward

The VCR is equipped with rapid rewind and fast-forward capabilities, allowing for quicker navigation through tapes to find desired content or the end of a recording.

• દબાવો રીવાઇન્ડ કરો or ફાસ્ટ ફોરવર્ડ button during playback or stop mode.
• દબાવો રમો or રોકો સામાન્ય કામગીરી ફરી શરૂ કરવા.

8. જાળવણી

8.1 Head Cleaner

The Panasonic PV-V4640 features a built-in head cleaner. Regular use of the VCR helps keep the video heads clean. If picture quality degrades, a dedicated head cleaning tape can be used, following its specific instructions.

8.2 સામાન્ય સફાઈ

• VCR ના બાહ્ય ભાગને નરમ, સૂકા કપડાથી સાફ કરો.
• Do not use liquid cleaners or aerosol cleaners, as they may damage the finish or internal components.
• વેન્ટિલેશનના છિદ્રોને ધૂળ અને કાટમાળથી સાફ રાખો.

9. મુશ્કેલીનિવારણ

સેવાનો સંપર્ક કરતા પહેલા, કૃપા કરીને નીચેની સામાન્ય સમસ્યાઓ તપાસો:

10. સ્પષ્ટીકરણો

11. વોરંટી અને સપોર્ટ

Panasonic offers a one-year warranty for parts and labor for this product. For warranty service or technical support, please refer to the contact information provided with your purchase documentation or visit the official Panasonic support website. Please have your model number (PV-V4640) and purchase date available when contacting support.
