Taylor Salter Mechanical Diet Scale (Model 021WHDR) User Manual

પરિચય

The Taylor Salter Mechanical Diet Scale is designed for precise measurement of food ingredients, ideal for dietary needs or general kitchen use. This compact and easy-to-use scale measures up to 16 ounces (500 grams) in fine increments, ensuring accuracy for your recipes and portion control. Its durable construction and thoughtful design make it a reliable tool for any kitchen.

સેટઅપ

1. સ્કેલ ખોલો: Carefully remove the scale and its weighing container from the packaging. The scale is designed to store inside the container for compact storage.
2. Position the Weighing Container: Place the weighing container securely onto the scale's platform. Ensure it sits flat and stable.
3. ઝીરો ધ સ્કેલ: Locate the adjustment knob, typically found at the base or side of the scale. Gently turn this knob until the dial needle registers exactly zero. This step is crucial for accurate measurements.

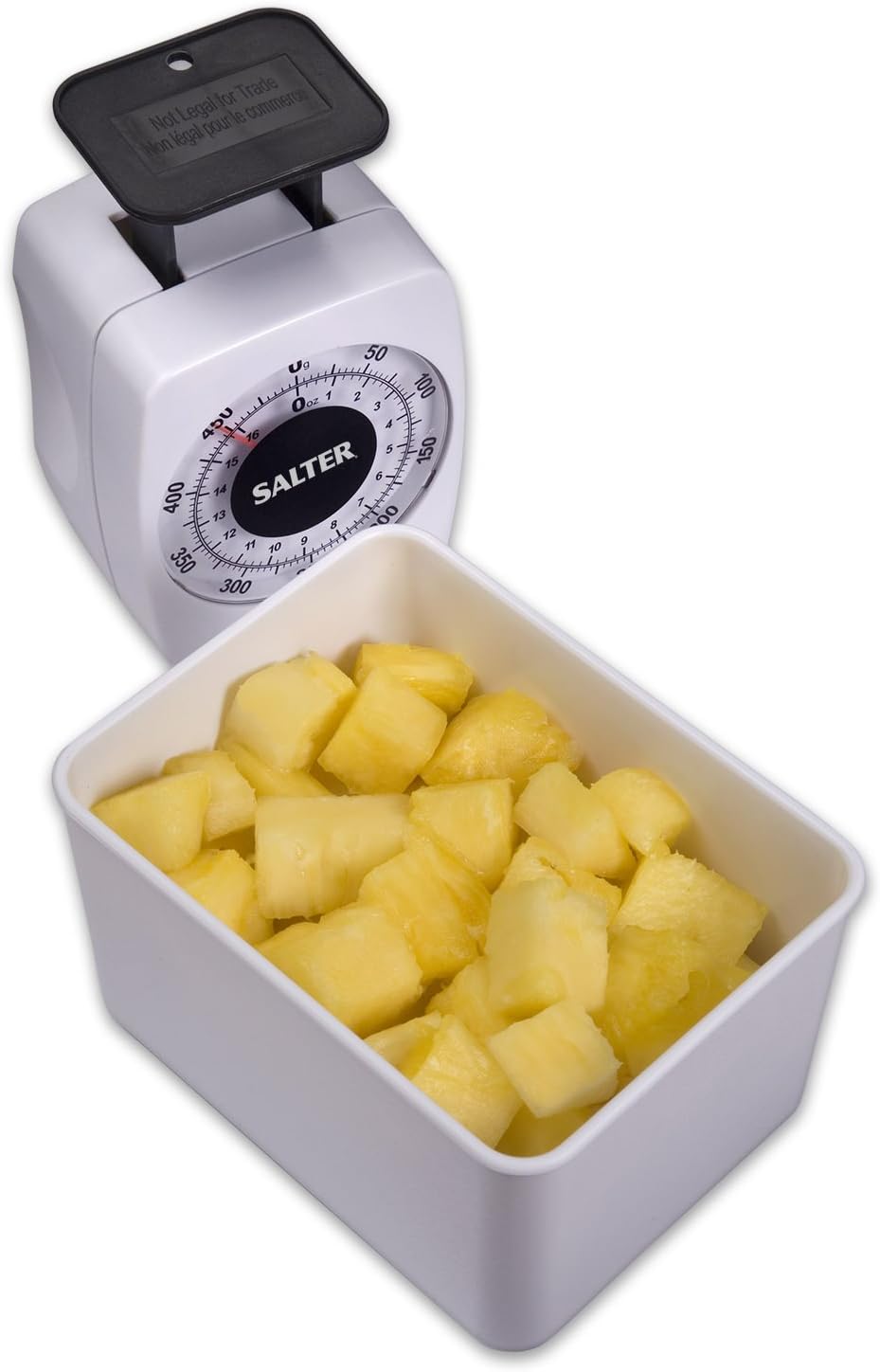

Image: The Salter Mechanical Diet Scale with its weighing container, shown with pineapple pieces. This illustrates how the container sits on the scale for measurement.

ઓપરેટિંગ સૂચનાઓ

1. Place Item to Weigh: Once the scale is zeroed with the container in place, gently add the item you wish to weigh into the container.
2. માપન વાંચો: The black pointer on the clock-style dial will indicate the weight. The scale measures up to 16 ounces in 0.25-ounce increments or 500 grams in 5-gram increments.
3. Weighing Multiple Ingredients (Tare Function): If weighing multiple ingredients sequentially, you can reset the scale to zero after each ingredient is added. To do this, remove the current ingredient, re-zero the scale with the empty container, then add the next ingredient. Alternatively, you can add the next ingredient and calculate the difference.
4. મહત્તમ ક્ષમતા: Do not exceed the maximum capacity of 16 ounces (500 grams) to prevent damage to the scale.

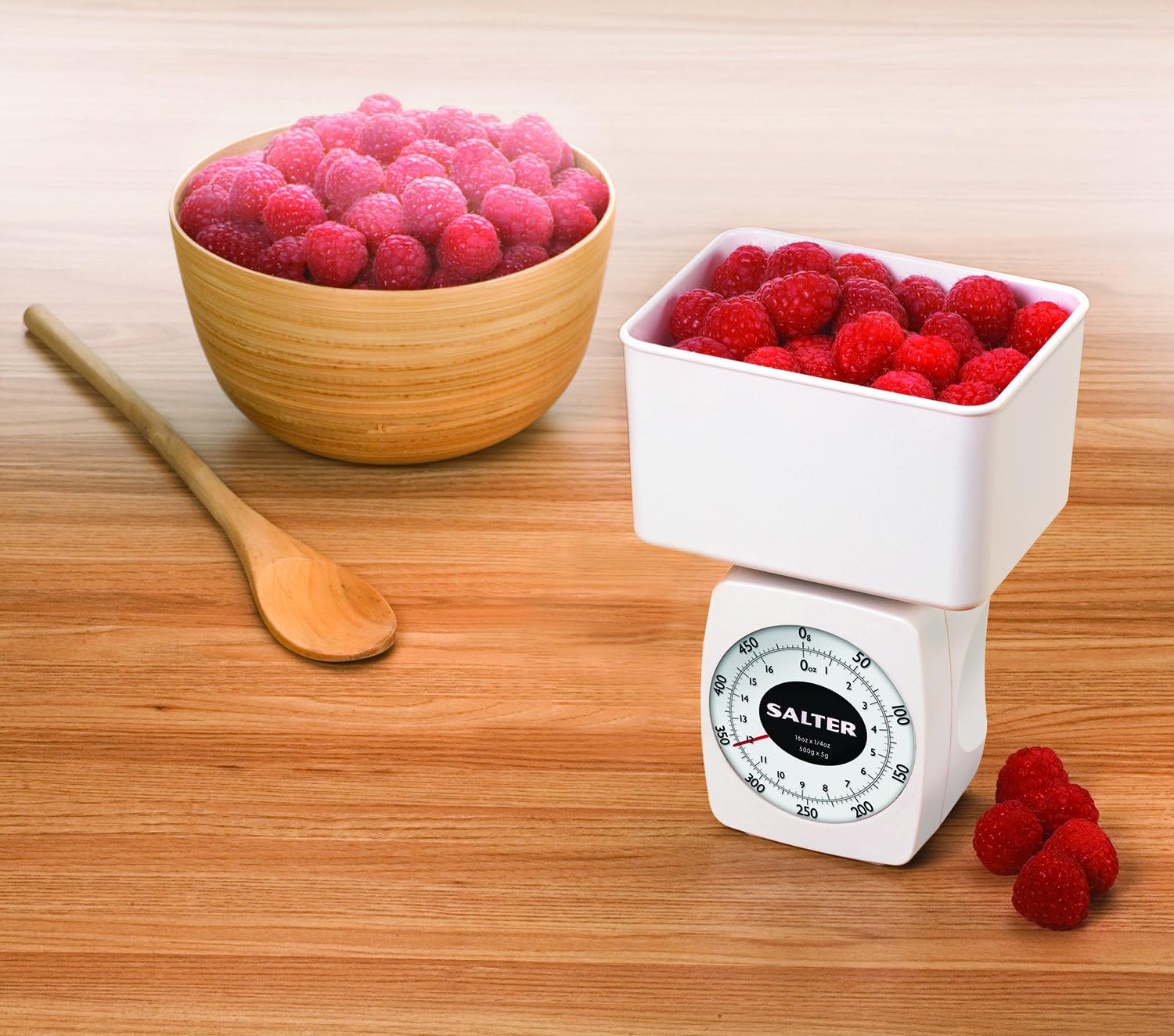

Image: The Salter Mechanical Diet Scale in use, accurately weighing raspberries in its container. A larger bowl of raspberries and a wooden spoon are visible in the background.

સંભાળ અને જાળવણી

• સ્કેલની સફાઈ: The scale body can be wiped clean with a damp કાપડ સ્કેલને પાણીમાં બોળશો નહીં.
• કન્ટેનર સાફ કરવું: The weighing container is made of durable plastic and is dishwasher-safe for easy cleaning. However, it should not be used in a microwave.
• Protecting the Container: When weighing acidic or strongly colored foods such as oranges, curries, or tomatoes, it is recommended to line the container with plastic wrap to prevent staining or damage.
• સંગ્રહ: For neat and dust-free storage, the scale fits compactly inside its weighing container, which can then be covered with its clear plastic lid.

મુશ્કેલીનિવારણ

Scale does not zero correctly:

Ensure the weighing container is placed correctly on the platform. Gently turn the adjustment knob to align the needle with zero. If the knob is stiff or unresponsive, ensure no debris is obstructing its movement. Avoid forcing the knob.

અચોક્કસ વાંચન:

Always zero the scale before each use or before adding a new ingredient if using the tare method. Ensure the scale is on a flat, stable surface. Avoid placing the scale near heat sources or in direct sunlight, which can affect mechanical components.

Scale appears stuck or unresponsive:

Check for any physical obstructions under the platform or around the dial. Ensure the maximum weight capacity has not been exceeded. If the issue persists, contact customer support.

વિશિષ્ટતાઓ

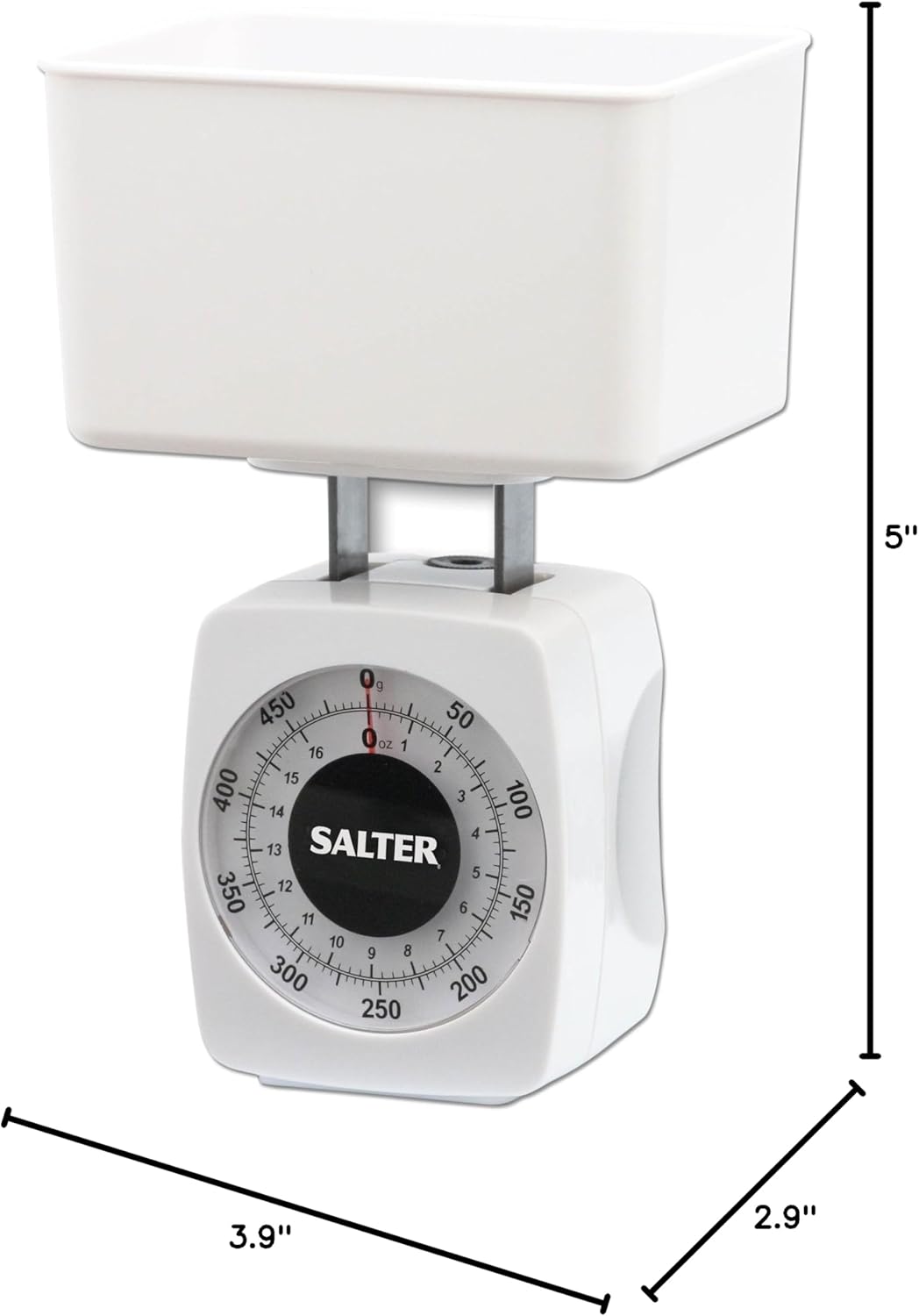

Image: The Salter Mechanical Diet Scale with its key dimensions (height, width, depth) clearly labeled for reference.

વોરંટી માહિતી

This Taylor Salter Mechanical Diet Scale (Model 021WHDR) is covered by a 1 વર્ષની મર્યાદિત વોરંટી from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact customer support.

ગ્રાહક આધાર

For any questions, assistance, or warranty inquiries regarding your Taylor Salter Mechanical Diet Scale, please contact Taylor Precision Products customer service:

• Webસાઇટ: Visit the official Taylor webસપોર્ટ સંસાધનો અને સંપર્ક માહિતી માટે સાઇટ.
• ફોન: તમારા ઉત્પાદન પેકેજિંગમાં આપેલી સંપર્ક વિગતોનો સંદર્ભ લો.
• ઑનલાઇન સ્ટોર: તમે પણ મુલાકાત લઈ શકો છો એમેઝોન પર ટેલર સ્ટોર ઉત્પાદન માહિતી માટે.

When contacting support, please have your model number (021WHDR) and proof of purchase readily available.
