ENGINEER NS-04 120 mm Precision Mini Nippers Side Cutting Pliers Instruction Manual

1. પરિચય

Thank you for choosing the ENGINEER NS-04 Precision Mini Nippers. These professional-grade side cutting pliers are designed for precise cutting tasks, particularly in electronics, PCB work, and hobby applications. Featuring hardened carbon steel jaws and ESD-safe comfort grips, the NS-04 offers reliable performance and user comfort. This manual provides essential information for safe operation, maintenance, and optimal use of your tool.

Image 1: The ENGINEER NS-04 Precision Mini Nippers, showcasing their compact design and ESD-safe grips.

2. સલામતી માહિતી

Always observe the following safety precautions when using the ENGINEER NS-04 nippers to prevent injury and tool damage:

• આંખનું રક્ષણ પહેરો: Always wear safety glasses or goggles to protect your eyes from flying debris during cutting operations.
• હેતુપૂર્વક ઉપયોગ: These nippers are designed for cutting soft materials such as copper wire, electronic component leads, and plastic. Do not use them for cutting hard materials like steel wire, piano wire, or screws, as this can damage the cutting edges.
• યોગ્ય પકડ: Maintain a firm and secure grip on the handles during use.
• Keep Fingers Clear: Ensure fingers and other body parts are clear of the cutting jaws.
• સંગ્રહ: Store the nippers in a dry, safe place, out of reach of children.
• નિરીક્ષણ: Before each use, inspect the nippers for any signs of damage, such as chipped jaws or loose handles. Do not use damaged tools.

3. ઉત્પાદન સુવિધાઓ

The ENGINEER NS-04 nippers incorporate several design elements for precision and durability:

• કોમ્પેક્ટ કદ: Ideal for precise work in confined spaces, such as PCB assembly, electronics repair, and intricate craft projects.
• Flush Cutting Edges: Specially designed for clean, flush cuts on electronic components, copper wire, and soft lead wires, minimizing protrusions.
• Hardened Carbon Steel Jaws: Constructed from heat-treated carbon steel for exceptional cutting performance and extended durability.
• Angle Opening Adjuster: A mechanism that allows adjustment of the maximum jaw opening when the grips are released. This feature enhances productivity and reduces hand fatigue during repetitive cutting tasks.
• ESD Safe Comfort Grips: Handles made from oil-resistant thermoplastic elastomer, providing a comfortable and secure grip while offering electrostatic discharge (ESD) protection.

છબી 2: ક્લોઝ-અપ view of the NS-04 nippers highlighting the jaw opening adjustment setting and the ergonomic comfort grips.

4. સેટઅપ અને પ્રારંભિક નિરીક્ષણ

The ENGINEER NS-04 nippers are ready for use directly out of the packaging. No assembly is required.

1. અનપેક કરો: Carefully remove the nippers from their packaging.
2. દ્રશ્ય નિરીક્ષણ: Examine the nippers for any visible damage that may have occurred during shipping. Check the cutting edges for chips or misalignment.
3. કાર્યક્ષમતા તપાસ: Open and close the handles a few times to ensure smooth operation and proper spring action. Verify that the jaw opening adjuster functions correctly.

5. ઓપરેટિંગ સૂચનાઓ

Follow these steps for effective and safe use of your nippers:

1. Identify Material: Ensure the material to be cut is within the nippers' capacity (soft copper wire, plastic, component leads). Avoid hard materials.
2. સ્થિતિ: Place the material as deep as possible into the jaws for optimal leverage and a clean cut. For flush cuts, position the flat side of the nipper jaws against the surface from which you are cutting.
3. કાપવાની ક્રિયા: Apply steady, firm pressure to the handles until the cut is complete. Avoid twisting or prying with the nippers.
4. Jaw Opening Adjustment: To adjust the maximum opening of the jaws, locate the small screw mechanism between the handles near the pivot point (refer to Image 2). Loosen the screw slightly, set the desired maximum opening, and then tighten the screw to secure the setting. This is useful for repetitive tasks to reduce hand movement.

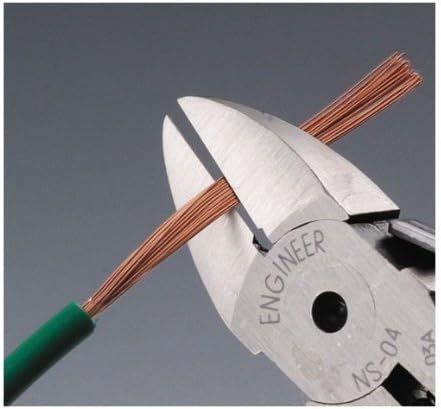

Image 3: The NS-04 nippers demonstrating a clean cut on a copper wire.

6. જાળવણી અને સંભાળ

Proper maintenance ensures the longevity and performance of your nippers:

• સફાઈ: After each use, wipe the nippers clean with a dry, soft cloth to remove any debris or residue.
• લુબ્રિકેશન: Periodically apply a small drop of light machine oil to the pivot point to maintain smooth operation. Wipe off any excess oil.
• સંગ્રહ: Store the nippers in a protective pouch or tool tray to prevent damage to the cutting edges. Keep them in a dry environment to prevent rust.
• છોડવાનું ટાળો: Dropping the nippers, especially on hard surfaces, can damage the precision-ground cutting edges.

7. મુશ્કેલીનિવારણ

If you encounter issues with your nippers, consider the following:

• સખત કામગીરી: If the nippers feel stiff, apply a small amount of light machine oil to the pivot point and work the handles to distribute the lubricant.
• નબળું કટીંગ પ્રદર્શન: Ensure you are cutting appropriate materials. If the cutting edges appear dull or damaged, the nippers may require professional sharpening or replacement. Do not attempt to sharpen the precision edges yourself unless you have specialized tools and expertise.
• Jaws Not Closing Completely: Check for any debris lodged between the jaws or at the pivot point. Clean thoroughly. If the issue persists, the tool may be damaged.

8. સ્પષ્ટીકરણો

Image 4: Technical diagram illustrating the dimensions of the ENGINEER NS-04 nippers.

9. વોરંટી અને સપોર્ટ

ENGINEER products are manufactured to high standards and are designed for durability. For specific warranty information, please refer to the documentation included with your purchase or visit the official ENGINEER website. If you require technical assistance or have questions regarding your NS-04 nippers, please contact ENGINEER customer support through their official channels.

For further information and product details, you may visit the ENGINEER Store on Amazon.
