Master Lock 7620EURD 20mm 3-Digit Combination Padlock Instruction Manual

1. ઉત્પાદન ઓવરview

The Master Lock 7620EURD is a 20mm aluminum resettable combination padlock designed for security applications such as securing suitcases, briefcases, and sport bags. It features a durable aluminum body with a brushed metal finish, offering resistance to corrosion. This padlock utilizes a 3-digit set-your-own combination system for convenient keyless security.

મુખ્ય લક્ષણો:

• Durable aluminum body with brushed metal finish.
• 3-digit resettable combination for personalized security.
• 20mm wide lock body with a 3mm diameter shackle, 21mm long.
• Security level 3.

Figure 1: Master Lock 20mm 3-Digit Combination Padlock securing luggage.

૧. તમારું કોમ્બિનેશન સેટ કરવું

Your Master Lock 7620EURD padlock comes preset to open at 0-0-0. તમારા વ્યક્તિગત સંયોજનને સેટ કરવા માટે આ પગલાં અનુસરો:

1. Open the padlock by setting the dials to 0-0-0 and pulling up the shackle.
2. Rotate the shackle 90 degrees clockwise (from the top view).
3. Press the shackle down firmly into the lock body. Ensure it is fully depressed; this position is critical for combination setting.
4. While holding the shackle down, set your desired 3-digit combination by rotating the dials. Choose a memorable combination.
5. Once your new combination is set, pull the shackle up.
6. Rotate the shackle back 90 degrees counter-clockwise to its original closed position.
7. Scramble the dials to lock the padlock. Test your new combination to ensure it opens correctly before securing any items.

Figure 2: Dials for setting the 3-digit combination.

૪. પેડલોકનું સંચાલન

To open the padlock:

1. Align the dials to your preset 3-digit combination.
2. Pull the shackle upwards to release the lock.

To close and secure the padlock:

1. લૉક બોડીમાં શૅકલ દાખલ કરો.
2. Scramble the dials to a random combination to secure the padlock.

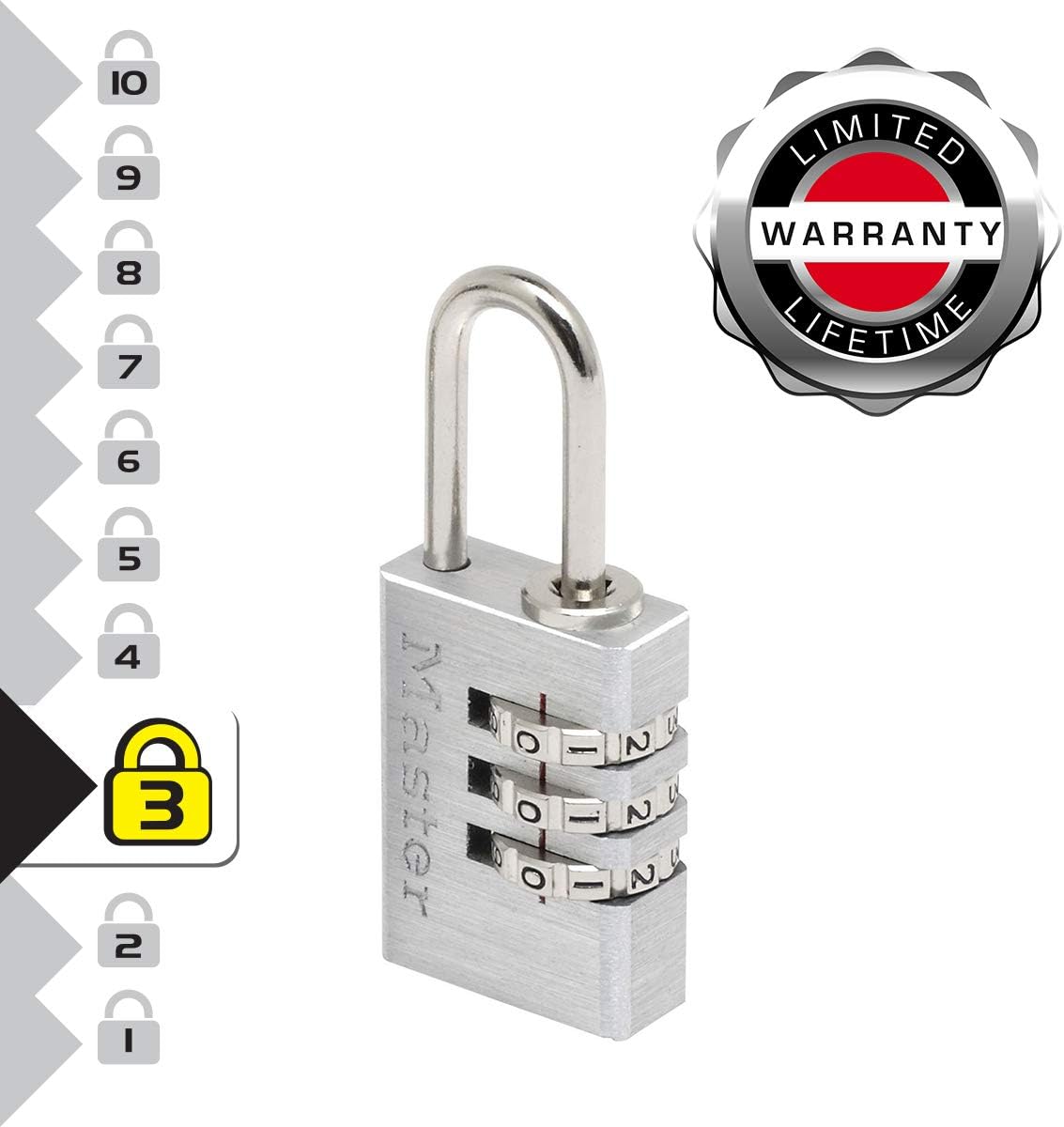

આકૃતિ 3: બાજુ view of the padlock, showing the shackle and body.

4. જાળવણી

The Master Lock 7620EURD padlock requires minimal maintenance to ensure optimal performance and longevity:

• સફાઈ: Wipe the padlock periodically with a soft, dry cloth to remove dust and grime. Avoid harsh chemicals or abrasive cleaners.
• લુબ્રિકેશન: If the shackle or dials become stiff, apply a small amount of graphite lubricant or a silicone-based spray lubricant to the shackle opening and dial mechanisms. Do not use oil-based lubricants as they can attract dirt.
• સંગ્રહ: Store the padlock in a dry environment when not in use to prevent moisture buildup.

5. મુશ્કેલીનિવારણ

If you encounter issues with your padlock, consider the following:

• Padlock will not open with the correct combination:
  • Ensure each number is precisely aligned in the center of the viewબારી.
  • Verify that you are using the correct combination. If you recently changed it, try both the old and new combinations.
  • Apply slight pressure to the shackle while entering the combination, then release pressure and pull up.
• Dials are stiff or difficult to turn:
  • Apply a small amount of graphite lubricant or silicone spray to the dial mechanisms.
  • Clean any visible dirt or debris from around the dials.
• Forgot the combination:

  Unfortunately, for a 3-digit resettable combination padlock, there is no master key or override code. If the combination is forgotten, the only method to open it is to try all possible combinations (000 to 999). This process can be time-consuming but is feasible for a 3-digit lock.

6. સ્પષ્ટીકરણો

Figure 4: Dimensional diagram of the padlock.

7. વોરંટી અને સપોર્ટ

Master Lock products are manufactured to stringent quality standards. The Master Lock 7620EURD 20mm 3-Digit Combination Padlock comes with a આજીવન ગેરંટી against mechanical defects under normal use.

For warranty claims, technical assistance, or further inquiries, please visit the official Master Lock webસાઇટ પર જાઓ અથવા તેમના ગ્રાહક સપોર્ટનો સીધો સંપર્ક કરો. ખરીદીના પુરાવા તરીકે તમારી ખરીદી રસીદ રાખો.

માસ્ટર લોક ઓફિશિયલ Webસાઇટ: www.masterlock.com
