1. પરિચય
Welcome to the user manual for your Robot Coupe MP 800 TURBO Handheld Power Mixer. This document provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your commercial power mixer. Please read all instructions carefully before initial use to ensure proper function and longevity of the appliance.
2. મહત્વપૂર્ણ સલામતી સૂચનાઓ
આગ, ઇલેક્ટ્રિક આંચકો અથવા ઈજાના જોખમને ઘટાડવા માટે, ઇલેક્ટ્રિકલ ઉપકરણોનો ઉપયોગ કરતી વખતે હંમેશા મૂળભૂત સલામતી સાવચેતીઓનું પાલન કરો.
- બધી સૂચનાઓ વાંચો: Familiarize yourself with the appliance and its operation before use.
- ઇલેક્ટ્રિકલ સલામતી: Ensure the power supply matches the specifications (120V/60Hz). Do not use with damaged cords or plugs. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- ફરતા ભાગો સાથે સંપર્ક ટાળો: Keep hands, hair, clothing, and utensils away from the blade during operation to prevent injury.
- Proper Immersion: Always immerse the mixer shaft into the food preparation before turning it on. Do not operate the mixer out of liquid.
- સફાઈ: Always unplug the mixer before cleaning. The motor unit should not be immersed in water. Refer to the 'Cleaning and Maintenance' section for detailed instructions.
- દેખરેખ: જ્યારે બાળકો દ્વારા અથવા તેની નજીકના કોઈપણ ઉપકરણનો ઉપયોગ કરવામાં આવે ત્યારે નજીકની દેખરેખ જરૂરી છે.
- હેતુપૂર્વક ઉપયોગ: Use this appliance only for its intended commercial food preparation purpose as described in this manual.
3. ઉત્પાદન ઓવરview
The Robot Coupe MP 800 TURBO is a robust handheld power mixer designed for commercial use, capable of processing up to 50 liters. It features a durable stainless steel shaft and a powerful 1 HP motor.

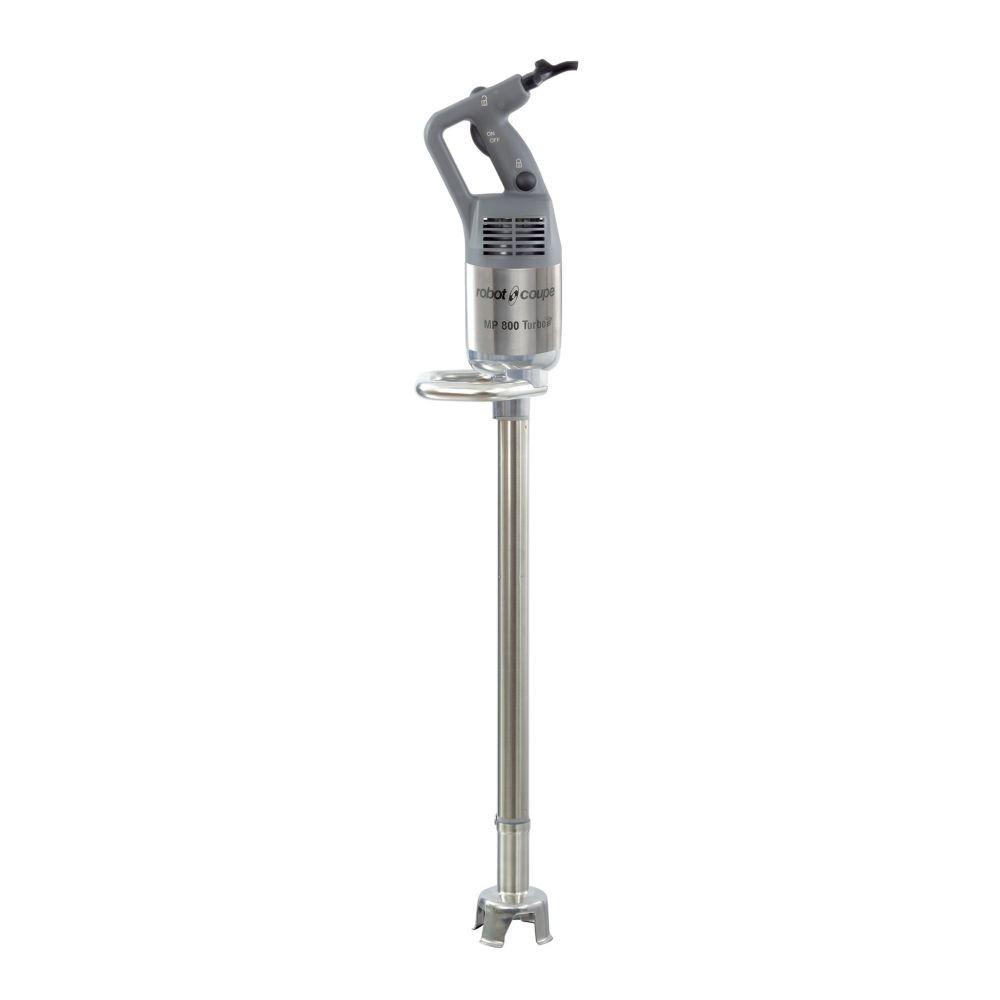

Image 1: Robot Coupe MP 800 TURBO Handheld Power Mixer. This image displays the complete handheld power mixer unit, featuring the gray motor housing with control buttons, the long stainless steel shaft, and the blade assembly at the bottom. A stainless steel wall support is also visible around the shaft.
મુખ્ય ઘટકોમાં શામેલ છે:
- મોટર યુનિટ: Houses the 1 HP motor and control buttons.
- સ્ટેનલેસ સ્ટીલ શાફ્ટ: A 14-inch long shaft for deep immersion.
- Removable Stainless Steel Foot & Blade: Designed for easy cleaning and maintenance.
- દિવાલ સપોર્ટ: For convenient storage and stability.
- Blade Disassembly Tool: Included for safe removal of the blade.
- ડિટેચેબલ પાવર કોર્ડ: Features an "Easy plug" system for convenience.
4. સેટઅપ અને એસેમ્બલી
Follow these steps to prepare your mixer for use:
- અનપેક કરો: પેકેજિંગમાંથી બધા ઘટકો કાળજીપૂર્વક દૂર કરો. ભવિષ્યના સંગ્રહ અથવા પરિવહન માટે પેકેજિંગ રાખો.
- તપાસ કરો: Check all parts for any signs of damage. Do not use if any part is damaged.
- શાફ્ટ જોડો: Align the stainless steel shaft with the motor unit and twist or click into place securely. Ensure it is firmly locked.
- Install Wall Support: If desired, mount the included stainless steel wall support in a convenient location near your food preparation area.
- પાવર કનેક્ટ કરો: Plug the detachable power cord into the mixer's motor unit, then into a grounded 120V/60Hz electrical outlet.
5. ઓપરેટિંગ સૂચનાઓ
The MP 800 TURBO is designed for efficient mixing and blending in commercial kitchens.
- તૈયારી: Ensure the mixer is properly assembled and plugged into a suitable power source.
- નિમજ્જન: Fully immerse the blade and foot of the mixer into the liquid or food preparation before starting the motor. Ensure the liquid level is below the motor unit connection point.
- પાવર ચાલુ: Press and hold the 'ON' button on the motor unit to start the mixer. The mixer operates at a single speed of 12,000 RPM.
- મિશ્રણ: Move the mixer gently through the ingredients to ensure even blending. Avoid lifting the blade out of the liquid while operating.
- પ્રક્રિયા ક્ષમતા: This model is suitable for processing up to 50 liters of product.
- પાવર બંધ: Release the 'ON' button to stop the mixer.
- દૂર કરો: Once the mixer has completely stopped, carefully remove it from the food preparation.
6. સફાઈ અને જાળવણી
Regular cleaning and maintenance are crucial for the hygiene and longevity of your mixer.
- અનપ્લગ: Always unplug the mixer from the power outlet before cleaning or disassembling.
- ડિસએસેમ્બલ: Carefully detach the stainless steel shaft from the motor unit. Use the provided blade disassembly tool to remove the blade from the foot for thorough cleaning.
- Clean Shaft and Blade: Wash the removable stainless steel foot and blade assembly with warm, soapy water. Rinse thoroughly and dry immediately to prevent water spots or corrosion.
- સ્વચ્છ મોટર યુનિટ: જાહેરાત સાથે મોટર એકમ સાફ કરોamp કાપડ મોટર યુનિટને પાણી અથવા અન્ય કોઈપણ પ્રવાહીમાં બોળશો નહીં.
- સેનિટાઇઝ કરો: For commercial use, follow local health regulations for sanitizing food contact surfaces.
- સંગ્રહ: Store the mixer in a dry, clean place. The wall support can be used for convenient storage.
7. મુશ્કેલીનિવારણ
If you encounter issues with your mixer, refer to the table below for common problems and solutions.
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| મિક્સર શરૂ થતું નથી | પ્લગ ઇન નથી; પાવર outage; faulty outlet; motor unit not properly attached to shaft. | Check power cord connection; verify power supply; try a different outlet; ensure shaft is securely attached. |
| મોટર ચાલે છે પણ બ્લેડ વળતી નથી | Shaft not properly engaged; blade obstructed. | Ensure shaft is fully locked into motor unit; unplug and check for obstructions around the blade. |
| મિક્સર અતિશય વાઇબ્રેટ કરે છે | Bent shaft or blade; unbalanced load. | Inspect shaft and blade for damage; ensure ingredients are evenly distributed. If damage is present, contact service. |
| ઓવરહિટીંગ | Prolonged continuous use; processing overly thick ingredients. | Allow mixer to cool down; reduce processing time; thin out ingredients if possible. |
If the problem persists after attempting these solutions, please contact Robot Coupe customer support.
8. સ્પષ્ટીકરણો
- મોડલ: MP 800 TURBO
- આઇટમ મોડલ નંબર: 22702
- પ્રકાર: Commercial Handheld Power Mixer
- શાફ્ટ લંબાઈ: 14 inches (stainless steel)
- પ્રક્રિયા ક્ષમતા: 50 લિટર સુધી
- મોટર: 1 એચપી
- ઝડપ: Automatic single speed, 12,000 RPM
- વિદ્યુત: 120V/60/1-ph, 5.5 amps, 660 વોટ
- પ્લગ પ્રકાર: નેમા 5-15 પી
- પાવર કોર્ડ: "Easy plug" system with detachable power cord
- પરિમાણો (ઉત્પાદન): 27.5 x 15.25 x 9.5 ઇંચ
- વજન (ઉત્પાદન): 15.65 પાઉન્ડ
- પ્રમાણપત્રો: cETLus, ETL-Sanitation
- ઉત્પાદક: રોબોટ કૂપ
9. વોરંટી અને સપોર્ટ
Robot Coupe products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official Robot Coupe website. For technical support, service, or to order replacement parts, please contact Robot Coupe customer service directly. Ensure you have your model number (22702) and purchase date available when contacting support.
વધુ સહાય માટે, કૃપા કરીને મુલાકાત લો Robot Coupe Store on Amazon.
