Ricoh Aficio SPC430DN Toner Cartridge Set User Manual

1. પરિચય

This manual provides essential instructions for the proper installation, operation, and maintenance of your Ricoh Aficio SPC430DN Toner Cartridge Set. This set includes genuine Ricoh OEM toner cartridges in Black, Cyan, Magenta, and Yellow, designed for optimal performance with compatible Ricoh printers.

ઉત્પાદન ઓવરview

The Ricoh Aficio SPC430DN Toner Cartridge Set ensures high-quality print output and reliable performance. Each cartridge is engineered to meet Ricoh's stringent standards for color accuracy and page yield.

સુસંગતતા

This toner cartridge set is compatible with the following Ricoh printer models:

• Ricoh Aficio SP C430DN
• Ricoh Aficio SP C431DN
• Ricoh Aficio SP C431DN-HS
• Ricoh SP C440DN

બૉક્સમાં શું છે

Your package contains one set of Ricoh OEM toner cartridges, including:

• 1 x Black Toner Cartridge
• 1 x Cyan Toner Cartridge
• 1 x Magenta Toner Cartridge
• 1 x Yellow Toner Cartridge

2. સેટઅપ અને ઇન્સ્ટોલેશન

Follow these general steps to install the toner cartridges. Always refer to your specific printer's user manual for detailed, model-specific instructions and safety precautions.

1. Power Off and Open: Ensure your printer is powered off. Open the front cover or access panel of your printer to expose the toner cartridge slots.
2. જૂનું કારતૂસ દૂર કરો (જો લાગુ હોય તો): Carefully remove the empty toner cartridge by pulling it straight out. Place it in a protective bag for recycling.
3. નવું કારતૂસ તૈયાર કરો: Gently shake the new toner cartridge horizontally 5-6 times to distribute the toner evenly.
4. રક્ષણાત્મક સામગ્રી દૂર કરો: Remove any protective seals, tapes, or covers from the new cartridge. Be careful not to touch the imaging drum surface.
5. નવું કારતૂસ દાખલ કરો: Align the new toner cartridge with the corresponding slot in the printer. Push it firmly until it clicks into place. Ensure it is fully seated.
6. કવર બંધ કરો અને પાવર ચાલુ કરો: Close the printer's cover or access panel. Power on the printer. The printer will typically perform a self-test or calibration after installation.

Image: The Ricoh Aficio SPC430DN Toner Cartridge Set, showing both the individual cartridges and their packaging. This illustrates the product as received and ready for installation.

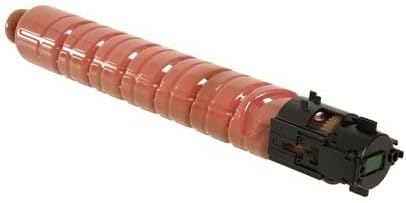

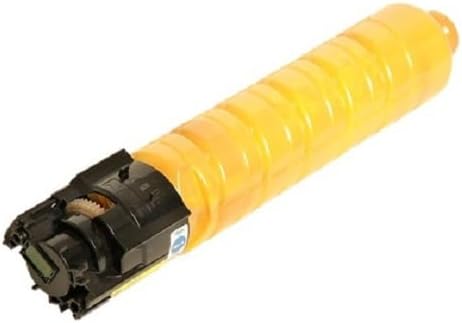

Image: Individual Ricoh Aficio SPC430DN toner cartridges in Magenta, Cyan, and Yellow. These images provide a clear view of the distinct color cartridges.

3. ઓપરેટિંગ સૂચનાઓ

Once installed, the toner cartridges operate automatically with your Ricoh printer. The printer's software will manage toner levels and usage.

પેજ યીલ્ડ

The approximate page yields for these OEM cartridges are:

• બ્લેક ટોનર: આશરે 21,000 પૃષ્ઠો
• Cyan Toner: આશરે 24,000 પૃષ્ઠો
• Magenta Toner: આશરે 24,000 પૃષ્ઠો
• Yellow Toner: આશરે 24,000 પૃષ્ઠો

Note: Page yield is based on ISO/IEC 19798 standards and may vary significantly depending on images printed, print settings, and other factors.

4. જાળવણી અને સંગ્રહ

સંગ્રહ

• ન વપરાયેલા ટોનર કારતુસને તેમના મૂળ, ન ખોલેલા પેકેજિંગમાં સંગ્રહિત કરો.
• કારતુસને સીધા સૂર્યપ્રકાશ અને અતિશય તાપમાનથી દૂર, ઠંડી, સૂકી જગ્યાએ રાખો.
• Avoid storing cartridges in areas with high humidity or dusty environments.

સંભાળવાની સાવચેતીઓ

• Handle cartridges carefully to avoid dropping them, which could damage internal components.
• Do not touch the green imaging drum surface on the cartridge, as fingerprints or scratches can affect print quality.
• ટોનર કારતૂસ બાળકોની પહોંચથી દૂર રાખો.

5. મુશ્કેલીનિવારણ

This section addresses common issues related to toner cartridges. For more complex printer problems, consult your printer's manual or Ricoh support.

• Poor Print Quality (Faded, Streaky, or Inconsistent Prints):
  • Ensure the toner cartridge is correctly installed and fully seated.
  • Gently shake the cartridge to redistribute toner, especially if it's nearing the end of its life.
  • If the cartridge is old or empty, replace it with a new one.
  • Perform a printer calibration or cleaning cycle as instructed in your printer's manual.
• "Low Toner" or "Toner Empty" Message:
  • A "Low Toner" message indicates the cartridge is nearing depletion. Prepare a replacement.
  • An "Empty Toner" message requires immediate replacement of the indicated cartridge.
  • Ensure you are using genuine Ricoh OEM cartridges for accurate toner level detection.
• કારતૂસ ઓળખાયું નથી:
  • Remove and reinsert the cartridge to ensure it is properly seated.
  • Check for any protective seals or tapes that may not have been fully removed.
  • Verify that the cartridge is the correct model for your printer.
  • પ્રિન્ટર પુનઃપ્રારંભ કરો.

6. સ્પષ્ટીકરણો

7. વોરંટી અને સપોર્ટ

As genuine Ricoh OEM products, these toner cartridges are covered by Ricoh's standard warranty policy. For specific warranty terms and conditions, please refer to the documentation included with your printer or visit the official Ricoh webસાઇટ

ગ્રાહક આધાર

For technical assistance, troubleshooting, or warranty claims, please contact Ricoh customer support through their official channels. You can typically find support information on the Ricoh website or within your printer's user manual.
