ચુઆંગો પીઆઈઆર-926 પેસિવ આઉટડોર સોલર ઇન્ફ્રારેડ મોશન સેન્સર યુઝર મેન્યુઅલ

1. પરિચય

The Chuango PIR-926 is an advanced passive infrared (PIR) motion sensor designed for outdoor security applications. It features patented infrared technology, fuzzy logic, and a sophisticated algorithm to accurately detect human body movements while effectively reducing interference and false alarms. Its dual detection capability, combining infrared and microwave sensing, enhances reliability. Equipped with a solar panel and a waterproof housing, this sensor is ideal for various outdoor environments.

Figure 1: Chuango PIR-926 Motion Sensor Overview

2. ઉત્પાદન સુવિધાઓ

• Improved detection algorithm, preventing false alarms through integrated infrared and microwave sensors.
• Built-in solar charger and waterproof housing, making it suitable for outdoor installation.
• Wide detection range: 8 meters with a 110-degree angle.
• Powered by a rechargeable lithium battery: 3.7 V, 1800 mAh.
• Extended standby time of up to 150 days.
• Compact detector dimensions: 186 x 200 x 125 mm (L x W x H).
• Effective frequency range: up to 80 meters in open areas.

3. ઘટકો ઓવરview

Familiarize yourself with the main components of the PIR-926 motion sensor before installation.

Figure 2: Sensor Components. Includes Solar Panel, Fixing Screw, LED Indicator, Fresnel Lens, Detector, Base, and Wall Bracket.

• સૌર પેનલ: આંતરિક બેટરી ચાર્જ કરે છે.
• એલઇડી સૂચક: Provides status feedback.
• ફ્રેસ્નલ લેન્સ: Focuses infrared radiation for detection.
• ડિટેક્ટર: Main sensing unit.
• આધાર: Connects the detector to the mounting bracket.
• Fixing Screw: Secures the sensor to the bracket.
• દિવાલ કૌંસ: Used for mounting the sensor to a wall or surface.

4. સેટઅપ અને ઇન્સ્ટોલેશન

Proper installation is crucial for optimal performance and to minimize false alarms. Follow these steps carefully:

4.1 વોલ માઉન્ટિંગ

1. Select a suitable location on a wall, ensuring it is within the desired detection area and receives adequate sunlight for the solar panel.
2. Secure the wall bracket to the chosen surface using appropriate screws and anchors.
3. Attach the sensor unit to the wall bracket, ensuring it is firmly connected and can be adjusted for optimal angle.

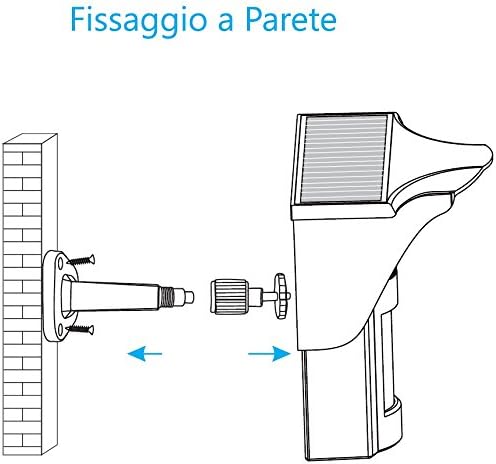

Figure 3: Wall Mounting Procedure. The sensor attaches to a bracket secured to the wall.

4.2 Optimal Placement Guidelines

To ensure accurate detection and prevent false alarms, adhere to the following placement recommendations:

• માઉન્ટિંગ ઊંચાઈ: Install the sensor at approximately 2 meters (6.5 feet) from the ground for optimal detection coverage.
• તપાસ વિસ્તાર: Position the sensor to cover the desired area, typically up to 8 meters with a 110-degree angle. Ensure the detection path is clear of obstructions.
• સૂર્યપ્રકાશ એક્સપોઝર: Mount the sensor in a location that receives direct sunlight for several hours a day to ensure the solar panel can effectively charge the internal battery.
• અવરોધો ટાળો: Do not install the sensor where large objects like trees, bushes, or structures might block its field of view or cause false triggers due to movement.
• પાલતુ રોગપ્રતિકારક શક્તિ: While the sensor has advanced algorithms, avoid placing it at heights or angles where pets might frequently trigger it, especially if they are large.
• No Direct Heat Sources: Avoid pointing the sensor directly at heat sources, reflective surfaces, or areas with rapid temperature changes, as this can lead to false alarms.

Figure 4: Installation Best Practices. Shows correct mounting height (2m), detection pattern (8m, 110°), sunlight exposure, and incorrect placements (pets, trees, direct light/heat sources).

5. ઓપરેટિંગ સૂચનાઓ

Once installed, the PIR-926 operates automatically. The solar panel continuously charges the internal battery, ensuring continuous operation.

• સક્રિયકરણ: The sensor is designed to be always active, detecting motion within its specified range.
• તપાસ: When motion is detected, the sensor will trigger an alarm signal to a compatible security system. The LED indicator may flash briefly upon detection.
• ઉર્જા વ્યવસ્થાપન: The integrated solar panel charges the 3.7V 1800mAh lithium battery during daylight hours. The sensor can operate for up to 150 days on standby without direct sunlight once fully charged.

6. જાળવણી

Regular maintenance ensures the longevity and reliable operation of your PIR-926 sensor.

• ક્લીન સોલર પેનલ: સમયાંતરે સોલાર પેનલને સોફ્ટ, ડી વડે સાફ કરોamp cloth to remove dust, dirt, or debris that may hinder charging efficiency.
• Clean Fresnel Lens: Gently clean the Fresnel lens with a soft, dry cloth to ensure clear detection. Avoid abrasive cleaners.
• માઉન્ટ કરવાનું તપાસો: Ensure the sensor remains securely mounted and its angle has not shifted due to weather or external factors.
• બેટરી જીવન: The internal lithium battery is designed for long life. If the sensor's performance degrades significantly despite adequate sunlight, the battery may need replacement by a qualified technician.

7. મુશ્કેલીનિવારણ

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

For warranty information, technical support, or service inquiries regarding your Chuango PIR-926 motion sensor, please refer to the documentation provided at the time of purchase or visit the official Chuango webસાઇટ. ખરીદીના પુરાવા તરીકે તમારી ખરીદી રસીદ રાખો.

For general inquiries, you may contact Chuango customer support through their official channels. Always provide your product model number (PIR-926) when seeking assistance.

સત્તાવાર Webસાઇટ: www.chuango.com (Please note: This link is for illustrative purposes and may not be the exact support page.)
