1. ઉત્પાદન ઓવરview
The Hecht Jardin 256 is a universal spreader designed for precise and efficient distribution of various granular materials. Its robust construction and user-friendly design make it suitable for year-round use in gardens and outdoor areas.
હેતુપૂર્વક ઉપયોગ: This spreader is designed for the controlled application of:
- ખાતર
- બીજ
- Winter Salt
- Winter Gravel
આકૃતિ 1: ફ્રન્ટ view of the Hecht Jardin 256 Universal Spreader, showing the hopper, wheels, and handle.

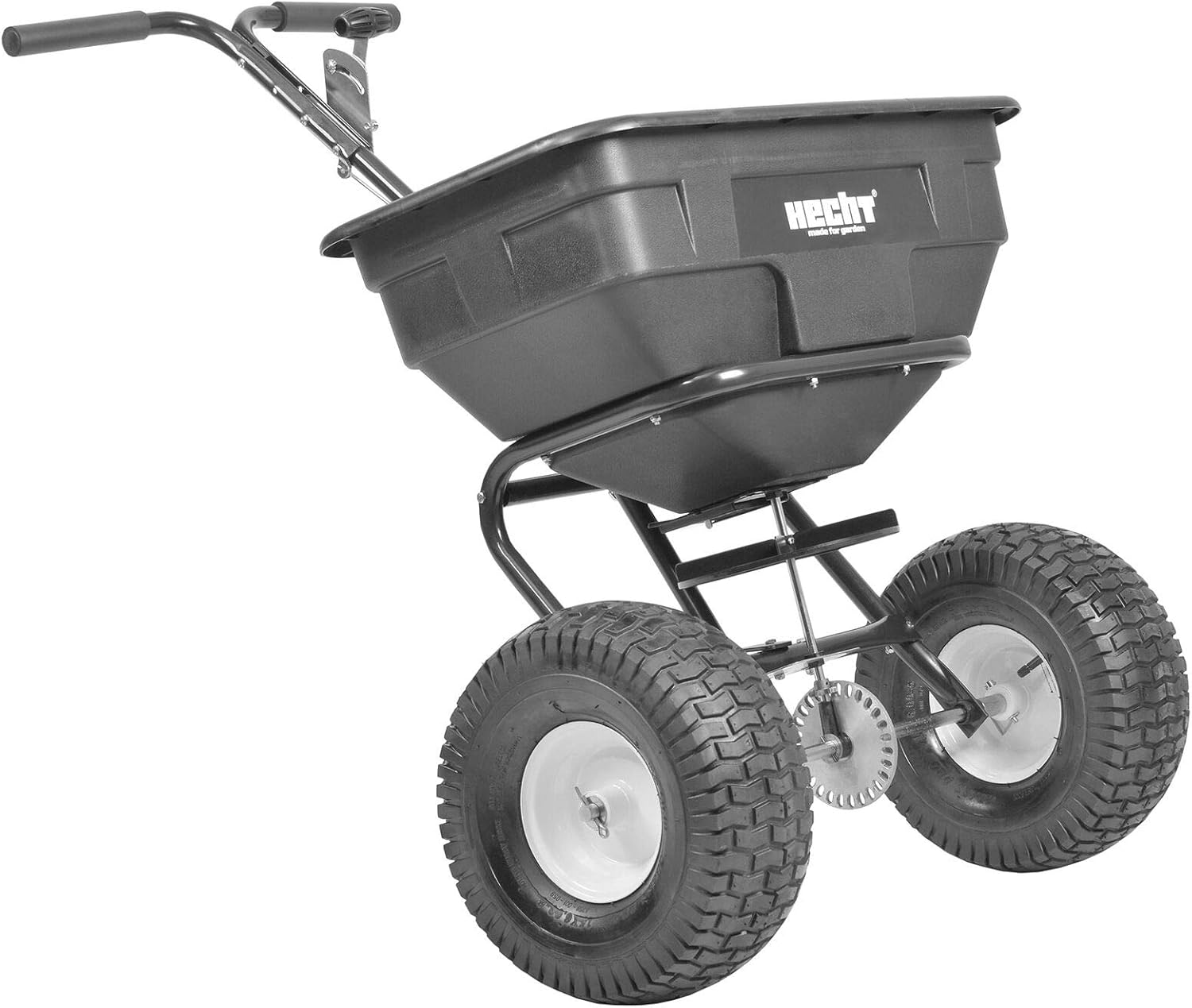

આકૃતિ 2: બાજુ view of the Hecht Jardin 256 Universal Spreader, highlighting its overall structure and large pneumatic tires.
2. સલામતી સૂચનાઓ
- એસેમ્બલી અને ઓપરેશન પહેલાં સમગ્ર માર્ગદર્શિકા વાંચો.
- યોગ્ય વ્યક્તિગત રક્ષણાત્મક ઉપકરણો (PPE) જેમ કે મોજા અને આંખનું રક્ષણ પહેરો.
- Ensure the spreader is stable on level ground before filling or adjusting.
- બાળકો અને પાલતુ પ્રાણીઓને ઓપરેટિંગ વિસ્તારથી દૂર રાખો.
- Do not overload the hopper beyond its specified capacity.
- Clean the spreader thoroughly after each use, especially when using corrosive materials like salt.
3. એસેમ્બલી
The Hecht Jardin 256 spreader requires some assembly. Follow these steps carefully:
- અનપૅક ઘટકો: પેકેજિંગમાંથી બધા ભાગો કાળજીપૂર્વક દૂર કરો. ખાતરી કરો કે પેકિંગ સૂચિમાં સૂચિબદ્ધ બધા ઘટકો હાજર છે.
- વ્હીલ્સ જોડો: Secure the pneumatic wheels to the axle using the provided hardware. Ensure they are firmly attached and rotate freely.
- ફ્રેમ એસેમ્બલ કરો: Connect the handle assembly to the main frame. Use the bolts and nuts provided, tightening them securely.
- Mount Hopper: Place the 60-liter plastic hopper onto the frame and secure it with the designated fasteners. Ensure the agitator mechanism aligns correctly with the spreading plate.
- Install Control Lever: Attach the control lever to the handle assembly. Connect the control cable to the spreading mechanism, ensuring smooth operation of the flow regulation.
- Insert Sieve and Cover: Place the sieve inside the hopper to prevent clumping of materials. Position the cover over the hopper to protect contents from moisture and debris.
આકૃતિ 3: અન્ડરસાઇડ view illustrating the axle, wheels, and the spreading mechanism assembly. Ensure all connections are secure.

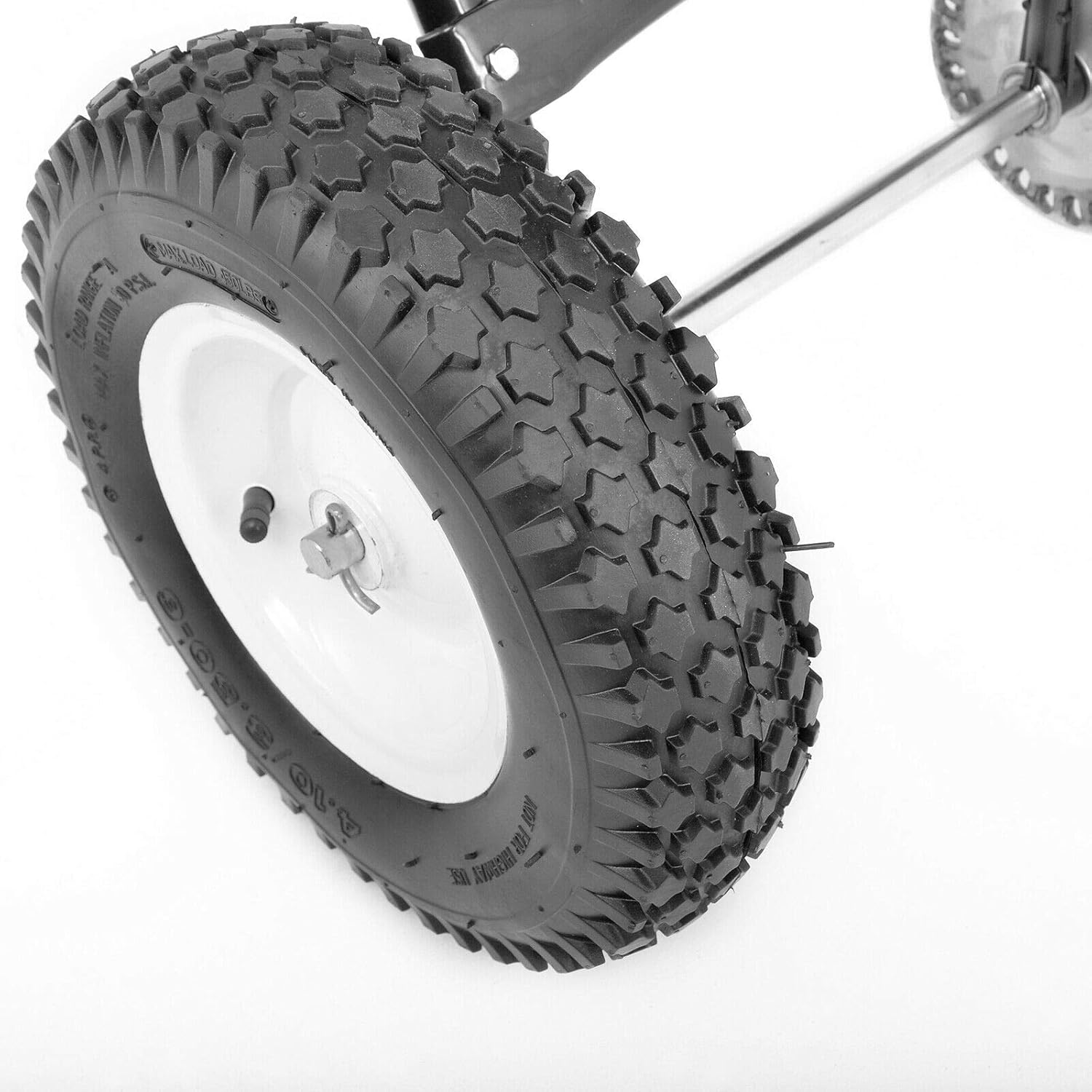

Figure 4: Close-up of one of the large pneumatic tires, which contribute to smooth operation.

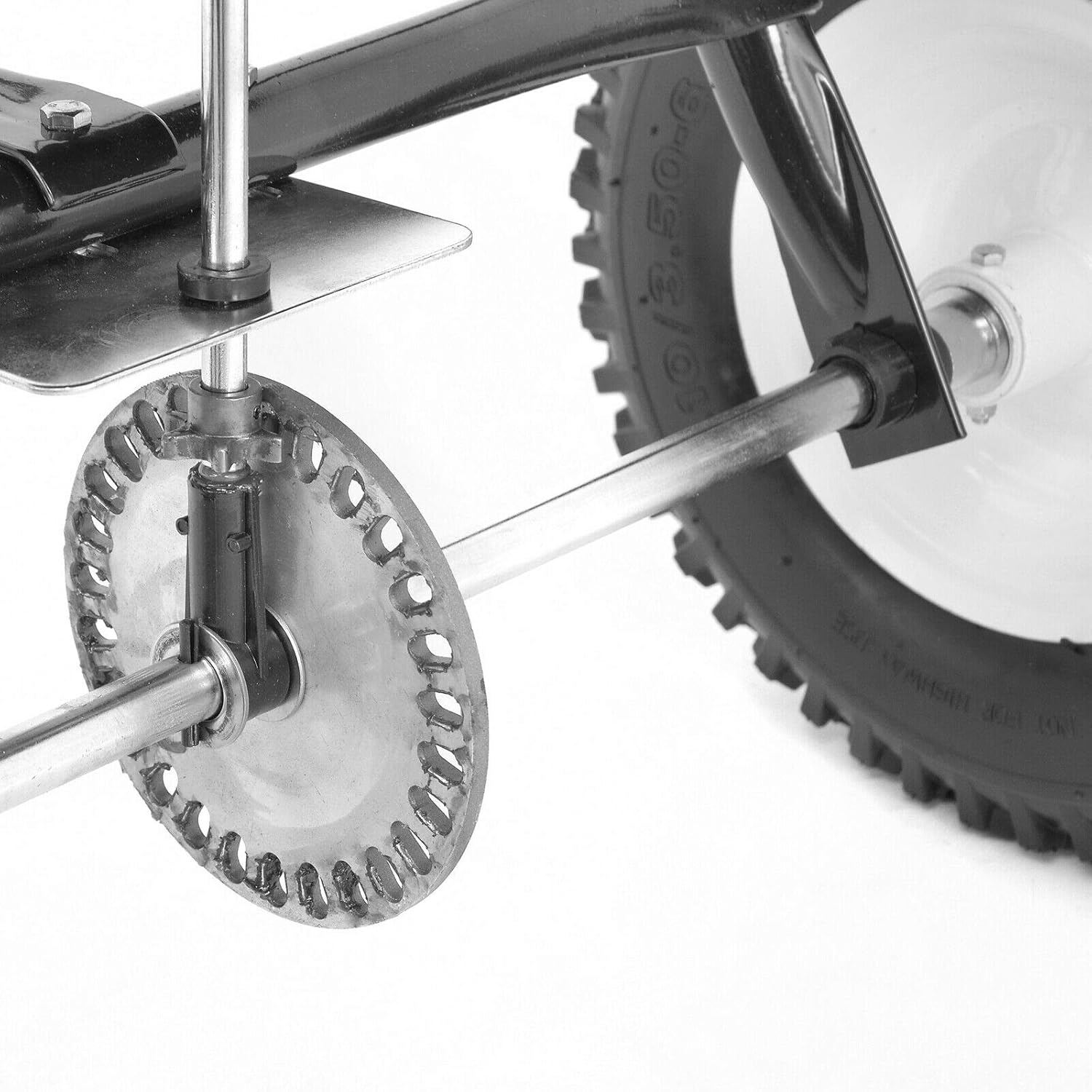

આકૃતિ 5: વિગતવાર view of the gear and spreading plate mechanism. Verify that the agitator rod is properly seated.
4. ઓપરેટિંગ સૂચનાઓ
Follow these steps for effective operation of your Hecht Jardin 256 spreader:
- સામગ્રી તૈયાર કરો: Ensure the material (fertilizer, seeds, salt, gravel) is dry and free of large clumps. Use the included sieve to break up any aggregates before filling.
- Fill Hopper: Open the hopper cover and carefully pour the material into the 60-liter hopper. Do not overfill.
- Adjust Spreading Rate: Use the control lever on the handle to set the desired spreading quantity. Refer to the markings on the lever for guidance. A lower setting will result in a finer, more controlled spread.
- ફેલાવવાનું શરૂ કરો: Start walking at a consistent pace. As you push the spreader, the wheels will turn, activating the spreading mechanism. The agitator ensures a continuous flow of material.
- Maintain Consistent Speed: A steady walking speed is crucial for uniform distribution.
- Stop Spreading: To stop the flow of material, pull the control lever to the closed position. This should be done before turning or stopping to prevent uneven application.
Figure 6: Close-up of the ergonomic handle, designed for comfortable pushing and control.
આકૃતિ 7: વિગતવાર view of the control lever for adjusting the spreading rate. The lever includes an adjustable stop for precise flow limitation.
આકૃતિ 8: View of the agitator mechanism above the spreading plate, ensuring consistent material flow and preventing clumping.
આકૃતિ 9: ટોચ view of the hopper, showing the integrated sieve designed to filter out large particles and prevent blockages.
5. જાળવણી
Regular maintenance ensures the longevity and optimal performance of your spreader.
- સફાઈ: After each use, especially with corrosive materials like salt, thoroughly clean the hopper, spreading mechanism, and wheels with water. Dry all metal parts to prevent rust.
- લુબ્રિકેશન: Periodically lubricate moving parts such as the axle and gear mechanism with a suitable lubricant to ensure smooth operation.
- સંગ્રહ: Store the spreader in a dry, covered area to protect it from weather elements.
- નિરીક્ષણ: Regularly inspect all bolts, nuts, and connections for tightness. Tighten any loose fasteners. Check tires for proper inflation and wear.
6. મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| Material not spreading |
|
|
| અસમાન ફેલાવો |
|
|
| વ્હીલ્સ સરળતાથી વળતા નથી |
|
|
7. સ્પષ્ટીકરણો
- મોડલ: Hecht 256
- Hopper Volume: 60 લિટર
- વસ્તુનું વજન: 17.3 કિગ્રા
- મહત્તમ લોડ ક્ષમતા: Approximately 60 kg (based on 60L volume and typical material density)
- ટાયર વ્યાસ: 360 મીમી
- ટાયર પહોળાઈ: 130 મીમી
- ઉત્પાદક: હેક્ટ
8. આધાર અને વોરંટી
For technical assistance, spare parts, or warranty inquiries, please contact your local Hecht service center or the retailer where the product was purchased.
નોંધ: Information regarding specific spare parts availability may vary by region. Please refer to your purchase documentation for warranty terms and conditions.
