1. પરિચય
Welcome to the instruction manual for your Gigaset E560A DECT Cordless Phone. This phone is specifically designed to offer ease of use and enhanced safety features, making it ideal for seniors. It combines a user-friendly interface with robust functionality, including an integrated answering machine, a clear color display, hands-free operation, and large, easy-to-press buttons. The dedicated SOS emergency call button provides an additional layer of security.
Please read this manual carefully to ensure proper setup, operation, and maintenance of your device. Keep it for future reference.

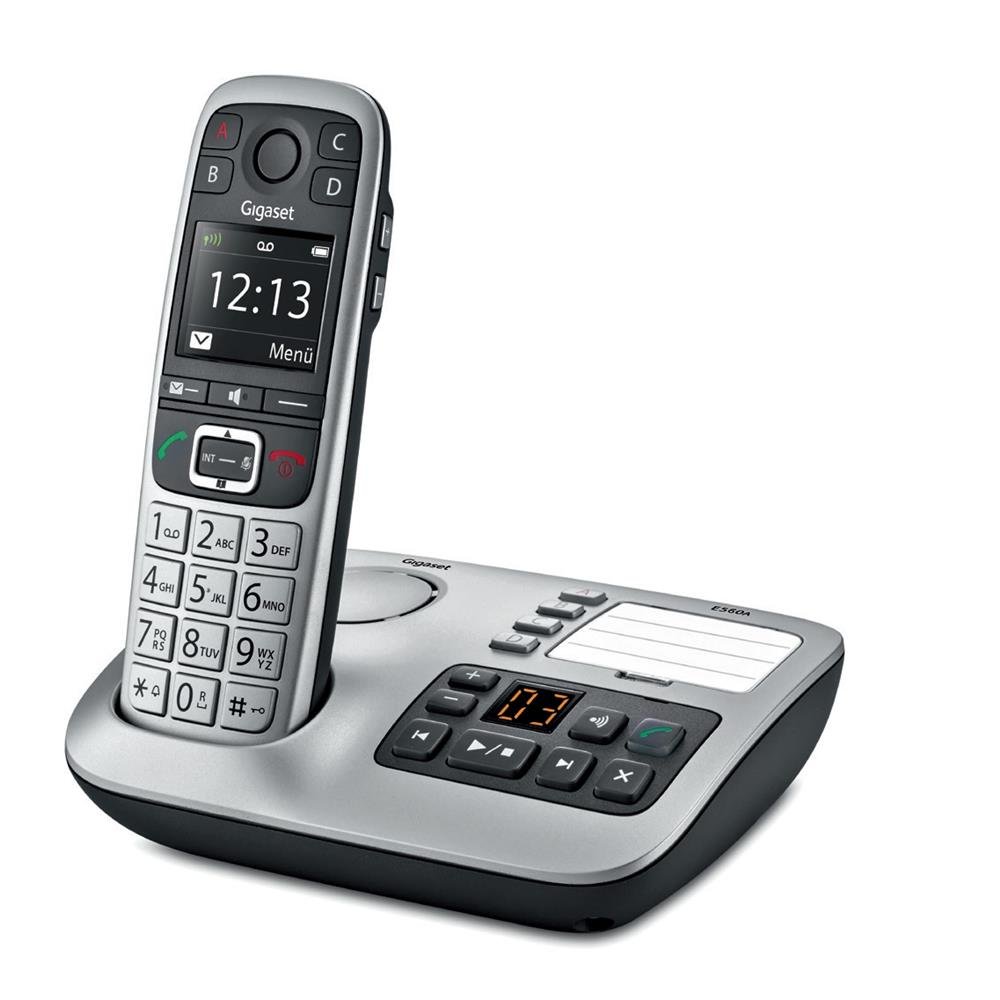

Image 1.1: The Gigaset E560A DECT Cordless Phone handset docked in its base station. The handset features a color display and large, clearly labeled buttons. The base station includes an integrated answering machine with control buttons.
2. સલામતી માહિતી
- Use only the power adapter and batteries supplied with the device.
- Do not expose the phone to extreme temperatures, direct sunlight, or high humidity.
- Avoid dropping the handset or base station.
- Keep the device away from medical equipment, as it may cause interference.
- ઉપકરણ ખોલશો નહીં casing. Repairs should only be performed by authorized service personnel.
- સ્થાનિક નિયમો અનુસાર બેટરીનો જવાબદારીપૂર્વક નિકાલ કરો.
3. પેકેજ સામગ્રી
કૃપા કરીને તપાસો કે તમારા પેકેજમાં બધી વસ્તુઓ હાજર છે:
- 1 Gigaset E560A Handset
- 1 Base Station with Integrated Answering Machine
- 1 Power Adapter for the Base Station
- 1 Telephone Connection Cable
- 2 AAA (NiMH) Rechargeable Batteries
- ૧ વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)
If any items are missing or damaged, please contact your retailer or Gigaset customer support.
4. સેટઅપ
૩.૨ બેઝ સ્ટેશનને જોડવું
- Connect the telephone connection cable to the socket marked with a telephone symbol on the base station and to your telephone wall outlet.
- Connect the power adapter to the socket marked with a power symbol on the base station and plug it into a mains power outlet.
- Ensure the base station is placed on a flat, stable surface, away from other electronic devices that might cause interference.
4.2 Inserting Batteries into the Handset
- હેન્ડસેટના પાછળના ભાગમાં બેટરી કમ્પાર્ટમેન્ટ કવર ખોલો.
- યોગ્ય ધ્રુવીયતા (+/-) અવલોકન કરીને, બે AAA NiMH રિચાર્જેબલ બેટરી દાખલ કરો.
- બેટરી કમ્પાર્ટમેન્ટ કવર બંધ કરો.
- Place the handset in the base station to charge. The display will indicate charging. Allow the batteries to charge for at least 6 hours before initial use.
4.3 Initial Setup and Registration
The handset is pre-registered to the base station at the factory. If registration is lost or you are adding a new handset, follow these steps:
- On the base station, press and hold the registration/paging button for approximately 3 seconds. The base station will enter registration mode.
- On the handset, navigate to the 'Settings' menu, then 'Registration', and select 'Register Handset'.
- Enter the system PIN (default is 0000) when prompted.
- The handset will display a confirmation message once successfully registered.
5. ઓપરેટિંગ સૂચનાઓ
૪.૧ મૂળભૂત કોલ કાર્યો
- કૉલ કરવો: Enter the phone number using the keypad and press the green call button (→).
- કૉલનો જવાબ આપવો: When the phone rings, press the green call button (→).
- કૉલ સમાપ્ત: Press the red end call button (→).
- વોલ્યુમ એડજસ્ટ કરી રહ્યું છે: During a call, use the navigation keys to adjust the earpiece volume. Press the 'Extra Volume' button for an additional boost.
- હેન્ડ્સ-ફ્રી કૉલિંગ: During a call, press the hands-free button (speaker icon) to activate the speakerphone.
5.2 SOS Emergency Call Function
The Gigaset E560A features a dedicated SOS button (Key A) for emergency situations. You can program up to four emergency numbers.
- પ્રોગ્રામિંગ SOS નંબર્સ: Navigate to 'Settings' > 'SOS Function' > 'SOS Numbers'. Enter up to four contact numbers.
- Initiating an SOS Call: In an emergency, press and hold the 'A' button on the handset. The phone will sequentially dial the programmed SOS numbers until one is answered.
Note: SOS functionality may have regional limitations; refer to the Gigaset website for specific details regarding your region.
૨.૨ જવાબ આપતી મશીન
The base station has an integrated answering machine with up to 25 minutes of recording time.
- સક્રિય/નિષ્ક્રિય: દબાવો ચાલુ/બંધ button on the base station.
- સંદેશાઓ વગાડી રહ્યા છે: દબાવો રમો button on the base station.
- જાહેરાત રેકોર્ડ કરવી: Access the answering machine settings via the handset menu to record a personalized greeting.
5.4 ફોનબુક
Store frequently called numbers in the phonebook for quick access.
- સંપર્ક ઉમેરવો: Go to 'Menu' > 'Phonebook' > 'New Entry'. Enter the name and number, then save.
- ફોનબુકમાંથી ડાયલ કરવું: Press the phonebook button, select the desired contact, and press the green call button.
6. જાળવણી
- સફાઈ: સોફ્ટનો ઉપયોગ કરો, ડીamp હેન્ડસેટ અને બેઝ સ્ટેશન સાફ કરવા માટે કાપડનો ઉપયોગ કરો. ઘર્ષક ક્લીનર્સ અથવા સોલવન્ટનો ઉપયોગ કરશો નહીં.
- બેટરી સંભાળ: For optimal battery life, fully discharge and recharge the batteries periodically. Replace batteries when their performance significantly decreases. Use only recommended NiMH rechargeable batteries.
- સંગ્રહ: If storing the phone for an extended period, remove the batteries from the handset.
7. મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| કોઈ ડાયલ ટોન નથી | Telephone cable not connected or faulty. | Check the telephone cable connection to the base station and wall outlet. Try a different cable if available. |
| હેન્ડસેટ ચાર્જ થઈ રહ્યો નથી | Handset not correctly placed in base station; dirty charging contacts; faulty batteries. | Ensure handset is properly seated. Clean charging contacts on handset and base with a dry cloth. Replace batteries if old. |
| નબળી અવાજ ગુણવત્તા | Handset too far from base station; interference from other devices. | Move closer to the base station. Relocate the base station away from other electronics (e.g., Wi-Fi routers, microwaves). |
| SOS button not working | SOS numbers not programmed; regional restrictions. | Verify that SOS numbers are correctly programmed in the settings. Check Gigaset website for regional compatibility. |
If the problem persists after attempting these solutions, please contact Gigaset customer support.
8. સ્પષ્ટીકરણો
- બ્રાન્ડ: ગીગાસેટ
- મોડલ: E560A
- ઉત્પાદન પ્રકાર: DECT Cordless Phone with Answering Machine
- રંગ: પ્લેટિનમ
- સ્ક્રીનનું કદ: 1.8 ઇંચ
- કનેક્ટિવિટી: કોર્ડલેસ (DECT)
- ખાસ લક્ષણો: Hands-free function, Large buttons, SOS emergency call button, Suitable for seniors
- સુસંગત ઉપકરણો: Gigaset GO-Box, Gigaset Box100, Gigaset Box200
- બેટરીનો પ્રકાર: 2 x AAA NiMH (શામેલ)
- જવાબ આપવાની સિસ્ટમનો પ્રકાર: ડિજિટલ, 25 મિનિટ સુધીનો રેકોર્ડિંગ સમય
- આઇટમના પરિમાણો (L x W x H): 30 x 55 x 170 મિલીમીટર
- વસ્તુનું વજન: 140 ગ્રામ
- ઉત્પાદક: ગીગાસેટ
9. વોરંટી અને સપોર્ટ
9.1 વોરંટી માહિતી
Spare parts for the Gigaset E560A are available for a period of 1 year from the date of purchase. Please retain your proof of purchase for warranty claims.
9.2 ગ્રાહક સપોર્ટ
For any questions regarding your Gigaset E560A DECT Cordless Phone, technical assistance, or warranty inquiries, please contact Gigaset customer service:
- ટેલિફોન: 02871-912 912 (Standard landline rates apply)
Please have your model number (E560A) and purchase details ready when contacting support.
