KNIGHTSBRIDGE M6300F Metal Clad 13A Switched Fused Spur Unit with Flex Outlet

1. પરિચય

This manual provides essential information for the safe and effective installation, operation, and maintenance of the KNIGHTSBRIDGE M6300F Metal Clad 13A Switched Fused Spur Unit with Flex Outlet. This unit is designed to provide a switched and fused connection point for an appliance, offering protection and control.

કૃપા કરીને ઇન્સ્ટોલેશન પહેલાં આ માર્ગદર્શિકાને સારી રીતે વાંચો અને ભવિષ્યના સંદર્ભ માટે તેને જાળવી રાખો.

2. ઉત્પાદન ઓવરview

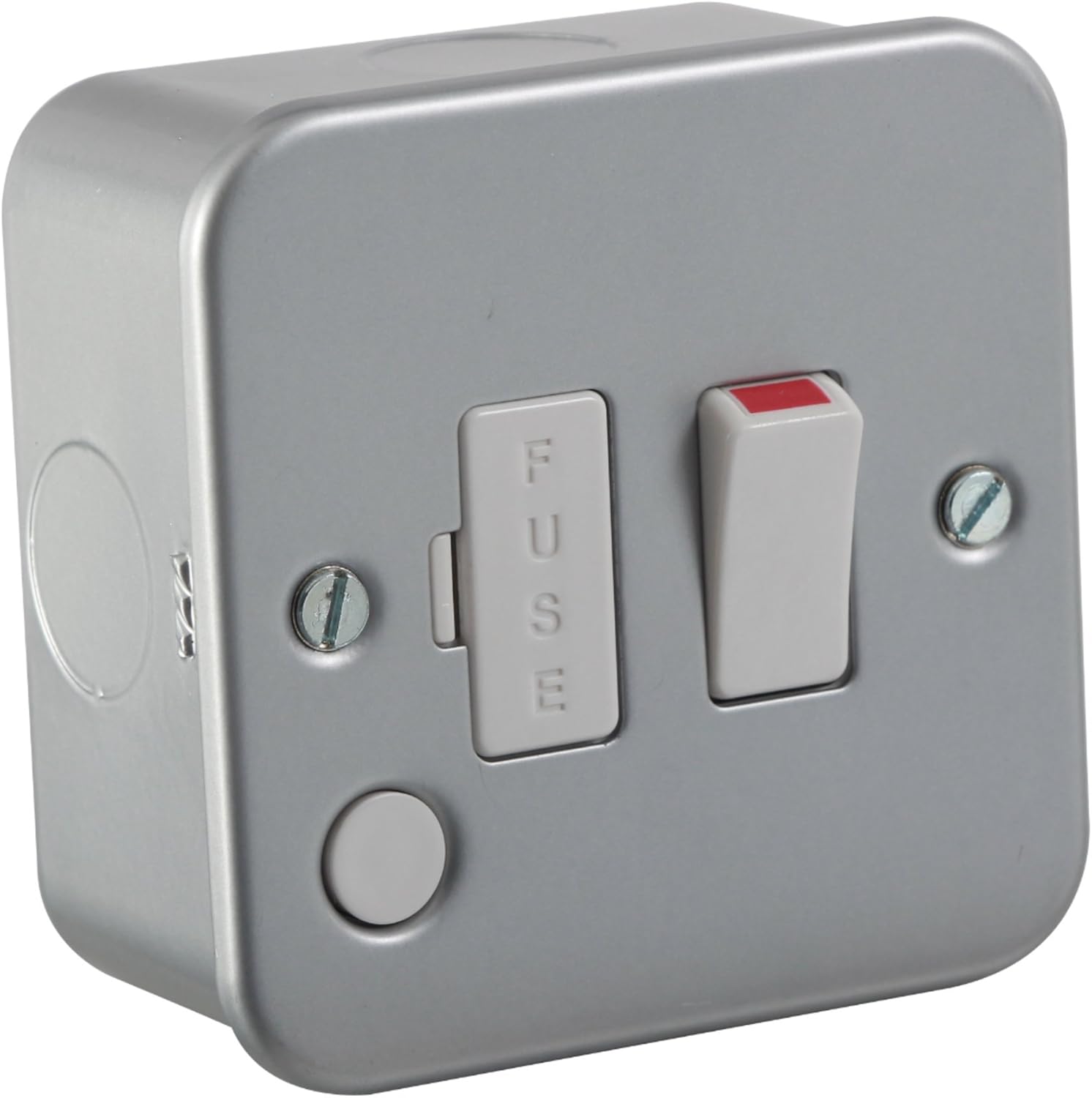

આકૃતિ 1: ફ્રન્ટ view of the KNIGHTSBRIDGE M6300F Metal Clad 13A Switched Fused Spur Unit. It features a silver metal clad enclosure with a white rocker switch, a fuse holder, and a flex outlet.

મુખ્ય લક્ષણો:

• Metal Clad construction for durability.
• 13A Switched Fused Spur with Neon indicator.
• Integrated Flex Outlet for direct connection of appliance flex.
• Supplied complete with a back box for ease of installation.
• Terminal capacity: 3 x 2.5mm² or 2 x 4mm².
• Designed for 230V AC electrical systems.

3. સ્થાપન અને સેટઅપ

WARNING: Installation must be carried out by a qualified electrician in accordance with current wiring regulations (e.g., BS 7671 in the UK) and local building codes. Incorrect installation can lead to electric shock, fire, or damage to the unit and connected appliances.

3.1 સુરક્ષા સાવચેતીઓ:

• Always isolate the mains power supply at the consumer unit/fuse board before commencing any electrical work.
• Verify that the power is off using a suitable voltage પરીક્ષક.
• Ensure the unit is suitable for the intended application and electrical load.
• મહત્તમ વર્તમાન રેટિંગ 13 થી વધુ ન કરો Amps.

3.2 સ્થાપન પગલાં:

1. તૈયારી: Ensure the mounting surface is flat and free from obstructions. The unit is designed for wall mounting.
2. Mounting the Back Box: Secure the supplied back box to the wall using appropriate fixings. Ensure it is level and securely fastened.
3. વાયરિંગ કનેક્શન્સ:
   • Connect the incoming live (brown/red) conductor to the terminal marked 'L IN'.
   • Connect the incoming neutral (blue/black) conductor to the terminal marked 'N IN'.
   • Connect the incoming earth (green/yellow) conductor to the earth terminal.
   • Connect the outgoing live (brown/red) conductor to the terminal marked 'L OUT'.
   • Connect the outgoing neutral (blue/black) conductor to the terminal marked 'N OUT'.
   • Connect the outgoing earth (green/yellow) conductor to the earth terminal.
   • Ensure all connections are tight and secure. The terminal type is screw.
   • The unit has a terminal capacity of 3 x 2.5mm² or 2 x 4mm².
4. Flex Outlet Connection: Route the appliance flex through the flex outlet and connect its conductors to the appropriate terminals within the unit.
5. યુનિટ સુરક્ષિત કરવું: Carefully position the front plate onto the back box, ensuring no wires are trapped. Secure the front plate using the provided screws.
6. ફ્યુઝ ઇન્સ્ટોલેશન: Insert a 13A fuse (not supplied unless specified) into the fuse holder.
7. પરીક્ષણ: Restore power at the consumer unit/fuse board. Test the unit's functionality by switching it ON and OFF. The neon indicator should illuminate when the switch is in the ON position.

4. ઓપરેશન

The KNIGHTSBRIDGE M6300F is a simple ON-OFF switched fused spur unit. Its operation is straightforward:

• ચાલુ કરી રહ્યું છે: Press the rocker switch to the 'ON' position. The integrated neon indicator will illuminate, signifying that power is being supplied through the unit to the connected appliance.
• બંધ કરી રહ્યું છે: Press the rocker switch to the 'OFF' position. The neon indicator will extinguish, cutting off the power supply to the connected appliance.
• ફ્યુઝ પ્રોટેક્શન: The integrated fuse provides overcurrent protection for the connected appliance. If an overload or short circuit occurs, the fuse will blow, interrupting the circuit and protecting the appliance and wiring.

5. જાળવણી

The KNIGHTSBRIDGE M6300F requires minimal maintenance. Regular checks can help ensure its continued safe operation:

• સફાઈ: To clean the unit, first ensure the power is switched OFF at the consumer unit/fuse board. Wipe the surface with a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the finish or internal components.
• ફ્યુઝ રિપ્લેસમેન્ટ: If the fuse blows, switch off the unit and isolate the power supply. Carefully open the fuse holder, remove the blown fuse, and replace it with a new fuse of the correct rating (13A). Never replace a fuse with one of a higher rating or with a conductive material.
• સમયાંતરે તપાસ: Periodically check the unit for any signs of damage, such as cracks, discoloration, or loose connections. If any damage is observed, isolate the power and consult a qualified electrician for inspection and repair or replacement.

6. મુશ્કેલીનિવારણ

If you experience issues with your KNIGHTSBRIDGE M6300F unit, consider the following common troubleshooting steps:

If the problem persists after attempting these steps, or if you are unsure about any electrical work, always consult a qualified electrician.

7. ટેકનિકલ વિશિષ્ટતાઓ

Figure 2: Data sheet for Knightsbridge Metalclad Fused Spur Units, including the M6300F model, showing dimensions, ratings, and other technical details.

8. વોરંટી માહિતી

The KNIGHTSBRIDGE M6300F Metal Clad 13A Switched Fused Spur Unit is covered by a 1 વર્ષની વોરંટી ખરીદીની તારીખથી. આ વોરંટી સામાન્ય ઉપયોગ હેઠળ સામગ્રી અને કારીગરીમાં ખામીઓને આવરી લે છે.

The warranty does not cover damage resulting from improper installation, misuse, abuse, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.

9. ગ્રાહક આધાર

For technical assistance, troubleshooting beyond the scope of this manual, or warranty inquiries, please contact your retailer or the manufacturer, Knightsbridge.

Please have your product model number (M6300F) and proof of purchase ready when contacting support.

For more information, you may visit the official Knightsbridge website or refer to the product packaging for contact details.
