પરિચય
This user manual provides comprehensive instructions for the operation, setup, maintenance, and troubleshooting of your PeakTech P 9020 Digital DVB Measurement Device. Please read this manual carefully before using the device to ensure proper functionality and safety.
The PeakTech P 9020 is a versatile digital DVB measurement device designed for signal searches in cable, satellite, and terrestrial television systems. It features a TFT color display, a graphical user interface for easy navigation, and supports various DVB standards including DVB-C, DVB-S, S2, DVB-T, and T2 with H.265 codec support.
પેકેજ સામગ્રી
અનપેક કરતી વખતે, કૃપા કરીને ચકાસો કે નીચે સૂચિબદ્ધ બધી વસ્તુઓ હાજર છે અને સારી સ્થિતિમાં છે:
- PeakTech P 9020 Digital DVB Measurement Device
- Metal Carrying Case
- એસી પાવર એડેપ્ટર
- Integrated Lithium-Ion Battery (pre-installed)
- 12V કાર એડેપ્ટર
- Windows Software CD/Download Link (if applicable)
- રીમોટ કંટ્રોલ
- વિડિઓ કેબલ
- શોલ્ડર સ્ટ્રેપ
Figure 1: PeakTech P 9020 device shown with its complete set of accessories, including the carrying case, power adapters, remote control, and cables.
ઉપકરણ ઓવરview
The PeakTech P 9020 features a robust design with a clear TFT color display and intuitive controls. Familiarize yourself with the main components:
આકૃતિ 2: ફ્રન્ટ view of the PeakTech P 9020, highlighting the TFT color display, control buttons, and input ports.
મુખ્ય ઘટકો:
- TFT કલર ડિસ્પ્લે: 12.5 cm (approx. 5 inches) screen for live TV, audio, and menu navigation.
- નિયંત્રણ પેનલ: Buttons for menu navigation, function selection (F1, F2), signal search (FIND), exit (EXIT), and OK.
- ઇનપુટ બંદરો: Connectors for DVB-S/S2, DVB-C, DVB-T/T2 signals.
- HDMI આઉટપુટ: બાહ્ય ડિસ્પ્લે સાથે કનેક્ટ કરવા માટે.
- યુએસબી પોર્ટ: For software updates and data transfer.
- પાવર ઇનપુટ: For AC adapter or 12V car adapter.
સેટઅપ
1. બેટરી ચાર્જ કરવી:
Before first use, fully charge the integrated lithium-ion battery. Connect the AC power adapter to the device's power input and plug it into a wall outlet. The charging indicator will illuminate. A full charge typically takes several hours.
2. પ્રારંભિક પાવર ચાલુ:
Press and hold the power button (usually red) on the device until the screen illuminates. The device will boot up and display the main menu.
3. Language and Region Settings:
Navigate to the "Settings" menu using the directional buttons and OK button. Select "Language" to choose your preferred language. Then, configure region-specific settings for DVB-T/T2 or DVB-C if prompted.
ઓપરેટિંગ સૂચનાઓ
1. Selecting DVB Mode:
From the main menu, select the desired DVB mode (DVB-S/S2 for satellite, DVB-C for cable, or DVB-T/T2 for terrestrial) using the navigation buttons. Press OK to confirm.

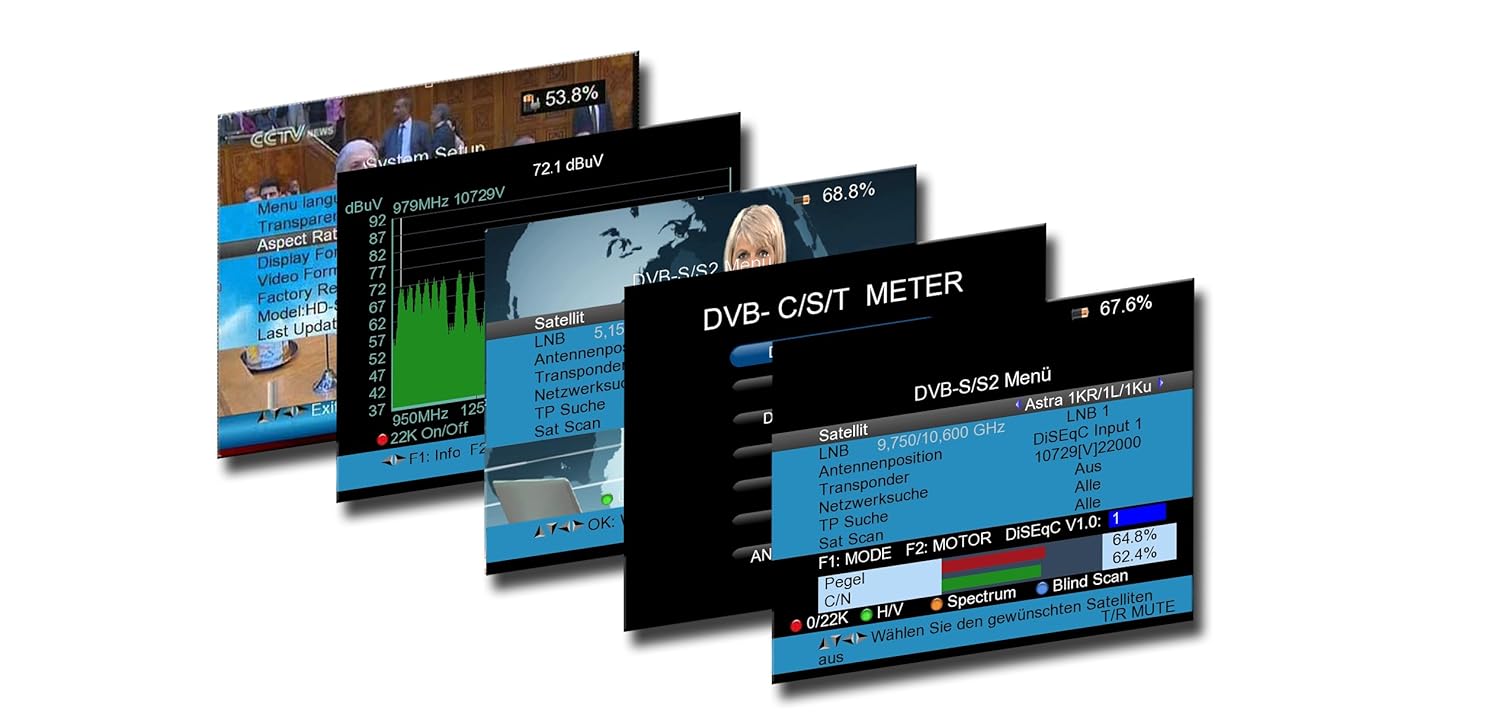

આકૃતિ 3: ઉદાamples of the graphical user interface on the PeakTech P 9020, displaying menu options and signal measurement data.
2. Signal Search (DVB-S/S2):
- Connect the satellite dish LNB cable to the device's satellite input.
- In the DVB-S/S2 menu, configure LNB settings (e.g., LNB type, frequency).
- Select a satellite from the predefined list or manually enter transponder details.
- Press the "FIND" button to initiate a signal search. The device will display signal strength and quality. Adjust the dish alignment until optimal signal levels are achieved.
- Use the spectrum analyzer function to visualize signal characteristics.
3. Signal Search (DVB-T/T2 and DVB-C):
- Connect the terrestrial antenna or cable TV line to the appropriate input.
- In the DVB-T/T2 or DVB-C menu, select the desired channel or frequency range.
- Press "FIND" to scan for available signals. The device will display signal strength, quality, and identify channels.
4. Live TV and Audio:
Once a signal is locked, the device can display live TV channels and play audio directly on its screen, allowing for real-time verification of signal quality and content.
5. રીમોટ કંટ્રોલનો ઉપયોગ કરીને:
The included remote control provides convenient access to most functions, including menu navigation, volume control, and channel selection. Ensure the remote's batteries are installed correctly.
જાળવણી
સફાઈ:
Wipe the device with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used. Do not use abrasive cleaners or solvents. Keep the screen clean to ensure clear visibility.
બેટરી સંભાળ:
To prolong battery life, avoid fully discharging the lithium-ion battery frequently. Store the device in a cool, dry place when not in use for extended periods. Recharge the battery periodically if stored for a long time.
સૉફ્ટવેર અપડેટ્સ:
Periodically check the PeakTech website for firmware updates. Updates can improve performance, add new features, or fix bugs. Use the provided Windows software and USB cable to perform updates as per the instructions on the PeakTech webસાઇટ
મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| ઉપકરણ પાવર ચાલુ કરતું નથી. | Battery is discharged or power adapter is not connected. | Charge the battery using the AC adapter. Ensure the power button is pressed firmly. |
| કોઈ સિગ્નલ મળ્યું નથી. | Incorrect DVB mode selected, cable not connected properly, or antenna/dish misalignment. | Verify DVB mode. Check all cable connections. Adjust antenna/dish alignment. Check LNB settings for satellite. |
| Poor signal quality. | Weak signal, interference, or incorrect settings. | Fine-tune antenna/dish position. Check for obstructions. Ensure correct transponder/channel settings. |
| રીમોટ કંટ્રોલ કામ કરતું નથી. | Dead batteries or line of sight obstruction. | Replace remote control batteries. Ensure no objects are blocking the infrared signal path. |
વિશિષ્ટતાઓ
- મોડલ: પૃષ્ઠ 9020
- પ્રદર્શન: ૬.૧ સેમી (૨.૪ ઇંચ) TFT કલર ડિસ્પ્લે
- Supported DVB Standards: DVB-S/S2, DVB-C, DVB-T/T2
- વિડિઓ ડીકોડિંગ: H.265 (HEVC) compatible
- પ્રોસેસર: 450 MHz
- એસડીઆરએએમ: 256 MByte
- ડિમોડ્યુલેશન: 16QAM - 256 QAM, QPSK / 8PSK
- કનેક્ટિવિટી: HDMI, USB
- બેટરી: Integrated Lithium-Ion Battery
- પાવર ઇનપુટ: AC Adapter, 12V Car Adapter
- પરિમાણો: ૧૦ x ૧૦ x ૧૦ સેમી (આશરે ૩.૯૪ x ૩.૯૪ x ૩.૯૪ ઇંચ)
- વજન: ૭૯૮.૩૨ ગ્રામ (આશરે ૧.૭૬ પાઉન્ડ)
વોરંટી અને આધાર
PeakTech products are manufactured with high quality standards. For information regarding warranty coverage, technical support, or service, please refer to the official PeakTech webસાઇટ પર જાઓ અથવા તેમની ગ્રાહક સેવાનો સીધો સંપર્ક કરો. વોરંટી દાવાઓ માટે ખરીદીના પુરાવા તરીકે તમારી ખરીદી રસીદ રાખો.
સત્તાવાર Webસાઇટ: www.peaktech.de
For further assistance, please contact your local distributor or the PeakTech support team.
