Bittium Tough Mobile User Manual

1. પરિચય

The Bittium Tough Mobile is a high-security, robust 4G/LTE smartphone designed for demanding professional use. It integrates advanced security features with the Android operating system, making it suitable for government agencies, public safety, and other professionals requiring secure and reliable communication.

This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your Bittium Tough Mobile device.

2. બોક્સમાં શું છે

Upon unboxing your Bittium Tough Mobile, verify that all components are present:

• 1 x Bittium Tough Mobile Smartphone
• 1 x બેટરી
• 1 x Battery Door Cover
• 1 x Wired Stereo Head Set
• 1 x PC Connecting Cable
• 2 x Mains / Wall / Travel Chargers
• 1 x Documentation (User Manual, Quick Start Guide)
• 1 x Interior Retail Packing
• 1 x Retail Box with IMEI Numbers

આકૃતિ 2.1: Contents of the Bittium Tough Mobile retail box, including the phone, battery, chargers, cables, headset, and documentation.

3. ઉત્પાદન ઓવરview

3.1 Front and Back Views

આકૃતિ 3.1: આગળ view of the Bittium Tough Mobile smartphone, showing the display with Google services and standard Android icons.

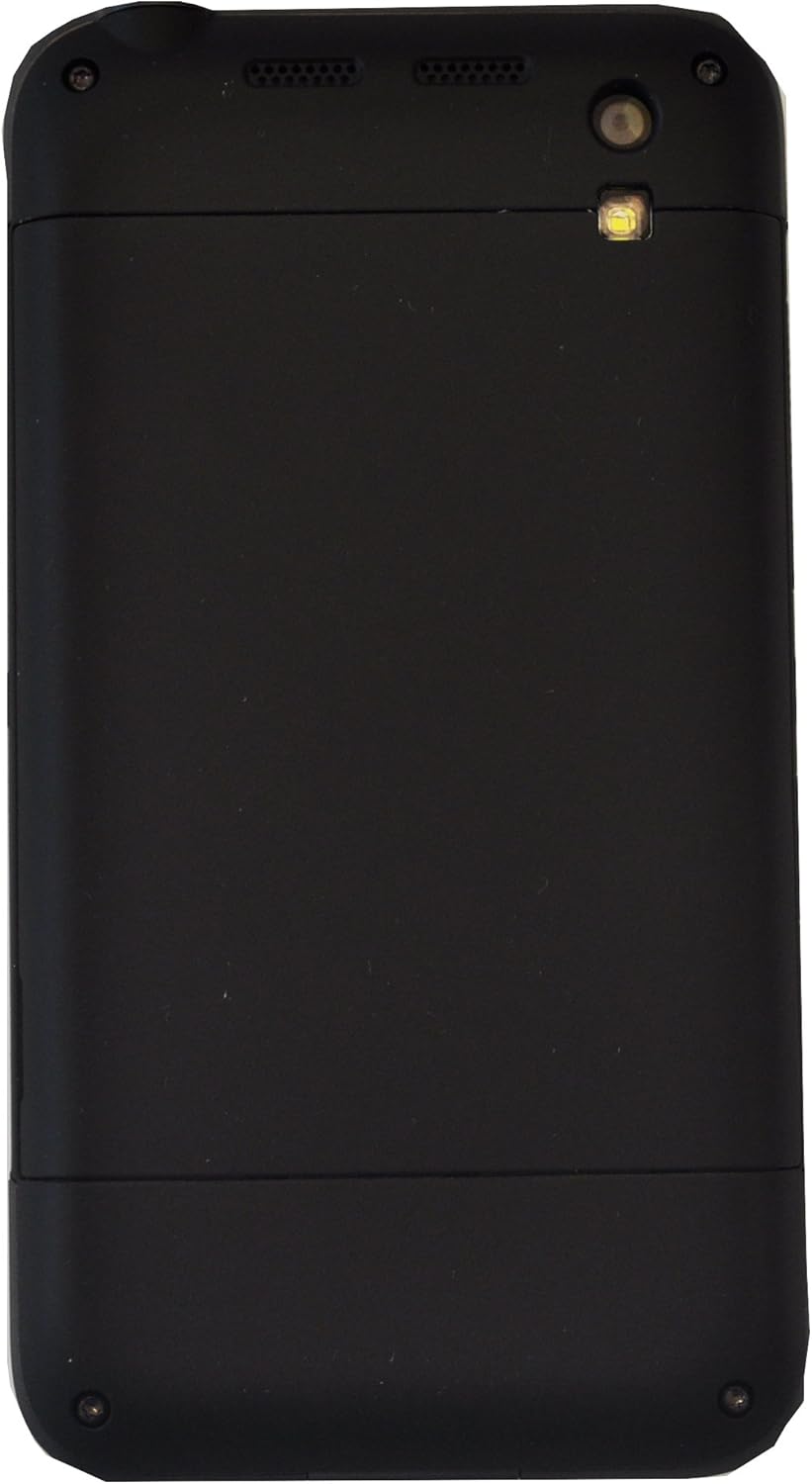

આકૃતિ 3.2: પાછળ view of the Bittium Tough Mobile smartphone, featuring a plain black design with the camera lens and LED flash visible at the top.

3.2 Device Components and Ports

આકૃતિ 3.3: બાજુ view of the Bittium Tough Mobile, highlighting key components such as the earpiece, front camera, speakers, rear camera, LED flash, volume keys, and a programmable button.

આકૃતિ 3.4: ઉપર અને નીચે views of the Bittium Tough Mobile, indicating the locations of microphones, the USB3 connector, charging pins, the power key, and the headset connector.

4. સેટઅપ

૩.૧ સિમ કાર્ડ અને બેટરી દાખલ કરવી

1. Carefully remove the battery door cover from the back of the device.
2. Insert your Micro-SIM card(s) into the designated slot(s). Ensure the SIM card is oriented correctly as indicated on the device. The Bittium Tough Mobile supports Dual-SIM functionality.
3. સોનાના સંપર્કોને સંરેખિત કરીને, તેના ડબ્બામાં બેટરી દાખલ કરો.
4. Replace the battery door cover, ensuring it clicks securely into place.

૨.૪ પ્રારંભિક પાવર ઓન અને સેટઅપ વિઝાર્ડ

1. Press and hold the Power Key (refer to Figure 3.4) until the Bittium logo appears on the screen.
2. Follow the on-screen instructions to complete the initial setup wizard. This includes selecting your language, connecting to a Wi-Fi network, and setting up your Google account.
3. For optimal security, ensure you set up a strong screen lock (PIN, pattern, or password) during this process.

5. તમારા ઉપકરણનું સંચાલન

૪.૨ નેટવર્ક સુસંગતતા

The Bittium Tough Mobile is a factory unlocked GSM-only device. It is compatible with the following network frequencies:

• 2G GSM: 850 / 900 / 1800 / 1900 MHz
• 3G: 850(B5) / 900(B8) / 1700(B4) / 1900(B2) / 2100(B1) MHz
• 4G LTE: 700(B13) / 700(B14) / 700(B17) / 800(B20) / 850(B5) / 1700(B4) / 1800(B3) / 1900(B2) / 2600(B7) MHz

Important: This phone WILL NOT WORK with any CDMA Networks such as VERIZON, SPRINT, US CELLULAR. Please verify compatibility with your network provider before use.

5.2 મૂળભૂત કાર્યો

• પાવર ચાલુ/બંધ: Press and hold the Power Key. Select "Power off" from the options.
• વોલ્યુમ નિયંત્રણ: Use the Volume Keys (refer to Figure 3.3) to adjust media, call, and alarm volumes.
• સ્ક્રીન લોક/અનલોક: Briefly press the Power Key to turn the screen on or off. Swipe up or enter your security credentials to unlock.
• કૉલ્સ કરવા: Open the Phone app, dial the number, and press the call icon.
• સંદેશા મોકલી રહ્યાં છે: Open the Messages app, start a new conversation, enter recipient and message, then send.
• Wi-Fi થી કનેક્ટ થઈ રહ્યું છે: Go to Settings > Network & internet > Wi-Fi. Select your desired network and enter the password if required.
• બ્લૂટૂથ જોડી: Go to Settings > Connected devices > Bluetooth. Turn on Bluetooth and select the device you wish to pair with.

6. જાળવણી

૪.૧ તમારા ઉપકરણને સાફ કરવું

To clean your Bittium Tough Mobile, use a soft, lint-free cloth. For stubborn marks, slightly dampen the cloth with water. Avoid using harsh chemicals, abrasive cleaners, or aerosol sprays, as these can damage the device's finish and internal components.

The device has an IP67 rating, meaning it is dust tight and can withstand immersion in 1 meter of water for up to 30 minutes. However, it is not recommended for intentional submersion or use in extreme water conditions. Ensure all ports are dry before charging.

6.2 બેટરી કેર

• Use only the original Bittium charger and battery provided with your device.
• Avoid exposing the battery to extreme temperatures (hot or cold).
• બેટરીને પંચર, ડિસએસેમ્બલ અથવા શોર્ટ-સર્કિટ કરશો નહીં.
• If the battery appears damaged or swollen, discontinue use immediately and dispose of it properly according to local regulations.

6.3 સોફ્ટવેર અપડેટ્સ

Regularly check for and install software updates to ensure your device has the latest security patches and features. Go to Settings > System > System update to check for available updates.

7. મુશ્કેલીનિવારણ

If you encounter issues not listed here or if the suggested solutions do not resolve your problem, please contact Bittium customer support.

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

For warranty information, please refer to the documentation included in your product packaging or visit the official Bittium website. Bittium provides support for its products to ensure optimal performance and user satisfaction.

If you require technical assistance, have questions about your device, or need to report an issue, please contact Bittium customer support through their official channels. Details for support can typically be found on the Bittium webસાઇટ અથવા સમાવિષ્ટ દસ્તાવેજોમાં.
