TOPENS A8 ઓટોમેટિક ગેટ ઓપનર યુઝર મેન્યુઅલ

1. પરિચય

The TOPENS A8 automatic gate opener is engineered for heavy-duty single swing gates, capable of handling gates up to 880 lbs in weight or 18 ft in length. This system is designed to provide reliable and convenient gate automation, enhancing security and ease of access for various applications including residential properties, courtyards, and farms. Its robust 24VDC 80W motor ensures smooth and quiet operation.

2. સલામતી માહિતી

Always prioritize safety during installation, operation, and maintenance of the gate opener. Failure to follow safety instructions can result in serious injury or property damage.

• ખાતરી કરો કે બધા વિદ્યુત જોડાણો લાયક વ્યાવસાયિક દ્વારા કરવામાં આવે છે અને સ્થાનિક વિદ્યુત કોડનું પાલન કરે છે.
• બાળકો અને પાલતુ પ્રાણીઓને ગેટ વિસ્તારથી દૂર રાખો, ખાસ કરીને ઓપરેશન દરમિયાન.
• Do not attempt to operate the gate if any part of the system is damaged or malfunctioning.
• The system includes a stop-and-reverse function for obstacle detection. Regularly test this feature to ensure it is working correctly.
• Utilize the manual release key in case of power outage or system malfunction to operate the gate manually.
• The remote controls use advanced TOPENS code technology to prevent unauthorized access. Keep remotes secure.

3. ઉત્પાદન ઓવરview અને ઘટકો

The TOPENS A8 automatic gate opener kit includes all necessary components for a standard installation.

This image displays the complete TOPENS A8 automatic gate opener kit, including the linear actuator arm, control box, power adapter, two remote controls, and various mounting brackets and hardware.

સમાવાયેલ ઘટકો:

• 1 x Linear Actuator Arm (A8)
• 1 x નિયંત્રણ બોક્સ
• 2 x M12 રિમોટ કંટ્રોલ્સ
• 1 x Full Set of Required Installation Hardware (mounting brackets, bolts, etc.)
• ૧ x મેન્યુઅલ રીલીઝ કી

4. સ્પષ્ટીકરણો

A comparison table outlining the performance, gate capabilities, motor voltage, recommended power supply, battery usage, solar compatibility, included remote controls, compatible accessories, and arm dimensions for TOPENS models A8, A8S, and A8131.

5. સેટઅપ અને ઇન્સ્ટોલેશન

The TOPENS A8 gate opener is designed for straightforward installation, requiring only basic tools. Detailed step-by-step guidance is available in the comprehensive user manual (PDF) provided with the product.

ઇન્સ્ટોલેશન લવચીકતા:

The A8 is compatible with various single swing gate types and supports both pull-to-open (gate swings inward) and push-to-open (gate swings outward) configurations, depending on your specific requirements and gate setup.

This image displays a collage of different gate types, illustrating the versatility of the TOPENS A8 gate opener across various installations.

પાવર સપ્લાય વિકલ્પો:

The A8 system offers flexible power options for energy conservation and adaptability:

• એસી વીજળી: Can be powered directly by AC electricity using the DPS180-U AC-DC Power Supply (not included).
• બેટરી પાવર: Operates with two 12V 12Ah automotive/marine type batteries (not included).
• સૌર શક્તિ: Compatible with solar panels (e.g., 20W solar panel, not included) and a solar charge controller (not included) for off-grid applications.
• વર્ણસંકર: Combinations of AC, battery, and solar power are possible with appropriate adapters (e.g., TS24-U adapter, UPS01 adapter, not included).

This graphic presents four different power modes for the TOPENS A8 gate opener: using an adapter and batteries, AC electricity only, solar panels and batteries, and an adapter with solar panels and batteries. Required and optional components are indicated.

Dimensions and Wiring:

Accurate measurements and proper wiring are crucial for optimal performance. Refer to the detailed diagrams for control box and actuator arm dimensions, and typical wiring configurations.

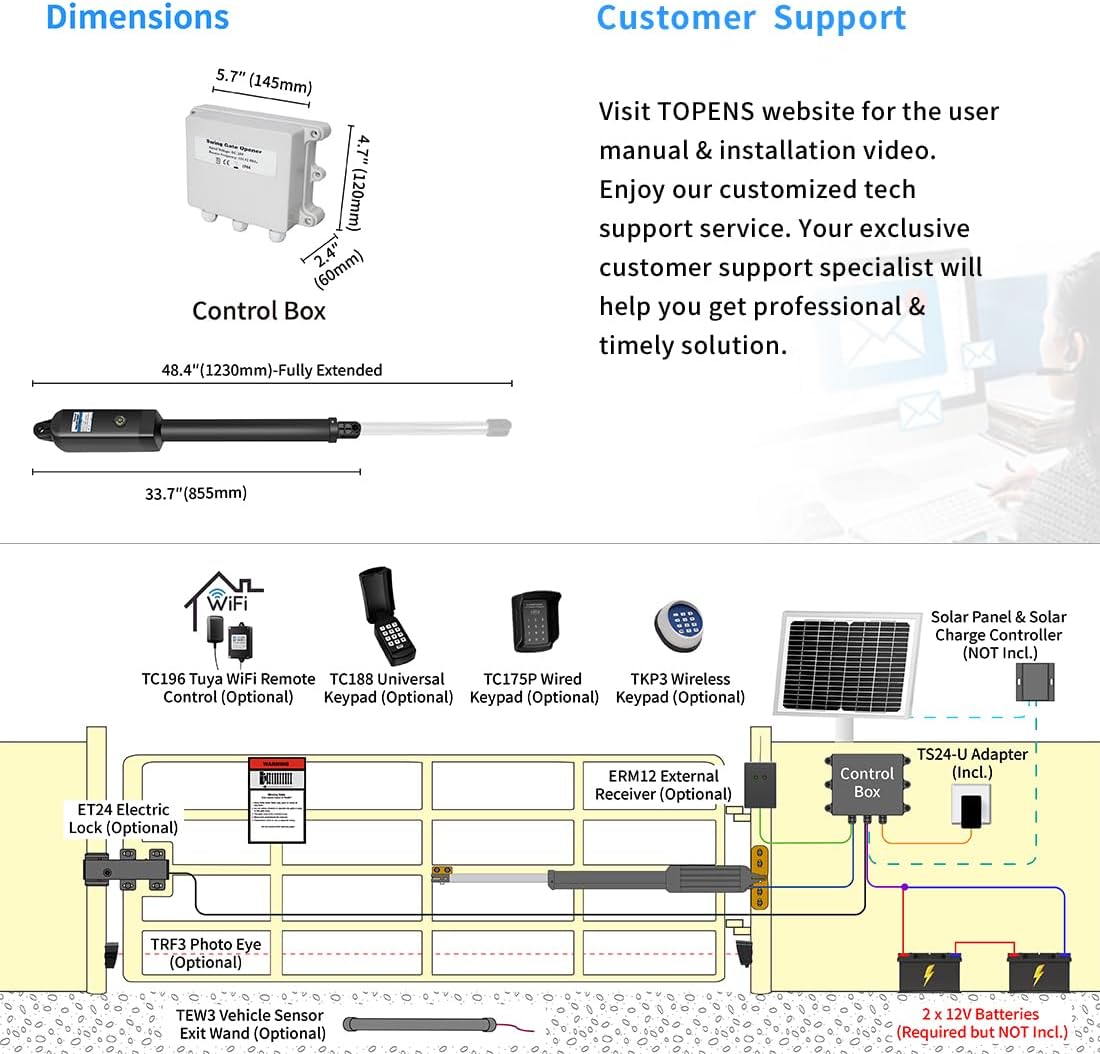

This image provides the dimensions for the TOPENS A8 control box and the fully extended actuator arm. It also includes a diagram showing a typical gate installation with optional accessories like an electric lock, photo eye, and vehicle sensor.

6. ઓપરેટિંગ સૂચનાઓ

The TOPENS A8 gate opener offers several features for convenient and secure operation.

An illustration showing a person operating a swing gate with the TOPENS A8 opener using a remote control. The gate is installed in a rural setting, demonstrating the product's application.

રીમોટ કંટ્રોલ ઓપરેશન:

The included M12 remote controls allow for convenient operation of the gate from a distance. Pressing the button will initiate the gate's opening or closing cycle. The remotes utilize advanced TOPENS code technology for secure communication.

મુખ્ય લક્ષણો:

• સોફ્ટ સ્ટાર્ટ અને સોફ્ટ સ્ટોપ: This function ensures a smooth and quiet gate movement, reducing wear and tear on the motor and extending its lifespan.
• Auto-Close Feature: For added security, the gate can be programmed to automatically close after a set period, ensuring your property remains secured after entry or exit.
• અવરોધ શોધ: The system is equipped with a stop-and-reverse function. If an obstacle is detected during the gate's operation, it will stop and reverse direction to prevent damage or injury.
• ઇલેક્ટ્રોમેગ્નેટિઝમ લિમિટ સ્વિચ: The reliable electromagnetism limit switch allows for easy adjustment of the gate's open and close positions.
• મેન્યુઅલ રિલીઝ કી: In the event of a power failure or system malfunction, the included manual release key allows you to disengage the motor and operate the gate manually.

એક કટવે view of the TOPENS A8 motor, illustrating its internal components. Surrounding icons indicate features such as a smart chip, manual release key, electromagnetism limit switch, remote controls, waterproof design, working temperature range, and quiet operation.

7. જાળવણી

Regular maintenance helps ensure the longevity and optimal performance of your TOPENS A8 gate opener.

• નિયમિત સફાઈ: Keep the actuator arm and control box free from dirt, debris, and insects. Use a soft, damp સફાઈ માટે કાપડ.
• કનેક્શન્સ તપાસો: Periodically inspect all wiring and connections for signs of wear, corrosion, or looseness. Ensure they are securely fastened.
• લુબ્રિકેશન: Consult the full user manual for specific lubrication requirements for moving parts, if any.
• પરીક્ષણ સલામતી સુવિધાઓ: Regularly test the obstacle detection and auto-reverse functions to confirm they are operating correctly.
• બેટરી તપાસ: If using battery power, check battery terminals for corrosion and ensure batteries are adequately charged.

8. મુશ્કેલીનિવારણ

If you encounter issues with your TOPENS A8 gate opener, consider the following common troubleshooting steps:

• ગેટ જવાબ આપતો નથી: Check power supply connections. Ensure remote control batteries are functional. Verify that the manual release is fully engaged (not in manual mode).
• Gate Stops or Reverses Unexpectedly: This may indicate the obstacle detection system is triggered. Inspect the gate path for any obstructions. Adjust sensitivity if necessary (refer to the full manual).
• Gate Operates Slowly or Unevenly: Check for physical obstructions or excessive friction in the gate's movement. Ensure mounting brackets are secure and aligned.
• પાવર Outage: Use the manual release key to operate the gate manually until power is restored.

For more detailed troubleshooting guides and solutions, please refer to the comprehensive user manual or contact TOPENS customer support.

9. સુસંગત એસેસરીઝ

TOPENS offers a range of compatible accessories to enhance the functionality and convenience of your A8 gate opener system.

A collage of various optional accessories compatible with TOPENS gate openers, including remote controls, keypads, vehicle sensors, solar panels, and warning lights.

ઉપલબ્ધ એસેસરીઝ:

• રીમોટ કંટ્રોલ્સ: Additional M12 remote controls for multiple users.
• કીપેડ: TC188 Universal Keypad, TC175P Wired Keypad, TKP3 Wireless Keypad for keyless entry.
• Vehicle Sensors: TEW3 Vehicle Sensor Exit Wand for automatic exit.
• Photo Eye Sensors: TRF3 Reflection Photocell Sensor, TC102 Photo Eye Beam Sensor for enhanced safety.
• Electric Locks: ET24 Electric Gate Lock for increased security.
• સોલર પેનલ્સ: TSP30W 24V 30W Solar Panel Charging Kit, TSQ20W 24V 20W Solar Panel Kit for solar power integration.
• ચેતવણી લાઇટ્સ: JD24VY Warning Light for visual indication of gate operation.
• સ્માર્ટ નિયંત્રણ: TC196 Tuya WiFi Remote Control for smartphone integration.

10. વોરંટી

All TOPENS products, including the A8 Automatic Gate Opener, are covered by a 12-month warranty against manufacturing defects. Additionally, TOPENS offers a 30-day exchange and return policy. Please retain your proof of purchase for warranty claims.

11. ગ્રાહક આધાર

TOPENS is committed to providing professional and timely customer service. For further assistance, technical support, or to access the latest user manual and installation videos, please visit the official TOPENS website. Our dedicated support team is ready to offer solutions for any questions or issues you may encounter.
