1. ઉત્પાદન ઓવરview
The Jung KNX Bus Coupler 2073 U is a system device designed for integrating KNX application modules into a KNX bus system. This component facilitates communication within the KNX network, ensuring seamless operation of connected devices. It is designed for flush-mounted installation and features a screw-fixing mechanism for secure placement.

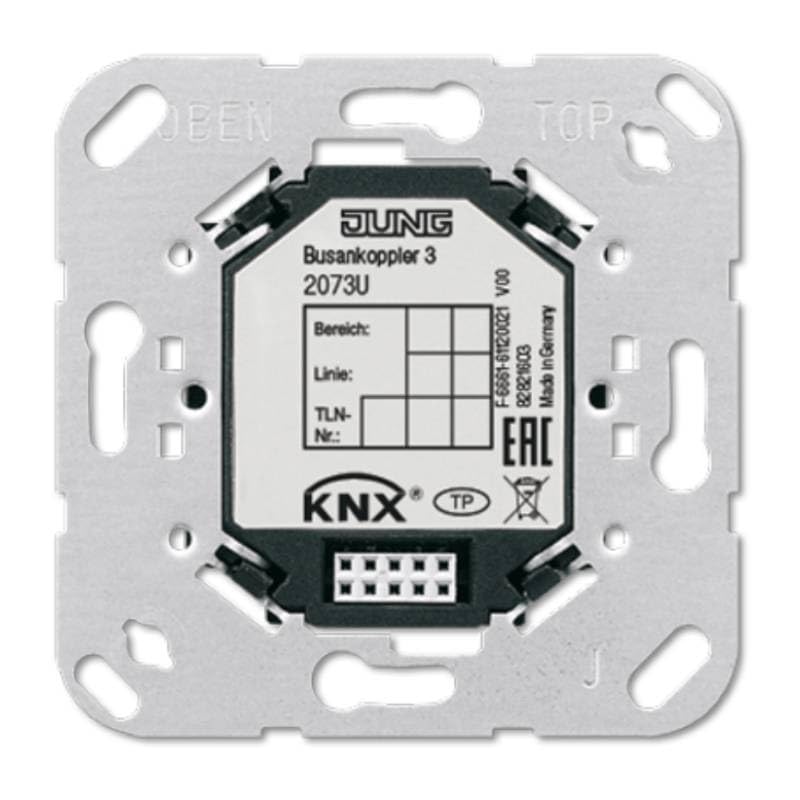

આકૃતિ 1: ફ્રન્ટ view of the Jung KNX Bus Coupler 2073 U, illustrating its compact design and connection points. The device is marked with "JUNG Busankoppler 3 2073U" and the KNX logo, indicating its compatibility with the KNX standard.
મુખ્ય લક્ષણો:
- KNX Bus System Compatibility: Fully compatible with the KNX bus system.
- Mounting Type: Designed for flush-mounted installation.
- Fixing Method: Secure 3-screw fixing for reliable installation.
- Sensor/Actuator Connections: Supports 1 sensor/actuator connection.
- Integration: Facilitates the integration of KNX application modules.
2. સલામતી માહિતી
Please read this manual carefully before installation and operation. Failure to follow these instructions may result in damage to the device, property, or personal injury.
- Installation must be performed by a qualified electrician in accordance with national wiring regulations and local electrical codes.
- Ensure the power supply is disconnected before any installation, maintenance, or troubleshooting work.
- જો ઉપકરણને દેખીતી રીતે નુકસાન થયું હોય તો તેને ચલાવશો નહીં.
- ઉપકરણને ભેજ, ધૂળ અને અતિશય તાપમાનથી સુરક્ષિત કરો.
- This device is intended for commercial and private use within a KNX system.
3. પેકેજ સામગ્રી
પેકેજ ખોલતી વખતે ખાતરી કરો કે બધી વસ્તુઓ હાજર છે અને તેને કોઈ નુકસાન થયું નથી:
- 1 x Jung KNX Bus Coupler 2073 U
- (No additional accessories or manuals are typically included with this component, as it is part of a larger system installation.)
4. સેટઅપ અને ઇન્સ્ટોલેશન
The Jung KNX Bus Coupler 2073 U is designed for flush-mounted installation. Proper installation is crucial for the device's functionality and safety within the KNX system.
સ્થાપન પગલાં:
- તૈયારી: Ensure the main power supply to the installation area is switched off at the circuit breaker.
- માઉન્ટ કરવાનું સ્થાન: Select a suitable flush-mounted box in the wall.
- વાયરિંગ: Connect the KNX bus line to the designated terminals on the bus coupler. Refer to the wiring diagram provided with your specific KNX application module for correct pin assignments.
- Securing the Device: Insert the bus coupler into the flush-mounted box. Use the three screw fixing points to securely fasten the device to the box. Ensure it is firmly seated and stable.
- મોડ્યુલ એકીકરણ: Once the bus coupler is physically installed, the KNX application module (e.g., a switch, dimmer, or sensor module) can be clicked onto the bus coupler. Ensure a secure connection.
- પાવર રિસ્ટોરેશન: After verifying all connections are correct and secure, restore power to the circuit.
For detailed wiring diagrams and programming instructions, consult the documentation specific to the KNX application module being used with this bus coupler and the ETS (Engineering Tool Software) for KNX systems.
5. સંચાલન સિદ્ધાંતો
The Jung KNX Bus Coupler 2073 U acts as an interface between the physical KNX bus line and the KNX application module. It does not have user-operable controls directly on the device itself. Its function is to provide the necessary electrical and data connection for the application module to communicate within the KNX network.
- ડેટા ટ્રાન્સમિશન: The bus coupler transmits data signals from the KNX bus to the connected application module and vice-versa.
- પાવર સપ્લાય: It draws power from the KNX bus line to operate the connected application module.
- સંબોધન: The addressing and configuration of the bus coupler and its associated application module are performed using the KNX ETS software. This involves assigning physical addresses and programming the desired functions.
Operation of the overall KNX system, including the functions enabled by this bus coupler, is managed through the programmed application modules (e.g., pressing a light switch, adjusting a thermostat). Refer to the specific application module's manual for operational details.
6. જાળવણી
The Jung KNX Bus Coupler 2073 U is a low-maintenance device. Regular cleaning and inspection are generally sufficient.
- સફાઈ: If necessary, gently wipe the visible parts of the device with a soft, dry, lint-free cloth. Do not use abrasive cleaners, solvents, or excessive moisture.
- નિરીક્ષણ: Periodically check for any signs of physical damage or loose connections. If any issues are observed, disconnect power and consult a qualified electrician.
- કોઈ વપરાશકર્તા સેવાયોગ્ય ભાગો નથી: The device contains no user-serviceable parts. Do not attempt to open or repair the unit.
7. મુશ્કેલીનિવારણ
Most issues related to the bus coupler are typically system-wide KNX communication problems or issues with the connected application module. This section provides general troubleshooting steps.
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| KNX device not responding. | No power to the KNX bus; incorrect wiring; faulty application module; incorrect ETS programming. | Check KNX bus power supply. Verify bus line connections to the coupler. Test the application module. Review ETS programming for correct addressing and functionality. |
| Intermittent communication. | Loose connections; bus line interference; faulty bus coupler. | Ensure all screw fixings and connections are tight. Check for sources of electrical interference. If issues persist, consider professional diagnosis of the bus coupler. |
| Device not recognized by ETS. | Incorrect physical address; bus line issue; ETS software problem. | Verify the physical address in ETS matches the device. Check bus line continuity. Restart ETS software and the KNX interface. |
For complex issues, it is recommended to contact a certified KNX installer or the manufacturer's technical support.
8. સ્પષ્ટીકરણો
| વિશેષતા | મૂલ્ય |
|---|---|
| ઉત્પાદક | જંગ |
| મોડલ નંબર | 2073 યુ |
| ભાગ નંબર | 1 |
| ઉત્પાદન પરિમાણો | 10 x 10 x 10 સેમી |
| વજન | 60 ગ્રામ |
| રંગ | ધાતુ |
| પેકેજમાં જથ્થો | 1 |
| ભાગોની સંખ્યા | 1 |
| ઉપયોગ | Commercial and private use |
| પેકેજ સામગ્રી | JUNG Busankoppler 2073U KNX 3 |
| બેટરી જરૂરી છે? | ના |
| પ્રથમ ઉપલબ્ધ તારીખ | 25 ઓક્ટોબર, 2017 |
| બસ સિસ્ટમ | KNX (Yes), KNX-Radio (No), Radio Bus (No) |
| માઉન્ટિંગ પ્રકાર | ફ્લશ-માઉન્ટેડ |
| Number of Sensor/Actuator Connections | 1 |
9. વોરંટી અને સપોર્ટ
Jung products are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the official Jung webસાઇટ પર જાઓ અથવા તમારા સ્થાનિક વિતરકનો સંપર્ક કરો. વોરંટી દાવાઓ માટે ખરીદીનો પુરાવો રાખો.
ટેકનિકલ સપોર્ટ:
For technical assistance, installation queries, or troubleshooting beyond the scope of this manual, please contact Jung customer support or a certified KNX professional.
- ઉત્પાદક Webસાઇટ: www.jung.de (Please note: This is a general link and may not be specific to your region. માટે શોધો Jung's official website in your country.)
- KNX Association: For general information about the KNX standard and certified professionals, visit www.knx.org.
