1. ઉત્પાદન ઓવરview

The EPEVER TRIRON 4210N is a 40A Maximum Power Point Tracking (MPPT) solar charge controller designed for 12V/24V DC systems. It efficiently manages power from solar panels to charge various battery types, including lead-acid (Sealed, Gel, Flooded, User) and lithium (LiFePO4, Li-NiCoMn, Lithium User). This set includes the TRIRON 4210N controller and the MT50 Remote Meter for enhanced monitoring and control.

મુખ્ય લક્ષણો:

• Advanced MPPT technology for high tracking efficiency.
• Modular design for flexible configuration with different display and interface modules.
• Supports multiple battery types: Sealed (AGM), Gel, Flooded, Lead-acid User, LiFePO4 Lithium, Li(NiCoMn)O2 Lithium, Lithium User (9~34V).
• Negative ground design for broad application compatibility.
• Dual 5V DC USB output interface (Max 2.2A) for charging electronic devices.
• ફોર-એસtage charging (bulk, absorption, float, equalization) to prolong battery life.
• Comprehensive electronic protection features.
• રીઅલ-ટાઇમ energyર્જા આંકડા કાર્ય.

પેકેજ સામગ્રી:

પેકેજમાં સામાન્ય રીતે શામેલ છે:

• EPEVER TRIRON 4210N MPPT Solar Charge Controller
• EPEVER MT50 રિમોટ મીટર
• Remote Temperature Sensor (RT-S)
• USB to RS485 Communication Cable
• વપરાશકર્તા માર્ગદર્શિકા

Image: Contents of the EPEVER TRIRON 4210N and MT50 Remote Meter package, including the controller, remote meter, temperature sensor, and cables.

2. સલામતી માહિતી

Please read all instructions and warnings carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or severe injury.

• Ensure all wiring is correctly polarized and securely connected. Loose connections can cause overheating and fire.
• Always connect the battery to the charge controller first, then the solar panel, and finally the load. Disconnect in the reverse order.
• Do not attempt to repair or modify the controller. Refer servicing to qualified personnel.
• Install the controller in a well-ventilated area, away from flammable materials and corrosive gases.
• Wear appropriate personal protective equipment (PPE), including eye protection and insulated gloves, when working with batteries and solar panels.
• સિસ્ટમ વોલ્યુમની ખાતરી કરોtage is compatible with the controller's specifications (12V/24V auto work).
• Use appropriate circuit breakers or fuses for all connections to prevent overcurrent.

3. સ્થાપન

3.1 કંટ્રોલર માઉન્ટ કરવાનું

Mount the controller vertically on a flat, non-flammable surface in a dry, well-ventilated indoor area. Ensure there is sufficient clearance around the controller for heat dissipation. The recommended clearances are 150mm (5.9 inches) above and below the unit.

Image: Controller dimensions and recommended mounting clearances for proper ventilation.

3.2 વાયરિંગ કનેક્શન્સ

Follow the wiring sequence carefully to prevent damage to the controller or other components. Always ensure all power sources are disconnected before making or breaking connections.

1. બેટરી કનેક્ટ કરો: Connect the battery cables to the controller's battery terminals (marked with '+' and '-'). Ensure correct polarity. Always connect the battery first.
2. સોલાર પેનલ જોડો: Connect the solar panel cables to the controller's PV terminals (marked with solar panel icon and '+' and '-'). Ensure correct polarity.
3. Connect the DC Load: Connect the DC load cables to the controller's load terminals (marked with light bulb icon and '+' and '-'). Ensure correct polarity.
4. Connect Remote Temperature Sensor: Plug the remote temperature sensor into the designated port on the controller. Secure the sensor to the battery case for accurate temperature compensation.

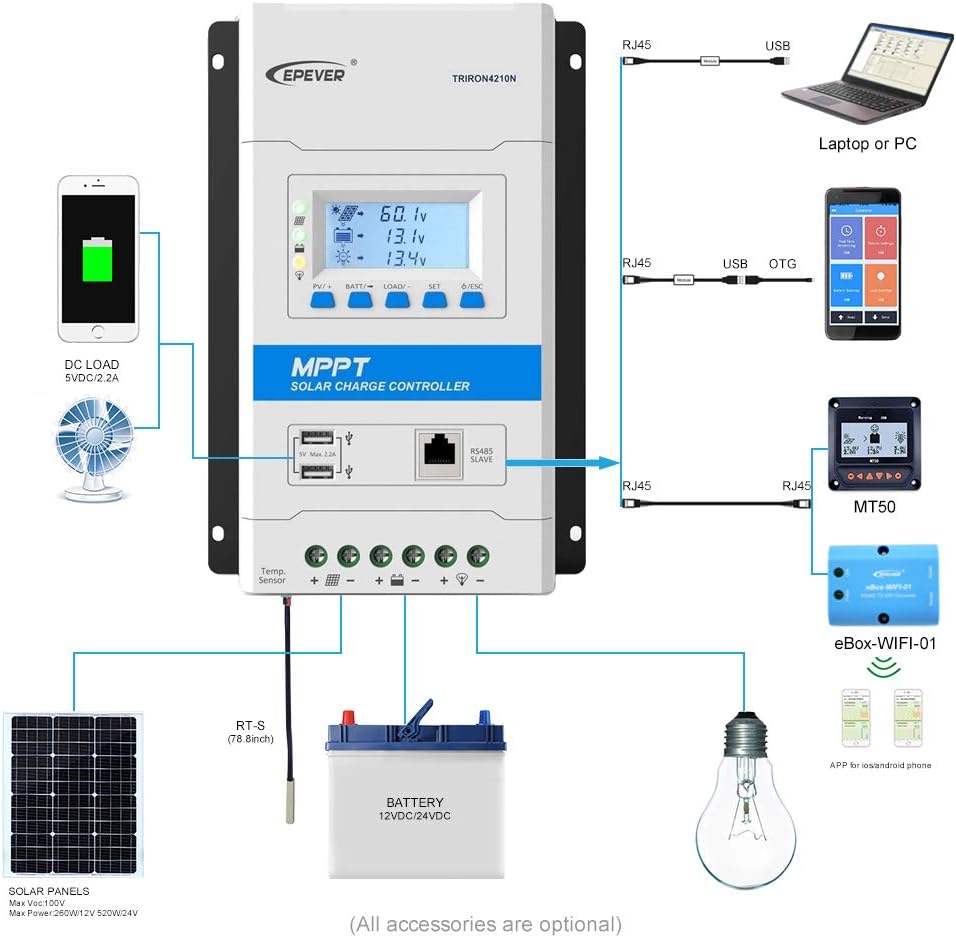

Image: Detailed wiring diagram showing connections for solar panels, battery, and DC load to the TRIRON 4210N controller.

3.3 Connecting the MT50 Remote Meter

The MT50 Remote Meter connects to the controller via an RJ45 communication cable. This allows for remote monitoring of system status and parameter settings.

• Connect one end of the RJ45 cable to the RS485 port on the TRIRON 4210N controller.
• Connect the other end of the RJ45 cable to the corresponding port on the MT50 Remote Meter.

3.4 કોમ્યુનિકેશન ઇન્ટરફેસ

The TRIRON 4210N features an RS485 communication port, allowing connection to various accessories for extended functionality:

• પીસી સોફ્ટવેર: Connect via an RS485 to USB adapter cable for monitoring and parameter configuration using PC software.
• મોબાઇલ એપ્લિકેશન: Connect via an eBox-WIFI-01 or eBox-BLE-01 module for wireless monitoring and control through a mobile application.

4. ઓપરેશન

૬.૧ એલસીડી ડિસ્પ્લે અને બટનો

The controller features an LCD display and five buttons for viewing system parameters and making adjustments.

Image: Various screens displayed on the TRIRON 4210N LCD, showing PV voltage, current, battery status, and load information.

• PV/+ Button: Used to navigate forward through display screens or increase parameter values.
• BATT/→ Button: Used to navigate right through display screens or move cursor during parameter setting.
• LOAD/- Button: Used to navigate backward through display screens or decrease parameter values.
• સેટ બટન: Used to enter parameter setting mode or confirm a setting.
• ESC બટન: Used to exit parameter setting mode or return to the previous screen.

4.2 પેરામીટર સેટિંગ્સ

To adjust parameters such as battery type, capacity, and temperature unit, use the navigation buttons to access the setting menus. Press the SET button to enter edit mode, use PV/+ and LOAD/- to change values, and SET again to confirm. Refer to the detailed instructions in the included user manual for specific parameter adjustments.

4.3 યુએસબી આઉટપુટ

The controller is equipped with dual 5V DC USB ports (Max 2.2A) for charging compatible electronic devices. These ports are active when the controller is powered by the battery.

5. જાળવણી

Regular maintenance ensures optimal performance and longevity of your solar charge controller.

• કનેક્શન્સ તપાસો: Periodically inspect all wiring connections for tightness and corrosion. Tighten any loose connections.
• Clean the Controller: Keep the controller clean and free from dust and debris. Ensure the heat sink fins are not obstructed to allow for proper cooling.
• કેબલ્સ તપાસો: Check all cables for signs of wear, damage, or insulation degradation. Replace damaged cables immediately.
• બેટરી તપાસ: For lead-acid batteries, check electrolyte levels and terminal condition as per battery manufacturer guidelines.
• સૉફ્ટવેર અપડેટ્સ: ઉત્પાદકની તપાસ કરો website for any available firmware updates for your controller.

6. મુશ્કેલીનિવારણ

This section provides basic troubleshooting steps for common issues. For more complex problems, consult the full user manual or contact EPEVER technical support.

સામાન્ય સમસ્યાઓ અને ઉકેલો:

• ડિસ્પ્લે નહીં/પાવર નહીં:
  • Check battery connections and ensure they are secure and correctly polarized.
  • બેટરી વોલ્યુમ ચકાસોtage નિયંત્રકની ઓપરેટિંગ રેન્જમાં છે.
• સોલાર પેનલથી ચાર્જિંગ નહીં:
  • Check solar panel connections and polarity.
  • Ensure sufficient sunlight is reaching the solar panels.
  • Verify solar panel open circuit voltage (Voc) is within the controller's input range.
• લોડ કામ કરી રહ્યું નથી:
  • Check load connections and polarity.
  • Ensure the load is not exceeding the controller's rated load current.
  • બેટરી વોલ્યુમ તપાસોtage; the load may be disconnected if the battery voltage ખૂબ ઓછું છે.
• Incorrect Battery Readings:
  • Verify the remote temperature sensor is correctly connected and placed near the battery.
  • Ensure the correct battery type and capacity are set in the controller's parameters.

7. સ્પષ્ટીકરણો

8. વોરંટી અને સપોર્ટ

For warranty information and technical support, please refer to the documentation included with your product or visit the official EPEVER webસાઇટ. વોરંટી દાવાઓ માટે ખરીદીના પુરાવા તરીકે તમારી ખરીદી રસીદ રાખો.
