1. પરિચય
This manual provides detailed instructions for the safe and efficient use of your Link2Home Outdoor Wireless Remote Control Outlet. This device offers convenient remote control for outdoor electrical appliances and lighting systems.
2. મહત્વપૂર્ણ સલામતી માહિતી
Please read and understand all safety instructions before installation and use. Failure to follow these instructions may result in electric shock, fire, or property damage.
- Ensure the product is plugged into a Ground Fault Circuit Interrupter (GFCI) protected outdoor-rated electrical outlet.
- Do not immerse the unit in water. It is weatherproof, not submersible.
- Keep the unit and remote control away from children.
- Do not exceed the maximum electrical ratings of 15A/125VAC, 1875W Resistive, 5A/625W Tungsten, 1/2 HP.
- Always unplug the unit from the power source before performing any maintenance or cleaning.
- For outdoor use, ensure the outlet unit is installed at least 2 feet (0.6 meters) above ground level to prevent water ingress.
3. પેકેજ સામગ્રી
અનપેક કરતી વખતે ખાતરી કરો કે બધી વસ્તુઓ હાજર છે:
- 1 x Link2Home Outdoor Wireless Remote Control Outlet Unit
- 1 x Remote Control (with CR2032 battery installed)
- 1 x સૂચના માર્ગદર્શિકા
4. ઉત્પાદન ઓવરview
The Link2Home Outdoor Wireless Remote Control Outlet consists of a main outlet unit and a handheld remote control. The outlet unit features dual grounded outlets and an indicator light.
Figure 1: Link2Home Outdoor Wireless Remote Control Outlet and Remote Control.

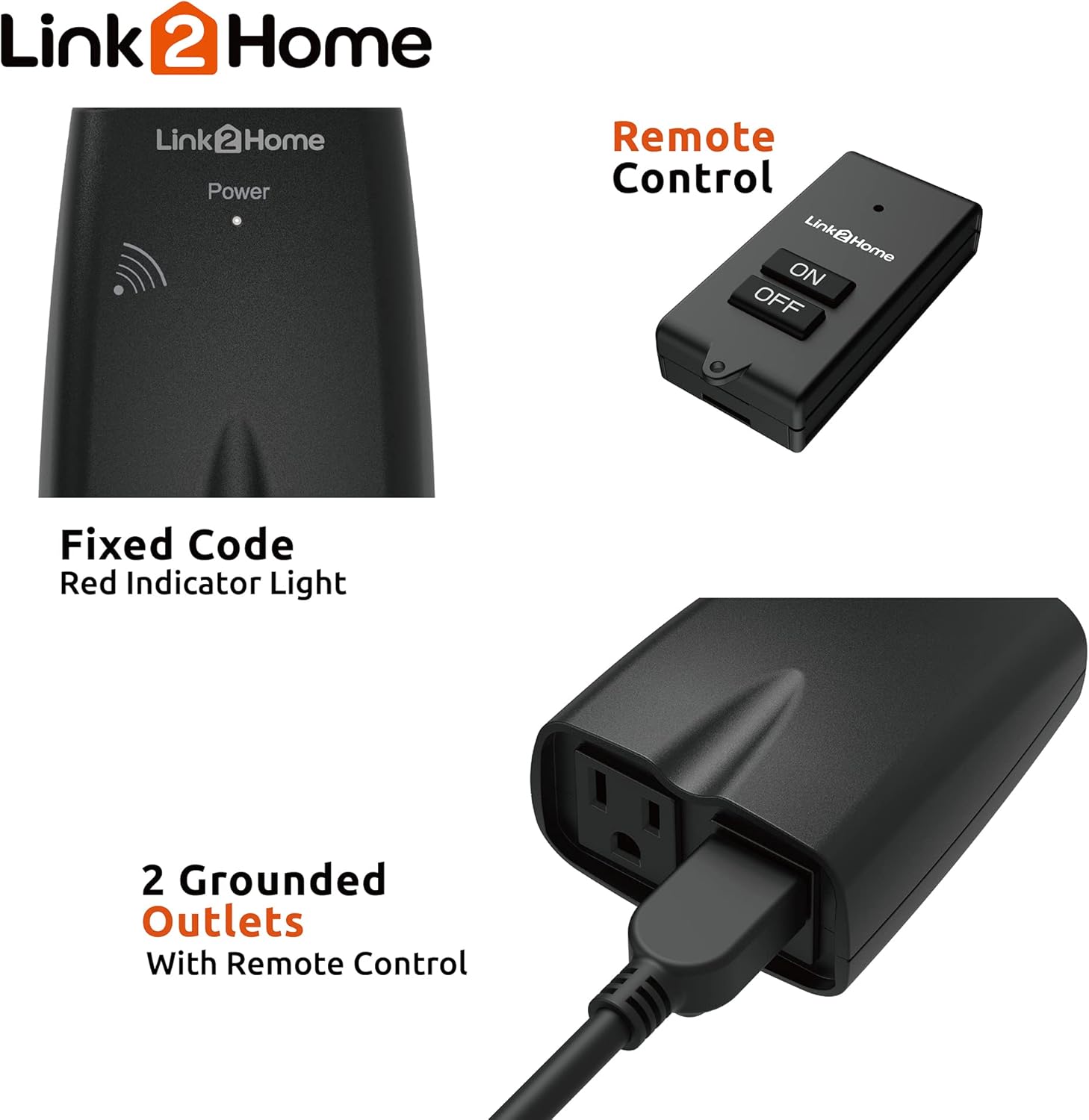

આકૃતિ 2: ક્લોઝ-અપ view of the outlet unit, highlighting the indicator light and two grounded outlets.
5. સેટઅપ
- સ્થાન પસંદ કરો: Select an outdoor location with a GFCI-protected outlet. Ensure the chosen location allows the outlet unit to be installed at least 2 feet (0.6 meters) above ground level.
- પ્લગ ઇન: Plug the Link2Home Outdoor Wireless Remote Control Outlet unit into the outdoor-rated electrical outlet.
- ઉપકરણોને કનેક્ટ કરો: Plug your outdoor lights, security systems, or other appliances into the dual grounded outlets on the Link2Home unit.
Video 1: Demonstrates the initial setup and plugging in of the outdoor remote control outlet.
6. ઓપરેટિંગ સૂચનાઓ
The Link2Home Outdoor Wireless Remote Control Outlet is pre-programmed for immediate use. You can control the connected devices using the remote control or the manual button on the outlet unit.
- રીમોટ કંટ્રોલ ઓપરેશન: Press the 'ON' button on the remote control to turn on the connected devices. Press the 'OFF' button to turn them off. The remote has a range of up to 100 feet in line of sight and can work through walls and doors.
- મેન્યુઅલ ઓપરેશન: Press the power button on the outlet unit itself to manually turn the connected devices ON or OFF.
Figure 3: The remote control offers a 100-foot range for convenient operation.
7. Pairing and Unpairing the Remote Control
Your outlet unit and remote control are pre-paired. If re-pairing is needed or you wish to unpair, follow these steps:
7.1. જોડી બનાવવી
- Ensure the outlet unit is plugged into a live power outlet.
- Press and hold the ON/OFF button on the outlet unit for approximately 3 seconds. The indicator light will begin to flash slowly.
- Release the ON/OFF button on the outlet unit.
- Within 5 seconds, press either the 'ON' or 'OFF' button on the remote control. The indicator light on the outlet unit will stop flashing, indicating successful pairing.
7.2. Unpairing / Resetting
- Unplug the outlet unit from the power source.
- While pressing and holding the ON/OFF button on the outlet unit, plug the unit back into the power source.
- Continue holding the ON/OFF button until the indicator light starts flashing rapidly.
- Release the ON/OFF button. The indicator light will stop flashing, confirming the unpairing/reset process is complete.
Video 2: Detailed demonstration of pairing and unpairing the remote control with the outlet unit.
Video 3: Visual guide on how to reset and pair the outdoor remote control outlet.
8. મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| Device not responding to remote. | Remote battery low or dead. Out of range. Obstructions blocking signal. Unit and remote unpaired. | Replace CR2032 battery in remote. Move closer to the unit. Remove obstructions. Re-pair the unit and remote (see Section 7.1). |
| Outlet unit has no power. | Not plugged in correctly. Power outage. GFCI tripped. | Ensure unit is fully plugged into a working outlet. Check household circuit breaker. Reset GFCI outlet. |
| Connected device not turning on/off. | Device itself is off or faulty. Unit is overloaded. | Check the connected device's power switch. Ensure total wattage 1875W થી વધુ નથી. |
Video 4: Troubleshooting guide for common issues with remote control outlets, including resetting.
9. સ્પષ્ટીકરણો
| લક્ષણ | વિગત |
|---|---|
| મોડલ નંબર | EM-OR650B |
| ઇનપુટ વોલ્યુમtage | 125 Volts AC, 60Hz |
| મહત્તમ વર્તમાન | 15 Amps |
| Max. Resistive Load | 1875 વોટ્સ |
| Max. Tungsten Load | 625 વોટ્સ |
| મોટર રેટિંગ | 1 / 2 એચપી |
| દૂરસ્થ શ્રેણી | 100 ફૂટ સુધી (દૃષ્ટિની રેખા) |
| રિમોટ બેટરી | CR2032 (સમાવેલ) |
| પરિમાણો (L x W x H) | 5.08 x 7.62 x 12.7 સેમી |
| વજન | 281 ગ્રામ |
| સામગ્રી | પ્લાસ્ટિક, મેટલ |
| પ્રમાણપત્રો | એફસીસી, ઇટીએલ |
10. જાળવણી
- સોફ્ટ સાથે એકમ સાફ કરો, ડીamp કાપડ કઠોર રસાયણો અથવા ઘર્ષક ક્લીનર્સનો ઉપયોગ કરશો નહીં.
- Regularly inspect the power cord and plugs for any signs of damage. Discontinue use if damage is found.
- Replace the remote control battery (CR2032) when the remote's indicator light dims or it stops responding.
11. વોરંટી અને સપોર્ટ
This Link2Home product comes with a 1 વર્ષની વોરંટી from the date of purchase. For warranty claims or technical support, please refer to the contact information provided with your purchase documentation or visit the official Link2Home webસાઇટ
