યેલ YEC/250/DB1 મધ્યમ અલાર્મ્ડ વેલ્યુ સેફ યુઝર મેન્યુઅલ

1. પરિચય

This manual provides essential instructions for the installation, operation, and maintenance of your Yale YEC/250/DB1 Medium Alarmed Value Safe. Please read this manual thoroughly before using the safe to ensure proper function and security.

The Yale YEC/250/DB1 safe is designed to protect your valuables with its solid steel construction, electronic lock, and integrated 130dB alarm system.

1.1 પેકેજ સામગ્રી

• 1 x Yale YEC/250/DB1 Alarmed Value Safe
• 2 x ઇમરજન્સી ઓવરરાઇડ કી
• 4 x AA બેટરી
• 1 x Pack of Fixing Bolts (for wall or floor mounting)
• ૧ x વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)

છબી 1.1: આગળ view of the Yale YEC/250/DB1 Medium Alarmed Value Safe, showing the electronic keypad and key lock.

2. મહત્વપૂર્ણ સલામતી માહિતી

• Do not store emergency override keys inside the safe. Keep them in a secure, separate location.
• Ensure the safe is securely mounted to a wall or floor to prevent unauthorized removal.
• Replace batteries promptly when the low battery indicator appears to avoid loss of access.
• Keep the safe away from excessive moisture or extreme temperatures.
• Do not attempt to force the safe open if the electronic lock malfunctions. Use the emergency override key.

3. Safe Components

Familiarize yourself with the main components of your Yale Alarmed Value Safe:

• Electronic Keypad: Used for entering your personal access code.
• Key Lock Cylinder: For emergency override using the mechanical key.
• Door Handle/Knob: To open and close the safe door.
• Locking Bolts: Steel bolts that secure the door when locked.
• બેટરી કમ્પાર્ટમેન્ટ: Located inside the door, holds 4 AA batteries.
• Alarm Speaker: Emits a 130dB alarm when triggered.

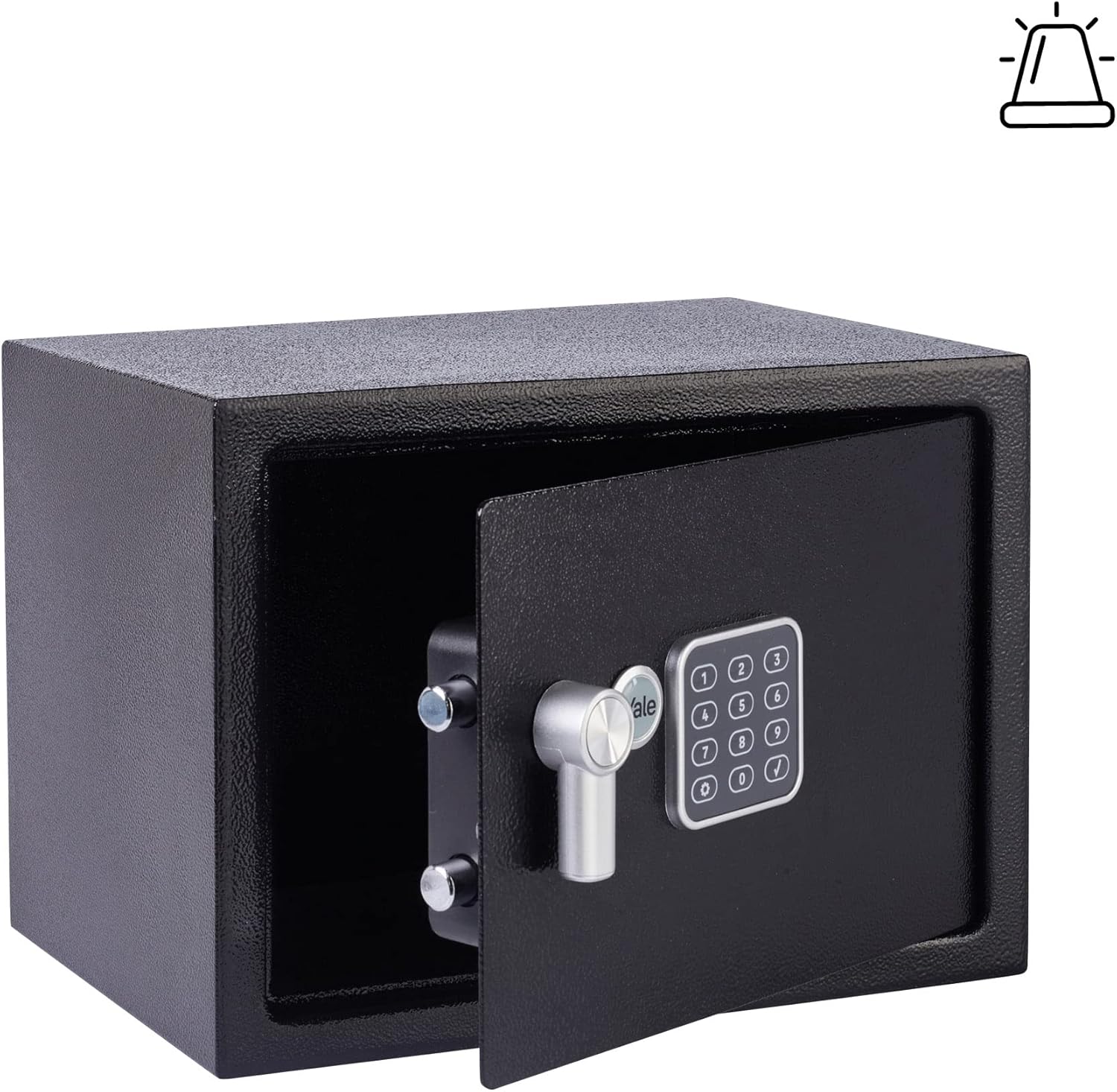

છબી 3.1: આંતરિક ભાગ view of the safe with the door open, illustrating the locking bolts and internal structure.

4. સેટઅપ અને ઇન્સ્ટોલેશન

4.1 બેટરી ઇન્સ્ટોલેશન

1. Open the safe door using one of the emergency override keys. Insert the key into the key lock cylinder and turn it clockwise. Rotate the door handle to open.
2. સેફ દરવાજાની અંદર બેટરીનો ડબ્બો શોધો.
3. Insert the 4 supplied AA batteries, ensuring correct polarity (+/-).
4. બેટરી કમ્પાર્ટમેન્ટ કવર બંધ કરો.

4.2 Setting Your Personal Access Code

The safe comes with a factory default code. It is crucial to change this immediately.

1. સલામત દરવાજો ખુલ્લો રાખીને, દરવાજાની અંદર, હિન્જ પાસે સ્થિત લાલ રીસેટ બટન દબાવો. તમને બીપ સંભળાશે.
2. Within 5 seconds, enter your desired 3 to 8 digit code on the keypad.
3. Press the '#' (hash) button to confirm. The safe will beep twice, indicating the new code is set.
4. Test the new code with the door open before closing it. Enter your new code, then press '#'. The locking bolts should retract.

૪.૩ સેફ માઉન્ટ કરવું

The safe can be securely fixed to a wall or floor using the provided fixing bolts. Choose a discreet and secure location.

1. Select a suitable mounting location. Ensure there are no electrical wires or plumbing behind the drilling area.
2. Mark the drilling points through the pre-drilled holes at the back or bottom of the safe.
3. Drill pilot holes into the wall or floor using an appropriate drill bit.
4. Position the safe and secure it using the provided fixing bolts. Tighten all bolts firmly.

છબી ૪.૧: ઉદાહરણample of the safe installed within a closet for discreet placement.

5. ઓપરેટિંગ સૂચનાઓ

5.1 Opening the Safe with Your Code

1. Enter your 3 to 8 digit personal access code.
2. Press the '#' (hash) button. A green light will illuminate, and you will hear a beep.
3. Within 5 seconds, turn the door handle clockwise to open the safe.

5.2 Locking the Safe

1. સલામત દરવાજો મજબૂત રીતે બંધ કરો.
2. Turn the door handle counter-clockwise to engage the locking bolts. The safe is now locked.

5.3 Emergency Override Key

In case of battery failure or forgotten code, the safe can be opened using the emergency override key.

1. Locate the key lock cylinder cover (usually a small removable panel next to the keypad). Remove it.
2. Insert one of the emergency override keys into the cylinder.
3. Turn the key clockwise and simultaneously turn the door handle clockwise to open the safe.
4. Once open, you can replace the batteries or reset the code as needed.

5.4 એલાર્મ સિસ્ટમ

The integrated 130dB alarm will activate under the following conditions:

• Tampering: If the safe is subjected to physical shock or attempted forced entry.
• Incorrect Code Attempts: After 3 consecutive incorrect code entries.

To silence the alarm, enter the correct personal access code on the keypad.

6. જાળવણી

6.1 બેટરી રિપ્લેસમેન્ટ

When the batteries are low, the keypad may flash a red light or emit a warning sound after opening. Replace all 4 AA batteries promptly to ensure continued operation.

1. સલામત દરવાજો ખોલો.
2. બેટરી કમ્પાર્ટમેન્ટ કવર ખોલો.
3. જૂની બેટરીઓ દૂર કરો અને જવાબદારીપૂર્વક તેનો નિકાલ કરો.
4. Insert 4 new AA alkaline batteries, observing correct polarity.
5. બેટરી કમ્પાર્ટમેન્ટ કવર બંધ કરો.

6.2 સફાઈ

સેફના બાહ્ય ભાગને સોફ્ટ, ડી વડે સાફ કરો.amp કાપડ. ઘર્ષક ક્લીનર્સ અથવા સોલવન્ટ્સનો ઉપયોગ કરશો નહીં, કારણ કે આ ફિનિશ અથવા ઇલેક્ટ્રોનિક ઘટકોને નુકસાન પહોંચાડી શકે છે.

7. મુશ્કેલીનિવારણ

8. સ્પષ્ટીકરણો

Image 8.1: Dimensional diagram of the safe, indicating external and internal measurements.

9. વોરંટી અને સપોર્ટ

For warranty information and technical support, please refer to the official Yale website or contact Yale customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, visit the official Yale webસાઇટ: www.yalehome.com
