સેલેસ્ટ્રોન નેક્સસ્ટાર 5SLT ટેલિસ્કોપ સૂચના માર્ગદર્શિકા

1. પરિચય

This manual provides detailed instructions for the assembly, operation, and maintenance of your Celestron Nexstar 5SLT Telescope. The Nexstar 5SLT is a 5-inch (127mm) Schmidt-Cassegrain catadioptric telescope featuring a computerized Go-To alt-azimuth single-arm mount. Its advanced optics deliver sharp images across a wide field of view, suitable for both astronomical and terrestrial observations.

The telescope is equipped with high-efficiency XLT optical coatings for enhanced light transmission. The NexStar+ hand control offers easy SkyAlign functionality and access to a database of over 40,000 celestial objects. For additional functionality, the Celestron Starry Night Special Edition Software and the Celestron SkyPortal App are available.

2. સમાવાયેલ ઘટકો

Your Celestron Nexstar 5SLT package includes the following items:

• Nexstar 5SLT Optical Tube Assembly (Schmidt-Cassegrain, 127mm aperture)
• Computerized Alt-Azimuth Mount
• Adjustable Stainless Steel Tripod
• નેક્સસ્ટાર+ હેન્ડ કંટ્રોલ
• 25mm Eyepiece (51x magnification)
• 9mm Eyepiece (141x magnification)
• Star Diagonal (31.8mm / 1.25-inch)
• Reflex Finderscope
• એસેસરી ટ્રે
• બેટરી કમ્પાર્ટમેન્ટ (8 AA બેટરીની જરૂર છે, શામેલ નથી)

આકૃતિ 2.1: The Celestron Nexstar 5SLT Telescope fully assembled, showing the optical tube, mount, tripod, and hand control unit.

આકૃતિ 2.2: Key accessories for the Nexstar 5SLT, including the NexStar+ hand control, 25mm and 9mm eyepieces, and the star diagonal.

3. સેટઅપ સૂચનાઓ

Follow these steps to set up your Nexstar 5SLT telescope:

1. અનપૅક ઘટકો: Carefully remove all components from the packaging. Keep the packaging for future transport or storage.
2. ટ્રાઇપોડ એસેમ્બલ કરો: Extend the tripod legs to a suitable height and secure them. Attach the accessory tray to the center brace of the tripod.
3. માઉન્ટ જોડો: Place the computerized alt-azimuth mount onto the tripod head and secure it using the provided screw. Ensure it is stable.
4. Install Optical Tube: Attach the Nexstar 5SLT optical tube to the mount's dovetail saddle. Tighten the locking screw to ensure the tube is securely fastened.
5. Install Finderscope: Slide the reflex finderscope into its bracket on the optical tube and tighten the retaining screws.
6. Insert Star Diagonal and Eyepiece: Insert the star diagonal into the visual back of the telescope. Then, insert the 25mm eyepiece into the star diagonal and secure it with the thumbscrew.
7. બેટરીઓ ઇન્સ્ટોલ કરો: Open the battery compartment on the mount and insert 8 AA batteries (not included), ensuring correct polarity. Alternatively, connect an external 12V DC power supply (sold separately) to the power input port.

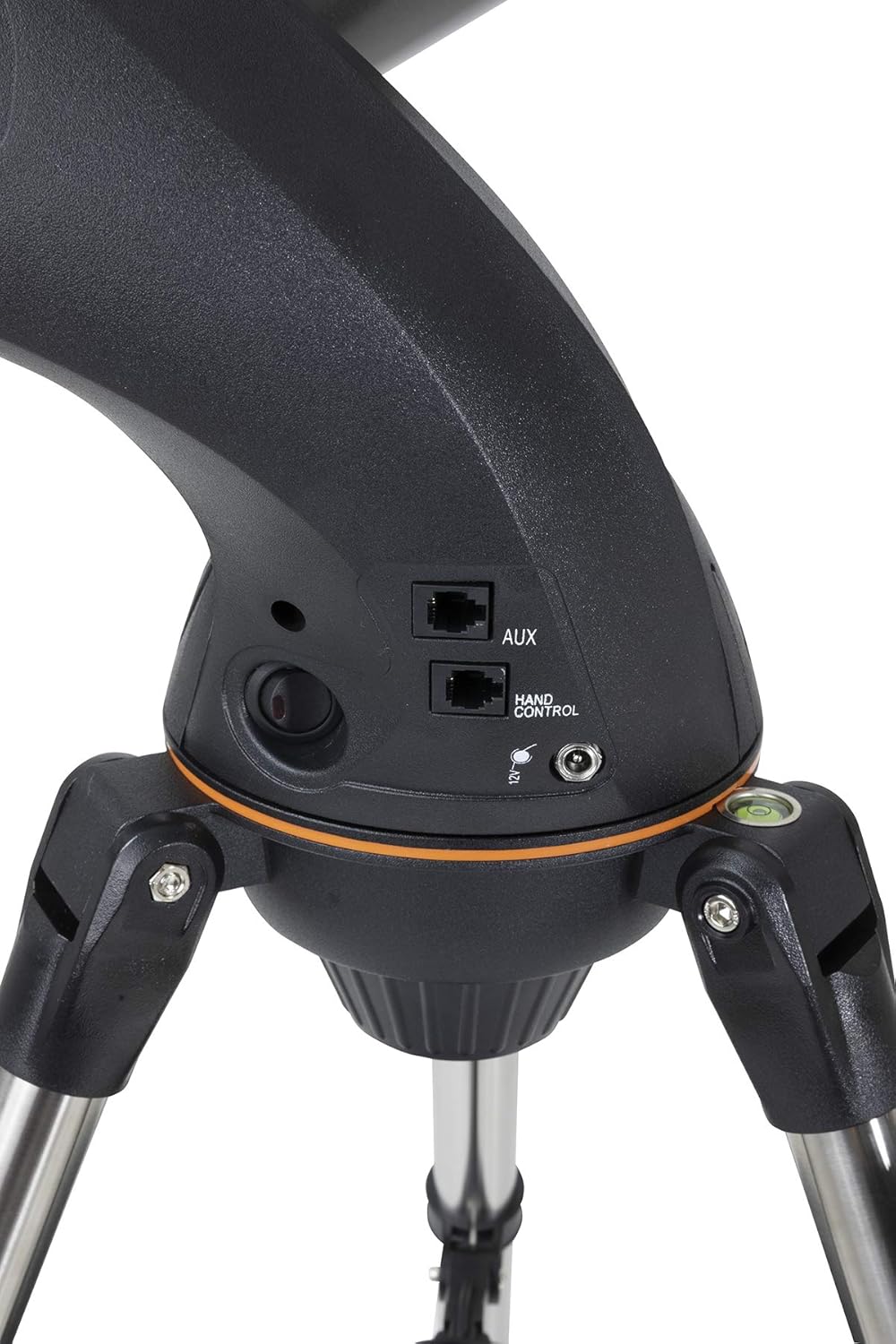

આકૃતિ 3.1: Detail of the mount's connection panel, showing the auxiliary (AUX) and hand control ports, and the power input.

૪. ટેલિસ્કોપનું સંચાલન

The Nexstar 5SLT features a user-friendly computerized system for locating celestial objects.

4.1 Powering On and Initial Alignment

1. Connect Hand Control: Plug the NexStar+ hand control into the 'HAND CONTROL' port on the mount.
2. પાવર ચાલુ: Flip the power switch on the mount to the 'ON' position. The hand control display will illuminate.
3. SkyAlign Procedure: The telescope will prompt you to perform an alignment. The SkyAlign method is recommended for its simplicity. Follow the on-screen instructions to select three bright stars or planets. The telescope will automatically identify them and align itself.
4. ધ્યાન કેન્દ્રિત: Use the focus knob on the optical tube to achieve a sharp image.

4.2 Locating Objects

Once aligned, you can use the NexStar+ hand control to navigate the night sky:

• Object Database: The hand control contains a database of over 40,000 celestial objects, including stars, galaxies, nebulae, and planets.
• Go-To Function: Select an object from the menu, press 'ENTER', and the telescope will automatically slew to its position.
• ટ્રેકિંગ: After locating an object, the mount will automatically track it as it moves across the sky, keeping it centered in your eyepiece.

4.3 Software and Apps

Enhance your experience with:

• Celestron Starry Night Special Edition Software: Provides a comprehensive planetarium program for planning observations.
• Celestron SkyPortal App: Available for download on App Store and Google Play, this app allows you to control your telescope wirelessly (with optional Wi-Fi module) and explore the night sky from your smartphone or tablet.

5. જાળવણી

Proper care will ensure the longevity and optimal performance of your telescope.

• સફાઈ ઓપ્ટિક્સ: Use a soft brush to remove loose dust from the optical surfaces. For smudges, use a specialized optical cleaning solution and a microfiber cloth. Avoid touching optical surfaces with bare hands.
• સામાન્ય સફાઈ: Wipe down the telescope body, mount, and tripod with a soft, damp કાપડ કઠોર રસાયણો ટાળો.
• સંગ્રહ: When not in use, store the telescope in a dry, dust-free environment. Use dust caps for the optical tube and eyepieces.
• બેટરી સંભાળ: Remove AA batteries if the telescope will not be used for an extended period to prevent leakage.

6. મુશ્કેલીનિવારણ

If you encounter issues with your telescope, consider the following common solutions:

• Telescope Not Powering On: Check battery installation and ensure they are fresh. If using an external power supply, verify the connection and power source.
• Alignment Failure: ખાતરી કરો કે તમારી પાસે સ્પષ્ટ છે view of the sky and are selecting bright, easily identifiable alignment stars. Double-check your entered location and time settings.
• Go-To Accuracy Issues: A precise initial alignment is crucial for accurate Go-To performance. Ensure the tripod is level and stable.
• અસ્પષ્ટ છબીઓ: Adjust the focus knob carefully. Ensure eyepieces and star diagonal are clean and securely seated. Allow the telescope to equalize to ambient temperature for optimal viewing
• મોટર અવાજ: Some motor noise during slewing is normal. Excessive or unusual noise may indicate a mechanical issue; contact support if persistent.

7. સ્પષ્ટીકરણો

8. વોરંટી અને સપોર્ટ

For information regarding warranty coverage, technical support, and service, please refer to the official Celestron website or contact Celestron customer service directly. Software updates for the NexStar+ hand control are available via the Celestron webસાઇટ
