1. પરિચય
This manual provides essential information for the proper installation, operation, and maintenance of your Bellman & Symfon Smoke Alarm Transmitter (Model BE1284-433). This device is designed to integrate with the Bellman Visit Smart Home System, providing early fire detection and transmitting alerts to compatible Visit receivers, particularly beneficial for individuals who are deaf or hard of hearing.
સલામત અને અસરકારક કામગીરી સુનિશ્ચિત કરવા માટે કૃપા કરીને ઉત્પાદનનો ઉપયોગ કરતા પહેલા આ માર્ગદર્શિકાને સારી રીતે વાંચો.
2. સલામતી માહિતી
- મહત્વપૂર્ણ: This smoke alarm transmitter is a component of the Bellman Visit Smart Home System and requires a compatible Bellman Visit receiver (sold separately) to provide alerts. It does not function as a standalone audible smoke alarm.
- Do not paint the smoke alarm. Paint can clog the openings and interfere with the sensor's ability to detect smoke.
- ઉચ્ચ ભેજ, અતિશય તાપમાન અથવા વધુ પડતી ધૂળવાળા વિસ્તારોમાં ઇન્સ્ટોલ કરશો નહીં.
- Test the smoke alarm regularly as described in the "Operation" section.
- Replace batteries promptly when indicated.
- દેખરેખ હેઠળ ન હોય ત્યાં સુધી બાળકોની પહોંચથી દૂર રાખો.
3. પેકેજ સામગ્રી
ખાતરી કરો કે બધી વસ્તુઓ પેકેજમાં હાજર છે:
- Bellman & Symfon Smoke Alarm Transmitter (BE1284-433)
- માઉન્ટ કરવાનું કૌંસ
- સ્ક્રૂ અને દિવાલ પ્લગ
- વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)
- Battery (pre-installed or separate, check packaging)
Image: The Bellman & Symfon Smoke Alarm Transmitter shown with its retail packaging.
4. ઉત્પાદન ઓવરview
4.1 ઘટકો
The Bellman & Symfon Smoke Alarm Transmitter consists of the following main parts:
- સ્મોક સેન્સર: Detects smoke particles.
- Test & Silence Button: Used for testing the alarm and temporarily silencing nuisance alarms.
- એલઇડી સૂચકાંકો: Provide visual feedback on status (e.g., power, alarm, fault).
- બેટરી કમ્પાર્ટમેન્ટ: પાવર સ્ત્રોતને રાખે છે.
- માઉન્ટિંગ પ્લેટ: For secure installation on a ceiling or wall.
Image: The smoke alarm transmitter installed on a ceiling, showing its compact design.
4.2 લક્ષણો
- Wireless transmission to Bellman Visit receivers.
- Long battery life (up to 10 years).
- Integrated Test & Silence button.
- "Toast Mode" for temporary sensitivity reduction in cooking areas.
- Designed for individuals who are deaf or hard of hearing, seniors, and assisted living environments.
5. સેટઅપ
5.1 સ્થાન પસંદ કરવું
Install the smoke alarm transmitter on the ceiling in the center of a room or hallway. If ceiling mounting is not possible, it can be mounted on a wall, ensuring the top edge is between 4 to 12 inches (10 to 30 cm) from the ceiling.
Avoid installing in:
- Kitchens or bathrooms (due to steam and cooking fumes).
- Near ventilation openings, windows, or doors.
- Areas with extreme temperatures (below 4°C / 39°F or above 38°C / 100°F).
5.2 સ્થાપન
- માઉન્ટિંગ પ્લેટ તૈયાર કરો: Detach the mounting plate from the smoke alarm by twisting it counter-clockwise.
- છિદ્રો ડ્રિલ કરો: Hold the mounting plate against the chosen ceiling or wall location and mark the positions for the drill holes.
- Drill and Mount: Drill holes, insert wall plugs (if necessary), and secure the mounting plate with the provided screws.
- Attach the Transmitter: Align the smoke alarm transmitter with the mounting plate and twist it clockwise until it clicks securely into place.
Image: Dimensions of the smoke alarm transmitter: Height 4.7" (120 mm), Width 4.7" (120 mm), Depth 1.8" (46 mm), Weight 0.41 lb (185 g) including battery.
5.3 Pairing with a Visit Receiver
To receive alerts, the smoke alarm transmitter must be paired with a Bellman Visit receiver (e.g., Flash Receiver, Alarm Clock Receiver, Pager Receiver, Portable Receiver). Refer to your Visit receiver's manual for specific pairing instructions. Generally, the process involves:
- Put your Visit receiver into pairing mode.
- Press and hold the Test & Silence button on the smoke alarm transmitter until the LED indicator flashes, indicating it's sending a pairing signal.
- Confirm successful pairing on your Visit receiver.
Image: An illustration showing various Bellman Visit transmitters (including the smoke alarm) and receivers placed throughout a home, demonstrating system integration.
6. ઓપરેશન
૧.૪ પ્રારંભિક કસોટી
After installation and pairing, perform an initial test:
- દબાવો અને પકડી રાખો Test & Silence થોડી સેકંડ માટે બટન.
- The smoke alarm will emit a test signal, and your paired Visit receiver should activate (e.g., flash lights, vibrate).
- If the receiver does not respond, re-check pairing and ensure the transmitter is within range.
6.2 સામાન્ય કામગીરી
The smoke alarm transmitter continuously monitors for smoke. Upon detection, it will:
- Activate its internal alarm (if equipped, though primarily designed for transmission).
- Transmit an alarm signal to all paired Bellman Visit receivers within range.
Image: The smoke alarm transmitter detecting smoke, indicated by a red LED and smoke visually rising.
6.3 Silence Function (Toast Mode)
The "Toast Mode" allows for temporary reduction of sensitivity to prevent nuisance alarms from cooking fumes. To activate:
- When a nuisance alarm occurs (e.g., from cooking), press the Test & Silence બટન
- The alarm will be silenced for approximately 10 minutes, and the sensitivity will be reduced.
- After 10 minutes, the alarm will automatically return to normal sensitivity.

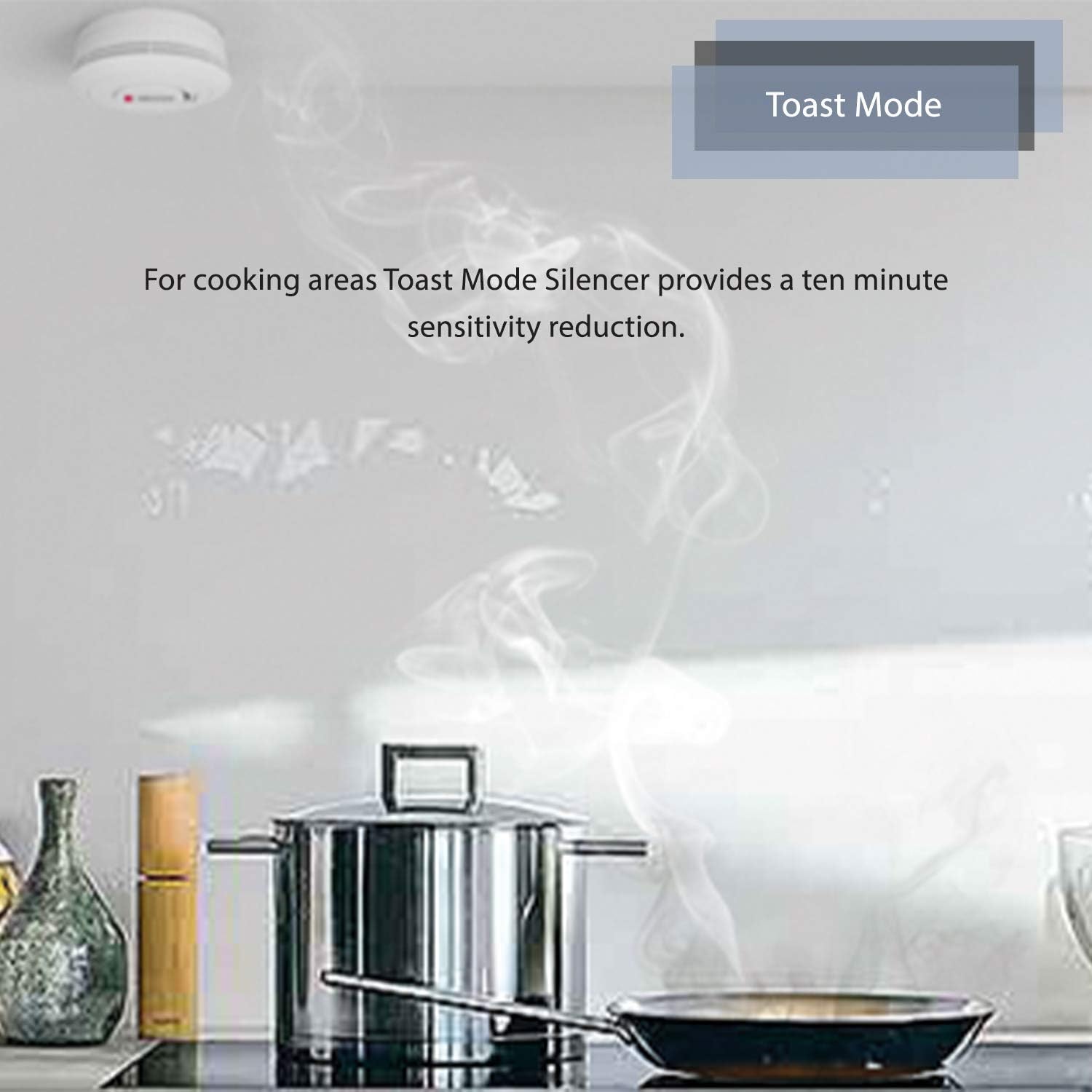

Image: A kitchen setting with the smoke alarm installed, illustrating the use of "Toast Mode" to reduce sensitivity during cooking.
7. જાળવણી
૫.૩ નિયમિત પરીક્ષણ
Test the smoke alarm transmitter weekly by pressing the Test & Silence button. Ensure your paired Visit receiver responds correctly.
7.2 સફાઈ
Clean the exterior of the smoke alarm transmitter at least once a month using a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Do not open the unit for cleaning.
7.3 બેટરી રિપ્લેસમેન્ટ
The smoke alarm transmitter is designed for long battery life (up to 10 years). When the battery is low, the unit will typically indicate this with a specific LED flash pattern or a signal to the Visit receiver. Replace the battery immediately when indicated. Refer to the product's internal markings for the correct battery type (usually a non-rechargeable lithium battery).
- Twist the smoke alarm counter-clockwise to remove it from its mounting plate.
- બેટરી કમ્પાર્ટમેન્ટ ખોલો.
- જૂની બેટરી દૂર કરો અને સ્થાનિક નિયમો અનુસાર તેનો નિકાલ કરો.
- યોગ્ય ધ્રુવીયતા સુનિશ્ચિત કરીને, નવી બેટરી દાખલ કરો.
- Close the battery compartment and reattach the smoke alarm to its mounting plate.
- Perform a test as described in Section 6.1.
8. મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| No alert from Visit receiver during test. | Not paired, out of range, receiver off/faulty. | Ensure receiver is on. Re-pair the transmitter with the receiver. Move transmitter closer to receiver. Check receiver's manual. |
| Frequent nuisance alarms. | Installed too close to cooking areas, steam, or dust. | Relocate the smoke alarm. Use "Toast Mode" during cooking. Clean the unit. |
| ઓછી બેટરીનો સંકેત. | બેટરી ખતમ થઈ ગઈ છે. | Replace the battery immediately as per Section 7.3. |
| Smoke alarm not securely mounted. | અયોગ્ય સ્થાપન. | Ensure the unit is twisted clockwise until it clicks firmly onto the mounting plate. Re-secure mounting plate if loose. |
9. સ્પષ્ટીકરણો
| મોડલ નંબર: | BE1284-433 |
| બ્રાન્ડ: | બેલમેન અને સિમ્ફોન |
| પાવર સ્ત્રોત: | Battery Powered (specific type may vary, check unit) |
| પરિમાણો (H x W x D): | ૧૨.૭" x ૫.૩" x ૭.૪" (૩૨૩ મીમી x ૧૩૫ મીમી x ૧૮૭ મીમી) |
| વજન (બેટરી સહિત): | 0.41 પાઉન્ડ (185 ગ્રામ) |
| રેડીઓ તરંગ: | 433 MHz (for Visit System) |
| ઓપરેટિંગ રેન્જ: | Up to 520 ft (150-200 m) line of sight, depending on building structure. |
| પ્રમાણપત્રો: | Certified to US safety standard UL217 |
10. વોરંટી અને સપોર્ટ
10.1 30-Day Money Back Guarantee
Bellman & Symfon offers a risk-free refund for all products within 30 days of purchase. If you are not satisfied with your product, please contact customer support for assistance.
10.2 ગ્રાહક સપોર્ટ
For any questions, technical assistance, or support regarding your Bellman & Symfon product, please contact us:
- ટોલ-ફ્રી: (833) BELLMAN / (833) 235 5626
- ઈમેલ: support.bsn@bellman.com
