Glem Gas 58.5 cm 4 Burner Gas Hob (Model GTL64IX) Instruction Manual

1. મહત્વપૂર્ણ સલામતી માહિતી

Please read this manual carefully before installing or using your Glem Gas hob. Keep these instructions for future reference. Incorrect installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Consult a qualified installer, service agency, or the gas supplier for assistance.

• ગેસ સલામતી: Ensure proper ventilation. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. If you smell gas, follow the instructions in the "Troubleshooting" section immediately.
• ઇલેક્ટ્રિકલ સલામતી: If the hob has electric ignition, ensure it is properly grounded. Do not operate the appliance with wet hands.
• બર્ન હેઝાર્ડ: The hob surface and surrounding areas become hot during use. Do not touch hot surfaces. Use oven mitts.
• બાળકોની સુરક્ષા: Keep children away from the appliance during operation. Do not allow children to play with the controls.
• સામાન્ય ઉપયોગ: Use only for cooking purposes. Do not use as a space heater. Do not leave the appliance unattended during operation.

2. ઉત્પાદન ઓવરview

The Glem Gas GTL64IX is a 58.5 cm gas hob featuring four burners and convenient side controls. It is designed for efficient and reliable cooking.

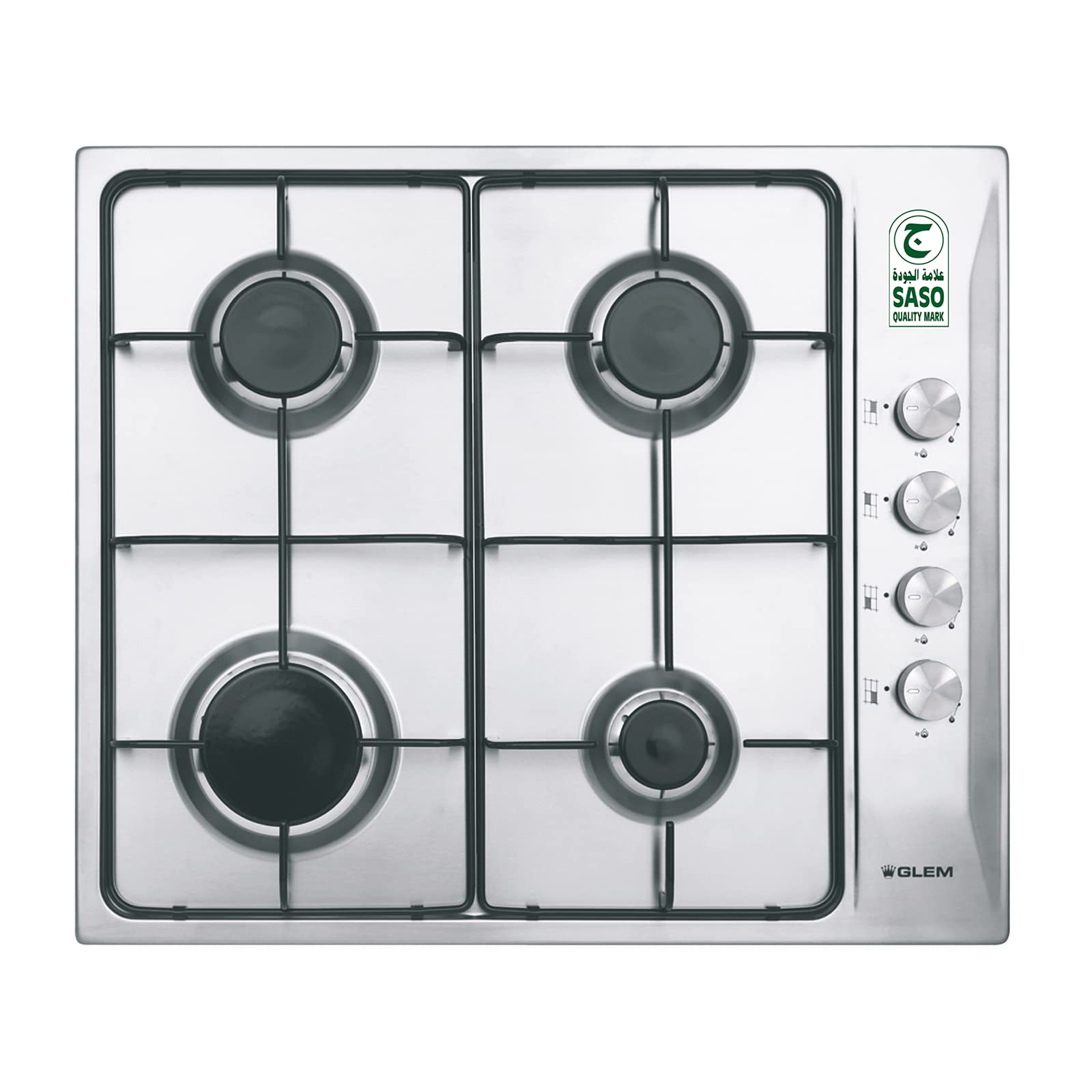

છબી: ઉપરથી નીચે સુધી view of the Glem Gas 4-burner gas hob, showing the stainless steel surface, four burner grates, and control knobs located on the right side.

છબી: ક્લોઝ-અપ view of the Glem Gas hob, highlighting the stainless steel finish, a burner with its black cap, and the metallic control knobs with flame indicators.

3. સ્થાપન અને સેટઅપ

Installation of this gas hob must be carried out by a qualified and authorized technician in accordance with local regulations and standards. Improper installation can lead to hazards.

3.1 અનપેકિંગ

• હોબને તેના પેકેજિંગમાંથી કાળજીપૂર્વક દૂર કરો.
• Check for any damage during transit. Report any damage to your supplier immediately.
• Ensure all components are present: hob unit, burner caps, burner grates, and instruction manual.

૩.૧ પરિમાણો અને કટ-આઉટ

Refer to the diagram below for precise dimensions and the required cut-out size for installation into your countertop.

Image: Technical diagram showing the dimensions of the Glem Gas hob (58.5 cm width, 50 cm depth, 3 cm height) and the required countertop cut-out dimensions (56 cm width, 48 cm depth). All measurements are in centimeters.

• Product Dimensions: 58.5 cm (Width) x 50 cm (Depth) x 3 cm (Height)
• Cut-out Dimensions: 56 cm (Width) x 48 cm (Depth)

3.3 ગેસ કનેક્શન

The hob is designed for natural gas. Ensure the gas supply pressure is compatible with the appliance. A flexible gas hose or rigid pipe connection must be used according to local regulations. Always check for gas leaks after connection using a soapy water solution, never an open flame.

3.4 Electrical Connection (for Ignition)

If your model includes electric ignition, connect the power cord to a properly grounded electrical outlet. Ensure the voltage and frequency match the appliance's requirements (typically 220-240V, 50/60Hz).

4. ઓપરેટિંગ સૂચનાઓ

This section describes how to safely and effectively use your Glem Gas hob.

૫.૧ બર્નર સળગાવવું

1. Place a suitable cooking utensil on the burner grate.
2. નીચે દબાવો અને અનુરૂપ નિયંત્રણ નોબને ઘડિયાળની વિરુદ્ધ દિશામાં મહત્તમ જ્યોત સ્થિતિ (મોટી જ્યોત પ્રતીક) પર ફેરવો.
3. Hold the knob down for a few seconds until the flame ignites and stabilizes. If the flame goes out, repeat the process.
4. Once ignited, release the knob.

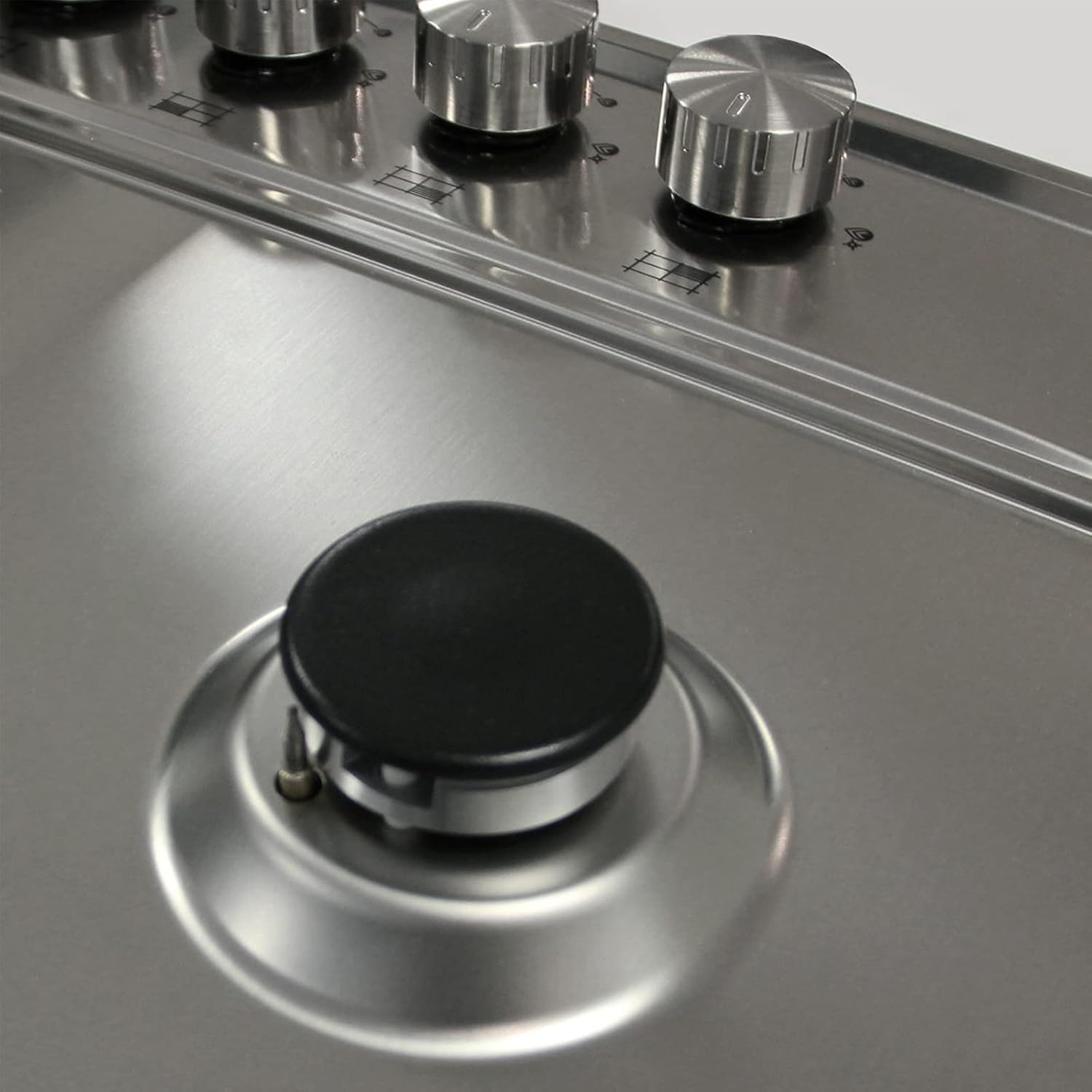

છબી: ક્લોઝ-અપ view of the metallic control knobs on the Glem Gas hob, showing the symbols for ignition, maximum flame, and minimum flame settings.

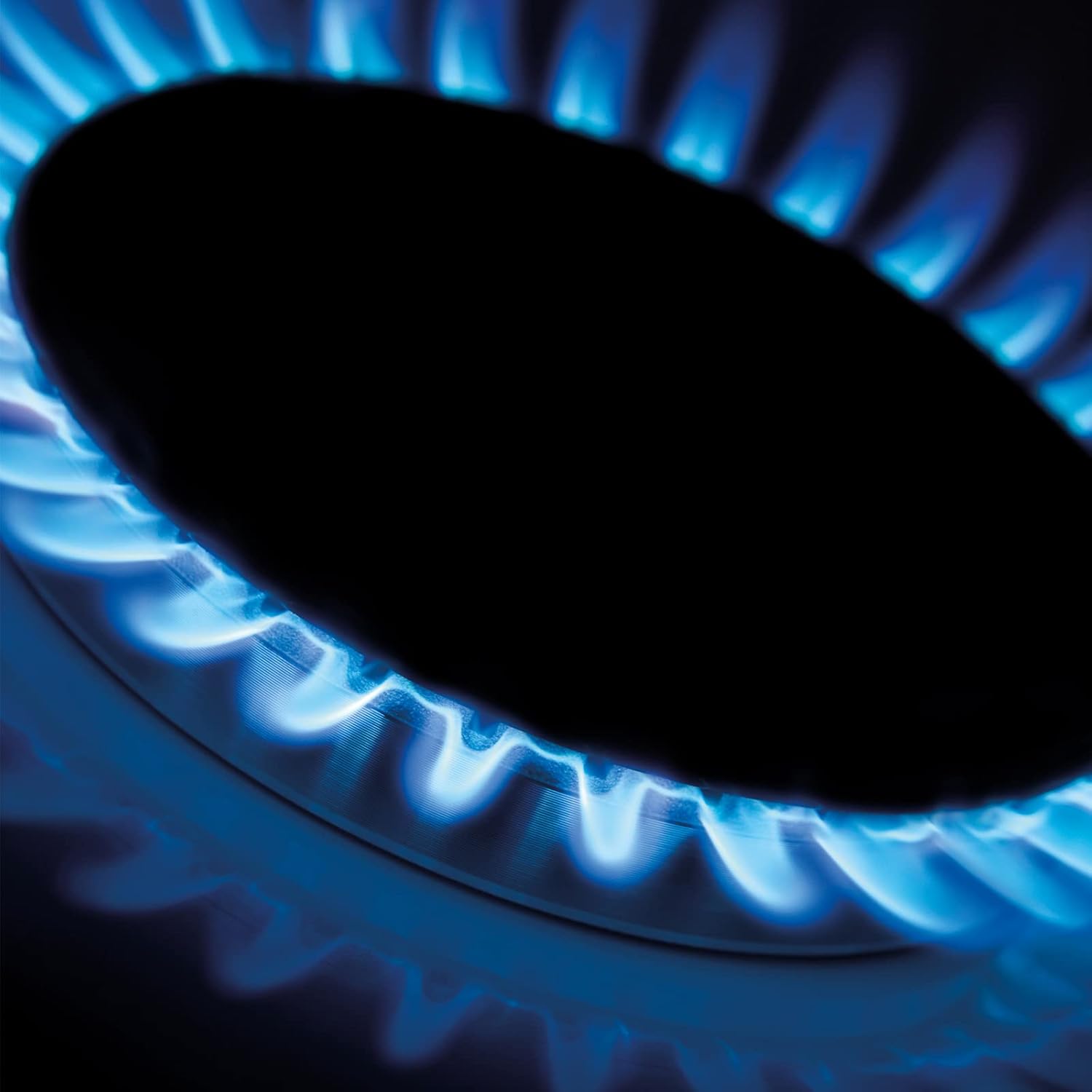

Image: Close-up of a Glem Gas hob burner in operation, showing a stable blue flame indicating proper gas combustion.

૫.૨ જ્યોતનું સમાયોજન

After ignition, you can adjust the flame size by turning the control knob between the maximum and minimum flame positions (small flame symbol). For simmering, use the minimum flame setting.

૫.૩ બર્નર બંધ કરવું

To turn off a burner, turn the control knob clockwise until it clicks into the "off" position (dot symbol). Ensure the flame is completely extinguished.

5. જાળવણી અને સફાઈ

નિયમિત સફાઈ અને જાળવણી તમારા હોબની ટકાઉપણું અને શ્રેષ્ઠ કામગીરી સુનિશ્ચિત કરશે.

5.1 સામાન્ય સફાઈ

• સફાઈ કરતા પહેલા હંમેશા ખાતરી કરો કે હોબ ઠંડુ છે.
• Use a soft cloth and mild detergent for the stainless steel surface. Avoid abrasive cleaners or scouring pads, which can scratch the surface.
• સ્ટેનિંગ અટકાવવા માટે તરત જ સ્પિલ્સ સાફ કરો.

૬.૨ બર્નરના ઘટકોની સફાઈ

છબી: ક્લોઝ-અપ view of a Glem Gas hob burner with the grate removed, showing the burner cap and base, ready for cleaning.

• Remove the burner grates and burner caps when cool.
• Wash them with warm soapy water. For stubborn stains, a non-abrasive cleaner can be used.
• Ensure all parts are completely dry before reassembling them. Moisture can interfere with ignition.
• Periodically check the burner holes for blockages and clean them gently with a small brush if necessary.

6. મુશ્કેલીનિવારણ

જો તમને તમારા હોબમાં સમસ્યાઓ આવે, તો સેવાનો સંપર્ક કરતા પહેલા નીચેની સામાન્ય સમસ્યાઓ અને ઉકેલોનો સંદર્ભ લો.

7. સ્પષ્ટીકરણો

Detailed technical specifications for the Glem Gas GTL64IX hob.

• બ્રાન્ડ: Glem Gas
• મોડલ: GTL64IX
• ઉત્પાદન પરિમાણો: ૪૩.૩ x ૨૪.૬ x ૩૭.૧ સેમી (ઊંડાઈ x પહોળાઈ x ઊંચાઈ)
• વજન: 8.12 કિલોગ્રામ
• ઇન્સ્ટોલેશન પ્રકાર: બિલ્ટ-ઇન હોબ
• હોબ પ્રકાર: ગેસ
• Number of Heating Elements/Burners: 4
• રંગ: ચાંદી
• બળતણનો પ્રકાર: નેચરલ ગેસ
• સામગ્રી: સ્ટેનલેસ સ્ટીલ
• ઇગ્નીશન સિસ્ટમનો પ્રકાર: Manual Gas Pilot Light
• નિયંત્રણ પ્રકાર: નોબ

8. વોરંટી અને સપોર્ટ

For warranty information, please refer to the warranty card included with your product or contact your retailer. For technical support or service, please contact Glem Gas customer service or an authorized service center. Ensure you have your model number (GTL64IX) and purchase date available when contacting support.

You can find more information on the official Glem Gas webસાઇટ પર અથવા તમારા સ્થાનિક વિતરક દ્વારા.
