Retekess TR624 Portable AM/FM Radio Instruction Manual

1. સલામતી માહિતી

• Do not expose the radio to water or excessive moisture.
• અતિશય તાપમાન ટાળો.
• Do not disassemble the unit. Refer servicing to qualified personnel.
• Use only specified AAA batteries. Ensure correct polarity during installation.
• Prolonged listening at high volume levels can cause hearing damage. Adjust volume to a comfortable level.

2. ઉત્પાદન ઓવરview

The Retekess TR624 is a compact AM/FM radio designed for portability. Its transparent casing allows visibility of internal components. It operates on AAA batteries and includes a pair of crystal-clear headphones.

Figure 2.1: Retekess TR624 Portable AM/FM Radio with clear casing and included headphones. The radio features a transparent casing, allowing visibility of its internal components. It includes a detachable back clip and comes with crystal-clear headphones.

2.1. ઘટકો અને નિયંત્રણો

Figure 2.2: Labeled controls of the Retekess TR624 radio. This diagram illustrates the key controls: the frequency selection dial, AM/FM band switch, volume knob, and power on/off switch. A removable back clip is also highlighted.

• Frequency Selection Dial: Used to tune into radio stations.
• Band Selection Switch (FM/AM): Toggles between FM and AM radio bands.
• વોલ્યુમ નોબ: ઑડિઓ આઉટપુટ સ્તરને સમાયોજિત કરે છે.
• પાવર ચાલુ/બંધ સ્વિચ: રેડિયો ચાલુ અથવા બંધ કરે છે.
• હેડફોન જેક (3.5 મીમી): For connecting the included headphones.
• Detachable Back Clip: For attaching the radio to clothing or a belt.
• બેટરી કમ્પાર્ટમેન્ટ: બે AAA બેટરી ધરાવે છે.

3. સેટઅપ

3.1. બેટરી ઇન્સ્ટોલેશન

1. રેડિયોની પાછળ બેટરી કમ્પાર્ટમેન્ટ કવર શોધો.
2. કવર ખોલીને સ્લાઇડ કરો.
3. Insert two (2) AAA batteries, ensuring the positive (+) and negative (-) terminals match the indicators inside the compartment.
4. બેટરી કમ્પાર્ટમેન્ટ કવર સુરક્ષિત રીતે બંધ કરો.

Figure 3.1: Battery compartment with AAA batteries. The battery compartment is located at the bottom of the radio. Insert two AAA batteries, ensuring correct polarity.

3.2. હેડફોન કનેક્શન

The Retekess TR624 radio does not have an internal speaker and requires headphones for audio output. The included headphones also serve as the FM antenna.

1. Insert the 3.5mm plug of the headphones into the headphone jack located on the side of the radio.
2. For optimal FM reception, extend the headphone cable as much as possible.

Figure 3.2: Headphone jack with connected headphones. Connect the included 3.5mm headphones to the headphone jack on the side of the radio. The headphone cable also functions as the FM antenna.

4. ઓપરેશન

4.1. પાવર ચાલુ/બંધ

સ્લાઇડ કરો પાવર ચાલુ/બંધ switch to the 'ON' position to turn on the radio. Slide it to 'OFF' to power down the unit.

4.2. Band Selection (AM/FM)

નો ઉપયોગ કરો Band Selection Switch to choose between the AM (Ampલિટ્યુડ મોડ્યુલેશન) અને એફએમ (ફ્રિકવન્સી મોડ્યુલેશન) રેડિયો બેન્ડ.

4.3. ટ્યુનિંગ

ફેરવો Frequency Selection Dial to scan for available radio stations. The dial displays the frequency range for both AM and FM bands.

Figure 4.1: Tuning dial for AM and FM frequencies. The tuning dial displays both AM (520-1710 KHz) and FM (87-108 MHz) frequency ranges. Rotate the tuning wheel to find your desired station.

4.4. વોલ્યુમ ગોઠવણ

ચાલુ કરો વોલ્યુમ નોબ up or down to adjust the listening volume through the headphones.

5. જાળવણી

5.1. સફાઈ

Wipe the radio's exterior with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.

5.2. સંગ્રહ

When not in use for extended periods, remove the batteries to prevent leakage. Store the radio in a cool, dry place away from direct sunlight.

5.3. બેટરી રિપ્લેસમેન્ટ

Replace batteries when audio becomes distorted or the radio fails to power on. Follow the battery installation steps in Section 3.1.

6. મુશ્કેલીનિવારણ

7. સ્પષ્ટીકરણો

• મોડલ: TR624
• પરિમાણો: ૧૫.૫૧"લિ x ૧.૦૬"પાઉટ x ૪.૬૯"ઊંચાઈ (૩૯૪ મીમી x ૨૭ મીમી x ૧૧૯ મીમી)
• વજન: ૩.૫૨ ઔંસ (આશરે ૧૦૦ ગ્રામ)
• પાવર સ્ત્રોત: 2 x AAA બેટરી (શામેલ નથી)
• એફએમ ફ્રિકવન્સી રેંજ: 87-108 MHz
• AM આવર્તન શ્રેણી: 520-1710 KHz
• હેડફોન જેક: 3.5 મીમી

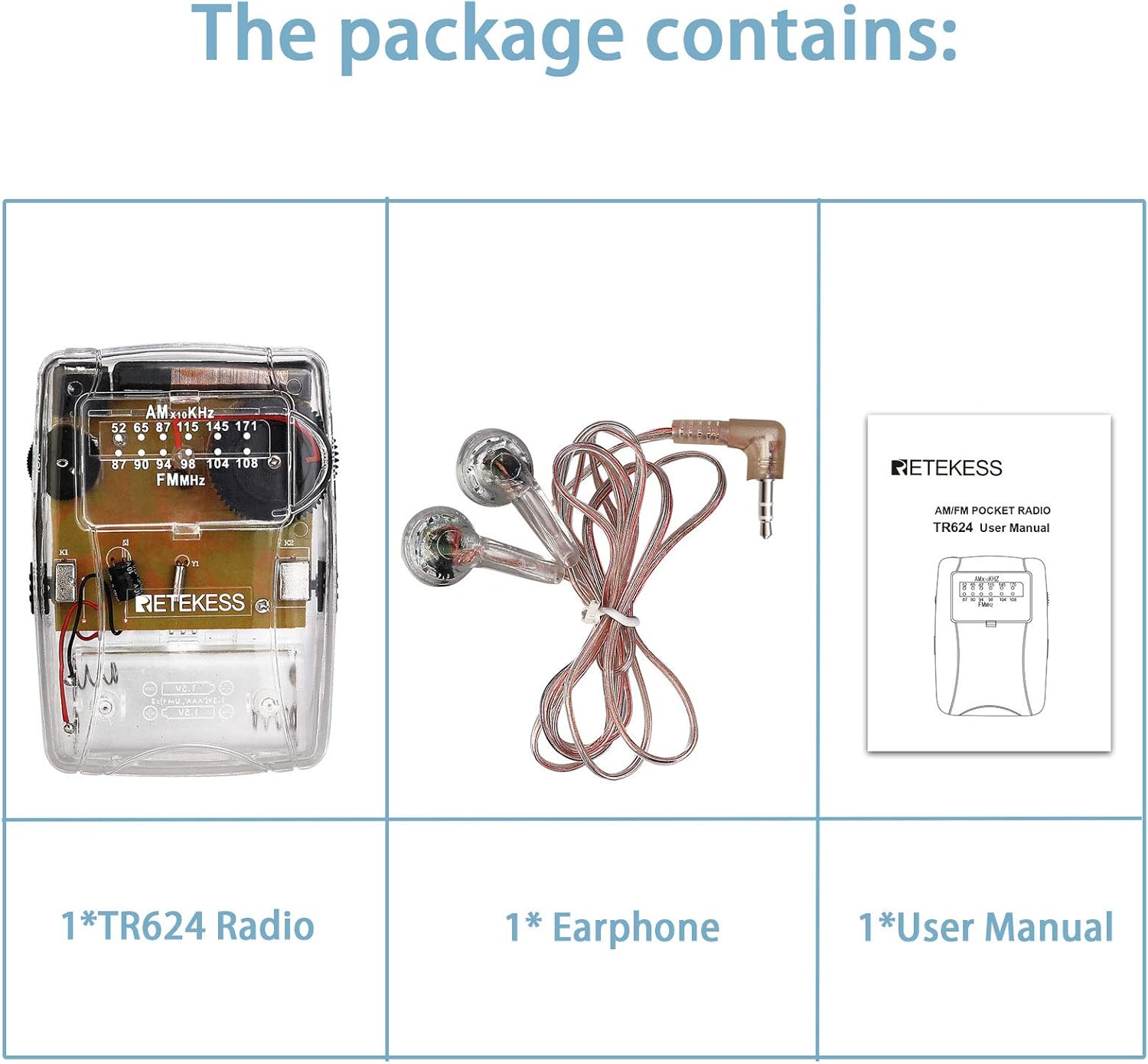

• સમાવાયેલ ઘટકો: TR624 Radio, Headphone, English user manual

8. સત્તાવાર ઉત્પાદન વિડિઓ

For a visual guide on the Retekess TR624 radio, please watch the official product video below.

9. વોરંટી અને સપોર્ટ

Retekess products are designed for reliability and performance. This product comes with a standard warranty. For detailed warranty information or technical support, please refer to the contact information provided with your purchase or visit the official Retekess webસાઇટ

વધુ સહાય માટે, કૃપા કરીને ગ્રાહક સપોર્ટનો સંપર્ક કરો.
