1. સલામતી સૂચનાઓ
Please read these instructions carefully before installing or operating the Steinel LS 150 LED Outdoor Floodlight. Keep this manual for future reference.
- ઇલેક્ટ્રિકલ સલામતી: Installation must be performed by a qualified electrician in accordance with national wiring regulations and local electrical codes. Ensure the power supply is disconnected before installation or maintenance.
- ભાગtage: This product operates on 220-240 V / 50-60 Hz.
- IP44 રેટિંગ: The floodlight is protected against splashing water from all directions. It is suitable for outdoor use but should not be submerged in water.
- ઉષ્મા: The LED light source can become hot during operation. Do not touch the light surface directly when in use.
- પ્રકાશ સ્ત્રોત: The LED light source is not replaceable by the user. Do not attempt to open the LED module.
2. ઉત્પાદન ઓવરview
The Steinel LS 150 is a robust LED outdoor floodlight designed to provide bright, neutral white illumination for various outdoor areas such as garages, gardens, patios, and driveways. Its durable aluminum construction ensures longevity and resistance to outdoor elements.
Image 2.1: The Steinel LS 150 LED Outdoor Floodlight in white, showcasing its adjustable head and compact design.
Key features include a highly adjustable light head and a long-lasting integrated LED system.

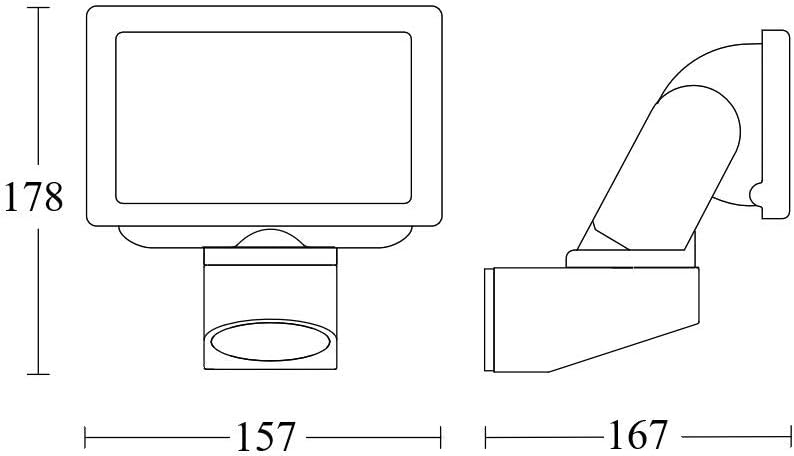

Image 2.2: Technical drawing illustrating the dimensions of the Steinel LS 150 floodlight (measurements in millimeters).
3. સેટઅપ અને ઇન્સ્ટોલેશન
The LS 150 floodlight is designed for wall mounting. Ensure the mounting surface is stable and capable of supporting the fixture's weight.
- તૈયારી: Disconnect the main power supply before beginning installation. Identify the desired mounting location, ensuring it is suitable for outdoor electrical fixtures.
- માઉન્ટ કરવાનું: Use the provided mounting hardware to securely attach the floodlight's base to the wall. Refer to the dimensions in Image 2.2 for proper placement.
- ઇલેક્ટ્રિકલ કનેક્શન: Connect the floodlight to a 220-240 V / 50-60 Hz power supply. Ensure all connections are secure and properly insulated according to electrical safety standards.
- Adjusting the Head: Once mounted, the floodlight head can be adjusted. It offers 80° horizontal and 150° vertical rotation to direct light as needed.
The package includes mounting material and an instruction manual.
4. ઓપરેટિંગ સૂચનાઓ
The Steinel LS 150 floodlight operates via a standard electrical switch. It does not include an integrated motion detector.
- પાવર ચાલુ/બંધ: Use a conventional wall switch to turn the floodlight on or off.
- પ્રકાશ ગોઠવણ: The floodlight head can be manually adjusted to illuminate specific areas. The head can be rotated 80 degrees horizontally and 150 degrees vertically.
Image 4.1: The Steinel LS 150 floodlight providing illumination for an outdoor path and garden area at night.
Image 4.2: The Steinel LS 150 floodlight effectively lighting a garage entrance and surrounding area.
5. જાળવણી
The Steinel LS 150 LED Outdoor Floodlight is designed for minimal maintenance.
- એલઇડી લાઇફટાઇમ: The integrated LED system has an average lifespan of 50,000 hours, which means approximately 30 years of use at 4.5 hours per day. This eliminates the need for frequent bulb replacement.
- સફાઈ: To clean the floodlight, ensure the power supply is disconnected. Wipe the exterior with a soft, damp કાપડ. ઘર્ષક ક્લીનર્સ અથવા સોલવન્ટ્સનો ઉપયોગ કરશો નહીં, કારણ કે આ ફિનિશ અથવા ઇલેક્ટ્રિકલ ઘટકોને નુકસાન પહોંચાડી શકે છે.
- નિરીક્ષણ: Periodically inspect the floodlight for any signs of damage to the housing, wiring, or mounting. If any damage is observed, disconnect power and consult a qualified electrician for repair or replacement.
6. મુશ્કેલીનિવારણ
If you encounter issues with your Steinel LS 150 LED Outdoor Floodlight, consider the following common troubleshooting steps:
- લાઇટ ચાલુ થતી નથી:
- Check the main power supply and ensure the circuit breaker has not tripped.
- Verify that the wall switch controlling the floodlight is in the 'ON' position.
- Inspect the electrical connections at the floodlight for any loose wires (only if you are a qualified electrician and have disconnected power).
- મંદ અથવા ઝબકતો પ્રકાશ:
- ખાતરી કરો કે વીજ પુરવઠો સ્થિર છે.
- If the issue persists, contact customer support or a qualified electrician.
For problems not resolved by these steps, please contact Steinel customer support.
7. સ્પષ્ટીકરણો
| બ્રાન્ડ | સ્ટીનલ |
| મોડેલનું નામ | એલએસ 150 |
| મોડલ નંબર | 069223 |
| પરિમાણો (L x W x H) | 16.7 x 15.7 x 17.8 સેમી |
| વજન | 810 ગ્રામ |
| પાવર વપરાશ | 14.7 વોટ્સ |
| તેજસ્વી પ્રવાહ | 1375 એલએમ |
| રંગ તાપમાન | ૩૫૦૦ કેલ્વિન (તટસ્થ સફેદ) |
| કલર રેન્ડરિંગ ઇન્ડેક્સ (CRI) | 89 |
| પ્રોટેક્શન રેટિંગ | IP44 |
| સામગ્રી | એલ્યુમિનિયમ |
| સરેરાશ જીવનકાળ | 50,000 કલાક |
| ભાગtage | 220 - 240 વી |
| ઇન્સ્ટોલેશનનો પ્રકાર | વોલ માઉન્ટ |
| શૈલી | Without motion detector |
8. વોરંટી અને સપોર્ટ
For warranty information, please refer to the documentation provided with your purchase or visit the official Steinel website. Steinel products are known for their quality and durability.
- ફાજલ ભાગો: સ્પેરપાર્ટ્સની ઉપલબ્ધતા અંગેની માહિતી હાલમાં ઉપલબ્ધ નથી.
- સૉફ્ટવેર અપડેટ્સ: Information regarding guaranteed software updates is currently unavailable.
For technical support or further inquiries, please contact Steinel customer service through their official channels.
