1. પરિચય
The Chuango SPS-260 Solar Wireless Siren is an essential component of your Chuango smart home security system, designed to provide robust outdoor deterrence and alert capabilities. This siren operates wirelessly and is powered by solar energy, ensuring continuous operation with minimal maintenance. It is crucial to note that this siren functions as an accessory and requires connection to a compatible Chuango central alarm system or sensor to operate.
મુખ્ય લક્ષણો:
- સૌર-સંચાલિત કાર્યક્ષમતા: Equipped with solar panels for constant charging, reducing reliance on external power sources.
- High-Performance Alarm: Emits a penetrating 110dB sound and features a red strobe light to effectively deter intruders and alert neighbors.
- હવામાન પ્રતિરોધક ડિઝાઇન: IP55 rated, making it suitable for outdoor installation and resistant to various weather conditions.
- Reliable Wireless Communication: Utilizes direct device communication (433 MHz) for stable and immediate alarm activation.
- Extended Backup Battery: Internal backup battery provides power for up to 45 days without direct sunlight, ensuring continuous protection.
2. ઉત્પાદન ઘટકો
Before installation, please ensure all components are present and undamaged:
- Chuango SPS-260 Solar Wireless Siren x 1
- 3.7V 18650 Rechargeable Battery x 1
- 9V6F22 Alkaline Battery x 1
- માઉન્ટિંગ સ્ક્રૂ અને વોલ પ્લગ
Image: The Chuango SPS-260 Solar Wireless Siren, showcasing its compact design with a solar panel at the top and a red strobe light section at the bottom.
3. સેટઅપ અને ઇન્સ્ટોલેશન
3.1 બેટરી ઇન્સ્ટોલેશન
- Carefully open the battery compartment located on the back of the siren.
- Insert the 3.7V 18650 rechargeable battery into its designated slot, ensuring correct polarity.
- Insert the 9V6F22 alkaline battery into its slot, ensuring correct polarity.
- બેટરીના ડબ્બાને સુરક્ષિત રીતે બંધ કરો.
3.2 Mounting the Siren
Choose a suitable outdoor location for the siren, ideally where it receives ample direct sunlight throughout the day for optimal solar charging. Ensure the mounting surface is stable and secure.
- Mark the desired drilling points on the wall using the siren's mounting bracket as a template.
- Drill holes at the marked points and insert the wall plugs.
- Secure the siren to the wall using the provided screws.

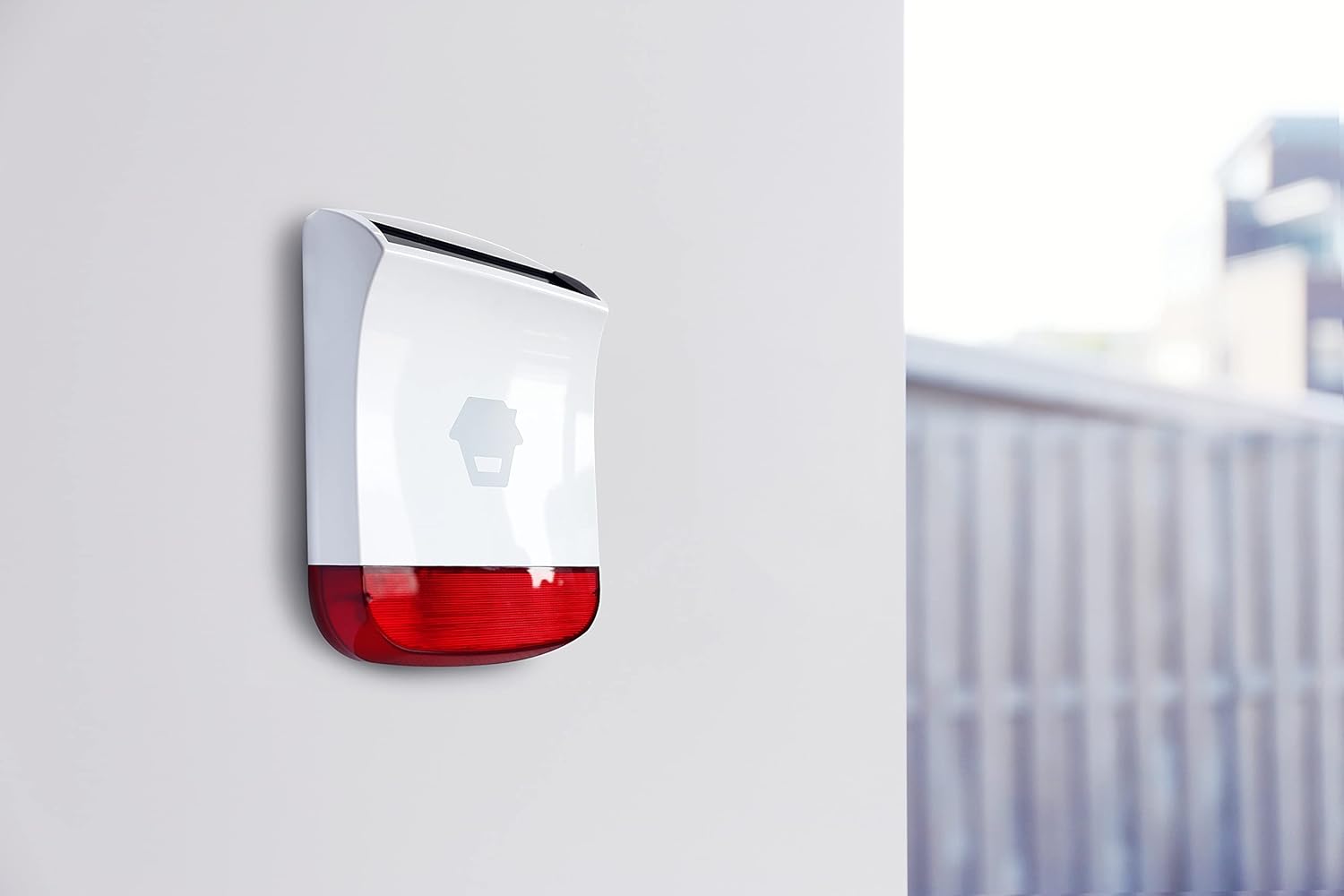

Image: The solar siren mounted on an exterior wall, illustrating its discreet yet effective placement.
3.3 Pairing with Alarm System
The SPS-260 siren must be paired with a Chuango central alarm panel or compatible sensors to function correctly. Refer to your main alarm system's manual for specific pairing instructions. Generally, the process involves putting the alarm panel into pairing mode and then activating the siren to establish a connection.
Image: An illustrative diagram demonstrating how the solar siren integrates with other Chuango security components within a home environment.
4. ઓપરેટિંગ સૂચનાઓ
4.1 એલાર્મ સક્રિયકરણ
Once paired, the SPS-260 siren will automatically activate when the connected Chuango alarm system detects an intrusion or when a paired sensor is triggered. The siren will emit a loud 110dB sound and flash its red strobe light simultaneously to alert occupants and deter intruders.

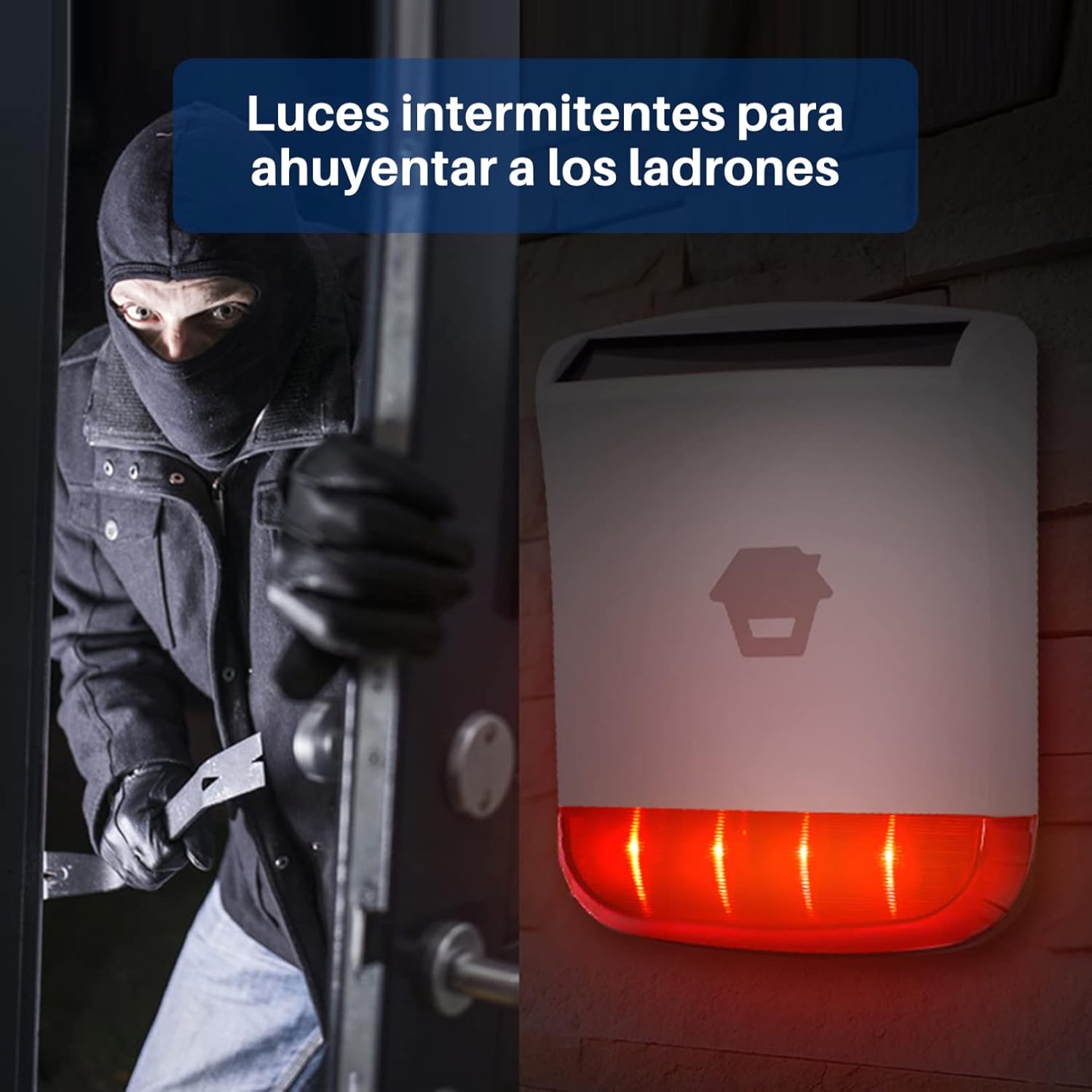

Image: The siren's flashing lights actively deterring a potential intruder, highlighting its visual alarm capability.
4.2 Solar Charging and Backup Power
The integrated solar panel continuously charges the internal 3.7V 18650 rechargeable battery during daylight hours. This ensures the siren remains powered even during extended periods without direct sunlight, with the backup battery capable of lasting approximately 45 days. If the battery level becomes critically low, the siren may reduce its flash frequency as a reminder.
Image: The siren's solar charging capability and long-lasting backup battery, ensuring reliable operation.
5. જાળવણી
5.1 સફાઈ
Periodically clean the solar panel and the siren's exterior with a soft, damp cloth to remove dust, dirt, or debris that may obstruct sunlight or affect performance. Do not use abrasive cleaners or solvents.
5.2 Battery Health
While the solar panel maintains the rechargeable battery, it is advisable to occasionally check the siren's operational status, especially after prolonged cloudy periods. If the siren's performance seems diminished, ensure it receives adequate sunlight or consider replacing the 9V6F22 alkaline battery if necessary.
5.3 હવામાન સંરક્ષણ
The siren is designed for outdoor use with an IP55 rating, providing protection against dust and low-pressure water jets. However, avoid submerging the device in water or exposing it to extreme weather conditions beyond its specified operating limits.
Image: The siren demonstrating its weather-resistant capabilities, suitable for various outdoor environments.
6. મુશ્કેલીનિવારણ
6.1 Siren Not Activating
- બેટરી સ્તર તપાસો: Ensure both the rechargeable and alkaline batteries are properly installed and sufficiently charged.
- Verify Pairing: Confirm that the siren is correctly paired with your Chuango central alarm system or the triggering sensor. Refer to your alarm system's manual for re-pairing instructions.
- સેન્સર કાર્યક્ષમતા: Ensure the sensors linked to the siren are functioning correctly and are not experiencing any issues.
- સિગ્નલ હસ્તક્ષેપ: Check for potential sources of wireless interference near the siren or alarm panel.
6.2 Siren Activates Randomly
- ખોટા એલાર્મ્સ: Identify if any connected sensors are causing false alarms due to improper placement or sensitivity settings.
- સિસ્ટમ સેટિંગ્સ: Review your alarm system's settings to ensure there are no configurations that might inadvertently trigger the siren.
- પર્યાવરણીય પરિબળો: Extreme weather conditions or strong electromagnetic fields might rarely cause erratic behavior.
6.3 Low Battery Life / Inconsistent Charging
- સૂર્યપ્રકાશ એક્સપોઝર: Ensure the solar panel receives adequate direct sunlight throughout the day. Trim any overhanging branches or clear obstructions.
- Panel Cleanliness: Clean the solar panel regularly to ensure maximum light absorption.
- બેટરી આરોગ્ય: If the rechargeable battery is old, its capacity may have degraded. Consider replacing it if issues persist despite good sunlight exposure.
7. સ્પષ્ટીકરણો
| લક્ષણ | વિગત |
|---|---|
| મોડલ નંબર | CGA-1003-SP |
| પાવર સ્ત્રોત | સૌર ઉર્જા |
| બેટરીનો પ્રકાર | 3.7V 18650 Rechargeable, 9V6F22 Alkaline |
| ભાગtage | 3.7 વોલ્ટ |
| અવાજ સ્તર | 110 ડીબી |
| વાયરલેસ આવર્તન | 433 MHz |
| માઉન્ટિંગ પ્રકાર | વોલ માઉન્ટ |
| મહત્તમ શ્રેણી | ૧૦ ફૂટ (આશરે ૩ મીટર) |
| આઇપી રેટિંગ | IP55 (Weather-resistant) |
| ઉત્પાદન પરિમાણો | 32.8l x 23.6w x 8.4h cm (approx. 10 x 10 x 10 cm) |
| ઉત્પાદન વજન | 1.33 કિગ્રા |
| રંગ | સફેદ |
| સુસંગત ઉપકરણો | Chuango Central Alarms and Sensors |
Image: Detailed dimensions of the solar siren for accurate installation planning.
8. વોરંટી અને સપોર્ટ
For warranty information, please refer to the documentation provided with your original purchase or visit the official Chuango website. Chuango products typically come with a manufacturer's warranty covering defects in materials and workmanship.
For technical support, troubleshooting assistance beyond this manual, or inquiries about compatible accessories, please contact Chuango customer service through their official website or the contact information provided in your product packaging. Always provide your product model number (CGA-1003-SP) and purchase details when seeking support.
