Dcorn DMR-07 7-inch HDMI Digital Microscope User Manual

પરિચય

This manual provides detailed instructions for the setup, operation, and maintenance of your Dcorn DMR-07 7-inch HDMI Digital Microscope. Designed for a wide range of applications, from coin inspection to circuit board repair, this microscope offers up to 1300X magnification and a 16MP camera for clear, detailed viewing. Please read this manual thoroughly before using the device to ensure proper functionality and longevity.

પેકેજ સામગ્રી

ખાતરી કરો કે નીચે સૂચિબદ્ધ બધી વસ્તુઓ તમારા પેકેજમાં શામેલ છે:

• 7-inch LCD Display Microscope
• ધાતુનો આધાર
• મેટલ સ્ટેન્ડ
• 3 Guidebooks (e.g., A Guide to Coin Collection, How to Solder)
• વાયરલેસ રીમોટ કંટ્રોલ
• HDMI કેબલ
• 32 જીબી ટીએફ કાર્ડ
• પ્રકાશ અવરોધ
• ભેટ બોક્સ
• Extension Tube (4.7 inches)
• ચાર્જર
• વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)

સેટઅપ

1. Assembling the Stand and Microscope

1. Attach the metal stand to the metal base. Secure it firmly using the provided knob.
2. Mount the microscope unit onto the adjustable bracket on the metal stand. Ensure it is securely fastened.
3. If extended working distance is required, insert the 4.7-inch extension tube between the microscope lens and the main body. This allows for a wider field of view, ideal for observing entire coins.

2. Connecting External LED Lights

The two external LED lights provide additional illumination for your specimens. Connect the Type-C end of the light cables to the USB output ports on the microscope base.

3. પાવરિંગ ચાલુ

Connect the power adapter to the microscope and a power outlet. Press the 'POWER' button on the microscope to turn it on. The 7-inch LCD display will illuminate.

4. Video: How to Install

વિડિઓ 1: A step-by-step guide demonstrating the physical assembly of the Dcorn DMR-07 Digital Microscope, including attaching the stand, microscope unit, and optional extension tube.

ઓપરેટિંગ સૂચનાઓ

1. મૂળભૂત Viewing અને ફોકસિંગ

1. Place the specimen on the observation platform.
2. Adjust the height of the microscope unit using the knob on the stand until the specimen appears on the screen.
3. Rotate the focus wheel on the microscope body to achieve a clear and sharp image.

2. LED લાઇટ્સનું સમાયોજન

The microscope features built-in LEDs and two adjustable side lights. The side lights are controlled via touch-sensitive areas on the base.

• Built-in LEDs: These provide primary illumination.
• Side Lights: Touch the designated areas on the base to turn the side lights on/off and adjust their brightness. These are useful for reducing glare and enhancing contrast on reflective surfaces.

3. Video: 10 LEDs - Touch Control

વિડિઓ 2: Demonstration of the touch-controlled 10 LED lighting system on the Dcorn DMR-07 Digital Microscope.

૩. ફોટા અને વિડીયો કેપ્ચર કરવા

The microscope supports capturing still images and recording video footage directly to the included 32GB TF card.

• Use the 'OK' button on the microscope or the corresponding button on the wireless remote control to capture a photo or start/stop video recording.
• Navigate through the menu using the arrow buttons to select photo/video mode and adjust settings like resolution.

5. Connecting to PC and TV

The microscope offers HDMI and USB output for viewing on larger screens.

• HDMI આઉટપુટ: Connect the provided HDMI cable from the microscope's HD port to an HDMI input on a TV or monitor. This provides a direct, high-quality display.
• યુએસબી આઉટપુટ: Connect the provided USB cable from the microscope's USB port to a computer. The microscope can function as a UVC (USB Video Class) device, allowing you to view the live feed using standard camera software on your computer (Windows/Mac compatible).

6. Video: How to Connect to a PC

વિડિઓ 3: A guide demonstrating how to connect the Dcorn DMR-07 Digital Microscope to a PC and view જીવંત ફીડ.

જાળવણી

• લેન્સની સફાઈ: Use the provided cleaning cloth or a soft, lint-free cloth to gently wipe the lens. For stubborn smudges, use a lens cleaning solution designed for optical devices.
• સ્ક્રીનની સફાઈ: Wipe the LCD screen with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• સામાન્ય સંભાળ: Keep the microscope in a clean, dry environment. Avoid exposing it to extreme temperatures, humidity, or direct sunlight. When not in use, store it in its original packaging or a protective case.

મુશ્કેલીનિવારણ

• કોઈ શક્તિ નથી: Ensure the power adapter is securely connected to both the microscope and a working power outlet. Check if the power button is pressed.
• અસ્પષ્ટ છબી: Adjust the focus wheel on the microscope body. Ensure the specimen is within the working distance of the lens. Clean the lens if necessary.
• No Image on External Display (HDMI/USB): Verify that the cables are correctly connected. For USB connection, ensure appropriate camera software is running on your computer and the microscope is selected as the input device.
• લાઈટો કામ કરતી નથી: Check the connections of the external LED lights to the base. For touch-controlled lights, ensure you are touching the correct activation area.
• Cannot Capture Photos/Videos: Ensure the 32GB TF card is properly inserted and has sufficient free space. Check the menu settings to confirm the correct mode is selected.

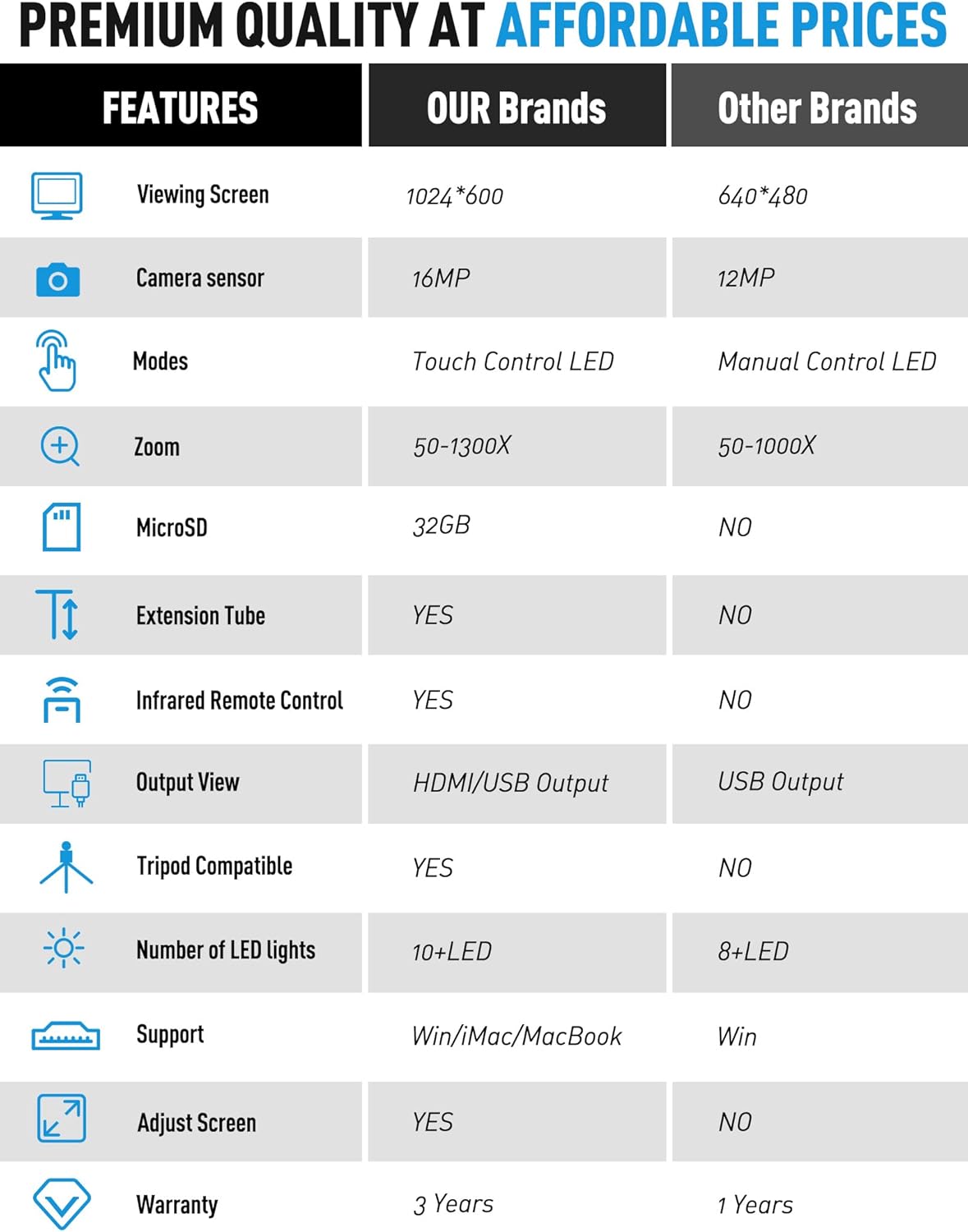

વિશિષ્ટતાઓ

વોરંટી માહિતી

The Dcorn DMR-07 Digital Microscope comes with a 3 વર્ષની વોરંટી from the date of purchase. This warranty covers manufacturing defects and ensures the product meets its specified performance standards. Please retain your proof of purchase for warranty claims.

ગ્રાહક આધાર

For any questions, technical assistance, or support regarding your Dcorn DMR-07 Digital Microscope, please contact our customer support team:

ઈમેલ: support@dcornus.com
