પરિચય
Thank you for choosing the Mould King Tiger Tank Building Blocks Toy. This comprehensive instruction manual provides essential information for the assembly, setup, operation, and maintenance of your remote and app-controlled military vehicle model. This kit contains over 800 pieces, offering a detailed and engaging building experience. Please read this manual thoroughly before beginning assembly or operation to ensure proper use and longevity of your product.
સલામતી માહિતી
This product contains small parts and is recommended for individuals aged 14 and up. Adult supervision is advised during assembly and operation, especially for younger users. Ensure all connections are secure and components are correctly assembled before powering on the device. Do not expose electronic components to water, moisture, or extreme temperatures. Always use the provided USB charging cable for the rechargeable battery. Keep the product away from open flames and heat sources. Avoid direct eye contact with any moving parts or the remote control's infrared emitter.
પેકેજ સામગ્રી
કૃપા કરીને ખાતરી કરો કે નીચેની બધી વસ્તુઓ તમારા પેકેજમાં શામેલ છે:
- Building blocks (800+ pieces) for the Tiger Tank model
- High-performance motors and smart chips
- હેન્ડહેલ્ડ રિમોટ કંટ્રોલ
- Rechargeable lithium-ion battery (pre-installed)
- યુએસબી ચાર્જિંગ કેબલ
- Detailed instruction manual for assembly
- Sticker sheet for model detailing
- Small screwdriver for battery compartment access
એસેમ્બલી સૂચનાઓ
The assembly of the Mould King Tiger Tank is a detailed process. Refer to the dedicated instruction manual included in your package for step-by-step guidance. Each step is illustrated to assist you in building the model correctly. Ensure all pieces are firmly connected to prevent detachment during operation.
Image: The assembly process requires careful attention to the provided instruction manual.
Image: A person engaged in the assembly of the tank model, highlighting the hands-on building experience.
સેટઅપ
૪.૨. બેટરી ઇન્સ્ટોલેશન અને ચાર્જિંગ
The tank model comes with a pre-installed rechargeable lithium-ion battery. To charge, connect the provided USB charging cable to the tank's charging port and a standard USB power source. Charge until the indicator light signals a full charge. The handheld remote control requires two AAA batteries (not included) to operate. Insert them into the remote's battery compartment, ensuring correct polarity.
2. પાવર ચાલુ અને જોડી
Locate the power switch on the tank and turn it ON. Then, turn on the handheld remote control. Follow the specific pairing instructions in your assembly manual to establish a connection. For APP control, download the official Mould King APP from your device's app store. Enable Bluetooth on your mobile device and follow the in-app instructions to connect to the tank.
ઓપરેટિંગ સૂચનાઓ
The Mould King Tiger Tank offers dynamic control through both a handheld remote and a mobile application. Familiarize yourself with the controls before operating.
1. ચળવળ
Use the joysticks or directional controls on your remote/app to command the tank. It can move forward, backward, turn left, and turn right. The tank features realistic crawler wheel movement, allowing it to navigate various surfaces.
2. Turret and Muzzle Control
The tank's turret can rotate a full 360 degrees. Utilize the designated controls on your remote or app to adjust the turret's direction. The muzzle angle can also be adjusted for enhanced play scenarios.
3. Sound Effects and Recoil
Experience immersive play with emulated engine sounds and simulated recoil effects when firing the main cannon. These features are activated via specific buttons on the remote or within the app interface.

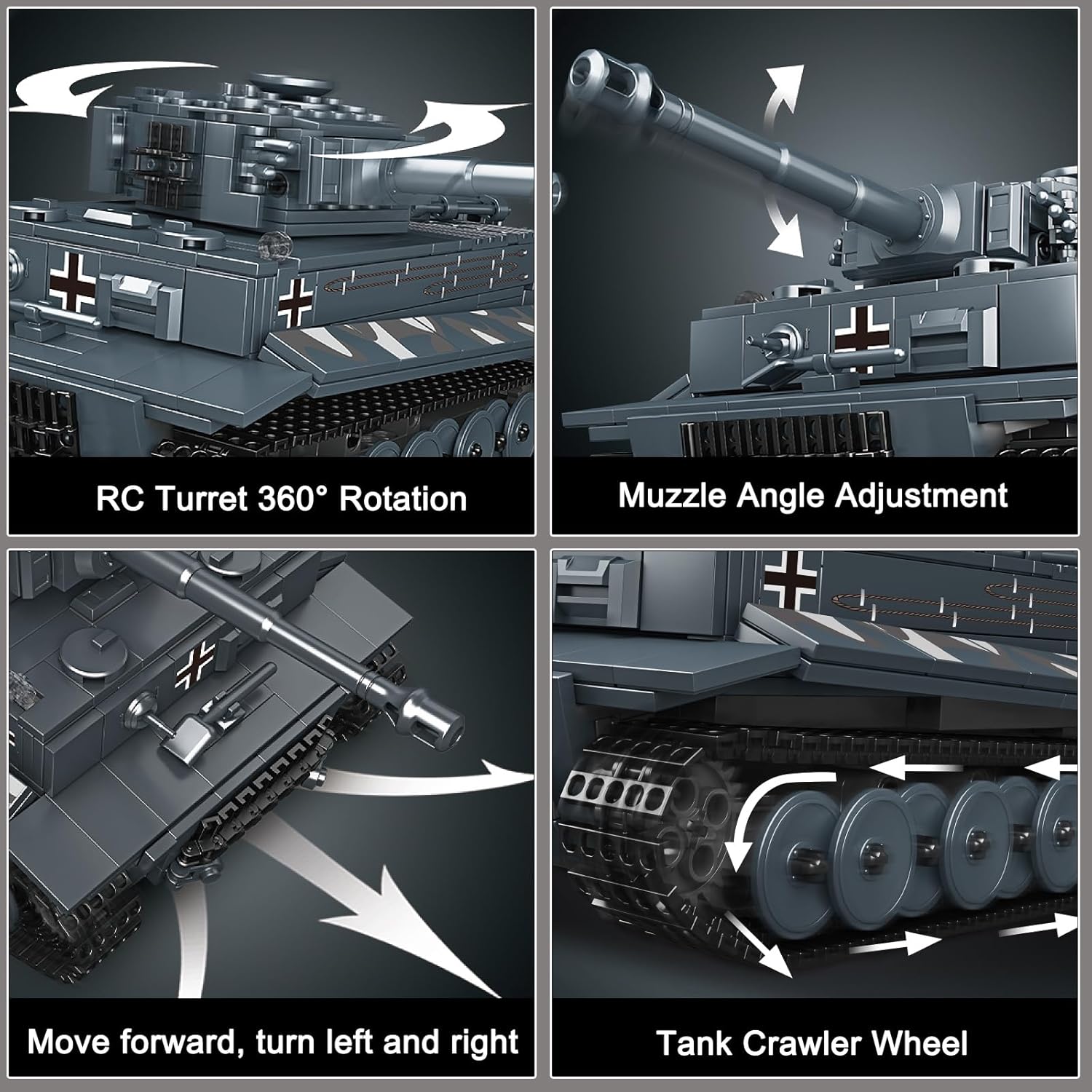

Image: Key operational features of the Mould King Tiger Tank, including turret rotation and movement.
Image: Demonstrates the two available control modes: handheld remote control and mobile application control.
Image: The tank model showcasing its emulated engine sound and simulated firing recoil.
Video: Official Mould King video demonstrating the assembly, features, and remote control operation of the Tiger Tank building blocks toy.
જાળવણી
Proper maintenance ensures the longevity and optimal performance of your Mould King Tiger Tank.
- સફાઈ: Regularly inspect the tank for dust or debris. Clean the exterior with a soft, dry cloth. Avoid using water or harsh cleaning agents, as they can damage electronic components or the plastic blocks.
- ઘટક તપાસ: Periodically check all building block connections to ensure they are secure. Reattach any loose parts promptly.
- બેટરી સંભાળ: Always fully charge the lithium-ion battery before extended storage. If the product is not used for several weeks, recharge the battery periodically (e.g., once every 1-2 months) to maintain battery health. Remove AAA batteries from the remote control if not in use for a long time to prevent leakage.
- સંગ્રહ: Store the tank in a cool, dry place away from direct sunlight and extreme temperatures.
મુશ્કેલીનિવારણ
If you encounter any issues with your Mould King Tiger Tank, refer to the following troubleshooting guide:
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| Tank not moving or unresponsive | Low battery in tank or remote; Tank/remote not paired; Power switch off. | Charge tank battery; Replace remote batteries; Ensure power switches are ON; Re-pair remote/app. |
| Turret or muzzle not moving | Loose connections in turret mechanism; Motor issue. | Check assembly of turret components; Ensure wires to motor are secure. |
| કોઈ ધ્વનિ અસરો નથી | Sound module not connected; App volume low. | Verify sound module assembly; Adjust volume in the app. |
| Tracks are jamming or falling off | Debris in tracks; Loose track links; Incorrect track assembly. | Clear any obstructions; Reconnect loose links; Review track assembly steps in manual. |
વિશિષ્ટતાઓ
Detailed technical specifications for the Mould King Tiger Tank (Model MK20014):
- ઉત્પાદન પરિમાણો: 5.09 x 4.3 x 9.6 ઇંચ
- વસ્તુનું વજન: 2.33 પાઉન્ડ
- મોડલ નંબર: MK20014
- ઉત્પાદકની ભલામણ કરેલ ઉંમર: 14 વર્ષ અને તેથી વધુ
- બેટરી: 1 Lithium Metal battery (included) for tank, 2 AAA batteries (not included) for remote control
- સામગ્રી: Child-friendly ABS materials
- ટુકડાઓની સંખ્યા: 800+
- નિયંત્રણ પદ્ધતિઓ: Handheld Remote Control, Mobile APP Control (Bluetooth)
- વિશેષતાઓ: 360-degree turret rotation, muzzle angle adjustment, emulated engine sounds, simulated recoil effects

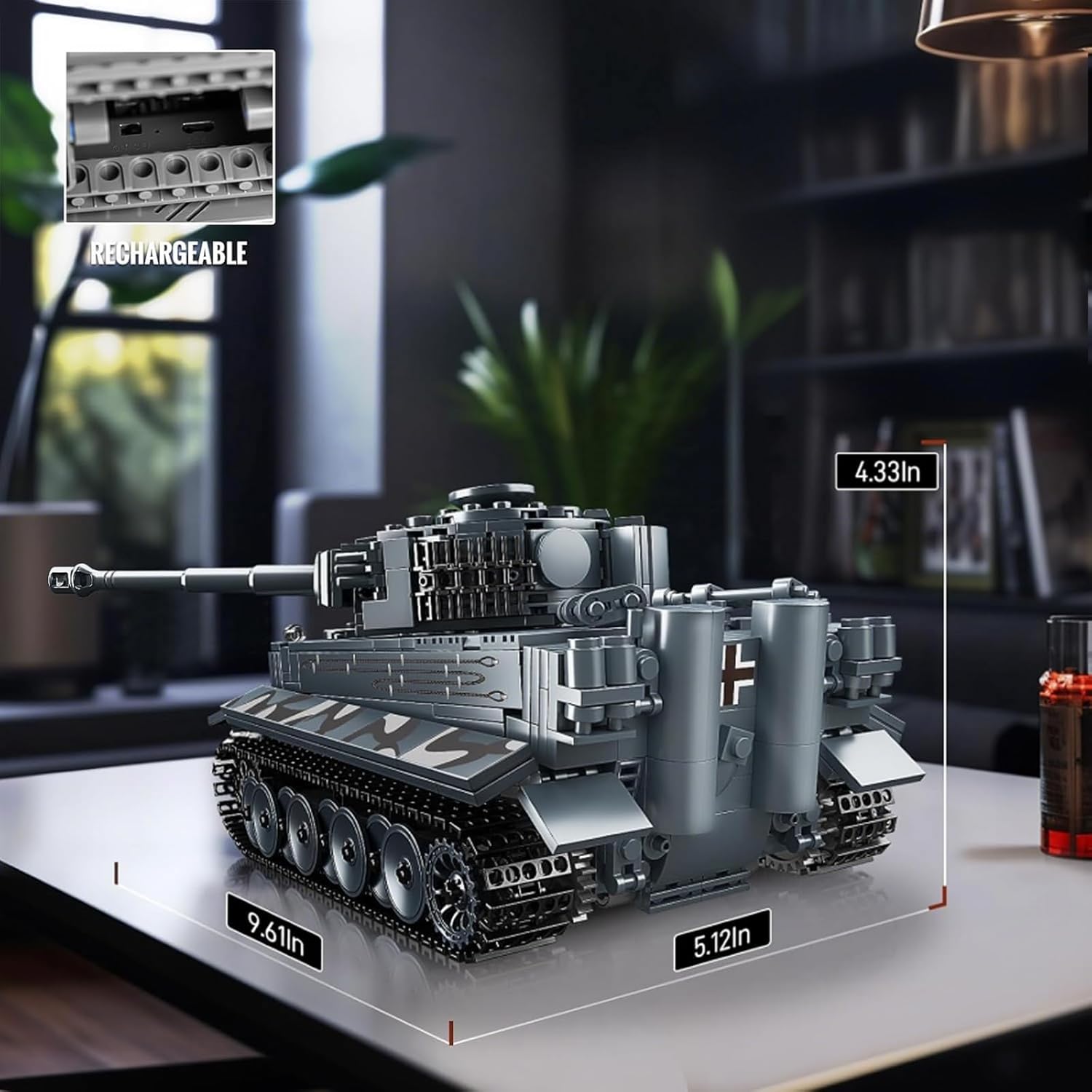

Image: Visual representation of the tank's dimensions.
વોરંટી અને આધાર
For detailed warranty information, product support, or to inquire about replacement parts, please refer to the contact details provided in the original product packaging or visit the official Mould King webસાઇટ. કોઈપણ વોરંટી દાવા માટે ખરીદીના પુરાવા તરીકે તમારી ખરીદી રસીદ રાખો.
