ઇન્ટેક્સ એક્વા ક્વેસ્ટ 320 એસયુપી સૂચના માર્ગદર્શિકા (મોડેલ 68242NP)

1. પરિચય

Thank you for choosing the Intex Aqua Quest 320 Inflatable Stand-Up Paddleboard. This manual provides essential information for the proper setup, safe operation, and maintenance of your SUP. Please read all instructions carefully before use to ensure a safe and enjoyable experience.

2. સુરક્ષા ચેતવણીઓ

ચેતવણી: Failure to follow these warnings and instructions could result in serious injury or death. Always exercise caution when using this product.

• Read all instructions and warnings carefully before use.
• આ ઉત્પાદન પુખ્ત વયના લોકો માટે બનાવાયેલ છે.
• Always wear a Coast Guard-approved personal flotation device (PFD).
• Never paddle alone. Inform others of your paddling plans.
• Do not use in rough water, strong currents, or offshore winds.
• મહત્તમ વજન ક્ષમતા ૧૩૦ કિગ્રા (૨૮૭ પાઉન્ડ) થી વધુ ન રાખો.
• Always attach the safety leash to your ankle and the board.
• Be aware of weather conditions and water hazards.
• Avoid alcohol or drugs before or during use.

3. પેકેજ સામગ્રી

ખાતરી કરો કે નીચેની બધી વસ્તુઓ તમારા પેકેજમાં શામેલ છે:

• Intex Aqua Quest 320 Inflatable SUP Board
• Double-Action Hand Pump with Pressure Gauge
• Adjustable Aluminum Paddle (65-85 inches / 165-216 cm)
• One Large Removable Fin
• Two Small Removable Fins
• Coiled Safety Leash
• EVA Anti-Slip Traction Pad (pre-installed)
• Elastic Bungee Cord for Storage

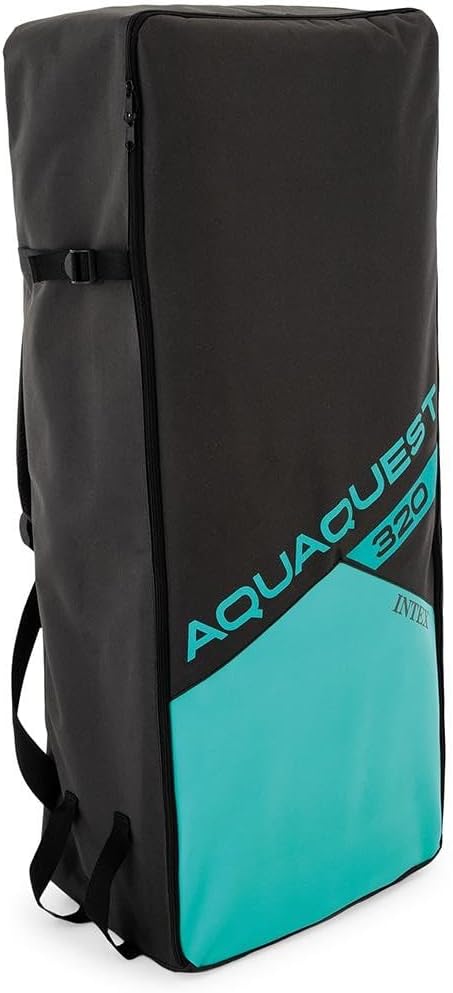

• Oxford Fabric Carrying Backpack
• સમારકામ પેચ કીટ
• સૂચના માર્ગદર્શિકા

4. સેટઅપ સૂચનાઓ

4.1 Unpacking and Preparing the Board

1. Unroll the SUP board on a clean, flat surface, free from sharp objects.
2. Locate the high-pressure inflation valve, typically at the tail of the board.

4.2 Inflating the SUP Board

1. Ensure the valve pin is in the 'up' position (closed) to prevent air from escaping.
2. Attach the hose of the double-action hand pump to the valve by twisting it clockwise until secure.
3. Begin pumping. The double-action pump inflates on both the up and down strokes. Once the board becomes firm, you can switch to single-action mode (if available on your pump) for easier pumping to higher pressures.
4. Inflate the board to the recommended pressure of 18 PSI (1.24 બાર). Use the integrated pressure gauge on the pump to monitor the pressure. Do not overinflate.
5. Once inflated, quickly disconnect the pump hose and ensure the valve cap is securely fastened.

4.3 Attaching the Fins

1. Slide the large central fin into its fin box at the rear of the board. Secure it with the provided clip or pin.
2. Insert the two smaller side fins into their respective slots.

૪.૪ પેડલ એસેમ્બલ કરવું

1. Connect the three sections of the aluminum paddle. Ensure the spring clips engage securely.
2. Adjust the paddle length to your height. A common guideline is that the paddle handle should reach your wrist when your arm is extended overhead. Secure the adjustment clamp.

4.5 Attaching the Safety Leash

1. Attach one end of the coiled safety leash to the D-ring at the tail of the SUP board.
2. Secure the other end of the leash around your ankle. This leash keeps you connected to your board if you fall off.

5. ઓપરેશન

5.1 Entering the Water

• Carry the inflated SUP using the central handle.
• Wade into water deep enough to avoid damaging the fins.
• Kneel on the center of the board, placing your hands on either side for stability.

૫.૨ પેડલિંગ તકનીકો

• ઉભા રહેવું: From a kneeling position, place your paddle across the board. Stand up one foot at a time, keeping your feet shoulder-width apart and slightly bent knees. Look towards the horizon for balance.
• Basic Stroke: Hold the paddle with one hand on the T-handle and the other on the shaft. Reach forward, immerse the blade fully, and pull it back towards your feet. Keep your core engaged.
• વળવું: To turn right, paddle on the left side of the board. To turn left, paddle on the right side. For sharper turns, use a sweep stroke by paddling in a wide arc.

5.3 Storage and Gear

The elastic bungee cord system at the front of the board can be used to secure dry bags, water bottles, or other small items. Ensure items are waterproof and securely fastened.

6. જાળવણી

6.1 સફાઈ

After each use, rinse the SUP board, paddle, and fins with fresh water to remove salt, sand, and dirt. Use mild soap and water for stubborn stains. Ensure the board is completely dry before storage to prevent mold and mildew.

6.2 સંગ્રહ

1. To deflate, press the valve pin down to the 'open' position. Air will rapidly escape.
2. Roll the board tightly from the nose to the tail, pushing out any remaining air.
3. Store the deflated board, paddle, pump, and fins in the provided carrying backpack in a cool, dry place, away from direct sunlight and extreme temperatures.

6.3 સમારકામ

Small punctures can be repaired using the included repair patch kit. For larger damage, contact Intex customer support or a professional repair service.

7. મુશ્કેલીનિવારણ

This section addresses common issues you might encounter with your Intex Aqua Quest 320 SUP.

• બોર્ડમાં હવા ગુમાવવી: Check the inflation valve for proper closure and ensure no sand or debris is preventing a seal. Inspect the board for punctures. Use soapy water to locate small leaks.
• Difficulty maintaining balance: Ensure the board is fully inflated to 18 PSI. Practice kneeling before standing. Keep your gaze forward, not at your feet.
• Paddle feels too short/long: Re-adjust the paddle length. The top of the paddle handle should reach your wrist when your arm is fully extended overhead.

For further assistance, please refer to the Intex customer support information provided in the warranty section.

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

Intex provides a 1-year availability for spare parts in the EU for this product. For warranty claims, technical support, or to inquire about replacement parts, please contact Intex customer service directly. Keep your proof of purchase for warranty validation.

ઉત્પાદક: Intex Development Company Limited

For the most up-to-date support information, please visit the official Intex website or refer to the contact details provided on your product packaging.
