AUTOOL હેવી-ડ્યુટી મોડ્યુલર સર્વિસ કાર્ટ T22 સૂચના માર્ગદર્શિકા

1. પરિચય

This manual provides detailed instructions for the assembly, operation, and maintenance of your AUTOOL Heavy-Duty Modular Service Cart T22. Designed for automotive workshops, this versatile cart offers organized storage and mobility for various tools and equipment.

મુખ્ય લક્ષણો:

• Layered storage design for laptops, diagnostic tools, power supplies, and auto batteries.
• Sturdy and durable heavy-duty SPCC steel construction with a maximum load capacity of 220 pounds (100 kg).
• Powder-coated finish for excellent rust and corrosion resistance.
• Four 360-degree swivel casters (two lockable) for easy movement and secure positioning.
• Humanized design features including a stainless steel push handle, side hooks, adjustable securing straps, and a side mouse pad.

2. સલામતી માહિતી

Please read and understand all safety instructions before assembling or operating the service cart. Failure to follow these instructions may result in injury or damage to the product.

• Always assemble the cart on a flat, stable surface.
• Do not exceed the maximum load capacity of 220 pounds (100 kg).
• ઉપયોગ કરતા પહેલા ખાતરી કરો કે બધા ફાસ્ટનર્સ સુરક્ષિત રીતે કડક છે.
• Lock the casters when the cart is stationary to prevent accidental movement.
• Distribute weight evenly on the shelves to maintain stability.
• એસેમ્બલી અને ઓપરેશન દરમિયાન હાથ અને આંગળીઓને હલનચલન કરતા ભાગોથી દૂર રાખો.
• બાળકોને ગાડી પર કે તેની આસપાસ રમવાની મંજૂરી આપશો નહીં.

3. પેકેજ સામગ્રી

એસેમ્બલી શરૂ કરતા પહેલા ખાતરી કરો કે બધા ઘટકો હાજર છે અને તેમને કોઈ નુકસાન થયું નથી. જો કોઈ ભાગો ખૂટે છે અથવા નુકસાન થયું છે, તો કૃપા કરીને ગ્રાહક સપોર્ટનો સંપર્ક કરો.

છબી 3.1: વિસ્ફોટ થયો view of the AUTOOL T22 service cart components, showing all individual parts including shelves, side panels, casters, handle, and fasteners.

પેકેજમાં શામેલ હોવું જોઈએ:

• Base plate with pre-drilled holes for casters
• Side support panels (2, with AUTOOL branding)
• Shelves (various sizes for different storage layers)
• Four 360-degree swivel casters (2 with locking mechanism)
• સ્ટેનલેસ સ્ટીલ પુશ હેન્ડલ
• Side hooks (4)
• Adjustable securing straps
• Side mouse pad
• એસેમ્બલી હાર્ડવેર (બોલ્ટ, નટ, વોશર)
• Wrench/screwdriver for assembly

4. એસેમ્બલી સૂચનાઓ

Follow these steps to assemble your AUTOOL Heavy-Duty Modular Service Cart T22. It is recommended to have a second person assist with some steps.

છબી 4.2: Visual representation of the assembly process, showing the sequence of attaching the base, side panels, and shelves to form the complete service cart structure.

1. કાસ્ટર્સ જોડો: Secure the four 360-degree swivel casters to the bottom base plate using the provided bolts and nuts. Ensure the two lockable casters are positioned at the front for easy access.
2. સાઇડ પેનલ્સ ઇન્સ્ટોલ કરો: Attach the main side support panels to the base plate. These panels form the vertical structure of the cart.
3. Mount Shelves: Install the various shelves into their designated slots on the side panels. The cart features specific layers for a laptop, programming power supply, and general tools. Secure each shelf with the appropriate fasteners.
4. Attach Push Handle: Secure the stainless steel push handle to the top section of the side panels.
5. એસેસરીઝ ઉમેરો: Install the side hooks and the side mouse pad as desired.
6. અંતિમ તપાસ: Verify that all bolts and nuts are securely tightened and that the cart is stable.

5. ઓપરેશન અને ઉપયોગ

The AUTOOL T22 service cart is designed for efficient organization and mobility in a workshop environment.

છબી 5.1: ઉપરview of the customizable workspace on the AUTOOL T22 service cart, highlighting dedicated tiers for a laptop, programmable power supply, professional tools, and a vehicle battery.

• Modular Storage: Utilize the multi-tier design to organize your equipment. The top shelf is ideal for a laptop, while lower shelves can accommodate diagnostic tools, programming power supplies, and vehicle batteries.
• Caster Operation: The 360-degree swivel casters allow for easy maneuverability. To secure the cart in place, press down on the locking mechanism on the two designated casters. To move, release the locks.


છબી 5.2: વિગતવાર view of the 360-degree swivel casters on the AUTOOL T22 service cart, illustrating the locking mechanism for stability and the smooth rotation for easy movement.

• સાઇડ હુક્સ: The integrated side hooks provide convenient storage for frequently used tools, cables, or other accessories, keeping them within reach and preventing loss.
• Adjustable Securing Straps: Use the provided adjustable straps to firmly hold devices like programmable power supplies or other equipment in place, preventing movement during transport or work.
• Side Mouse Pad: The dedicated side mouse pad offers a stable surface for using a computer mouse, assisting with ECU programming or other laptop-based tasks.

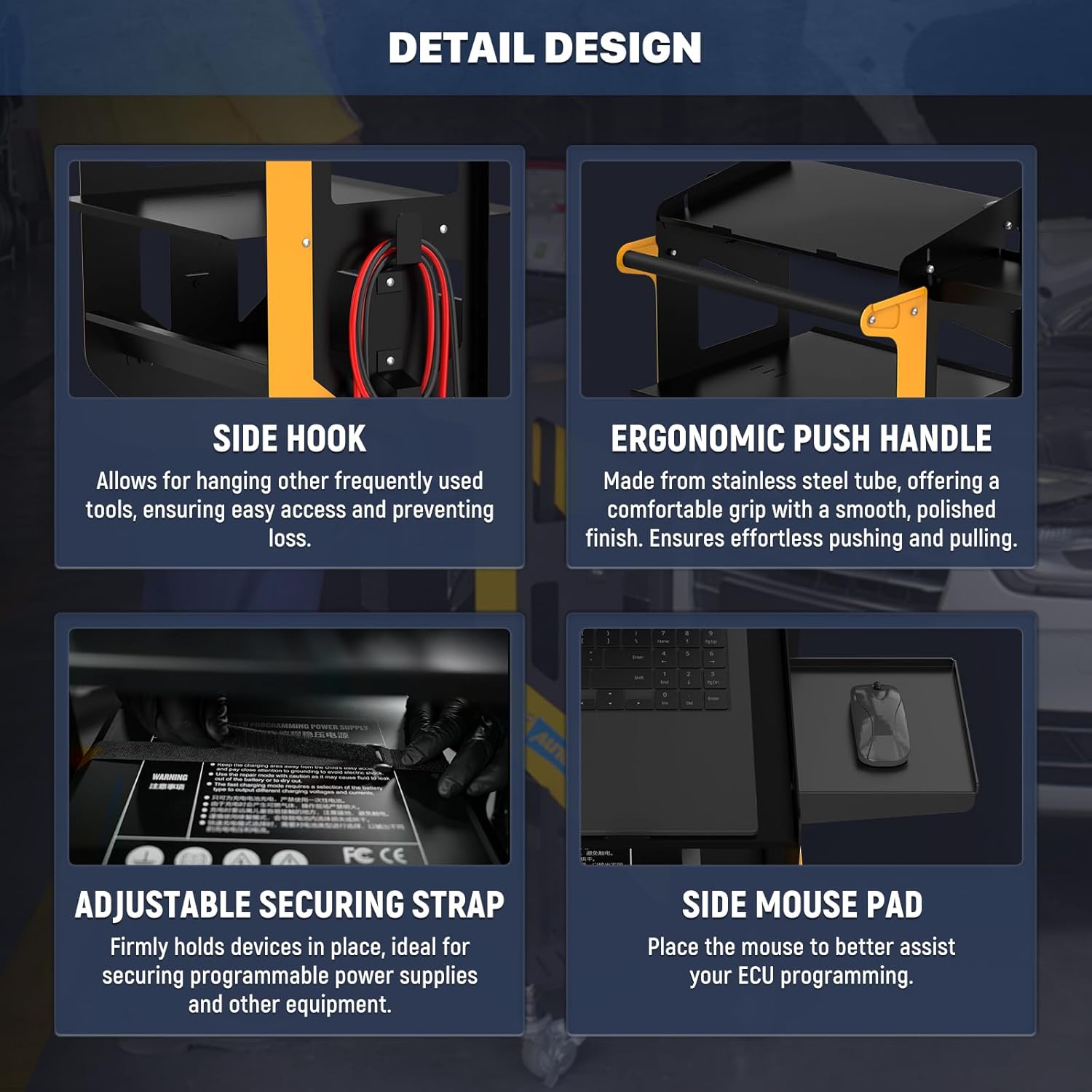

છબી 5.3: Close-up of the detailed design elements of the AUTOOL T22 service cart, showcasing the practical side hooks, the ergonomic stainless steel push handle, the adjustable securing strap for equipment, and the convenient side mouse pad.

6. જાળવણી અને સંભાળ

Regular maintenance ensures the longevity and optimal performance of your service cart.

• સફાઈ: The powder-coated finish is corrosion-resistant and easy to clean. Wipe down surfaces with a damp cloth and mild detergent as needed. Avoid abrasive cleaners that could damage the finish.


છબી 6.1: Visual representation of the corrosion-proof design of the AUTOOL T22 service cart, highlighting its powder-coated finish that resists rust from oil, chemicals, and typical garage conditions.

• ઢાળગર નિરીક્ષણ: Periodically check the casters for debris, wear, or damage. Clean any accumulated dirt or hair from the wheels to ensure smooth operation.
• ફાસ્ટનર તપાસ: Regularly inspect all bolts and nuts to ensure they remain tight. Re-tighten if necessary to maintain the cart's structural integrity.

7. મુશ્કેલીનિવારણ

If you encounter any issues with your service cart, refer to the following common troubleshooting tips:

• Cart is unstable: Ensure all assembly fasteners are tightened. Verify that the cart is on a level surface. Distribute items evenly across the shelves.
• Casters are difficult to move: Check for debris (e.g., hair, string) wrapped around the caster wheels. Clean the wheels if necessary. Ensure caster locks are disengaged.
• Parts do not fit during assembly: Double-check that you are using the correct parts for each step as indicated in the assembly instructions. Do not force components together.

8. ઉત્પાદન સ્પષ્ટીકરણો

Detailed specifications for the AUTOOL Heavy-Duty Modular Service Cart T22.

છબી 8.1: Dimensional drawing of the AUTOOL T22 service cart, showing height, width, and depth measurements in both millimeters and inches.

છબી 8.2: Table summarizing the product specifications for the AUTOOL T22 service cart, including product size, weight, material, plate thickness, load bearing, and caster size.

9. વોરંટી અને સપોર્ટ

The AUTOOL Heavy-Duty Modular Service Cart T22 comes with a 3-year warranty, ensuring quality and reliability.

For technical support, warranty claims, or any questions regarding your product, please contact AUTOOL customer service through the official AUTOOL webસાઇટ અથવા તમારા ખરીદી બિંદુ.
