Alula RE667W-R-Pro Touchpad Slimline Pro User Manual

પરિચય

The Alula Slimline Touchpad PRO provides modern and intuitive control for your smart security system. Featuring a 7-inch full-color touchscreen, this device can be wall-mounted or placed on a tabletop, offering complete control of your security system from anywhere within your premises. It allows you to arm and disarm the system, view cameras, control smart devices, and initiate scenes. Its interface mirrors the Alula Smart Security app, ensuring ease of use and a familiar experience.

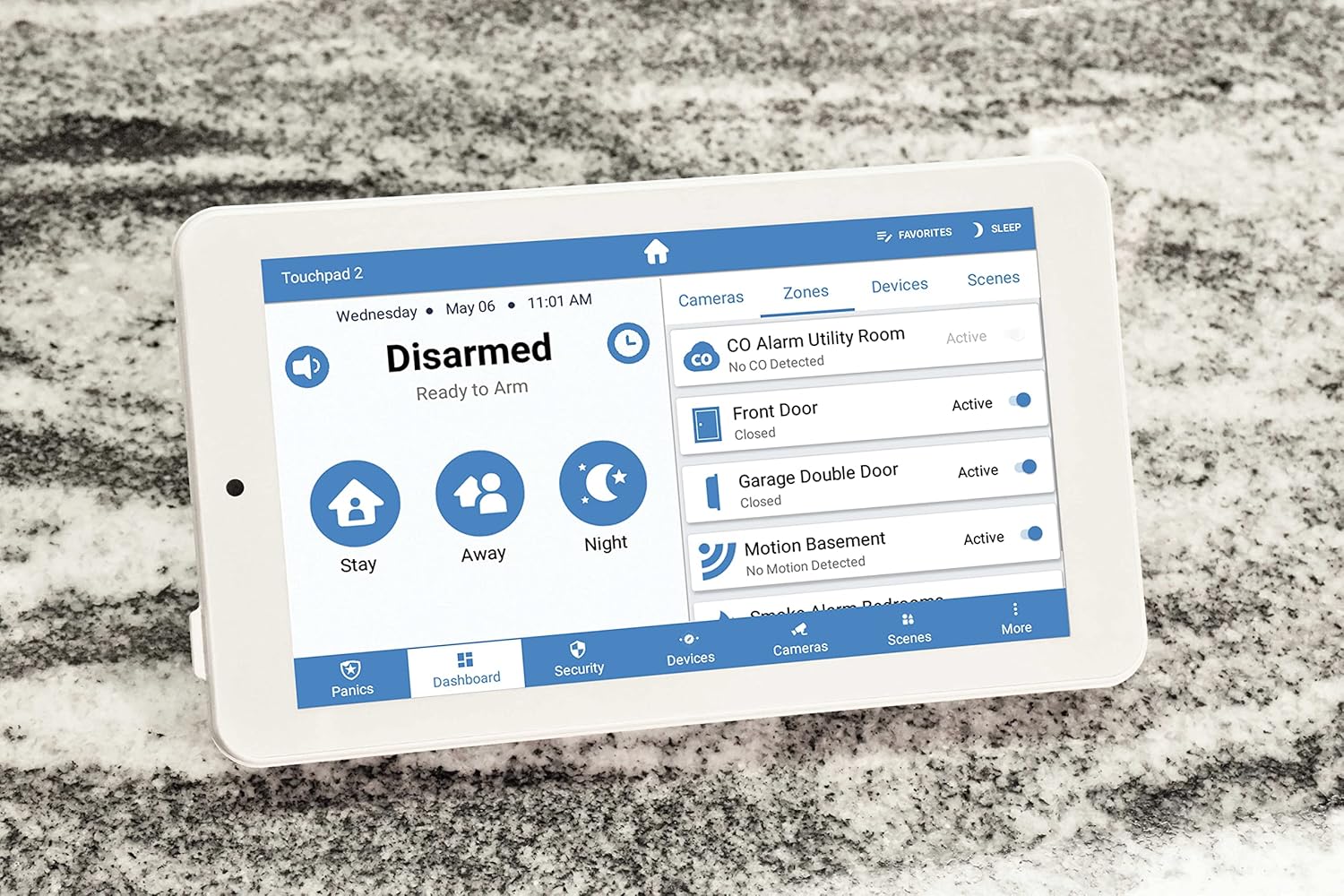

Figure 1: Alula Slimline Touchpad Pro main interface.

પેકેજ સામગ્રી

• Alula Slimline Touchpad PRO
• વોલ માઉન્ટ કૌંસ
• ટેબલટોપ સ્ટેન્ડ
• 110V Plug-in Transformer
• ચાર્જર

સેટઅપ અને ઇન્સ્ટોલેશન

The Slimline Touchpad PRO offers flexible installation options, including wall mounting or tabletop placement. Ensure the device is placed within Wi-Fi range for optimal performance.

વોલ માઉન્ટ ઇન્સ્ટોલેશન

1. Choose a suitable location on a wall, preferably near a power outlet.
2. Secure the wall mount bracket to the wall using appropriate screws (not included).
3. Connect the 12V direct wire or use the 110V plug-in transformer to power the device.
4. Carefully attach the touchpad to the mounted bracket, ensuring it clicks securely into place.

Figure 2: Touchpad in tabletop configuration, showing device and zone management.

ટેબલટોપ સ્ટેન્ડ ઇન્સ્ટોલેશન

1. Attach the tabletop stand to the back of the touchpad.
2. Place the touchpad on a flat, stable surface.
3. Connect the 110V plug-in transformer to the touchpad and plug it into a power outlet.

Initial Power-Up and Wi-Fi Connection

1. Once powered, the touchpad will boot up.
2. Follow the on-screen prompts to connect to your home Wi-Fi network.
3. જ્યારે પૂછવામાં આવે ત્યારે તમારો Wi-Fi પાસવર્ડ દાખલ કરો.
4. The touchpad will then attempt to connect to your Alula smart security system.

ઓપરેટિંગ સૂચનાઓ

The Slimline Touchpad PRO provides comprehensive control over your Alula smart security system.

આર્મિંગ અને નિઃશસ્ત્રીકરણ

• આર્મ સ્ટે: Tap the "Stay" icon to arm the system with interior motion sensors bypassed. Ideal for when you are home.
• આર્મ અવે: Tap the "Away" icon to arm all sensors. Ideal for when you leave the premises.
• Arm Night: Tap the "Night" icon for a customized arming mode, typically similar to "Stay" but with specific zones armed.
• નિઃશસ્ત્ર: Tap the "Disarmed" area and enter your user code to disarm the system.

Controlling Smart Devices and Scenes

• Navigate to the "Devices" or "Scenes" tab on the bottom menu.
• From the "Devices" tab, you can control connected smart home devices such as lights, locks, and thermostats.
• From the "Scenes" tab, you can activate pre-configured scenes that control multiple devices simultaneously (e.g., "Good Morning" scene).

Figure 3: Touchpad displaying a scenic background in disarmed state.

ટુ-વે ઓડિયો કોમ્યુનિકેશન

The touchpad supports two-way audio, allowing communication with monitoring stations or other connected devices if configured within your system.

જાળવણી

To ensure the longevity and optimal performance of your Alula Slimline Touchpad PRO, follow these maintenance guidelines:

• સફાઈ: Use a soft, dry, lint-free cloth to clean the touchscreen. For stubborn smudges, slightly dampen the cloth with water. Avoid abrasive cleaners, solvents, or aerosol sprays.
• સૉફ્ટવેર અપડેટ્સ: Ensure your touchpad's software is kept up-to-date. Updates are typically pushed automatically via your Wi-Fi connection.
• પાવર સપ્લાય: Always use the original Alula power adapter. Do not use third-party adapters.
• પ્લેસમેન્ટ: Avoid placing the touchpad in direct sunlight, near heat sources, or in areas with extreme humidity.

મુશ્કેલીનિવારણ

વિશિષ્ટતાઓ

વોરંટી અને આધાર

For warranty information and technical support, please refer to the official Alula website or contact your authorized Alula dealer. Keep your purchase receipt as proof of purchase.

Alula Support: alula.com/support
