AUTOOL SVB305 ટુ-વે આર્ટિક્યુલેટિંગ એન્ડોસ્કોપ કેમેરા યુઝર મેન્યુઅલ

1. પરિચય

This manual provides detailed instructions for the proper use and maintenance of the AUTOOL SVB305 Two-Way Articulating Endoscope Camera. Please read this manual thoroughly before operating the device to ensure safe and efficient use. The AUTOOL SVB305 is designed for inspecting hard-to-reach areas, featuring a 210° articulating probe, a 4.3-inch IPS display, and a 1080P camera for clear visual inspection.

2. ઉત્પાદન ઓવરview

2.1 પેકેજ સામગ્રી

The AUTOOL SVB305 package typically includes the following items:

• AUTOOL SVB305 Endoscope Camera Unit
• Flexible Articulating Probe (3FT)
• ૩૨ જીબી માઇક્રો એસડી કાર્ડ (પહેલાથી ઇન્સ્ટોલ કરેલું અથવા અલગથી શામેલ)
• USB-C ચાર્જિંગ કેબલ
• વપરાશકર્તા માર્ગદર્શિકા
• સ્ટોરેજ કેસ

Image: Contents of the AUTOOL SVB305 Endoscope Camera package, including the main unit, flexible probe, USB-C cable, user manual, and storage case.

2.2 મુખ્ય લક્ષણો

• Two-Way 210° Articulating Probe: Allows flexible bending of the probe tip for comprehensive viewing in confined spaces.
• 0.21-inch (6.35mm) Diameter Probe: Designed for accessing narrow openings.
• 1080P HD કેમેરા: Captures clear images and videos with 1.0MP CMOS sensor.
• ૩ ઇંચની IPS સ્ક્રીન: Provides a sharp and vibrant display for real-time viewing
• IP67 Waterproof Probe: Suitable for use in wet and oily environments.
• એડજસ્ટેબલ એલઇડી લાઇટ્સ: Six high-intensity LEDs with three brightness levels for optimal illumination.
• 2000mAh રિચાર્જેબલ બેટરી: Offers up to 3 hours of continuous operation.
• 32GB માઈક્રો એસડી કાર્ડ: For convenient storage of captured media.
• Automatic Temperature Alarm: Alerts and shuts down the device if the probe temperature exceeds 176°F (80°C).

Image: The AUTOOL SVB305 Endoscope Camera, showing the main display unit, control buttons, and the flexible articulating probe.

Image: Detailed diagram illustrating the 2-way 210° articulation capability of the probe, 70° viewing angle, 1.3-inch bending radius, 0.2-inch lens diameter, and 0.9-4.0 inch depth of field.

છબી: વિસ્ફોટ થયો view of the 4.3-inch IPS screen, highlighting its tempered glass, IPS LCD, and backlight components, with an image resolution of 1280x720.

3. સેટઅપ

3.1 ઉપકરણને ચાર્જ કરવું

Before first use, fully charge the endoscope camera. Connect the provided USB-C charging cable to the device's charging port and a suitable USB power adapter (not included). The charging indicator will show the charging status. A full charge provides approximately 3 hours of working time.

Image: Illustration of the 2000mAh rechargeable battery providing 3 hours of working time, with the device connected to a charger via USB-C cable.

Image: The endoscope camera being charged using the USB-C charging cable, highlighting the charging port.

3.2 માઇક્રો SD કાર્ડ દાખલ કરવું

Locate the Micro SD card slot on the device. Insert the provided 32GB Micro SD card into the slot until it clicks into place. This card is essential for saving photos and videos.

Image: Illustration showing the insertion of the 32GB Micro SD card into the designated slot on the endoscope camera.

4. ઓપરેટિંગ સૂચનાઓ

4.1 પાવરિંગ ચાલુ/બંધ

Press and hold the power button to turn the device on or off. The 4.3-inch IPS screen will illuminate upon startup.

4.2 મૂળભૂત નિયંત્રણો

The device features several buttons and a rotation wheel for control:

• Power On/Light Control: Turns the device on/off and adjusts LED brightness.
• ફોટો/વિડિયો બટન: Captures still images or starts/stops video recording.
• સેટિંગ્સ કી: ઉપકરણ સેટિંગ્સ મેનૂને ઍક્સેસ કરે છે.
• Up/Down/Toggle Keys: મેનુઓ નેવિગેટ કરે છે અને સેટિંગ્સ ગોઠવે છે.
• ઓકે કી: પસંદગીની પુષ્ટિ કરે છે.
• Rotation Wheel: Controls the articulation of the probe tip.

Image: A detailed diagram labeling the 5-inch display, SD interface, M key, Up key, Rotation Wheel, HD Camera, Flexible Cable, OK Key, Charging Port, Down/Toggle Key, Settings Key, Power on Light-control, and Photo/Video button.

4.3 Steering the Probe

Use the rotation wheel on the handle to articulate the probe tip up to 210° in two directions. This allows for flexible navigation and viewing around corners or obstacles within confined spaces.

Image: The flexible articulating probe navigating inside a curved pipe, demonstrating its two-way 210° steering capability.

Image: A hand operating the scroll roller (rotation wheel) to switch the viewing angle of the flexible gooseneck probe, illustrating its ability to reach narrow spaces.

૬.૨ LED લાઇટ્સનું સમાયોજન

The probe tip is equipped with 6 high-intensity LED lights. Press the dedicated light control button to cycle through three adjustable brightness levels, ensuring clear visibility in dark environments.

Image: The endoscope probe tip showing its 6 LED lights and illustrating the three levels of brightness adjustment.

Image: Visual representation of the 6 LEDs and their 3 adjustable brightness levels, designed for optimal visibility in dark areas.

૬.૪ ફોટા અને વિડિઓઝ કેપ્ચર કરવા

Press the Photo/Video button to take a still image. Press and hold the same button to start video recording; press again to stop. All captured media is saved to the installed 32GB Micro SD card.

Image: A user wearing gloves holding the AUTOOL SVB305 endoscope camera, with the probe inserted into an engine compartment, demonstrating its use in an inspection scenario.

4.6 Multilingual Support

The device supports multiple languages. Access the settings menu to select your preferred language, including English, French, Spanish, Russian, German, Italian, Chinese, and Japanese.

Image: A display showing various language options available on the AUTOOL SVB305, including English, French, Spanish, Russian, German, Italian, Chinese, and Japanese.

5. જાળવણી

5.1 Cleaning the Probe

The probe is IP67 waterproof and oilproof. After use, especially in dirty or oily environments, gently wipe the probe with a soft, damp cloth. For stubborn grime, a mild, non-abrasive cleaner can be used. Ensure the probe is dry before storage.

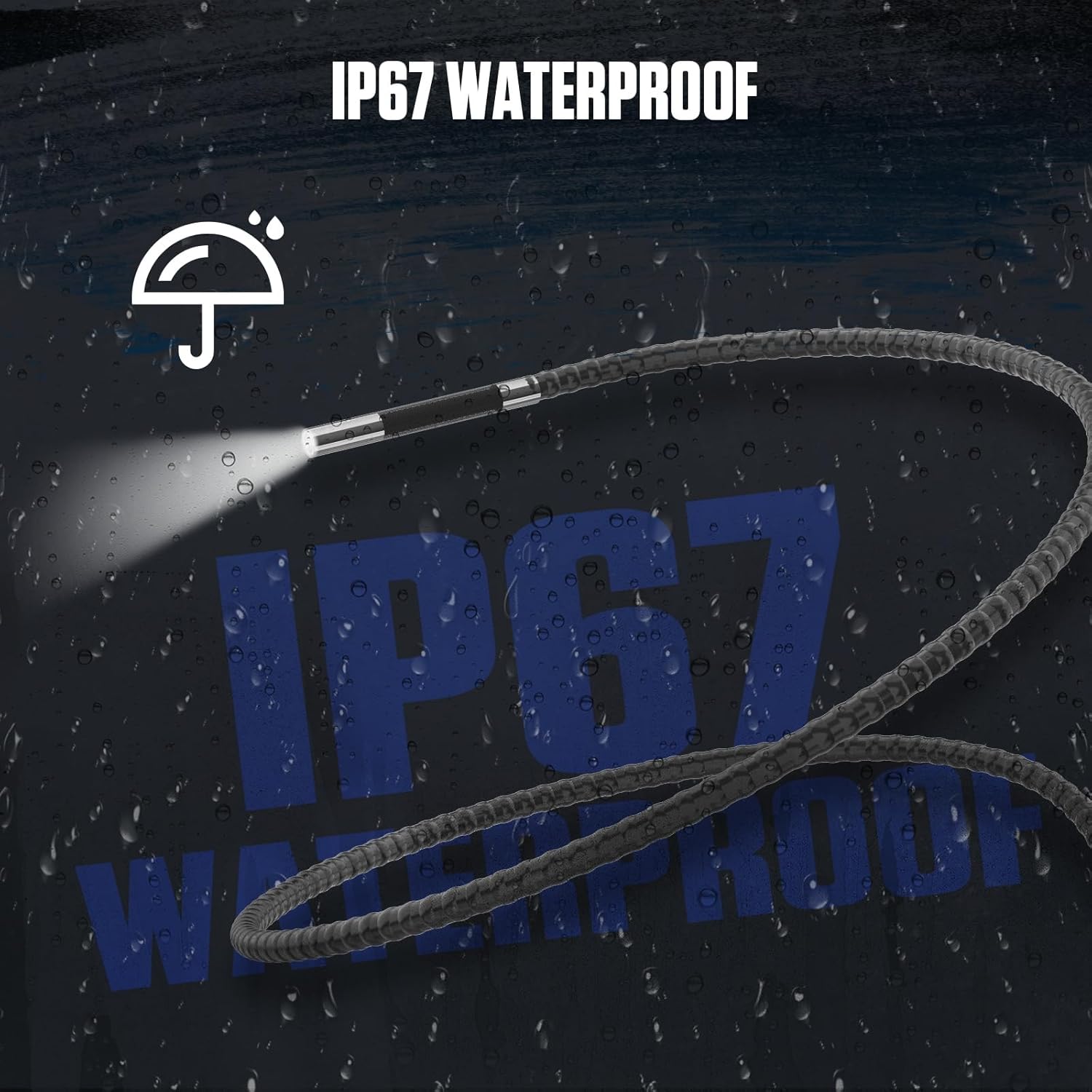

Image: The endoscope probe tip submerged in water, visually representing its IP67 waterproof capability.

Image: Illustration emphasizing the IP67 waterproof and corrosion-resistant materials used in the probe's construction, suitable for various environments.

5.2 બેટરી કેર

બેટરીનું આયુષ્ય વધારવા માટે, વારંવાર બેટરીને સંપૂર્ણપણે ડિસ્ચાર્જ કરવાનું ટાળો. ઉપકરણને નિયમિતપણે ચાર્જ કરો, ભલે તે લાંબા સમય સુધી ઉપયોગમાં ન હોય. ઉપકરણને ઠંડી, સૂકી જગ્યાએ સ્ટોર કરો.

5.3 સંગ્રહ

When not in use, store the endoscope camera and its accessories in the provided storage case to protect them from dust, moisture, and physical damage.

6. મુશ્કેલીનિવારણ

6.1 No Image on Screen

• ખાતરી કરો કે ઉપકરણ ચાલુ છે અને સંપૂર્ણ ચાર્જ થયેલ છે.
• Check if the probe cable is securely connected to the main unit.
• ચકાસો કે કેમેરા લેન્સ સ્વચ્છ અને અવરોધોથી મુક્ત છે.

6.2 Device Shuts Down Unexpectedly

The AUTOOL SVB305 features an automatic alarm and shutdown mechanism if the probe temperature exceeds 176°F (80°C) to prevent damage. Allow the device to cool down before resuming operation. If the issue persists and is not related to temperature, ensure the battery is adequately charged.

Image: Visual representation of the automatic alarm and shutdown feature that activates when the probe temperature exceeds 176°F (80°C), indicating high temperature protection.

6.3 Unable to Save Photos/Videos

• Ensure a 32GB Micro SD card is correctly inserted.
• Check if the Micro SD card has sufficient free space.
• Verify that the Micro SD card is not locked (read-only).

7. સ્પષ્ટીકરણો

8. વોરંટી અને સપોર્ટ

The AUTOOL SVB305 Endoscope Camera comes with a ત્રણ વર્ષની વોરંટી against manufacturing defects. For any quality issues or technical assistance, please contact AUTOOL customer support. They are committed to providing solutions and technical support until satisfaction. Please refer to the official AUTOOL webચોક્કસ સંપર્ક વિગતો માટે સાઇટ અથવા તમારા ખરીદી દસ્તાવેજો.

સપોર્ટ માટેની સંપર્ક માહિતી સામાન્ય રીતે ઉત્પાદકના webસાઇટ પર અથવા ઉત્પાદન પેકેજિંગની અંદર.
