Greenworks 24V Cordless 3-Ton Hydraulic Car Jack Instruction Manual

1. ઉત્પાદન ઓવરview

The Greenworks 24V Cordless Hydraulic Car Jack (Model JKG301) is designed for lifting vehicles with a maximum weight of 3 tons. This tool is part of the Greenworks 24V lithium-ion platform, offering cordless convenience for various automotive tasks. It features a lifting height range of 6.1 to 17.5 inches (155-445mm), a self-locking power structure for safety, and integrated LED lights for illuminating the work area.

મુખ્ય લક્ષણો:

• 24V Cordless Operation: Utilizes Greenworks 24V lithium-ion batteries (sold separately for 'Tool Only' model).
• 3-Ton Max Loading: Capable of lifting vehicles up to 3 tons. Jacking force: 1.55 tons.
• Adjustable Lifting Height: Provides a lifting range from 6.1 inches to 17.5 inches (155-445mm).
• Self-Locking Function: Built-in power structure and overloading protection for enhanced safety.
• સંકલિત લાઇટિંગ: Features built-in LEDs and orange flashlights to illuminate the work area.
• એક-બટન ઓપરેશન: Designed for easy and quick vehicle lifting.
• પ્રેશર રિલિફ વાલ્વ: Allows for manual lowering in emergency situations.

Figure 1: Greenworks 24V Cordless Car Jack highlighting key features like max lift height, carry handle, 3-ton max lift capacity, bright LED up-lighting, hydraulic lift system, aluminum alloy footplate, and LED flashing hazard light.

2. સલામતી માહિતી

Always read and understand all safety warnings and instructions before operating this product. Failure to follow these instructions may result in serious injury or property damage.

સામાન્ય સલામતી સાવચેતીઓ:

• જેક સ્ટેન્ડનો ઉપયોગ કરો: Always utilize jack stands to support the vehicle after lifting and before performing any work underneath. The car jack is designed for lifting, not for sustained support.
• સ્થિર સપાટી: Operate the jack on a firm, level surface. Avoid uneven ground or soft surfaces that could cause the jack to shift or sink.
• વાહનનું વજન: Do not exceed the maximum rated capacity of 3 tons. Ensure the vehicle's weight is within the jack's limits.
• યોગ્ય પ્લેસમેન્ટ: Position the jack only on the vehicle's designated lifting points as specified in your vehicle's owner's manual. Improper placement can damage the vehicle or cause instability.
• વિસ્તાર સાફ કરો: Keep hands, feet, and other body parts clear of the jack and vehicle during lifting and lowering operations.
• બેટરી સલામતી: Use only Greenworks 24V lithium-ion batteries. Do not expose batteries to water, fire, or extreme temperatures.
• Emergency Lowering: Familiarize yourself with the pressure relief valve for manual lowering in case of power loss or malfunction.

3. પેકેજ સામગ્રી

The Greenworks 24V Cordless Hydraulic Car Jack (Model JKG301) includes the following items:

• Greenworks 24V Cordless Car Jack (Tool Only)

Note: Batteries and chargers are sold separately for the 'Tool Only' model.

4. સેટઅપ

બેટરી ઇન્સ્ટોલેશન અને ચાર્જિંગ:

1. Ensure the car jack's power switch is in the 'OFF' position.
2. Align the 24V lithium-ion battery with the battery port on the jack.
3. બેટરીને પોર્ટમાં સ્લાઇડ કરો જ્યાં સુધી તે સુરક્ષિત રીતે જગ્યાએ ક્લિક ન થાય.
4. બેટરી દૂર કરવા માટે, બેટરી રિલીઝ બટન દબાવો અને બેટરીને સ્લાઇડ કરો.
5. Charge the battery using a compatible Greenworks 24V charger (sold separately) according to the charger's instructions.

Preparing the Jack:

1. Place the car jack on a flat, stable, and non-slippery surface.
2. Ensure the vehicle is parked on a level surface, the parking brake is engaged, and the wheels are chocked.
3. Locate the vehicle's designated lifting points (refer to your vehicle's owner's manual).
4. Position the car jack directly under the lifting point, ensuring the saddle is centered and making full contact.

Figure 2: The Greenworks 24V Cordless Car Jack positioned under a vehicle, demonstrating its 3-ton max lift capacity. Always use jack stands for safety.

5. ઓપરેટિંગ સૂચનાઓ

Lifting a Vehicle:

1. With the battery installed and the jack positioned correctly, turn on the power switch. The LED lights will activate.
2. Press and hold the 'UP' button (indicated by an upward arrow) to raise the jack. The jack will begin to extend, lifting the vehicle.
3. Monitor the lifting process to ensure stability. The jack has a self-locking structure that engages automatically.
4. Once the desired height is reached, release the 'UP' button. The jack will hold its position.
5. Immediately place appropriately rated jack stands under the vehicle's designated support points before working underneath.

Figure 3: Illustration of the self-locking structure of the Greenworks 24V Cordless Car Jack, showing the simple one-button operation for lifting and the secure locking mechanism.

Lowering a Vehicle:

1. Ensure all work under the vehicle is complete and tools are removed.
2. કાળજીપૂર્વક જેક સ્ટેન્ડ દૂર કરો.
3. Press and hold the 'DOWN' button (indicated by a downward arrow) to slowly lower the vehicle.
4. Once the vehicle is fully lowered and resting on its wheels, release the 'DOWN' button.
5. Turn off the power switch and remove the battery for storage.

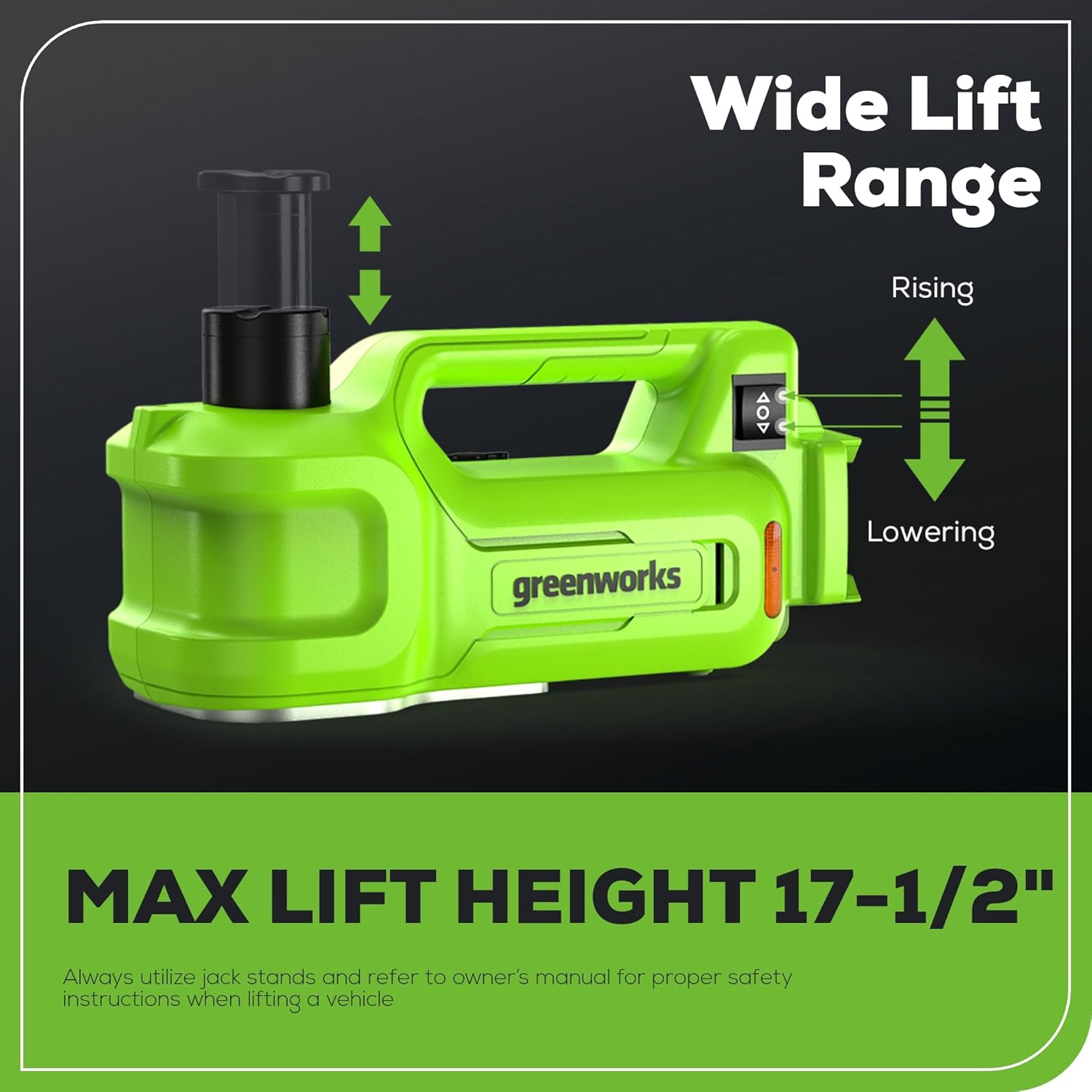

Figure 4: The Greenworks 24V Cordless Car Jack illustrating its wide lift range, from minimum to maximum extension, controlled by a single switch for rising or lowering.

Emergency Pressure Release:

In the event of a power failure or if the jack needs to be lowered manually, use the pressure relief valve:

1. Locate the pressure relief valve on the top of the jack.
2. Use the provided Allen wrench (or a suitable tool) to slowly turn the valve counter-clockwise.
3. The jack will begin to lower. Turn the valve clockwise to stop the lowering process.
4. Ensure the vehicle is lowered completely and safely before removing the jack.

Figure 5: Close-up of the Greenworks 24V Cordless Car Jack showing the pressure relief valve and the Allen wrench used for manual lowering in emergencies.

6. જાળવણી

Regular maintenance ensures the longevity and safe operation of your Greenworks 24V Cordless Hydraulic Car Jack.

• સફાઈ: After each use, wipe down the jack with a clean, damp cloth to remove dirt, grease, and debris. Do not use harsh chemicals or solvents.
• સંગ્રહ: Store the car jack in a dry, clean, and secure location away from direct sunlight and extreme temperatures. Remove the battery before storing for extended periods.
• નિરીક્ષણ: Periodically inspect the jack for any signs of damage, wear, or leaks. Ensure all moving parts operate smoothly. Do not use a damaged jack.
• બેટરી સંભાળ: Store batteries in a cool, dry place. Do not store fully discharged batteries. Charge them periodically if not in use.

7. મુશ્કેલીનિવારણ

If you encounter issues with your Greenworks 24V Cordless Hydraulic Car Jack, refer to the following table for common problems and solutions.

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

વોરંટી માહિતી:

The Greenworks 24V Cordless Hydraulic Car Jack comes with a 3-year tool and battery warranty, safeguarding your investment. Please retain your proof of purchase for warranty claims.

ગ્રાહક આધાર:

For technical assistance, warranty claims, or to purchase replacement parts, please contact Greenworks customer support. Refer to the official Greenworks webસૌથી અદ્યતન સંપર્ક માહિતી માટે સાઇટ અથવા તમારા ઉત્પાદન પેકેજિંગ પર સંપર્ક કરો.
